unkelo

Naomi Universal Candy Cabinet rebuild to Mame Cab

Recommended Posts

Hi,

I bought for some months ago a Naomi Virtua Striker 4 2006 Cabinet for 220€.

Wanted to rebuild it to an Mame Cab.



The first job in my todo list was to change the CRT

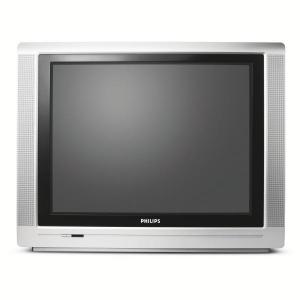

I found a used rarely Philips 29 PT 9521 73,7 cm (29 Zoll) 4:3 100 Hertz PIXEL PLUS with 720p/1080i for 50€


But i was disappointed about the Video Quality.

For Games it was ok . It wasnt pixelate but for configuration of mame in windows mode at 1080i or 720p it wasnt sharp enough.

So i decided to change the CRT with an LCD.

I bought a used 26" LCD with guarantee and 720p<for 110€. SAMSUNG 26" FLAT TV LCD ,HDMI, 16:9 , Chinch, Scart, VGA, HF, OSD, HD Ready ...

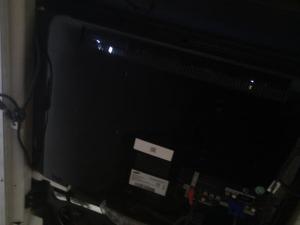

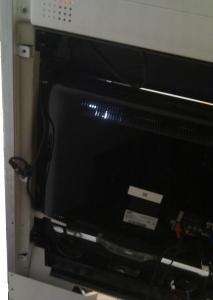

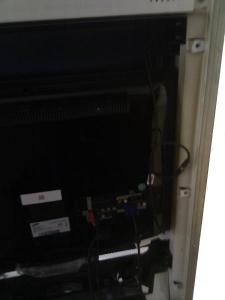

It was easy to fit the LCD between the Front and the Legs of the Naomi Cabinet.

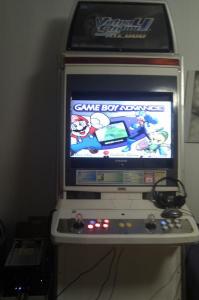

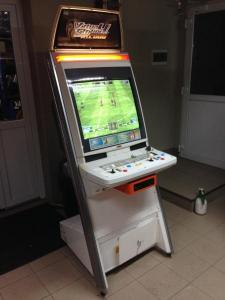

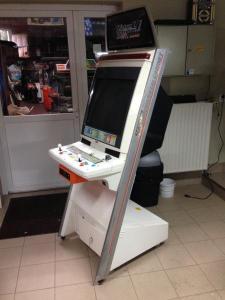

Here some current Images .





I emptied the Cabinet from Triforce and Powersupply, Sega i/o and all the Looms.

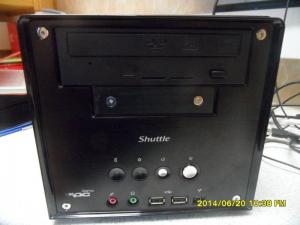

Bought a little ShuttlePC XPC for Hyperspin etc for 60€.

Shuttle XPC GLAMOR SN95G5B Athlon64X2 3800+ 2GB

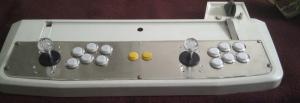

Changed the Controlpanel .


New RGB Led Buttons

IPac-FS32 + Pacled64

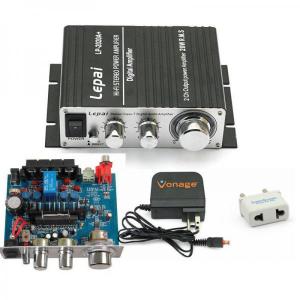

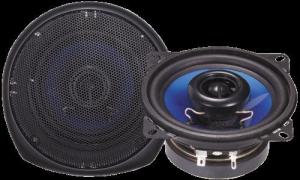

Now the Bezel with Protectglass and mount new Speakers + amp is still todo.



And new Artworks.

Here a 3D Model of the Naomi Candy Cabinet of the SitDown and StandUp version.

https://sketchfab.com/models/5176f1f4aa5e47e68aa879aa4f4d7550

Thats all for the Moment.

Greetings uNkeLo

Edited by unkelo

Share this post


Link to post
Share on other sites
Nice work. Was the PC really only €60? Got yourself a bargain there!

Yes but some days later i found a 70€ ~ with 4gb ram and dualcore 3ghz Shuttle and better vga :-/

You must wait and check every day ebay ,-)

Share this post


Link to post
Share on other sites
damn dude.... those cabinets are soooooo sexy. i wish those were easier to find in america

I know its exist a wood naomi cabinet in america. have it only seen one time.

the european and japanese models are plastic and metal. and need relative small space in room.

but with crt is weight over 120kilogram ^^

i took this naomi because its cheaper than other candy cabs like egret ,astro city or viewlix

Some ppl prefer sitdown variants but i am not o good in chop these metal legs :-|

so i will look for bar stools.

Share this post


Link to post
Share on other sites
im pretty sure there was a parts kit that came with shorter legs. I could be wrong but im pretty sure that existed

You're right, and pretty costly that kit was too. Or you could do the chop yourself, which is what I did a couple years ago (and since, have made very little progress now it's playable....)

http://www.hyperspin-fe.com/forum/showthread.php?15738-The-Twins/page2

unkelo, nice thread, I think I'm gonna go with a horizontal mount LCD in my other machine so it's good to see this one fitting.

Share this post


Link to post
Share on other sites
You're right, and pretty costly that kit was too. Or you could do the chop yourself, which is what I did a couple years ago (and since, have made very little progress now it's playable....)

http://www.hyperspin-fe.com/forum/showthread.php?15738-The-Twins/page2

unkelo, nice thread, I think I'm gonna go with a horizontal mount LCD in my other machine so it's good to see this one fitting.

Thanks mattedsmith i like your chopped Naomi and the new black color.

The leg kit is to expensive like the real sega replacement kit for 29" crt with a lcd.

So its better to chop it by myself but i must disassemble all parts . thats much work ,-)

Share this post


Link to post
Share on other sites

Still some works todo ,
- Cable Management
- Black window film

- Player two wiring

- Marquee Customizing
- Marquee Lights

- Instruchtion glass assembling eventually with an artwork

- exchange old shuttle pc with powerful stronger shuttle

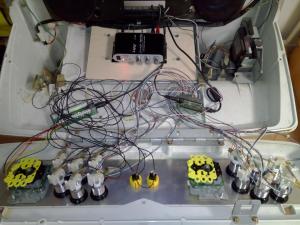

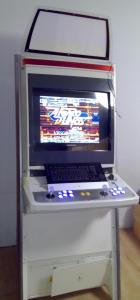

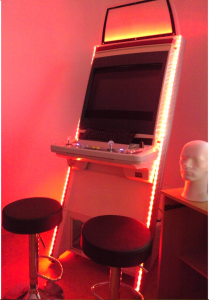

post-20291-0-71746000-1447480763_thumb.jpg post-20291-0-95155300-1447480789_thumb.jpg

Greetings uNkeLo

Share this post


Link to post
Share on other sites

Still some works todo ,
- Cable Management
- Black window film

- Player two wiring

- Marquee Customizing
- Marquee Lights

- Instruchtion glass assembling eventually with an artwork

- exchange old shuttle pc with powerful stronger shuttle

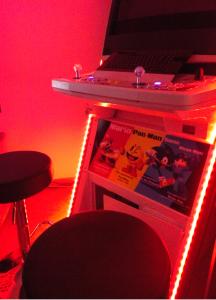

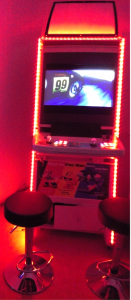

post-20291-0-12966300-1449680381_thumb.png        post-20291-0-70332800-1449693092_thumb.png       post-20291-0-27701700-1449703193_thumb.png

Share this post


Link to post
Share on other sites

Great work on this...

By far my favorite type of cab... I like them like I like my women... nice and thin xD

Great job brother

What you meant exactly with " . . . "

if i wrote 3 points at end of a comments its like a insult  , or a ironic useless comment.

why you cant wrote  your orginal opinion ?

It feels a bit arrogant for me.

sry if i misinterpreting

greetings

unkelo

Share this post


Link to post
Share on other sites

What you meant exactly with " . . . "

if i wrote 3 points at end of a comments its like a insult , or a ironic useless comment.

why you cant wrote your orginal opinion ?

It feels a bit arrogant for me.

sry if i misinterpreting

greetings

unkelo

Lol that's how I write... and I never knew that ... where meant as an insult.... cus it is not.

At least not by me and or anyone I know...

Look at all my posts, I always type like this xD

Love you're cab tho, very well done.

Share this post


Link to post
Share on other sites

ok thats internet because i saw not your face (mimic) your gestures to understand it correctly
sometimes  three points are used for "bored" etc.
thanks for cleareance that  :-) and sorry for asking

greetings unkelo

Share this post


Link to post
Share on other sites

ok thats internet because i saw not your face (mimic) your gestures to understand it correctly

sometimes  three points are used for "bored" etc.

thanks for cleareance that  :-) and sorry for asking

greetings unkelo

No problem brother, better to be clear than in doubt ;)

Share this post


Link to post
Share on other sites
