How do I connect CPU Comperator to Ipac

[shoopes]

Hey Hyperspin Users,

hope I am Posting this into the right Forum, and it is ok to post in this Forum.

I have searched a bit and cant find any advice, so i hope its ok to bother you guys.

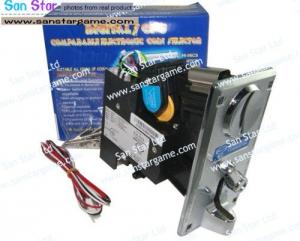

I have bought following Coin Comperator:

Wei Ya Model Number: HI-06CS

I bought this of a german Arcade Site, and it contained a 10-Diode.

It contains following Picture on explaining how to set this up:

This really got me confused, and I dont find any Guides on how to set up CPU comperators, with an IPac-2.

Can you guys give me a few ideas on how to procede these difficulties i am having.

Thanks Guys

[shoopes]

The Red is German btw, and it tells me to Connect the Diode here. This i do understand, but my Comperator has a Cable i can connect. Witch Signals do have to go where?

[shoopes]

http://www.ultimarc.com/controldiags.html

I found this Ipac article very helpfull. Will try this.

Coin Mech setup steps:

Set the slot height plate to the correct coin size. Note that for larger coins, this plate is best removed to avoid bearing against the coin door.

Clip the correct sample coin into the spring-loaded clip, in place of the dummy plastic coin.

Leave the switches unchanged for most applications

Connections are as follows (see diagram above):

Pin 1 connects to a 12 volt supply. This can be from a JAMMA power supply or a PC disk drive connector (yellow wire).

Pin 2 connects to the I-PAC coin 1 input.

Pin 3 connects to GND on the I-PAC

The Zener diode connects between pins 2 and 3 on the coin mech plug. It is possible to push the wire ends of the diode into the plug connector housing.Note the "line" end of the diode must go to pin 2.

The coin signal is normally a 12 volt signal. If using with devices which expect a 5 volt signal it is VITAL to connect the supplied Zener Diode as shown otherwise the device you are connecting to will be damaged.
