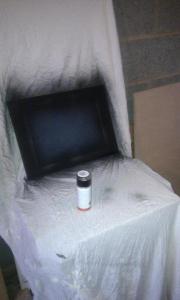

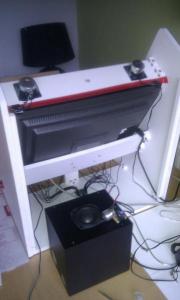

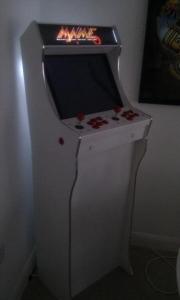

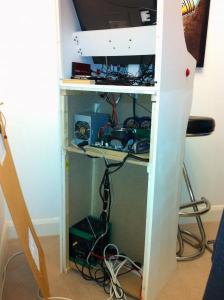

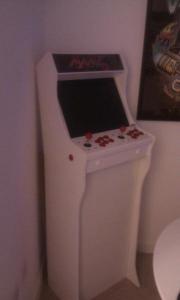

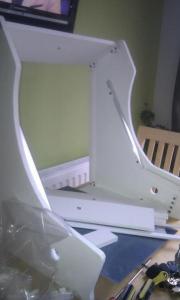

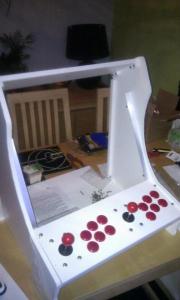

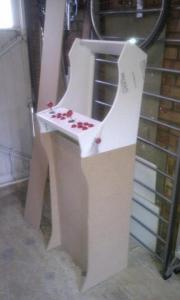

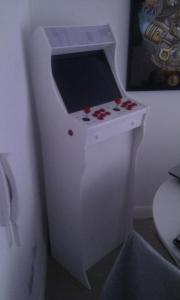

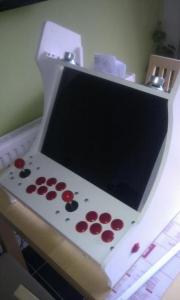

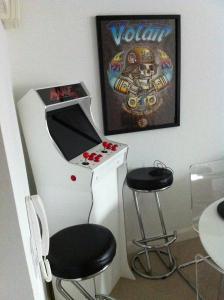

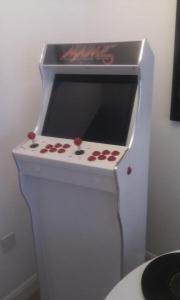

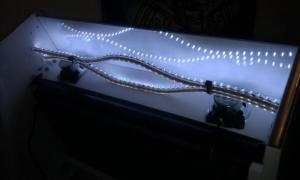

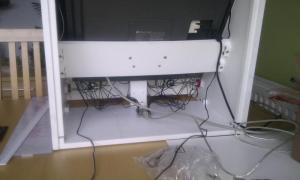

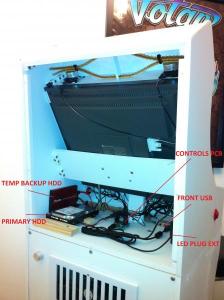

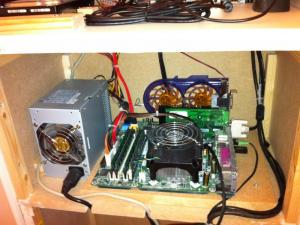

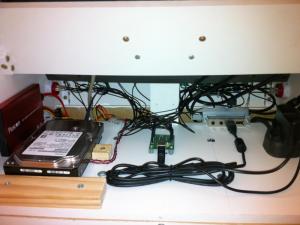

BoyBanter Posted August 17, 2013 Share Posted August 17, 2013 Hello Arcade Enthusiasts!!! About me: I currently work as a IT Infrastructure Support Specialist and have always wanted to re-live those nostalgic memories of of 8bit and 16bit gaming.. I always wanted an arcade cabinet but never knew which game to get and where I could find space to put it. I then decided one night whilst playing Ghouls and Ghosts on a terrible laptop that couldn't do much more, to Google building my own cabinet. It was there and then when I came across HyperSpin I wanted nothing more than to start a project to build my very own multiplatform Cab. What I've done: I saw a lot of people on here buy Bar-top cabinet's or build Bar-top cabinets and later find they want a full height cab and decide to part with it and start again .. I set out to combine the two! I decided do this from scratch due to space constraints, and here's what I came up with.. I initially brought an already cut bar-top shell and decided to take measurements and start construction. As you can see here I installed the controls, speakers and sprayed my bezel (click to enlarge) I then built the base from MDF, this was later painted with brilliant white satin to match the texture and colour of the Bar-top foamed PCV After this I connected the LED lights, VDU and completed additional PCB wiring up for the top half ready for assembly I then constructed the full cabinet combining the two half's and set out to apply some finishing cosmetic touches such as the marquee and chrome trim. Then its on to the hardware that I'd already configured and setup to my requirements prior to starting the cabinet build. It's spec is nothing too special but has enough to run Hyperspin comfortably and all the emulators I wished to use. this fit perfectly as planned and sits nicely within the cab for load balancing. Now i'm all done... and here's the finished product taking pride and place in the corner of my dining room without over powering ... I also created some mock-up loading screens for each system, I chose the darker one of the two in the end. I also customised my build to shell Hyperspin completely and hide the existence of my Windows 7 OS (the only thing that give's it away is the BIOS screen). I also amended some scripting specifically for my setup and tweaked a lot of the customisable's to suit my needs. I hope you like the above, If you have any questions or queries and would like some advise if you're planning to do this, then please ask away. Thanks for looking.. Happy Gaming!!!!! Link to comment Share on other sites More sharing options...
kmastamine Posted August 18, 2013 Share Posted August 18, 2013 Very nice build man!! Link to comment Share on other sites More sharing options...

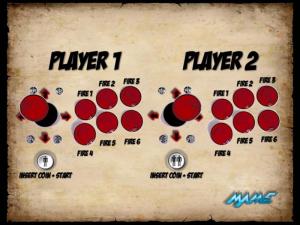

MrVestek Posted August 19, 2013 Share Posted August 19, 2013 I love it! The picture that you posted that shows your button layout etc, when during the boot sequence does that show? I'd love to have something like that for my cab, I was trying to figure out where to put some info on the cab itself with that information but I may not need to now! Link to comment Share on other sites More sharing options...
BoyBanter Posted August 19, 2013 Author Share Posted August 19, 2013 Thanks Guys.... Hi MrVestek, The image pops up to hide the emulator loading up. It fades in upon selecting a game from Hyperspin.. It then fades out a few seconds later to review the start of the game loading. (I have a different screen per system) It's done as part of the loading screen feature/option that the Hyperspin Developers included with HyperLaunch. If you search Loading Screens on these forums there are plenty of tutorials on how to achieve this type of thing. If you require any further info on specific setup or build just hit me up.. Link to comment Share on other sites More sharing options...
MrVestek Posted August 21, 2013 Share Posted August 21, 2013 Ahh right, that would actually be perfect for my own build! I'll have a search of the forums to see how to achieve that functionality properly. I don't suppose you'd have a copy of the PSDs that you used to create the loading screens? I'd love to have something to work off of to make my own. If you wanna keep them though that's cool, I totally understand! :-) Link to comment Share on other sites More sharing options...
mrfmund Posted August 21, 2013 Share Posted August 21, 2013 Hi Looks awesome - I am considering doing something similar as I have a few spare pcs and square flat screen monitors. What are the dimensions of the control panel? Thanks Sent from my iPad using Tapatalk - now Free Link to comment Share on other sites More sharing options...
BoOgieman Posted August 21, 2013 Share Posted August 21, 2013 Looking very nice bro! Thanks for sharing that with us. I plan on building a stand for my bartop as well, except that won't be that seamless as yours. How's the panel working out with two players at once? Link to comment Share on other sites More sharing options...
DieCubsDie Posted August 23, 2013 Share Posted August 23, 2013 I love what you did with the volume control. How did you do that, and where did you get that knob? Link to comment Share on other sites More sharing options...
BoyBanter Posted October 12, 2013 Author Share Posted October 12, 2013 Ahh right, that would actually be perfect for my own build! I'll have a search of the forums to see how to achieve that functionality properly. I don't suppose you'd have a copy of the PSDs that you used to create the loading screens? I'd love to have something to work off of to make my own. If you wanna keep them though that's cool, I totally understand! :-) Hey Man, Sorry for the late reply, do you still want these? I'm not sure I have the original picks just the final BMP's, I did most of it using gimp and ended up doing the final versions in PowerPoint believe it or not.. happy to send you what I have if you still want them. Regards Link to comment Share on other sites More sharing options...
BoyBanter Posted October 12, 2013 Author Share Posted October 12, 2013 Hey, Its 7" by 18.5". Regards Link to comment Share on other sites More sharing options...

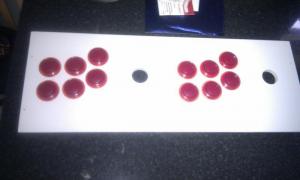

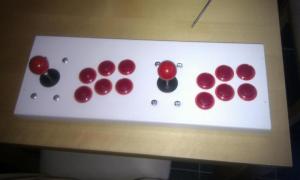

BoyBanter Posted October 12, 2013 Author Share Posted October 12, 2013 Looking very nice bro!Thanks for sharing that with us. I plan on building a stand for my bartop as well, except that won't be that seamless as yours. How's the panel working out with two players at once? Hey man, Yeah works fine with 2 players.. not loads of room but enough so your not knocking each other. dimensions below Link to comment Share on other sites More sharing options...

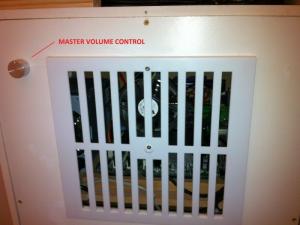

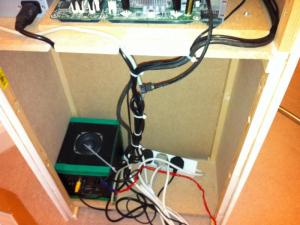

BoyBanter Posted October 12, 2013 Author Share Posted October 12, 2013 I love what you did with the volume control. How did you do that, and where did you get that knob? Hey man, I Brought an amp for £10.. around $7 from Tecso (UK Supermarket) and took the whole thing apart.. I came with 2 small speakers and this knob for volume... I tool it all apart and mounted it separately Regards. Link to comment Share on other sites More sharing options...
BoyBanter Posted October 12, 2013 Author Share Posted October 12, 2013 HiLooks awesome - I am considering doing something similar as I have a few spare pcs and square flat screen monitors. What are the dimensions of the control panel? Thanks Sent from my iPad using Tapatalk - now Free Hey, Its 7" by 18.5". Regards Link to comment Share on other sites More sharing options...
