My first emulator pc build

[Budz71]

Hello everybody. I've been doing a ton of research for a hyperspin arcade cabinet build and I have the cabinet design down but I am struggling with the pc build.  I will be running Hyperspin along with emulators for Atari classics, NES, SNES, Genesis, N64, & PS1. Maybe a little PS2, Gamecube, & Wii as well. I would like to pull some money out of the build if anybody has any suggestions. Here is my proposed build along with questions:



Component		Selection	Base	Promo	Shipping	Tax	Price	Where

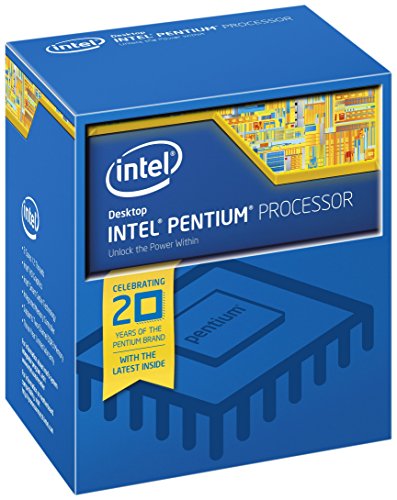

CPU		Intel Pentium G3258 3.2GHz Dual-Core Processor	$66.99		FREE		$66.99	B&H		Buy
CPU Cooler		Choose A CPU Cooler
Motherboard		MSI H81I Mini ITX LGA1150 Motherboard	$60.99				$60.99	SuperBiiz		Buy

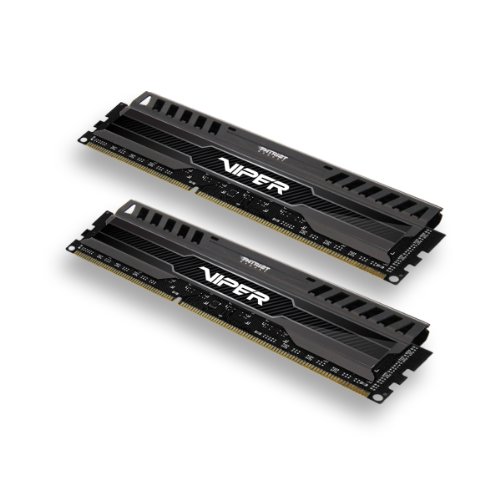

Memory		Patriot Viper 3 8GB (2 x 4GB) DDR3-1600 Memory	$39.99		FREE		$39.99	Newegg		Buy
		Add Additional Memory
Storage		Crucial BX200 240GB 2.5" Solid State Drive	$59.99				$59.99	Amazon		Buy
		Add Additional Storage
Video Card		XFX Radeon RX 460 2GB Video Card	$97.99				$97.99	SuperBiiz		Buy
Case		Cooler Master Elite 110 Mini ITX Tower Case	$38.99				$38.99	SuperBiiz		Buy

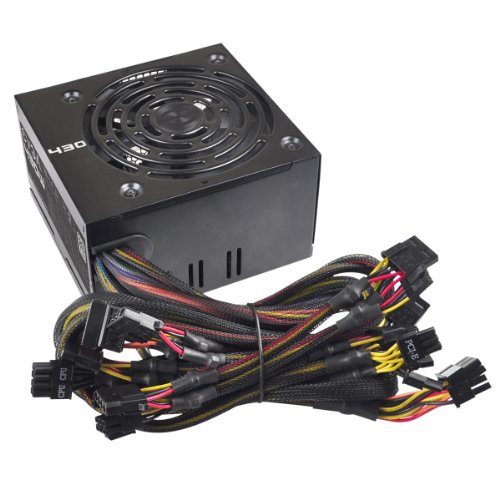

Power Supply		EVGA 430W 80+ Certified ATX Power Supply	$38.89	-$10.00			$28.89	OutletPC		Buy
$10.00 mail-in rebate
Optical Drive		Choose An Optical Drive
Operating System		Microsoft Windows 8.1 OEM 64-bit	$92.88	-$10.00			$82.88	OutletPC		Buy
$10.00 mail-in rebate
Software		Choose Software

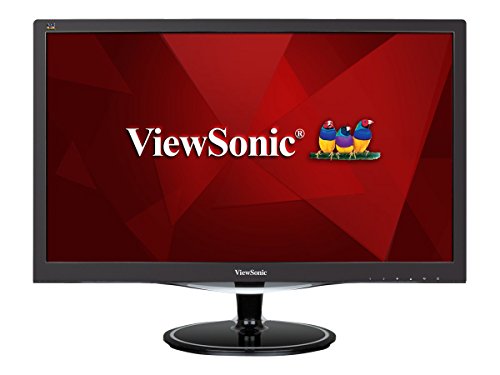

Monitor		ViewSonic VX2757-mhd 27.0" 1920x1080 Monitor	$189.99		FREE		$189.99	Best Buy		Buy
		Add Another Monitor
External Storage		Choose External Storage
Expansion Cards / Networking		Add Expansion Cards / Networking ... Sound Cards, Wired Network Adapters, Wireless Network Adapters
Peripherals		Add Peripherals ... Headphones, Keyboards, Mice, Speakers
Accessories / Other		Add Accessories / Other ... Case Fans, Fan Controllers, Thermal Compound, UPS Systems
Custom		Add Custom Part
Base Total:							$686.70
Mail-in Rebates:							-$20.00
Total:							$666.70

My main questions are:

Is freesync really needed for what I want to do? From my understanding it really helps with older games which is the majority of what I will be playing. Without freesync I could shave a fair amount off of my GPU and Monitor.

If I do away with freesync how cheap could I go with my graphics card?

Is a 240GB SSD enough? Should I go with a larger 3.5" drive instead? Or a smaller SSD paired with a large external drive?

If I go with an external drive will I have problems playing games because the data transfer is slower?

Any other suggestions would be helpful. Thanks in advance.



[ninja2bceen]

3-5 Tb is the sweet spot if you want all the systems. I5 unlocked is perfect, 8 gb memory is good. You need lots of cpu not cores. 3.5-4.5 is what you want to shoot for so you will be overclocking as well. 500-750 watt psu
