Reefboi16 Posted October 24, 2015 Share Posted October 24, 2015 As the title states, my build shall start. Nothing exciting for now just ordered all my hardware, buttons, interface, led controller, etc.I will be running this with an Intel board DB75EN has an i5-3470 8gb of ram running windows 7I will be buying a video card that supports hdmi output. Still unsure what size monitor aka tv to go with as this will be a pedestal arcade.Already have the cabinet designed and in Aspire (CNC cutting software) just need to take the mdf to the workshop to cut it out. Started to play a little bit with graphics. Thought it would be cool to have a marquee over the tv even though its a pedestal arcade. Building a box with a light to make it look nice. I will attach the image of my marquee. Still playing with the side panels of the pedestal and the control panel itself. Configuring HS has been very fun almost done just need my subscription to emu-movies to get them all in my emulators/games. Any tips on the marquee would be great.Also if anybody has the Stealth led lit buttons from groovy game gear would y'all have the dimensions of the inside of the button where one would place an insert. I have created SVG files in illustrator to be cut in a vinyl cutter later but do not know what size to make them. I guess I can wait for the buttons to arrive just anxious lol Link to comment Share on other sites More sharing options...
mange181 Posted October 24, 2015 Share Posted October 24, 2015 Hi! I have been going for about 2 months on my build. Its the 2 player csb in this forum, looks like you have a nice plan. Any images on the build plan? Are you going for a dynamic monitor type marquee with hypermarquee? I think your buttons ar led blinky compatible. Is this 'addon' also a plan on your built? I will most likely dont do them for my first one but it always interesting for future reference. That led blinky Thing it actual really useful. To lidt the active buttons in each emulator. Ill end up describeing the layout in the grafics somehow.. here i am babeling away.. haha. Welcome! an good to see you started. To me its been the most fun i have had for a long time. Great mix of challenges. Cheers! Link to comment Share on other sites More sharing options...
Reefboi16 Posted October 24, 2015 Author Share Posted October 24, 2015 Do not think I will be going the hyper marquee route those monitors/ screens are out of my budget LOL just saw your build it's looking good man! I am patiently waiting for my package hopefully its here soon. As for my build I am going with the pedestal plans that the TMNT pedestal that is floating around is. Keeping it simple for my first one then I will play with shapes and dimensions to make a custom pedestal. Link to comment Share on other sites More sharing options...
Reefboi16 Posted October 25, 2015 Author Share Posted October 25, 2015 I have a question on the GameCube games. I set up my GC emulator dolphin mainly for Mario Strikers but I would like other games in the future. I know its difficult to use arcade stick and buttons to control such games but I can do away witht he lob pass and lob shoot on mario strikers and turbo run to get the arcade feel. Is there an actual way to get these to work though? Are there other games on GC that are arcade joystick/button friendly? Link to comment Share on other sites More sharing options...

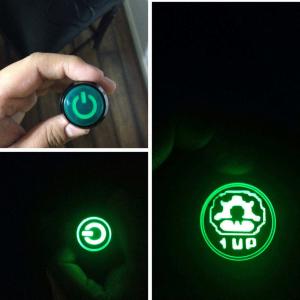

Reefboi16 Posted November 4, 2015 Author Share Posted November 4, 2015 Got my order from GGG. Getting the MDF cnc'd tomorrow. Tonight I decided to play with the led lit buttons just testing seeing how they look lit and also playing with vinyl inserts I am cutting. Pretty happy with the 1up button that will be in place as the COIN button and the escape button being the X. Power button will be blue not red. Have a couple others I did not get to but will post as soon as i get Link to comment Share on other sites More sharing options...
mange181 Posted November 4, 2015 Share Posted November 4, 2015 Amazing buttons. Thats inspireing! I was going to just do some simple prints for the buttons. But now i will give it more thought first. Im exited to se more of you work. Mdf in cnc i definitely the best way to go. Im to cheap for that sad this forum is so damn cheap on img space. Skickat från min SM-G928F via Tapatalk Link to comment Share on other sites More sharing options...
Reefboi16 Posted November 4, 2015 Author Share Posted November 4, 2015 Yea i wanted to add a couple other photos wouldn't let me lol only reason I get the CNC it is because I am the Computer tech at a school district and the campus I am bases at has a CNC machine in their woof shop!!! Link to comment Share on other sites More sharing options...
Goodboyparker Posted November 5, 2015 Share Posted November 5, 2015 Cutting the vinyl is a good idea. My wife has a silhouette which cuts paper, vinyl and thin fabric. I may try that in the future for buttons - you may be able to find a friend or craft/ t-shirt store that can cut out buttons. Or, send me a design and I can try one and post a photo. Link to comment Share on other sites More sharing options...
Reefboi16 Posted November 5, 2015 Author Share Posted November 5, 2015 Yea I used a cricut machine to cut these! Edited files in illustrator and traced then exported as SVG so machine could read the file to cut. Link to comment Share on other sites More sharing options...
Reefboi16 Posted November 5, 2015 Author Share Posted November 5, 2015 For whatever reason I can not upload more pictures. So I opened a Photobucket account to save all my pics in and share with you guys. I did not get to cnc the mdf yesterday but it gave me more time to work on the vinyl inserts and buttons finishes them all. The player one and player two buttons are actually silhouettes of Master Chief from the Halo game. Have a pause button, Volume up and down. Power button. Hopefully later today I have time to cut the mdf.http://i651.photobucket.com/albums/uu240/r33fboi16/12187870_903600376394734_2621341242787559719_n_zpslndibixo.jpg Link to comment Share on other sites More sharing options...
Reefboi16 Posted November 18, 2015 Author Share Posted November 18, 2015 Finally got the mdf CNC'd. Going to start putting this baby together soon!!http://i651.photobucket.com/albums/uu240/r33fboi16/12241797_909254302496008_7302557612889840002_n_zpswoj9wovs.jpg Link to comment Share on other sites More sharing options...
Frank Drebin Posted November 18, 2015 Share Posted November 18, 2015 Copy/paste the IMG URL from photobucket Link to comment Share on other sites More sharing options...
Reefboi16 Posted November 18, 2015 Author Share Posted November 18, 2015 Yea thought about doing that but didn't like the huge pictures. Link to comment Share on other sites More sharing options...
xALPHAxOMEGAx Posted November 18, 2015 Share Posted November 18, 2015 im likeing the buttons :] Link to comment Share on other sites More sharing options...
Reefboi16 Posted November 18, 2015 Author Share Posted November 18, 2015 Thanks alpha. Was very fun designing them in illustrator. Hopefully soon they will be put to use!! Link to comment Share on other sites More sharing options...
Reefboi16 Posted December 16, 2015 Author Share Posted December 16, 2015 Have not posted in a while although ALOT and I mean ALOT has been done. Been working many hours but as soon as I come home I run upstairs to the now dubbed ARCADE ROOM by the wife, to work on my cab. So here is some eye candy. Link to comment Share on other sites More sharing options...
Reefboi16 Posted December 16, 2015 Author Share Posted December 16, 2015 Projector is hidden in cabinet. Makes for some space saving. Proper ventilation has been put in place with air filters to stop dust from entering cabinet so filter on projector might not get clogged as fast. Link to comment Share on other sites More sharing options...
Reefboi16 Posted December 16, 2015 Author Share Posted December 16, 2015 Before some wire management LOLAfter some combing haha Link to comment Share on other sites More sharing options...
Reefboi16 Posted December 16, 2015 Author Share Posted December 16, 2015 Motherboard, drives, power supply and a couple things here and there all nicely mounted on a board with drawer slides for easy maintenance. Instead of climbing in the cabinet can slide out and work and even better if something needs a closer look the slides have a quick release can take whole board out and work on it. Link to comment Share on other sites More sharing options...

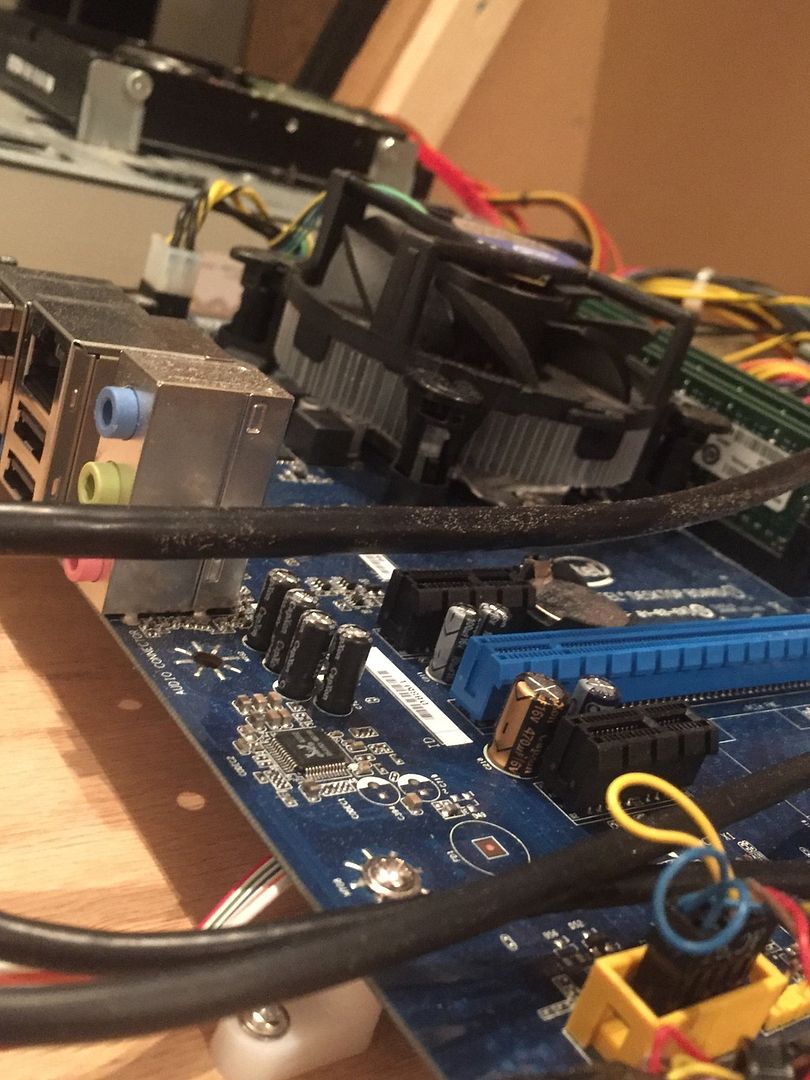

Reefboi16 Posted December 16, 2015 Author Share Posted December 16, 2015 close up of the pretty board Link to comment Share on other sites More sharing options...
Reefboi16 Posted December 16, 2015 Author Share Posted December 16, 2015 Nice wide door opened has a lock on both the door and control panel. Have a couple other things to do. Working on mounting second monitor to integrate my hypermarquee. So close yet so far!! Link to comment Share on other sites More sharing options...
