18 minutes ago, richie_jones said:

What machine do you use

this is my silly Tapatalk spam....


Its a 6090 cnc Router (so thats 600mm x 900mm), which is why i'm limited to bartops/cocktail cabs really, although with careful jigging I could possibly do a full cab....

Share this post


Link to post
Share on other sites
27 minutes ago, richie_jones said:

My minds racing now haha...what's the smallest legible letters do you think would look OK in perspex..thinking of engraving my control panel now!!

this is my silly Tapatalk spam....


mmm good question, well depends whether single line or milled pocket style (as per above), single line I dont think would stand out enough, when i've done your large letters on a scrap piece i'll repeat it super tiny and see what it looks like... The tool i'm using is 1.7mm dia so that will dictate the smallest readable size , how small are you thinking?

Share this post


Link to post
Share on other sites

It needs bending slightly so I've build a bending jig and am just about to run a test piece. The Misses gonna go crazy when she sees this in the oven!!!!



It's not much of a curve but it's a wide piece 543mm




Share this post


Link to post
Share on other sites

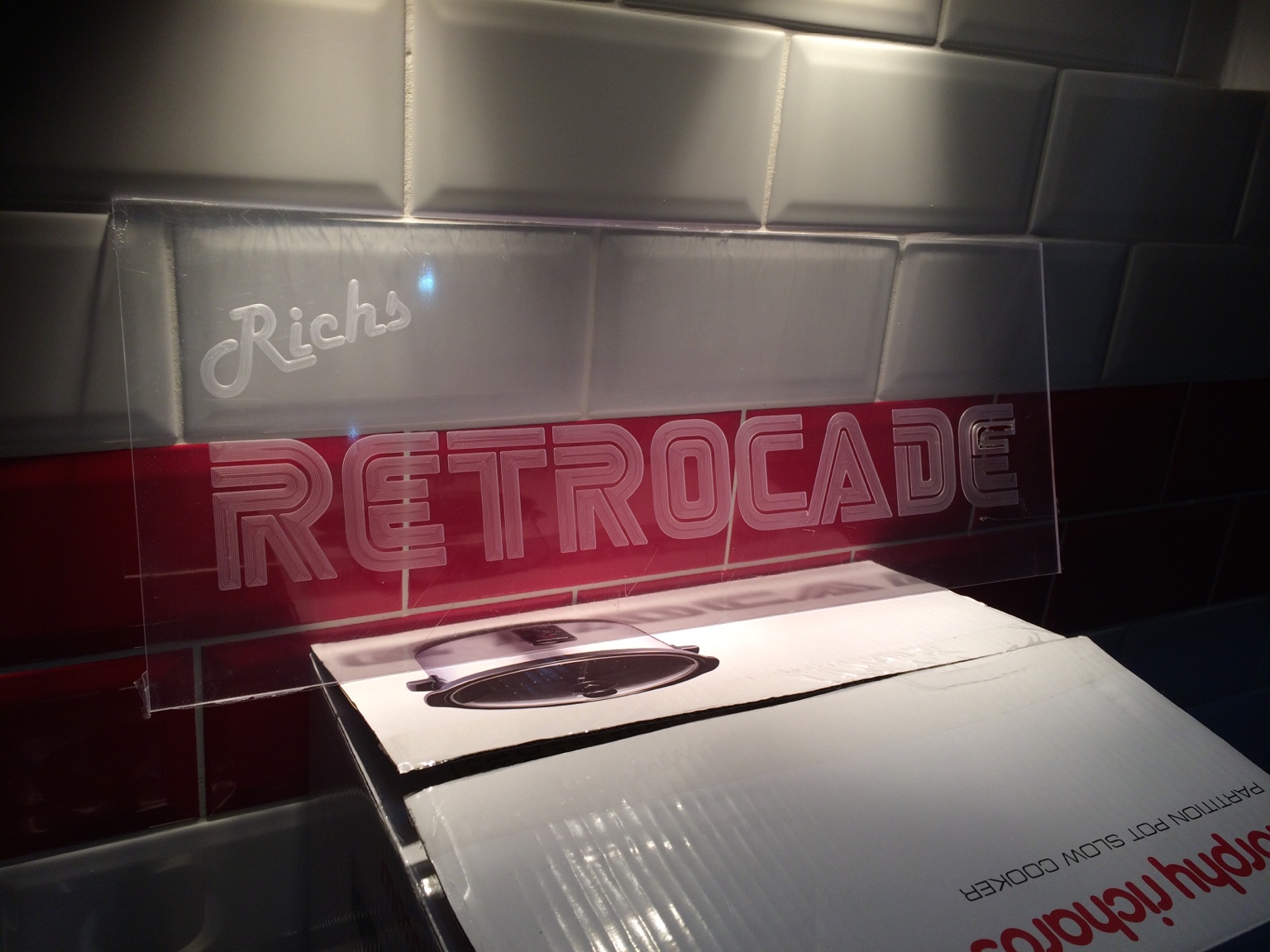

Richie - so success well nearly ..... seemed to turn out great , apart from a stupid programming error (when I did the through cut test the other night to test the mirror function forgot to change back to -0.5 doh!)
See the top of the E its machines through!!!
Anyway I altered and run the rest of the program.
I'll use it as a test piece. I have some led lights on their way so I can test it for real....


Must admit before I do too many of these I need to make a vacuum table, holding it to do the sides was a pain....


Sent from my iPhone using Tapatalk

  • Upvote 1

Share this post


Link to post
Share on other sites

That looks great...the Mr Robot font takes well to engraving..
How far does the engraving go? Do you think it final piece could be done in 3mm?

Share this post


Link to post
Share on other sites
5 minutes ago, richie_jones said:

That looks great...the Mr Robot font takes well to engraving..
How far does the engraving go? Do you think it final piece could be done in 3mm?

3mm sheet, yes the engraving is only 0.5mm deep.  Why are you thinking it will bend easier?

Share this post


Link to post
Share on other sites
10 minutes ago, richie_jones said:

Yeah it's slotting In two grooves on the long side

i'm going over to the building supplier over the weekend, let me see what thicknesses he has...

Share this post


Link to post
Share on other sites

Folks,



Thought you all would like to see the latest project I'm working with Albatross, just finishing off the final touches, its a replica of the XArcade system.

Once i've finished the first off for Albatross may be available as a kit if anyone is interested...

Tmold cut where shown, 10mm Acrylic included, Aluminium Not Included.

Albatross Xarcade v103.png

  • Upvote 1

Share this post


Link to post
Share on other sites

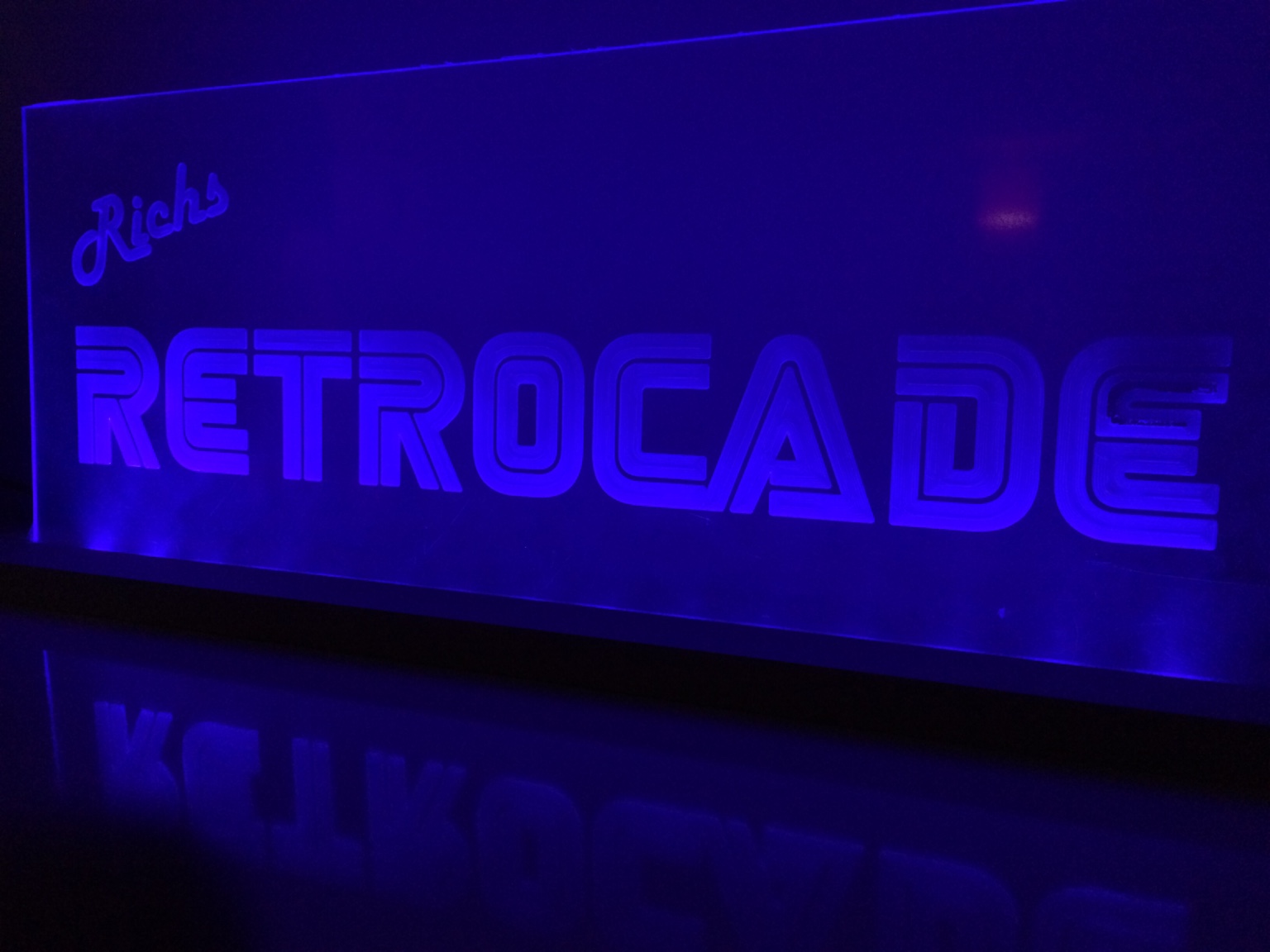

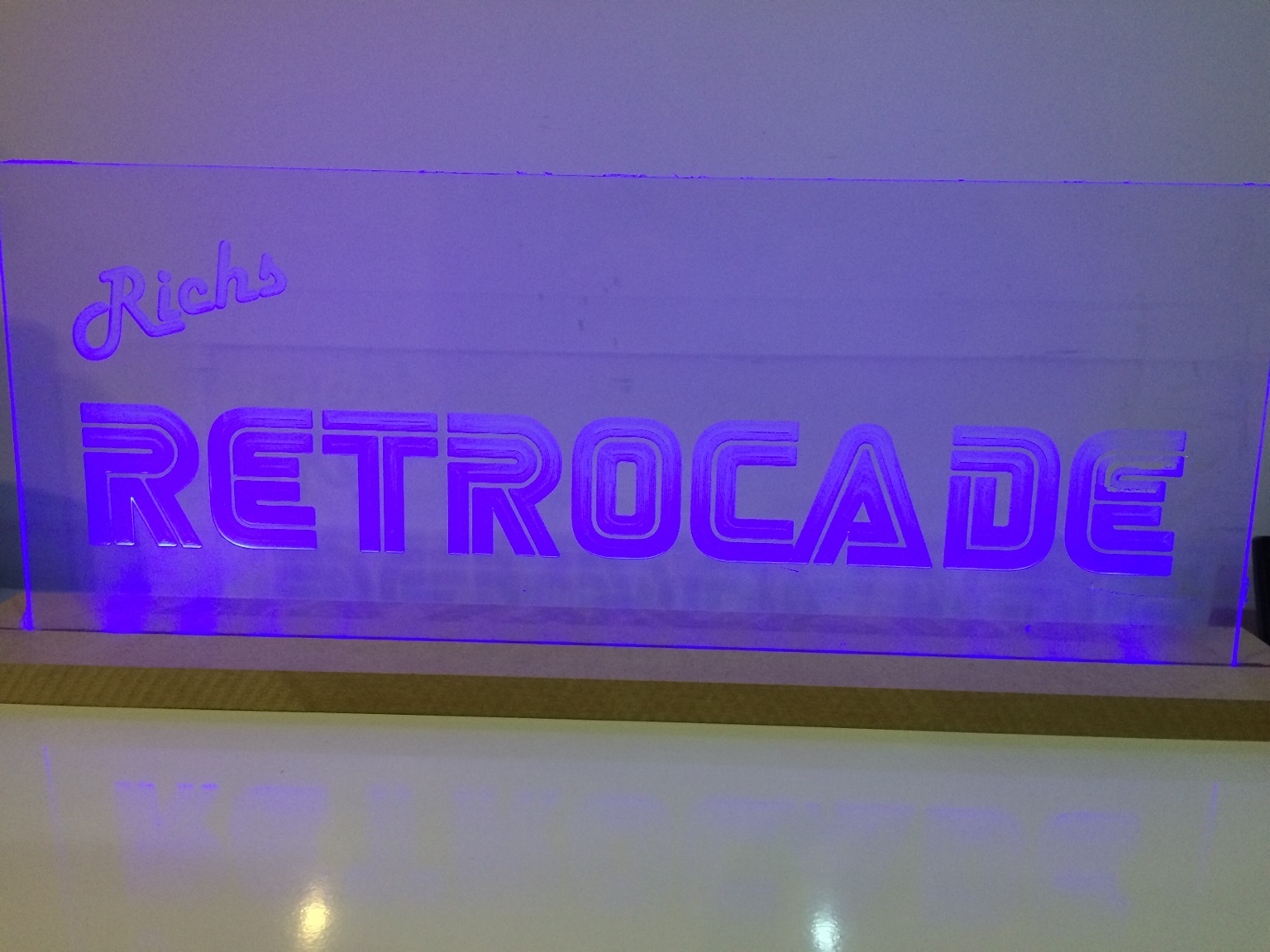

Richie - your scrap marquee on the LEDs that arrived today...
I am going to the building merchants tomorrow to see if they have 3mm, but can't help thinking bud that this effect gets better with thicker sheet? This is my first attempt with 4mm so I can't confirm that that...






Sent from my iPhone using Tapatalk

Share this post


Link to post
Share on other sites

Yeah it's looks really good. Agree that probably thinner sheet would be less of an effect, but I've backed myself into a corner with my design. I might just get both 4mm and 3mm see what I can do with them..I'm lighting from both edges also



Share this post


Link to post
Share on other sites
Yeah it's looks really good. Agree that probably thinner sheet would be less of an effect, but I've backed myself into a corner with my design. I might just get both 4mm and 3mm see what I can do with them..I'm lighting from both edges also


Gotcha , lighting from both ends will be loads better, gotta get both LED ends sealed around the Perspex end as best you can to reduce the amount of leakage across the sheet surface too bud....


Sent from my iPhone using Tapatalk

Share this post


Link to post
Share on other sites
On 1/28/2017 at 11:20 AM, richie_jones said:

Any luck with the vacuum table??

Nearly Richie, table is sorted but had to return the vacuum as it was faulty, still using my std table at the moment bud...

Share this post


Link to post
Share on other sites

Hey Folks,



Not posted for a while, thought id update you on some items...

Standard 18mm Bartop still exists - no change:  - £49.99

http://www.ebay.co.uk/itm/162579702992?ssPageName=STRK:MESELX:IT&_trksid=p3984.m1555.l2649

I've reduced the price of the T-Mold version by £10 to £59.99

http://www.ebay.co.uk/itm/162579702435?ssPageName=STRK:MESELX:IT&_trksid=p3984.m1555.l2649

Also now selling Perspex Control Panel Covers: - £14.99

http://www.ebay.co.uk/itm/162603484221?ssPageName=STRK:MESELX:IT&_trksid=p3984.m1555.l2649

Discounts available to Fellow Spinners :)

Share this post


Link to post
Share on other sites
