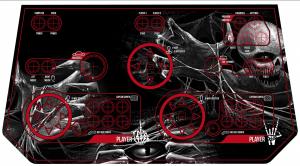

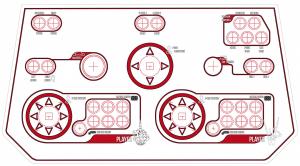

mrhappydude Posted March 4, 2016 Share Posted March 4, 2016 I started this project months ago and it has consumed way too much of my time and money but I have enjoyed it. I hope you all who have done it appreciate the effort and those who haven't maybe it will give you some ideas. Going to post some pictures and then go back and discuss the process so may be a while between updates. First up Control Panel Link to comment Share on other sites More sharing options...

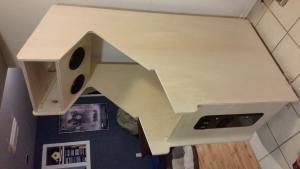

mrhappydude Posted March 4, 2016 Author Share Posted March 4, 2016 Left and Right Side Panels I actually traced the outline on a large sheet of paper and took it to work and scanned it on our 36" scanner that we use for engineering drawings. Then I traced it in photoshop using the path tool, which gave me an exact, to scale, image. Link to comment Share on other sites More sharing options...
mrhappydude Posted March 4, 2016 Author Share Posted March 4, 2016 Close-up...Note the Horde Link to comment Share on other sites More sharing options...

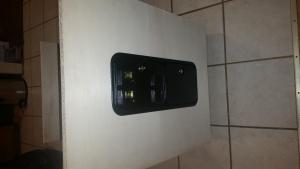

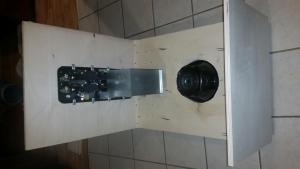

mrhappydude Posted March 4, 2016 Author Share Posted March 4, 2016 Front Panel - Coin Door. This will actually be molded over the coin door to look seamless. I carried the cards into this as well. Link to comment Share on other sites More sharing options...

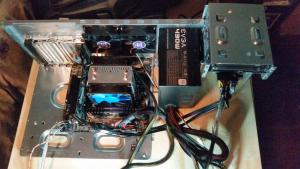

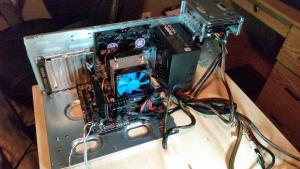

mrhappydude Posted March 4, 2016 Author Share Posted March 4, 2016 The PC. I broke down an old case and mounted to a piece of plywood then riveted together. Parts ASRock FM2A68M-DG3+ FM2+ / FM2 AMD A68H FCH (Bolton D2H) 4 x SATA 6Gb/s USB 3.0 Micro ATX AMD Motherboard AMD A10-7850K Kaveri Quad-Core 3.7 GHz Socket FM2+ 95W AD785KXBJABOX Desktop Processor AMD Radeon R7 DEEPCOOL ICE BLADE 200M CPU Cooler Dual F8mm Heatpipes and Dual 92mm Fans Support Socket LGA 2011 CORSAIR Vengeance 8GB (2 x 4GB) 240-Pin DDR3 SDRAM DDR3 1600 (PC3 12800) Desktop Memory Model CMZ8GX3M2A1600C9 EVGA 100-W1-0430-KR 430W ATX12V / EPS12V 80 PLUS Certified Active PFC Continuous Power Supply Intel 4th Gen CPU Ready OCZ ARC 100 2.5" 240GB SATA III MLC Internal Solid State Drive (SSD) ARC100-25SAT3-240G 2 x 3TB WD Drives Will Add yet and best price I can find right now is $159.99 CAD. EVGA 02G-P4-3751-KR G-SYNC Support GeForce GTX 750 Ti 2GB 128-Bit GDDR5 PCI Express 3.0 Video Card Link to comment Share on other sites More sharing options...

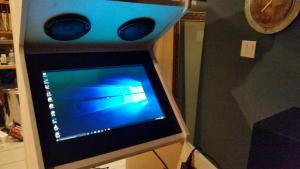

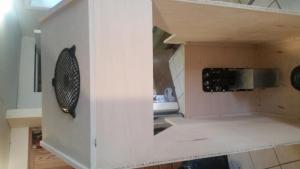

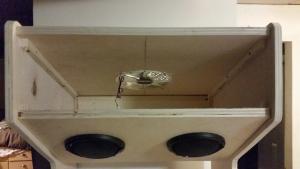

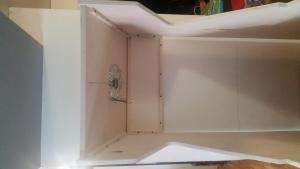

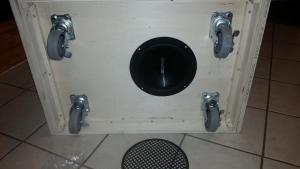

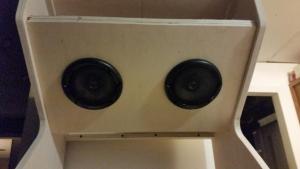

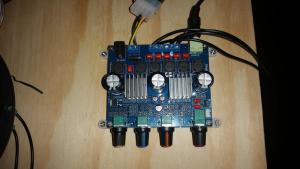

mrhappydude Posted March 4, 2016 Author Share Posted March 4, 2016 The cabinet was a copy of "Blades of Steel" that I had picked up cheap... The monitor is awesome, metal bezel and touch. Also purchased a custom stretch lcd for the digital marquee and will post details and pictures of that once it is installed. Link to comment Share on other sites More sharing options...
stutterutter Posted March 4, 2016 Share Posted March 4, 2016 Just curios what are you building a new pc? opps sorry if I had scrolled down I would seen that. I wish you the best of luck I wish I had the knowledge to build one instead of waiting to win the lottery to buy a gaming pc...lol. I would love to see pic when your done. Link to comment Share on other sites More sharing options...
mrhappydude Posted March 4, 2016 Author Share Posted March 4, 2016 Just curios what are you building a new pc? opps sorry if I had scrolled down I would seen that. I wish you the best of luck I wish I had the knowledge to build one instead of waiting to win the lottery to buy a gaming pc...lol. I would love to see pic when your done. PC was cheap ~$500.00CAD I got all the parts on sale. What cost the most was drive storage, I ended up with 6TB of roms and counting. Link to comment Share on other sites More sharing options...
JoyStickKilla Posted March 4, 2016 Share Posted March 4, 2016 CP is way too busy Link to comment Share on other sites More sharing options...
mrhappydude Posted March 4, 2016 Author Share Posted March 4, 2016 CP is way too busy So what do you suggest I can do to make it less busy ? I could get rid of the middle joystick but I want the trackball and spinner for older games. Link to comment Share on other sites More sharing options...
wesfranks Posted March 4, 2016 Share Posted March 4, 2016 Opinion only. If your wood is cut, stick with your plan. You need admin keys. Could "hide those on the front vertical face of your panel. A four-way joystick is a must on some games (in addition to your 8-way sticks). Could have one set of function buttons for trackball and spinner Since those will probably be the same anyway. None of these are an issue, just personal choice. So, if your panel dimensions are set and artwork finalized, stick to your plan. You definitely have the real estate for those buttons. Looks cool. Link to comment Share on other sites More sharing options...
wesfranks Posted March 4, 2016 Share Posted March 4, 2016 Want to see what you do with that art and your coin door. Link to comment Share on other sites More sharing options...
SIMPLYAUSTIN Posted March 4, 2016 Share Posted March 4, 2016 Looking forward to this one mate.... make sure you got plenty of snaps Link to comment Share on other sites More sharing options...
mrhappydude Posted March 4, 2016 Author Share Posted March 4, 2016 Thanks SimplyAustin, I must give you credit for assisting in the build since I watched all your videos that helped me set it up. My next challenges are wiring everything up, LEDBlinky (Tutorial Video Idea?) and hyper marquee. I have lots of pictures and will post eventually with a video showing it all in action; I will also try and write up a parts list and lessons learned. Link to comment Share on other sites More sharing options...
mrhappydude Posted March 4, 2016 Author Share Posted March 4, 2016 Want to see what you do with that art and your coin door. The guy (friend of my neighbor) I have doing the vinyl printing is going to use the type they wrap cars with for the front. This type of vinyl will supposedly cover the door and it look seamless, at least that is what he says. Obviously, you will see the coin slots and key lock but not much I can do about that. Link to comment Share on other sites More sharing options...
mrhappydude Posted March 4, 2016 Author Share Posted March 4, 2016 Opinion only. If your wood is cut, stick with your plan. You need admin keys. Could "hide those on the front vertical face of your panel. A four-way joystick is a must on some games (in addition to your 8-way sticks). Could have one set of function buttons for trackball and spinner Since those will probably be the same anyway. None of these are an issue, just personal choice. So, if your panel dimensions are set and artwork finalized, stick to your plan. You definitely have the real estate for those buttons. Looks cool. I have struggled with the design it is the hardest part to get right... I am actually doing the CP in metal like the original. Player 1 and 2 are actually 4/8 Way joysticks. I kinda like the flight stick in the middle and it has 2 buttons (1 trigger, 1 top). The program controls can be anything, so if you think I am missing something important for admin let me know. I appreciate the feedback because now is the time to make the changes. I do have a keyboard drawer in the front under the panel as well but would prefer not to open it, and the monitor is touch so if I do miss something on the CP I can resort to that. I might also put the audio control dials in the top left just need to figure out how to mount board vertically under the CP. Link to comment Share on other sites More sharing options...
wesfranks Posted March 5, 2016 Share Posted March 5, 2016 I didn't mean to suggest you add or subtract anything. What I meant was, going by the controls you had printed on your cp artwork, you "need" all that you had listed. And you have the space for them so stick with your plan. I did miss that the middle 4way was also a flight stick. Link to comment Share on other sites More sharing options...
