Pecom 64 - craiganderson - (20150101)

[craiganderson]

_DlP52ZoLOU

i have working module, videos, main menu theme
gonna finish default theme, wheels, bezel later

craig

[Aorin]

Amazing!

[craiganderson]

If anybody has real logo or can redraw one ....that would be awesome.....iccan post one to redraw when home later..right now.seeing penguins of Madagascar at the movies...

[Aorin]

If anybody has real logo or can redraw one ....that would be awesome.....iccan post one to redraw when home later..right now.seeing penguins of Madagascar at the movies...

I tried making one, also have the PSDs, if it's usefull, and some fixes are needed, I can upload them to my FTP, actually this is the first time I try drawing a logo from scratch.

[craiganderson]

Thanks. Put in ftp when u get a chance.

[Aorin]

Check out my FTP, just uploaded.

[craiganderson]

icz4g9gvFVk

[Aorin]

Great work! Congratulations!

[craiganderson]

thanks for your logo

i added a little noise to it (see pic)

thanks again

craig

[Aorin]

It was fun! Thanks Craig!

[craiganderson]

bezel working

[craiganderson]

FINAL VERSION

Ok. Here is the final product if anybody wants it. You must use the roms I have because they have the right extension to work with the emulator.

(thanks to aorin1 for making the logo)

I will put all downloads on my page later when I get a chance...and then update this page. Thanks.

I think I have all the games. Here is a page and all the games on this page are included. http://retrospec.sgn.net/users/tomcat/yu/Pecom_screens.php

(lots of cool video game magazines on that page as well..just fyi....http://retrospec.sgn.net/users/tomcat/yu/revije.php)

About the console (http://en.wikipedia.org/wiki/Pecom_64)

About the console (http://www.old-computers.com/museum/computer.asp?st=1&c=970)

video

-NCymxIRz7o

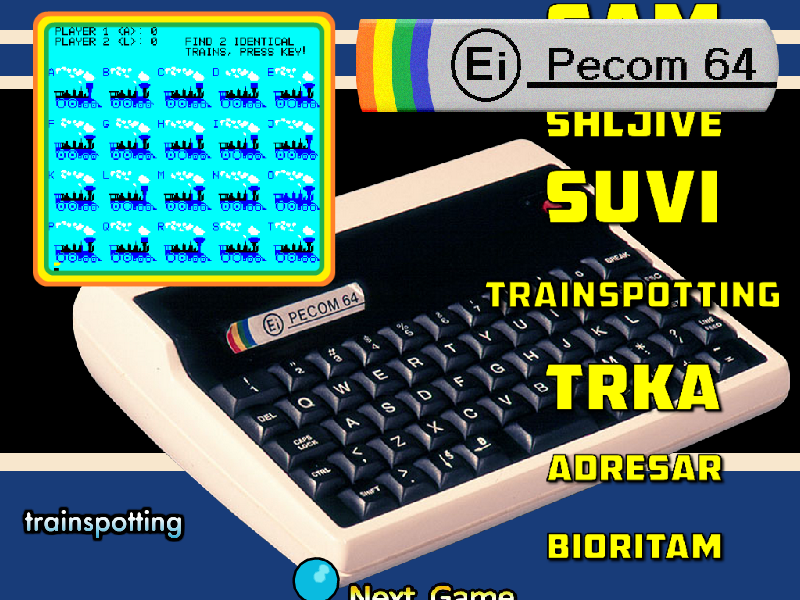

main menu theme

default game theme

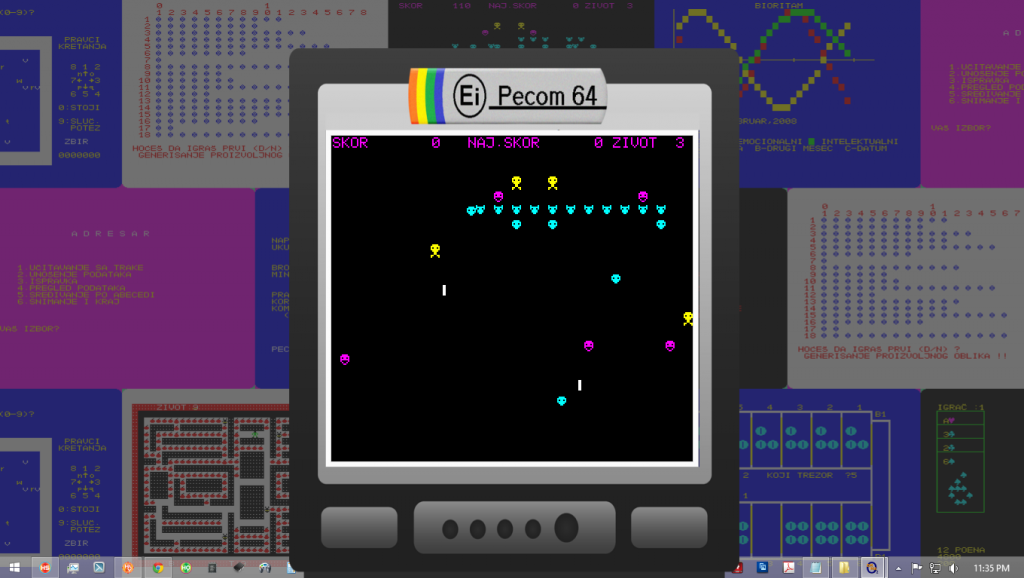

bezel

[craiganderson]

edit

[craiganderson]

edit

[craiganderson]

i think this is the default setup but here is what i have working

and the bios files seem to need to be in same location as the game roms

so i will remove them from the database (.xml) but if you make your own...you will need to remove them from the database (xml)

[craiganderson]

ok...everything should be up on my little site

http://craigandersonthemes.weebly.com/

let me know if u have any problems

thanks

craig

here is a better module (.ahk file), i needed to increase a sleep time command i think

it is NOT included in the download

grab it here if u want it

MEmu = Emma 02
MEmuV =  v1.19
MURL = http://www.emma02.hobby-site.com/index_download.html
MAuthor =
MVersion =
MCRC =
iCRC =
MID =
MSystem = "Pecom 64"
;----------------------------------------------------------------------------
; Notes:
;----------------------------------------------------------------------------

StartModule()
BezelGUI()
FadeInStart()

settingsFile := modulePath . "\" . moduleName . ".ini"
Fullscreen := IniReadCheck(settingsFile, "Settings", "Fullscreen","true",,1)
disableHideTitleBar := true
disableHideToggleMenu := true
disableHideBorder := true
BezelStart("fixResMode")

Run(executable, emuPath)

WinWait("Emma 02 ahk_class wxWindowNR")
WinWaitActive("Emma 02 ahk_class wxWindowNR")

ControlClick, _wx_SysTabCtl321,,,,, x274 y12 ; selects Pecom

Sleep, 200

ControlClick, Button455,,,,, x40 y12 ; Selects Start
Sleep, 100
SendInput, {Enter}

Sleep, 2000
WinActivate, Emma 02 ahk_class wxWindowNR
WinWait("Emma 02 ahk_class wxWindowNR")
WinWaitActive("Emma 02 ahk_class wxWindowNR")

ControlClick, Button446,,,,, x34 y12 ; selects Run

WinWait("Select the Pecom ahk_class #32770")
WinWaitActive("Select the Pecom ahk_class #32770")

Loop {
	ControlGetText, edit1Text, Edit1, ahk_class #32770
	If ( edit1Text = romPath . "\" . romName . romExtension )
		Break
	Sleep, 100
	ControlSetText, Edit1, %romPath%\%romName%

%romExtension%, ahk_class #32770
}

Sleep, 200
ControlSend, Button1, {Enter}, ahk_class #32770

Sleep, 4000

WinMinimize, Emma 02 ahk_class wxWindowNR

WinActivate, Pecom ahk_class wxWindowNR
WinWait("Pecom ahk_class wxWindowNR")
WinWaitActive("Pecom ahk_class wxWindowNR")

Sleep, 500

If Fullscreen = true
{
Send, {F3}
Sleep, 100
}

BezelDraw()
FadeInExit()
Process("WaitClose", executable)
7zCleanUp()
BezelExit()
FadeOutExit()
ExitModule()

CloseProcess:
FadeOutStart()
Process, Close, Emma 02.exe
SetCapsLockState, Off
WinShow, ahk_class Shell_TrayWnd
Return

[zerojay]

MESS should also be able to play Pecom 64 well. I'll take your setup and use it to test against MESS and if it works well enough, I'll update the MESS and RetroArch modules in the HyperLaunch beta to add it.

[craiganderson]

ok. but the roms with my little setup i think only work with emma 02 emulator

[craiganderson]

edit

[craiganderson]

MESS should also be able to play Pecom 64 well. I'll take your setup and use it to test against MESS and if it works well enough, I'll update the MESS and RetroArch modules in the HyperLaunch beta to add it.

any luck with MESS? no hurry. thanks for testing it

[pinsanity]

Got it up and running.

thanks again craig.

[craiganderson]

Got it up and running.

thanks again craig.

cool. thanks for trying it out

im sure one of the command line kinda guy/gals might be able to make a better module file

mine uses lots of controlclick type commands...but its working 100% for me so better than nothing

[craiganderson]

Got it up and running.

thanks again craig.

just curious....since all of the files are available to download from one location

and all named such that they are ready to go out of the box

how long did it take to set up from start to finish?

thanks

craig

[pinsanity]

10 minutes at most.

You make it easy to setup.

[craiganderson]

10 minutes at most.

You make it easy to setup.

cool. glad to hear that. that is what i am hoping for by having everything on one page etc

thanks
