fireslayer26 Posted November 8, 2013 Share Posted November 8, 2013 ***MORTAL ARCADE*** So I've started my MAME cab conversion. It started life as a Golden Tee Fore! 2005 dedicated cab. I picked it up 2 of them for free from an arcade dealer who was going to scrap them. Not the one I picked up, but this is what the cab looks like. (mine was non-operational) Gutted the interior Cleaned the exterior (nicotine stains and dirt), must have come from a sports bar. Added a 24" LCD monitor. Removed excess hardware from the kick plate. Stripped and cleaned the CP top. Filled the existing holes with wood filler, then sanded. Placed the template for the new CP buttons and joysticks. I first drilled small pilot holes in the center of the buttons, then removed the template and drilled the buttons out using a 1 1/8" Forstner bit. I've used a hole saw and spade bits, and trust me, the Forstner bit is the BEST! Cuts through like butter and leaves a smooth hole. Control panel. 1 joystick and 6 buttons for each player, player start and coin buttons above each player, 3" Happ trackball in center (using existing mounting plate from Golden Tee), 3 navigation buttons above trackball (ESC, Menu, Enter). I'm debating on adding a spinner knob or not. Don't think it would get used that much. I will also be adding pinball flipper buttons to each side of the CP box and a ball launch button to the front of it. But that's as far as I've gotten so far. Let me know what you think, comments, suggestions. Thanks! Link to comment Share on other sites More sharing options...
fireslayer26 Posted November 8, 2013 Author Share Posted November 8, 2013 Oh, I'm also trying to repair the CP top on the other cab as well. It was broken and chipped at a couple corners, so I'm trying to glue it back together, then use some wood filler to make it whole again. Hopefully I can reuse it the same way I'm doing the first one. The second cab it going to take a lot more work, as it is much dirtier and more banged up. Link to comment Share on other sites More sharing options...
rfancella Posted November 8, 2013 Share Posted November 8, 2013 Fire, Very nice! How much did he charge you and what was in the cabs??? Just curious. If I had mine to do over, I would have omitted the spinner and made a little more room by my flipper buttons to add nudge buttons. But, I just use the bottom right player 2 button to launch the ball. I can hit it easily hit it with my right thumb. I anticipate more pics!!! Thanks, Ron Link to comment Share on other sites More sharing options...

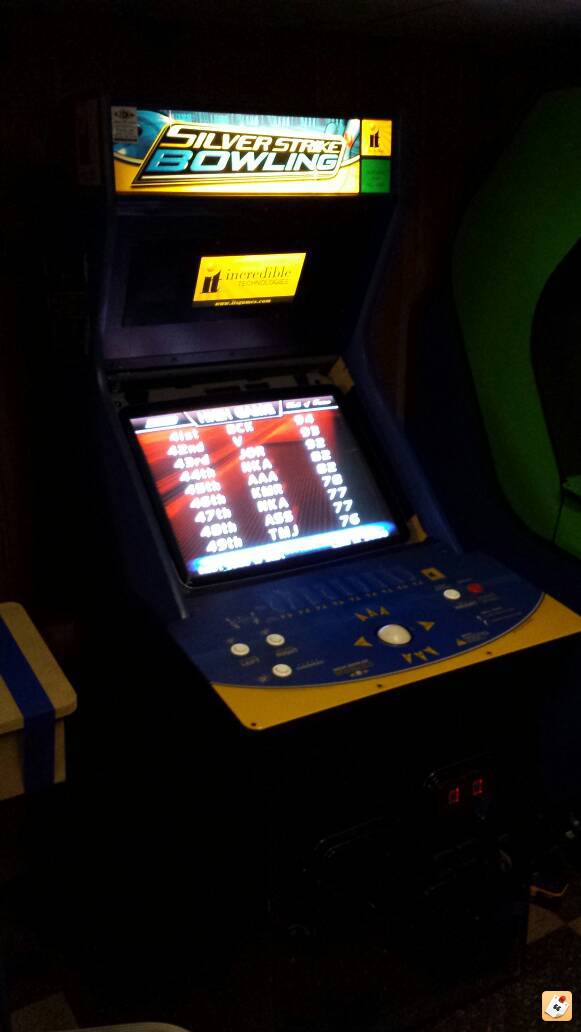

Xx_Strike_xX Posted November 9, 2013 Share Posted November 9, 2013 I have a sliver strike bowling cab. When I got it, it had everything but the monitor. I decased 27" samsung flat screen crt. Trying to figure out how to run ssb and my mame pc in the same cab. I like these cabs, keep going, looking good so far! Sent from my SGH-M919 using Tapatalk 2 Link to comment Share on other sites More sharing options...
fireslayer26 Posted November 9, 2013 Author Share Posted November 9, 2013 They are great cabs to do a conversion on. Lots of room on the inside. I'm also thinking of putting a small LCD where the "Incredible technologies" sign is on the speaker panel to be used as a DMD for the pinball games. Link to comment Share on other sites More sharing options...
Xx_Strike_xX Posted November 27, 2013 Share Posted November 27, 2013 What size are you going to put in there? Link to comment Share on other sites More sharing options...
fireslayer26 Posted November 29, 2013 Author Share Posted November 29, 2013 What size are you going to put in there? Not sure yet, I'll have to measure and see what I can fit. Link to comment Share on other sites More sharing options...
fireslayer26 Posted November 29, 2013 Author Share Posted November 29, 2013 Got some new artwork in that I ordered from Lucian045 (aka Brad). The quality of his work is great! Side art Control panel. The T-molding looks "teal" in the pic, but it is really bright blue. Got the CP about half wired to my IPAC-2 Link to comment Share on other sites More sharing options...
Xx_Strike_xX Posted November 29, 2013 Share Posted November 29, 2013 Where did you get that lightning artwork? I was looking for something like that, but orange, white and black. Sent from my SGH-M919 using Tapatalk 2 Link to comment Share on other sites More sharing options...
fireslayer26 Posted November 29, 2013 Author Share Posted November 29, 2013 Where did you get that lightning artwork? I was looking for something like that, but orange, white and black.Sent from my SGH-M919 using Tapatalk 2 I made it in Photoshop. Link to comment Share on other sites More sharing options...
Xx_Strike_xX Posted December 1, 2013 Share Posted December 1, 2013 You have skills my friend. Sent from my SGH-M919 using Tapatalk 2 Link to comment Share on other sites More sharing options...
fireslayer26 Posted December 4, 2013 Author Share Posted December 4, 2013 Thank you, but it wasn't terribly hard. Just took me a few tries. LOL Link to comment Share on other sites More sharing options...

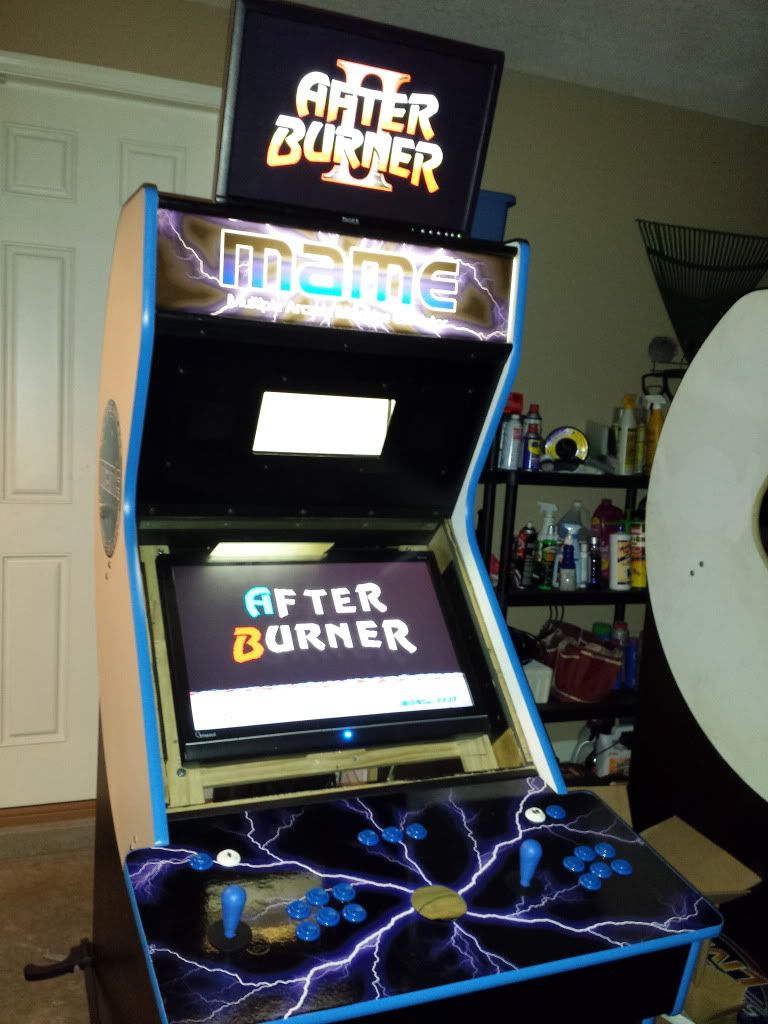

fireslayer26 Posted December 4, 2013 Author Share Posted December 4, 2013 Latest pic.... about 70% finished. Should I add more graphics to the side or just leave it clean looking the way it is?? Maybe Raiden from Mortal Kombat, since it will go with the blue/lightning theme??? Link to comment Share on other sites More sharing options...
fireslayer26 Posted December 4, 2013 Author Share Posted December 4, 2013 OOOOoooo... Here's an idea! The first Raiden pic with this between his hands http://www.amazon.com/Can-You-Imagine-Battery-Operated/dp/B000U8C42E/ref=pd_sim_t_10 Link to comment Share on other sites More sharing options...
fireslayer26 Posted December 4, 2013 Author Share Posted December 4, 2013 Well, I found out about HyperSpinHelper and how it can setup a 2nd screen for you. So I installed that and then added an extra monitor I had laying around to my Cab. So now it will display a marquee while you are surfing through HS and when you select a game, it will display that game's Logo/Graphic while you play! I'm also thinking of adding a 3rd screen in the white area between the 2 monitors that will display a picture of the controller for whatever console/arcade system you are playing. Link to comment Share on other sites More sharing options...
fireslayer26 Posted December 4, 2013 Author Share Posted December 4, 2013 I decided to make my own Marquee and name my cab..... Link to comment Share on other sites More sharing options...
HazzardActual Posted December 4, 2013 Share Posted December 4, 2013 damn dude, this thing is coming together by the second. looks great Link to comment Share on other sites More sharing options...
Xx_Strike_xX Posted December 5, 2013 Share Posted December 5, 2013 Looking good, this is what mine looked like before I switched cabs. Sent from my SGH-M919 using Tapatalk 2 Link to comment Share on other sites More sharing options...
fireslayer26 Posted December 5, 2013 Author Share Posted December 5, 2013 Damn you, you one-upper!! LOL I like how you modified the opening to fit the larger screen. I may have to look into that. How did you fill in the gaps? Link to comment Share on other sites More sharing options...
sandman7793 Posted December 5, 2013 Share Posted December 5, 2013 Damn you, you one-upper!! LOL I like how you modified the opening to fit the larger screen. I may have to look into that. How did you fill in the gaps? Put a flat piece of lexan and spray paint it black on inside, that way it stays glossy on outside. Link to comment Share on other sites More sharing options...
Xx_Strike_xX Posted December 5, 2013 Share Posted December 5, 2013 Damn you, you one-upper!! LOL I like how you modified the opening to fit the larger screen. I may have to look into that. How did you fill in the gaps? I dont have that cab anymore. It just took up to much room. Sent from my SGH-M919 using Tapatalk 2 Link to comment Share on other sites More sharing options...
fireslayer26 Posted December 8, 2013 Author Share Posted December 8, 2013 Strike- I liked your idea so much, I tried it myself! Link to comment Share on other sites More sharing options...

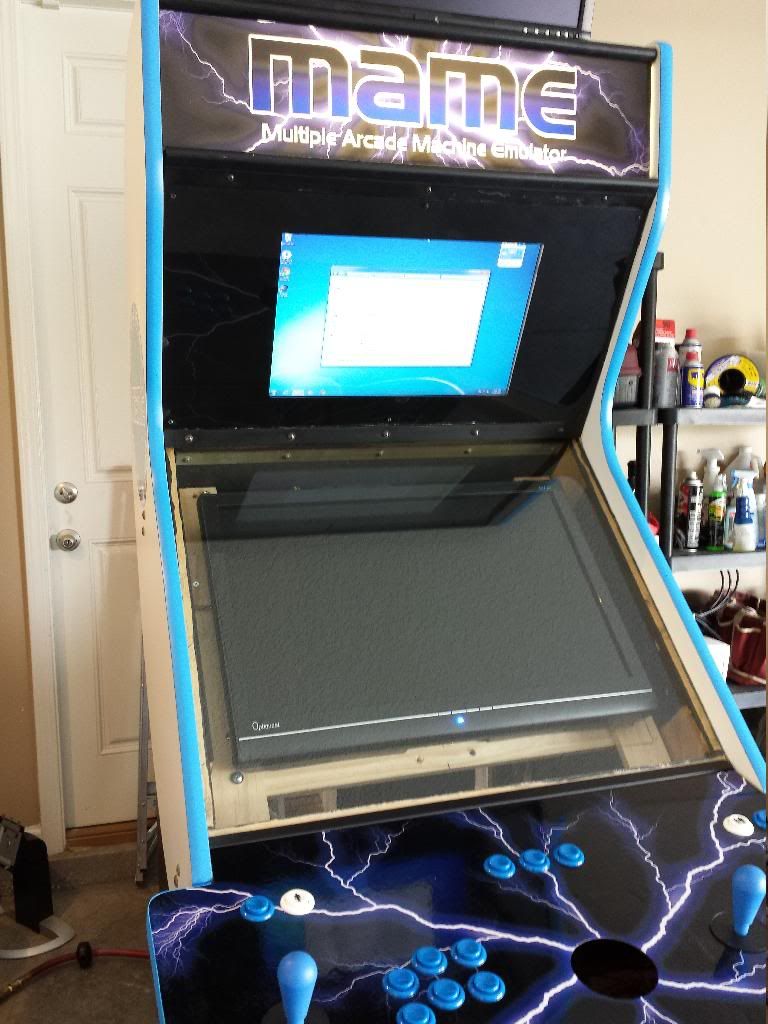

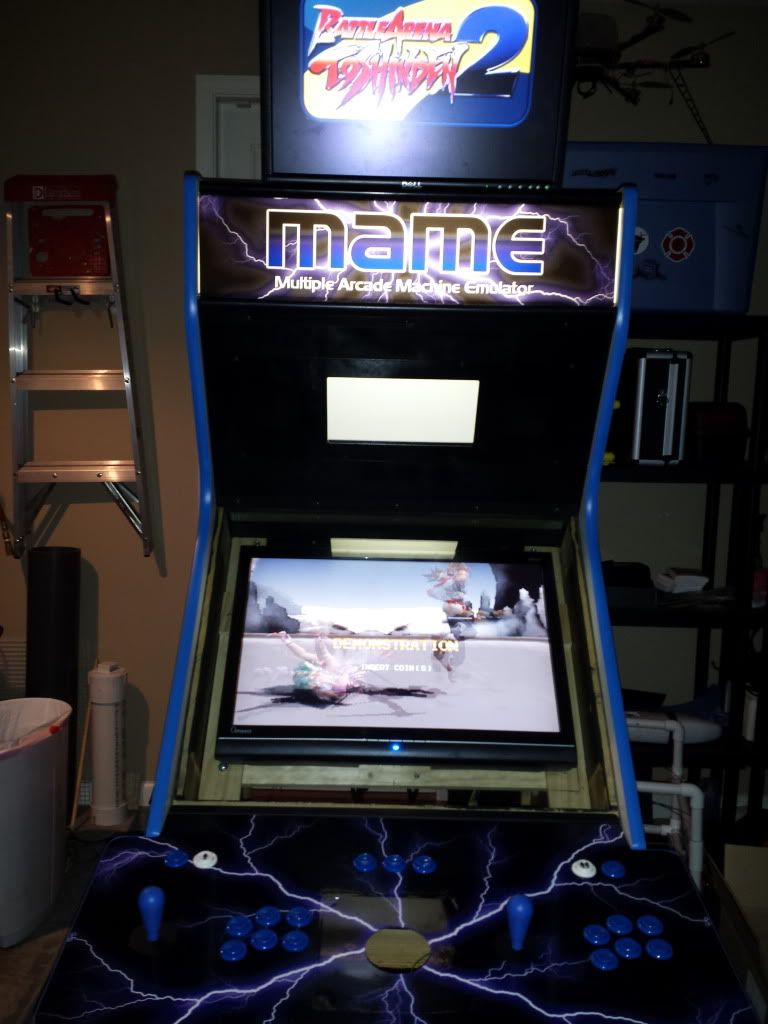

fireslayer26 Posted December 9, 2013 Author Share Posted December 9, 2013 Now that I've mounted another monitor on the front of the cab, I removed the monitor from the top. I also used the left over lexan and covered the openings on the front of the cab that where made when I removed the hardware. I also added the "Launch Ball" button to the front of the CP. It looks much cleaner now. I think I may add the Raiden graphic to the left of the coin door. All I need now is a graphic for the main monitor bezel and I'm still waiting on my new 3" happ trackball to arrive. Link to comment Share on other sites More sharing options...
fireslayer26 Posted December 18, 2013 Author Share Posted December 18, 2013 Changed the top monitor from a 17" to a 20". Just need to make a new bezel now. Installed some LED accent lighting underneath the sides of the CP. When I get the side graphics on, it should look pretty good! Also got the coin door lights wired up. Link to comment Share on other sites More sharing options...
fireslayer26 Posted December 18, 2013 Author Share Posted December 18, 2013 Question..... With the tilted back angle of the main monitor. Would the Ultimarc Aimtrak light gun still work? Or does the screen have to be completely vertical? Link to comment Share on other sites More sharing options...
