Lucian045 Posted December 17, 2014 Share Posted December 17, 2014 Nice job installing that artwork...machine looks awesome. Link to comment Share on other sites More sharing options...
kizam33 Posted December 17, 2014 Author Share Posted December 17, 2014 Thx Lucian045. Having that install video you made and air release material, made it so easy to install. Sent from my iPhone using Tapatalk Link to comment Share on other sites More sharing options...
kizam33 Posted December 17, 2014 Author Share Posted December 17, 2014 Looks like X-mas came early. A nice Force Feedback package from Zeb!!! 1-ATX Breakout board 1-32 port SMTP Booster Board 1-350ma Resister Board 1-LED connector cable 24" Lightbar with resister board Shaker/gear motor combo with Speed control board. 5- LEDS Digital Plunger kit 2-Strobe panels. Now time to figure out where to put it all. Sent from my iPhone using Tapatalk Link to comment Share on other sites More sharing options...

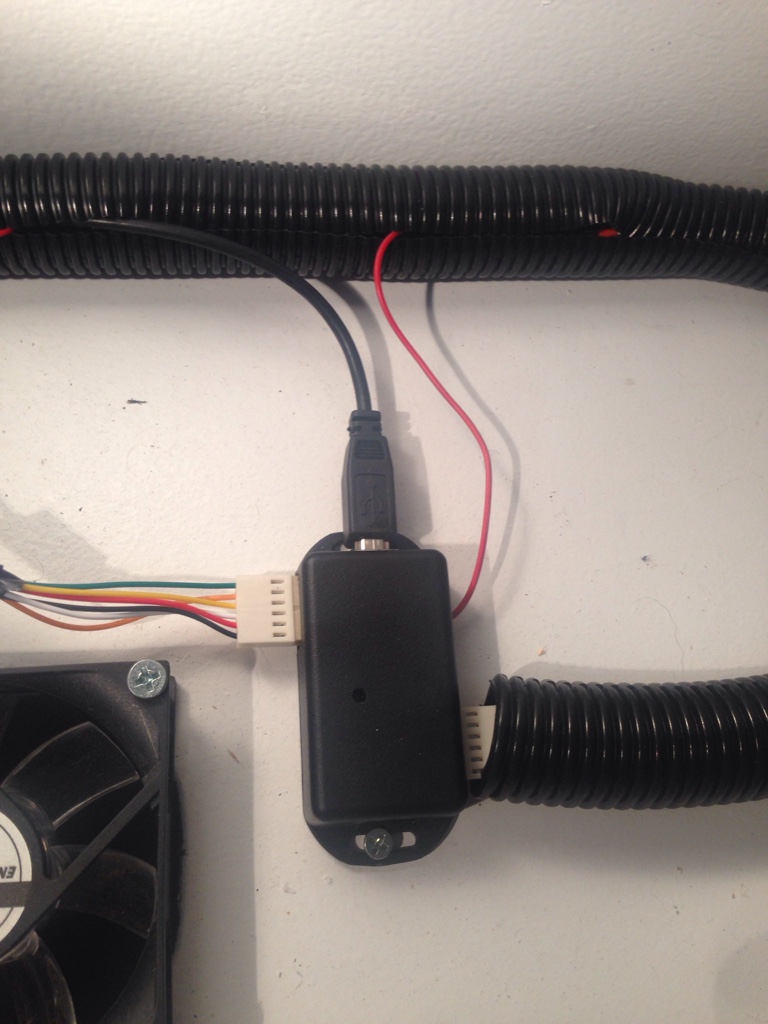

kizam33 Posted December 19, 2014 Author Share Posted December 19, 2014 Just got done wiring all my buttons and coin door to Zebs Digital plunger. Sure saves on wire and an ipac. But it was a pain trying to strip and crimp those angel hair wires. Sent from my iPhone using Tapatalk Link to comment Share on other sites More sharing options...
kizam33 Posted December 21, 2014 Author Share Posted December 21, 2014 Does anyone know the correct distance for the Replay Knocker? I can't find the room in my backbox so I'll just put it in the front of the cab. Sent from my iPhone using Tapatalk Link to comment Share on other sites More sharing options...
mikekim Posted January 8, 2015 Share Posted January 8, 2015 Does anyone know the correct distance for the Replay Knocker? I can't find the room in my backbox so I'll just put it in the front of the cab. Sent from my iPhone using Tapatalk Mine is set at 75% of full travel distance.. don't know if it's right or not..:eek: Sent from my HTC One_M8 Link to comment Share on other sites More sharing options...
kizam33 Posted March 29, 2015 Author Share Posted March 29, 2015 I have done a lot of work here and there on the pin but haven't put any updates on here. With the family visiting family, i have some free time to give you guys an update. Link to comment Share on other sites More sharing options...

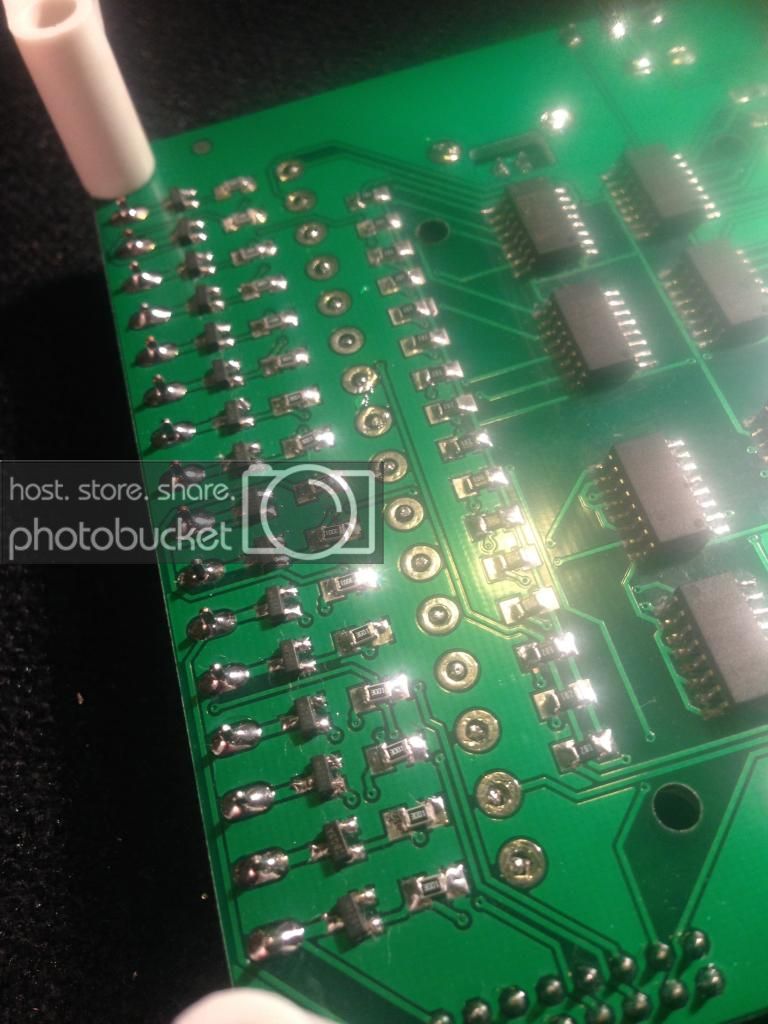

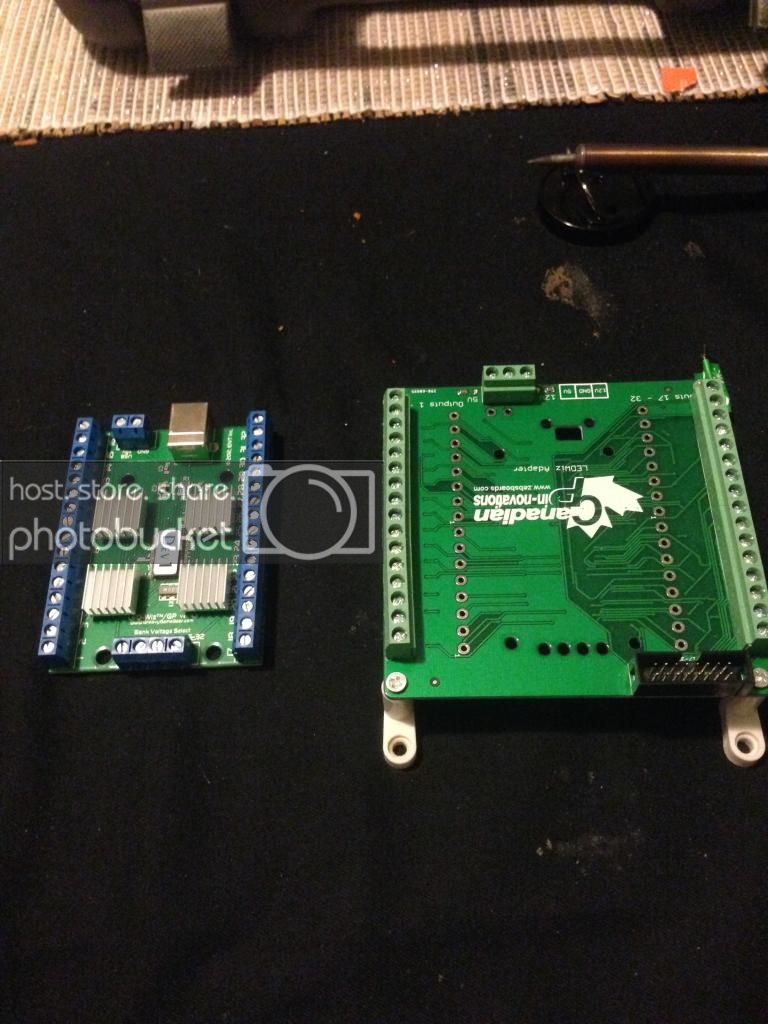

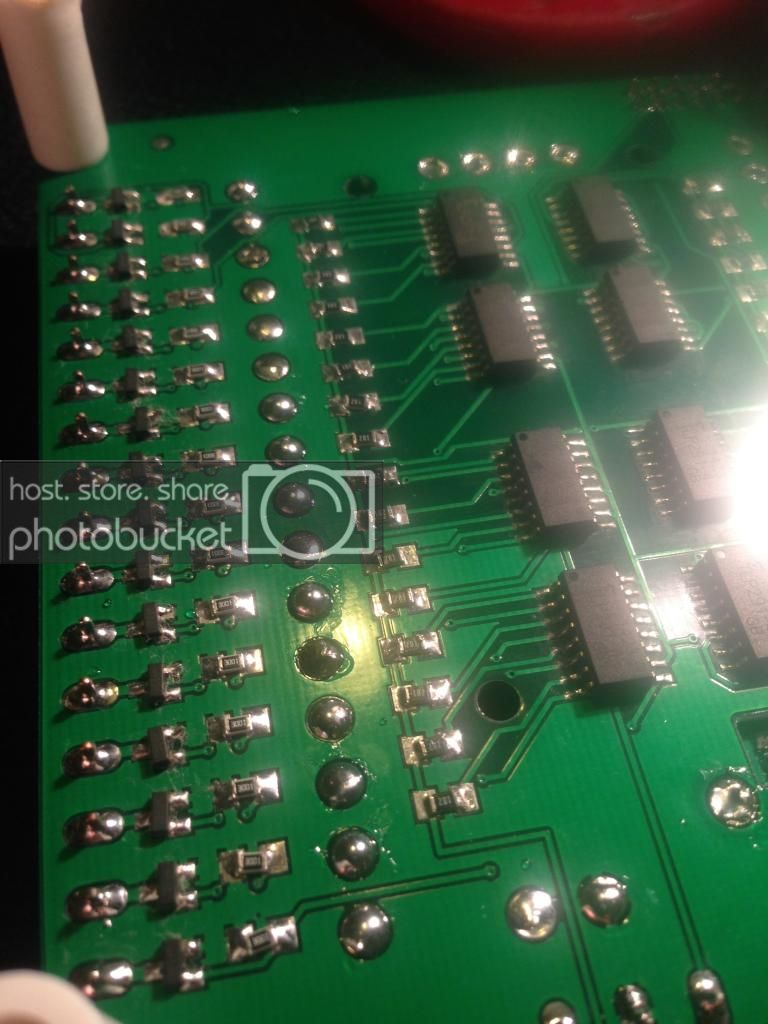

kizam33 Posted March 29, 2015 Author Share Posted March 29, 2015 I had no idea I needed some soldering skills to make these two go together. A couple youtube soldering videos and a few hours, i was pretty impressed with myself. Some of the domes don't look perfect in the pic but I fixed them after I saw the pic. Link to comment Share on other sites More sharing options...

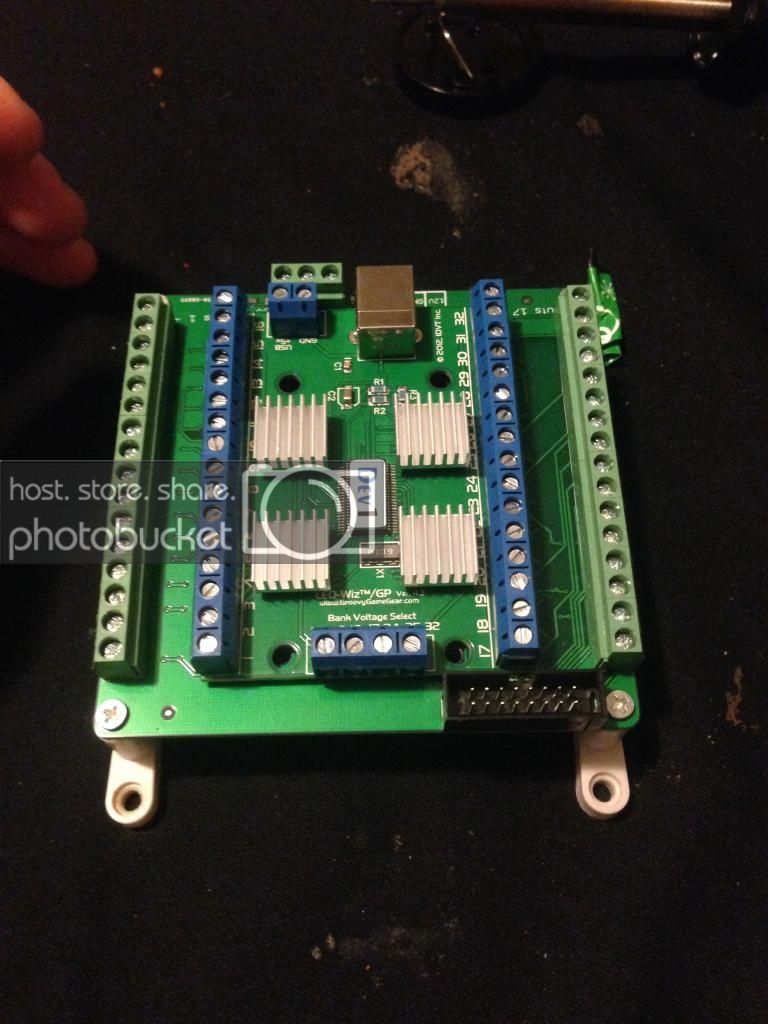

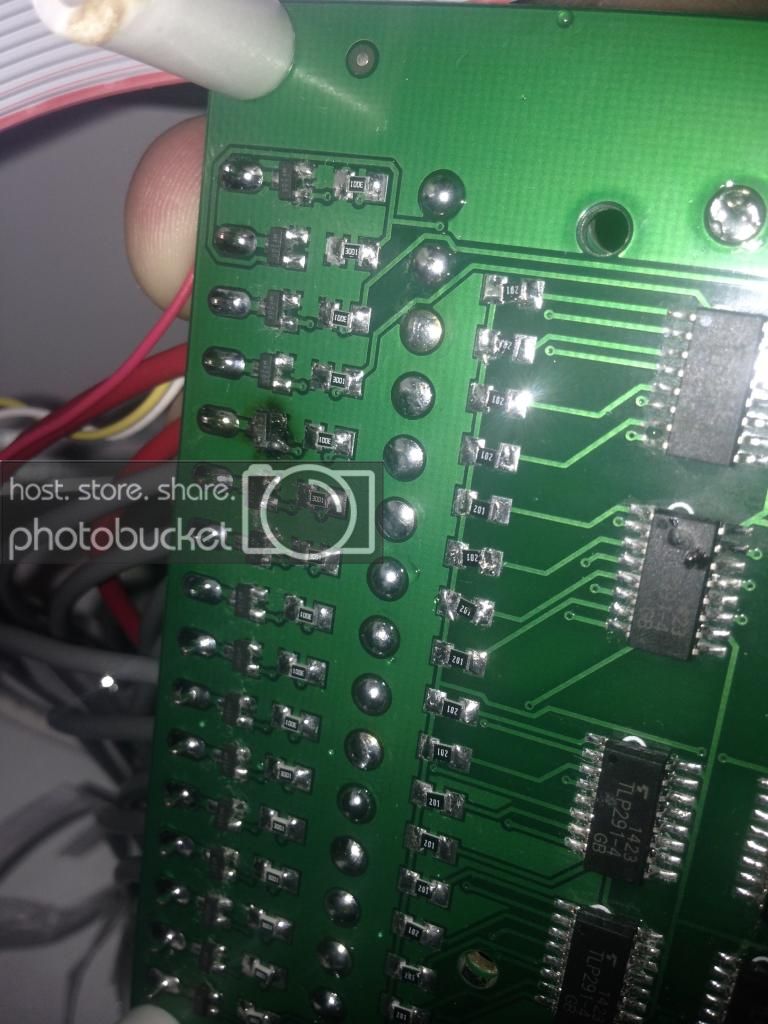

kizam33 Posted March 29, 2015 Author Share Posted March 29, 2015 First I had to unsolder the Ledwiz joints on the back, then resolder to the SMT Booster Board. Big thx to youtube and Electricmagma Link to comment Share on other sites More sharing options...

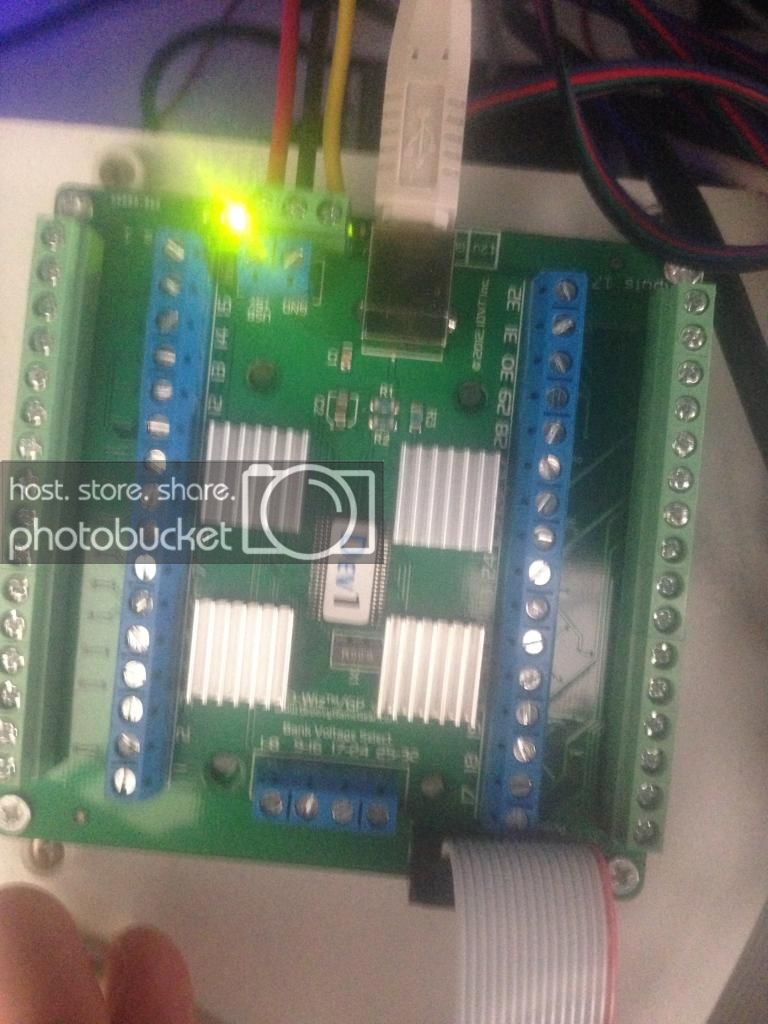

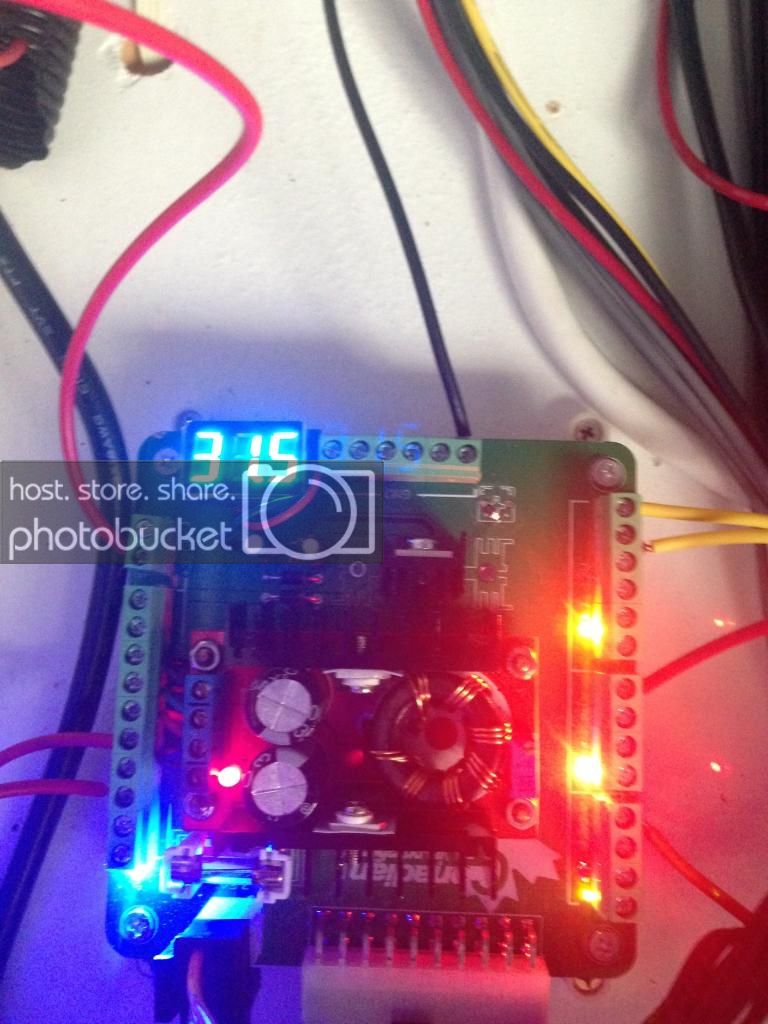

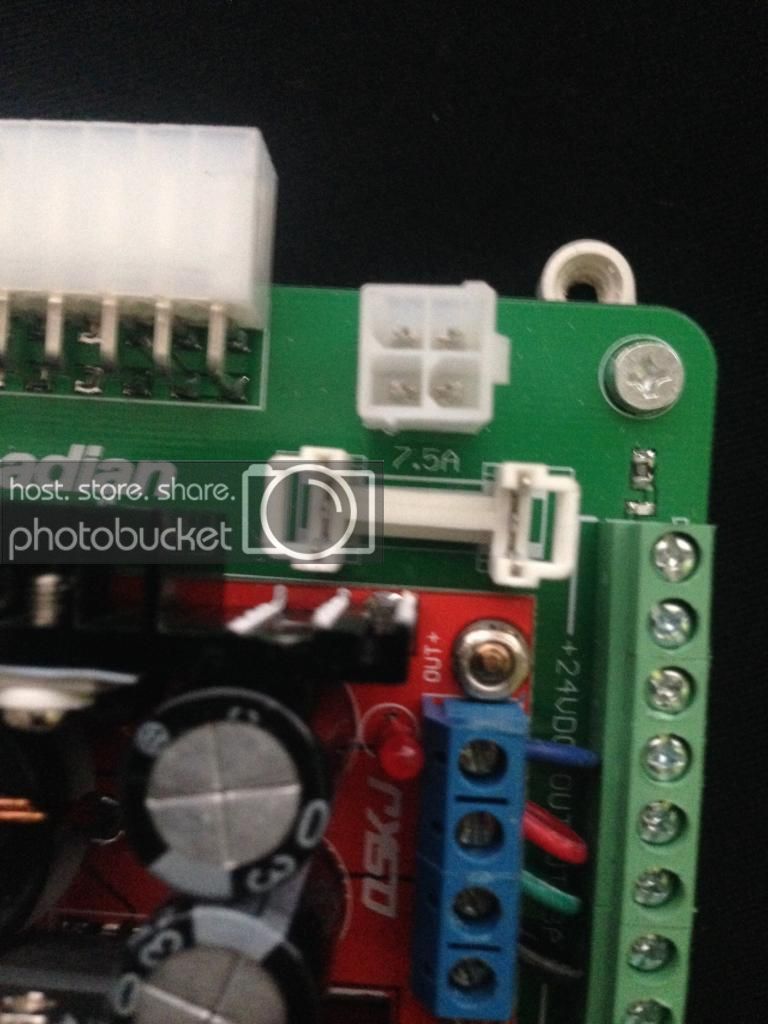

kizam33 Posted March 29, 2015 Author Share Posted March 29, 2015 Sorry for the crapy phone pics. This light lets you know you have power to the board. I didn't at first because the wire to the ATX Board wasn't screwed in tight enough. Link to comment Share on other sites More sharing options...

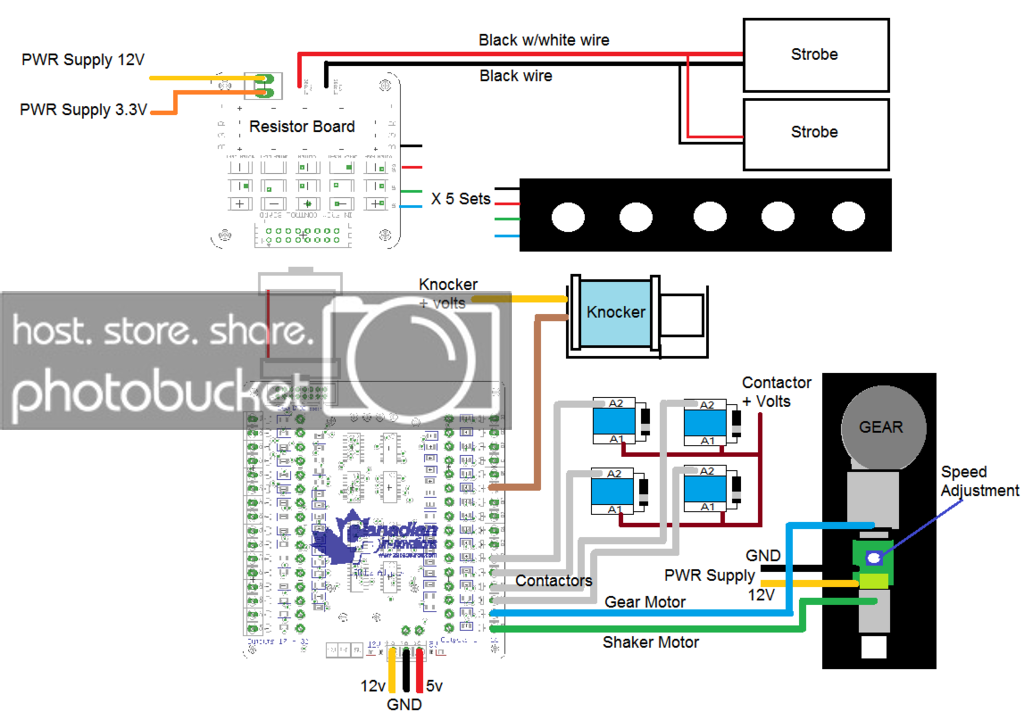

kizam33 Posted March 29, 2015 Author Share Posted March 29, 2015 The hard part was to figure out the layout and where to start. Zeb hooked me up with a diagram on what went to what. Link to comment Share on other sites More sharing options...
kizam33 Posted March 29, 2015 Author Share Posted March 29, 2015 Ok, this is where the fun started. All ports on the SMT board worked and the lights lit up so that means my soldering was good enough. It was a great feeling seeing the lights and hearing all the force feed back sounds (Contactors, shaker/gear motors) Then the replay knocker was next to be installed. The contractors are 24v and the knocker is 50v I think. The ATX board is awesome, it has ports for 3v, 5v, 12v, 24v, and 32v. I wanted to power the knocker with the 32v port. I read some where 24v worked too but I wanted as much power as i could get. I bought the Williams replay knocker 26-1200 along time ago but Zeb said the 23-800 works best with his boards so I bought that one too. The knocker has two wires a black and a red wire. It doesn't matter which one goes to the atx board to power it (which would be the positive) as long as the diode is installed right on it. There is a little stripe on the diodes. This end goes to the positive side. It acts like a check valve for electricity. Well....... my dumb ass didn't put one on the knocker and boom!! The lights went out and a smell of burnt wire in the air. The knocker was too hot to touch. This is what it looks like when you're doing it right. This is when you don't put a diode on a coil. Lucky for me, Zeb protects his boards. For the ATX board, it was just a fuse. Not so lucky with the SMT board port. Link to comment Share on other sites More sharing options...

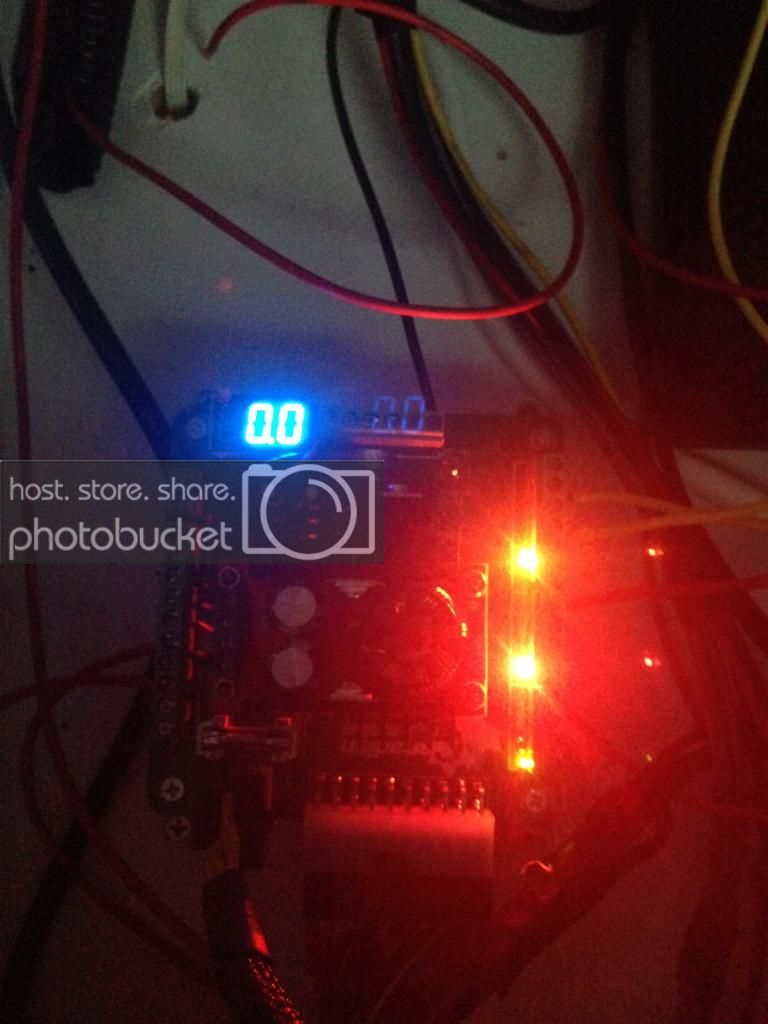

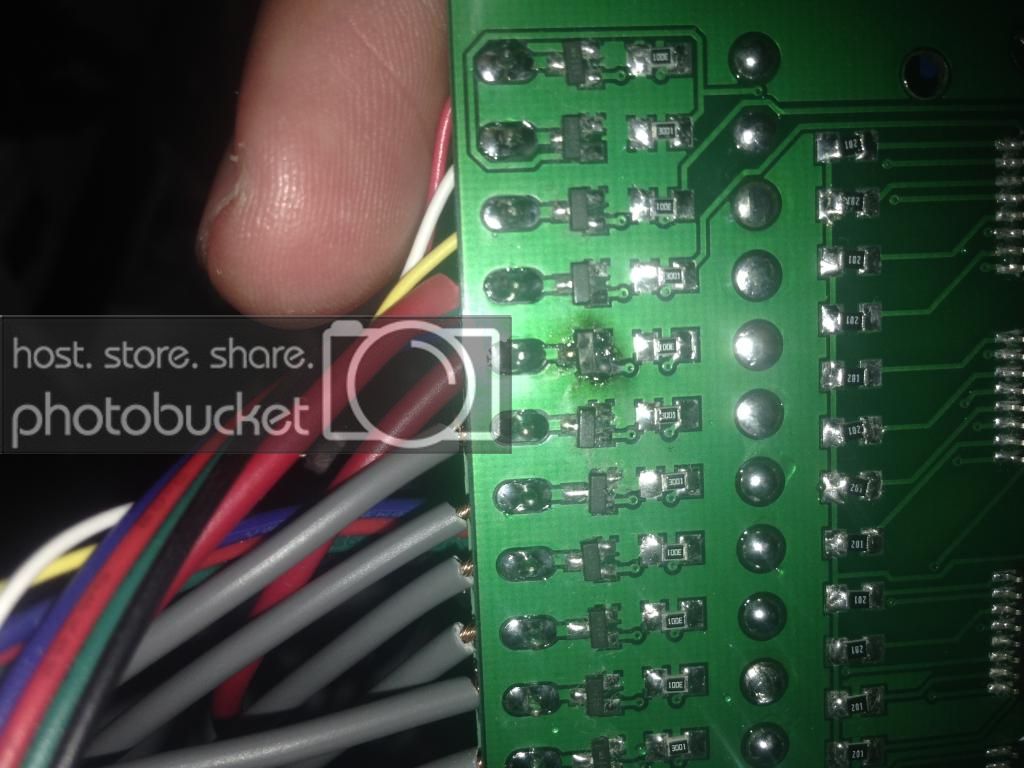

kizam33 Posted March 29, 2015 Author Share Posted March 29, 2015 Ok, So I put the diode on the same knocker and tested it again. Wow, I never thought I would hear the sound of bacon cooking with a circuit board. Lol. Oh and that magic white smoke I have heard about, yeah instantly appeared. That told me the knocker was fried. I don't have a pic of both ports fried but it looks like the first pic but now two ports off line now. Link to comment Share on other sites More sharing options...
kizam33 Posted March 29, 2015 Author Share Posted March 29, 2015 Yeah, so I couldn't send the boards back for repair until I figured out my knocker issue. I went back to the 26-1200 knocker and put the diode on that and bam!!! The sweet loud bang of the replay knocker echoed the house. Like everyone else said before, "it scared the crap out of me." Link to comment Share on other sites More sharing options...
kizam33 Posted March 29, 2015 Author Share Posted March 29, 2015 I have been so depressed lately [emoji20][emoji20] not even looking at forums or anything. because I sent back my boards back to Canada to get it repaired by Zeb and he has not received the package. 02/12/15 my wife sent it through the post office, paid cash and lost the receipt . So I have been working on little things here and there on the pin just waiting and hoping my boards show up but it's not looking good. It's the heart of the beast. My 46" has been out of the cab ever since and even my cab looks depressed like , "hey, why aren't you playing with me??" It's so frustrating and just one of those things that you can't believe happened. I think I have to just man up and move on by buying the boards I lost so myself and others can enjoy the machine instead of it being a giant paper weight. [emoji24][emoji24] Link to comment Share on other sites More sharing options...
kizam33 Posted March 29, 2015 Author Share Posted March 29, 2015 I need to get this ball rolling before the Metallica table is released or I will really be depressed. [emoji53] Link to comment Share on other sites More sharing options...
vampirolatino2 Posted April 7, 2015 Share Posted April 7, 2015 Cool build dude. Keep up the good work!! Sad that this place once was a paradise in cab builds, now is almost a dead zone (talking about how old the threads and post in HyperPin are) ... I think almost everyone moved to PinballX ... don't know why... lol Link to comment Share on other sites More sharing options...
mikekim Posted April 7, 2015 Share Posted April 7, 2015 Cool build dude. Keep up the good work!!Sad that this place once was a paradise in cab builds, now is almost a dead zone (talking about how old the threads and post in HyperPin are) ... I think almost everyone moved to PinballX ... don't know why... lol probably because Hyperpin is a 2yr old product that has had no updates, whereas Pinballx is actively being worked on and updated. I would think about changing, but haven't got the time at the moment.. Link to comment Share on other sites More sharing options...
kizam33 Posted April 7, 2015 Author Share Posted April 7, 2015 Yeah it has been quite around here but I'll keep posting until I am done with the beast. Link to comment Share on other sites More sharing options...
mikekim Posted April 8, 2015 Share Posted April 8, 2015 lol - same here.. sorry to hear about the setbacks.. I had a nice loud bang and smoke on mine.. but it was only a cheap 6way PDU that was poorly assembled, an easy £20 fix.. Link to comment Share on other sites More sharing options...
kizam33 Posted April 8, 2015 Author Share Posted April 8, 2015 Oh man, Yeah I like posting my mistakes so history doesn't repeat its self. Lol Link to comment Share on other sites More sharing options...
