How to power a Bartop Arcade


gunit

Recommended Posts

Posted

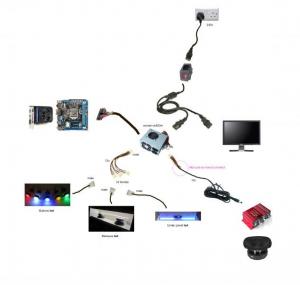

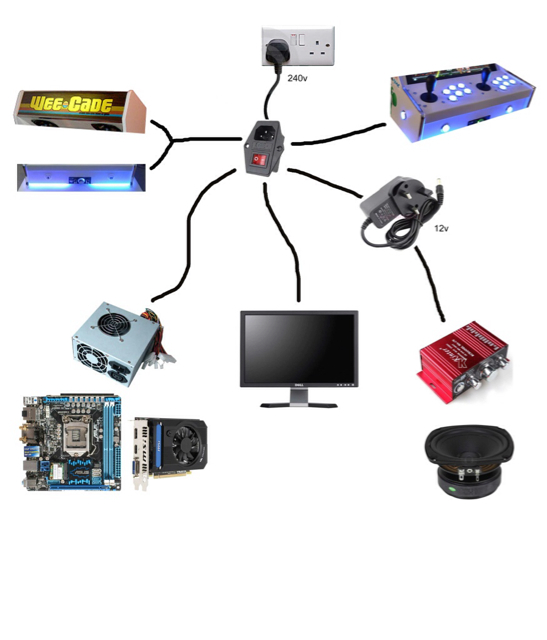

Hi guys I have been looking into how you can power a bartop arcade and the majority seem to go down the easier option of including 4 gang extension lead inside the unit. I would like to avoid using plugs and the extension bar so I really could do with some guidance, Please see a rough diagram below:-


Can anyone help explain how I can get the ideal solution ?

Sent from my iPad using Tapatalk

Posted

Your amp,button leds and marquee light will all be powered by your computer powersupply ie 12 or 24 volts

If your good at soldering then solder your monitor cable to your psu incoming 240volt supply anf just have the one lead.if not then its either two cables entering the cab one for the monitor and one for the psu.

Or get a kettle lead splitter and youll be sorted with only one cable

Posted

Sorry I have another Question, how can I get my (amp/speakers/12v transformer) from Coaxial power connector to a molex connecter so that I can connect to the psu. I was hoping a coaxial to molex existed but have had no luck.


Posted

The yellow wire is live and black is ground. Cut and join the wires accordingly.

Posted

the positive centre tip (normally white striped wire ) on the plug connects to yellow (+12V) on the molex, the negative (black wire) connects to the black on the molex.

if you dont want to cut up your current psu cable you can pickup a 12v psu plug cheaply off of ebay or RS components.


Posted

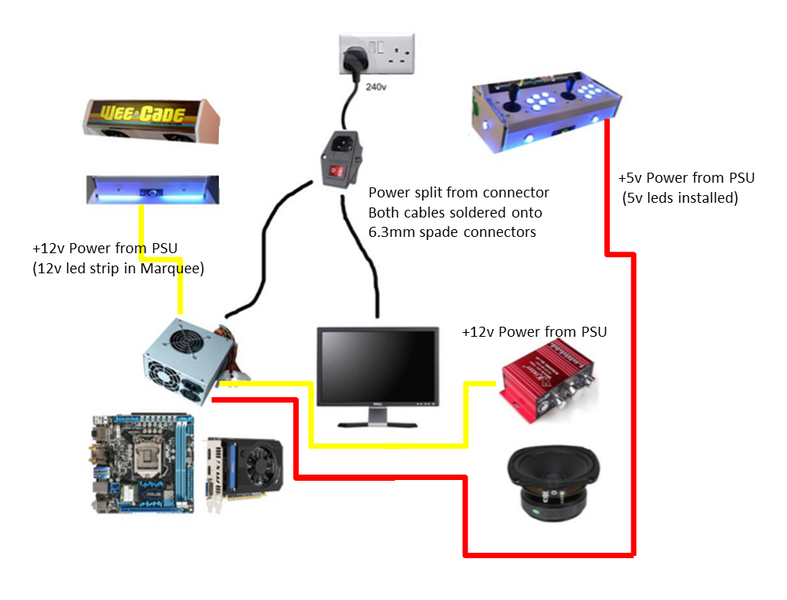

quickly amended your diagram above as to how i would wire up the cab.


i haven't shown the ground connectors (black) they also go back to the pc molex connectors


Posted

Looks good MIke, do we have examples of an arcade switch socket with 2 power cables attached to it ? just so that I am 100% on the wiring.

Sent from my iPad using Tapatalk

  • 2 years later...
Posted

An old post, but with the last diagram I sent, you can see an issue with the amp ( it has a transformer) how can I get this setup to work and is it 100% correct ?

Posted

I think this is the solution:-

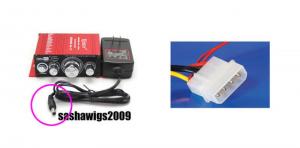

4Pin Male Molex To DC Male Connector

This should then power the amp. My concern now is any noise/speaker issues due to running everything via a PC power supply

  • 2 weeks later...
Posted
I think this is the solution:-
4Pin Male Molex To DC Male Connector
This should then power the amp. My concern now is any noise/speaker issues due to running everything via a PC power supply


Wrap your speaker wires around a ferrite core should help prevent noise
