My skinflint cabinet

Recommended Posts

Hi everyone,

I've been working on my arcade cabinet for about 3 years. Why so long? Because it was supposed to be as cheap as possible!

It all began when coming back from work I saw that my neighbour was trashing several huge chipboard panels. I figured it could be a good starter for a kid's dream: my own arcade cabinet.

So I gathered all the wood I could - I'm living in Germany, and trashing habits here are quite insane for the French guy I am, I can't believe what I sometimes see in the streets - and also a nice 55 cm TV.

I used as a basis the blueprints of Centipede cabinet found on arcadecontrols.com. It was the shape that remind me most of the cabinets I could play on during my childhood.

This is when the first thing went bad. I removed the TV from its plastic housing, put it in my home made frame in my fresh cabinet, plug everything, turn it on for a test, and... the picture was now green! I try to play with every settings I could find, but I had to face the truth, I damaged the TV when I removed the housing.

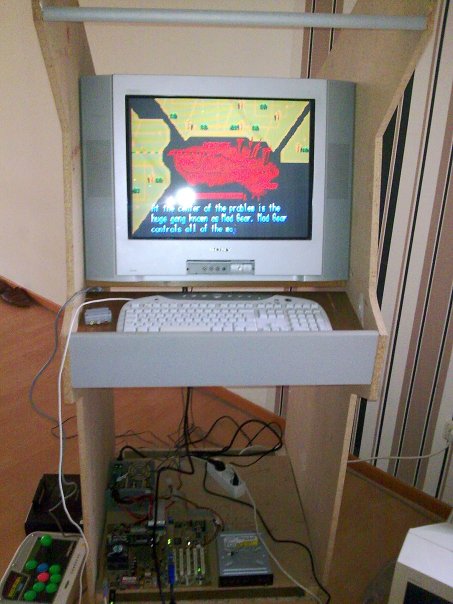

About one year and a half later, I found another working TV. This time, I didn't want to mess anything so I decided to put the whole TV with the housing in the cabinet. Of course it meant could only keep the sides of my precious pieces of wood as the whole TV made the cabinet wider. And it is the first time I took a picture, too.

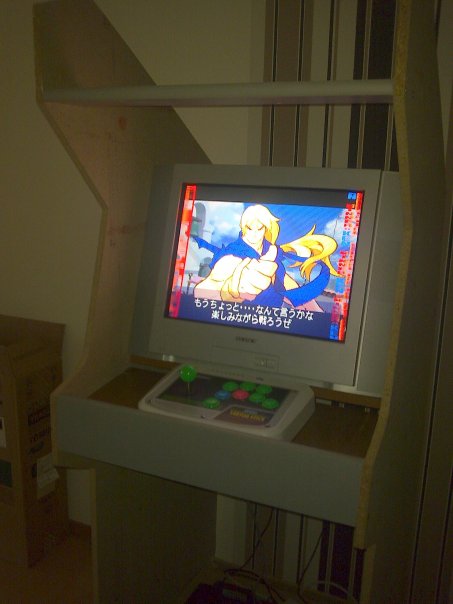

I hooked it with a Saturn, Virtua Stick and Street Fighter Alpha 3 to get as close of the arcade feeling I could.

Then I built a VGA to SCART cable to try with a PC.


Things were going well, but the computer (that I found in the street too) died. A few months later I found another one and could go on.

At first I made wooden control panel and let the WIP cabinet in free play during a party at my place. It made me realize wood wouldn't be able to resist a bunch of drunken guys trying to button mash as hard as they could playing Marvel VS Capcom.

The solution came from a friend of my father who still had an old industrial steel folding machine in his workshop. So thanks to him I now have a 2 mm thick steel control panel. :) And thanks to my father who cut the holes with his plasma cutter, I have a nice layout for the buttons and joysticks.



At first I wanted to do a keyboard hack, it had to be cheap, remember? ;) But after destroying five keyboard, all of them donated of came from trash, and still having ghosting issues, I decide to buy a dedicated encoder.

I choose an InterfASD as it was cheap and had enough inputs (27) for my two players cabinet.



You can see too that I bought 14 Sanwa buttons and two Seimitsu joysticks, as it is very unlikely I found these kind of thing being trashed.

I'm now getting close to the end of this project and post my actual progression soon.

Thanks for reading. :)
