tchiacch Posted November 3, 2012 Share Posted November 3, 2012 Ok, wanted to start the Heroes pinball build thread after months of researching on this board. My friend and I are both building the exact same cab at the same time, so we are tag teaming. He is the expert wood worker and I am the PC guy. We are currently building a standard Williams wide body with 40 inch LED samsung as playfield. We are using a 28" 16:10 LCD for the backglass and a 15 Inch LCD for the DMD display. Shout out to the following forum super stars :Big thanks to mameman, Badboy Bill, Bill55, ebarlow99, and the ever awesome DeeGor (huge help). We are finally underway with wood working (both boxes have all the wood cut and base cabinets are assembled). My buddy has come up with a very sturdy notched corner (with glue) using MDF. It is a very solid cabinet frame for sure. PC software coming along nicely (Visual and Future are up and running in hyperpin on I5 using XP). Artwork is being done by Josh White (major good guy! Incredible artist). Printing is going to be completed by Brad at Bowman this week Electronics are very similar to DeeGor's Lego Batman build (but we decided to use Zebulon's boards which is slightly different). We have also opted for lighting in back of playfield area instead of the top of backbox. We are going to use contactors, gear motor, plunger, knocker, shaker, nudging. We are in mockup mode now, with the base cabs assembled. Backbox is cut and in assembly/planning. We just finished deciding on leg and playfield height (put the TV in and tested some tables). We are simply having the most fun ever doing this project. My friend and I love Spiderman, Ironman, Batman, Terminator, Tron etc. so we came up with the idea to make a collage using these characters (with formal permission to use Hyperpin logo). Check out the artwork we have been working hard with Josh back and forth on (coin door front decal added): Josh is a great artist, very flexible and he can really run with your general ideas. If you don't like something, just tell him and he makes it right. Highly recommend him (dfwArcade on this forum) Link to comment Share on other sites More sharing options...

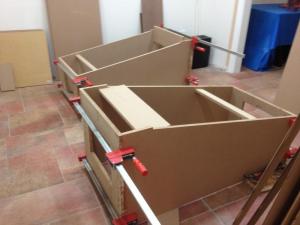

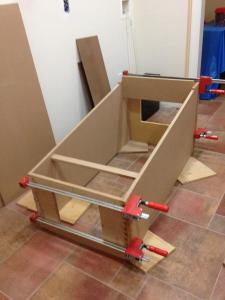

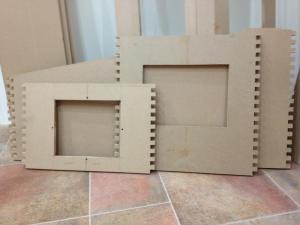

tchiacch Posted November 3, 2012 Author Share Posted November 3, 2012 Here are a few shots of some of our cabinet frame as being built. We have notched edges for extra strength at the corners, worked perfectly (this is a little unique to our design). But our cabinet is based of Mameman's famous widebody plans (major thanks to him as this works perfect with the widebody kit from virtuapin.net). Link to comment Share on other sites More sharing options...
Aurich Posted November 3, 2012 Share Posted November 3, 2012 Smart making two at once, once you're set up and going it's really not that much extra work to cut two of everything. Link to comment Share on other sites More sharing options...
tchiacch Posted November 3, 2012 Author Share Posted November 3, 2012 Good point Aurich, we are also able to split the cost of certain items like the artwork etc. Link to comment Share on other sites More sharing options...
jasonsmith Posted November 3, 2012 Share Posted November 3, 2012 Well done fellas, looking forward to watching the progress. Link to comment Share on other sites More sharing options...
DeeGor Posted November 4, 2012 Share Posted November 4, 2012 Nice job. The artwork looks great. I just noticed that Stern has done tables for all of your characters. You guys should try and get Gary Stern to sign your cabs. Keep up the good work. I'm looking forward to seeing them completed. Link to comment Share on other sites More sharing options...

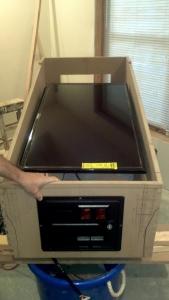

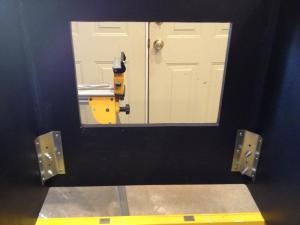

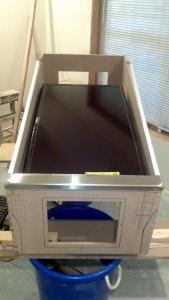

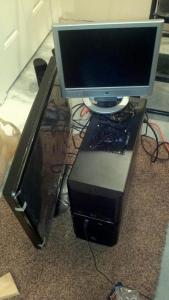

tchiacch Posted November 9, 2012 Author Share Posted November 9, 2012 Here are some new photos of us putting in coin door/lockbar fitting and our pc/monitors: Link to comment Share on other sites More sharing options...
tchiacch Posted November 9, 2012 Author Share Posted November 9, 2012 Love the TV. We do not have to de-case it (great for warranty if needed). Plunger is going to be perfect. This Samsung TV has like a perfect indention area for the plunger to go under. Our TV model is the Samsung UN40EH5000 40-Inch 1080p 60Hz LED HDTV (Black). We have plans for the room in the back of the playfield to put LED's. Going to be awesome. Lockbar and coindoor both fit like a glove. Link to comment Share on other sites More sharing options...

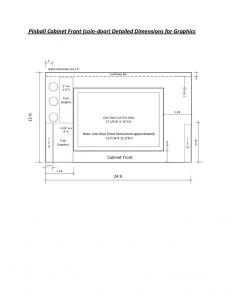

tchiacch Posted November 9, 2012 Author Share Posted November 9, 2012 Ok, here is a drawing of the front button placement that we worked out. Plunger and launch button will be on the right side. They were not needed to be shown for the artwork planning. Front art is being finished this weekend. Decals should be going print next week. Link to comment Share on other sites More sharing options...
mameman Posted November 9, 2012 Share Posted November 9, 2012 Coming along nice, make sure to sand/fill those super strong joints well so they don't show through the decals. Link to comment Share on other sites More sharing options...

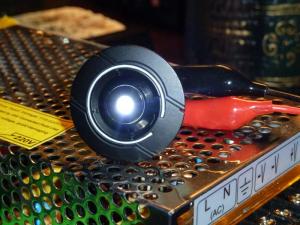

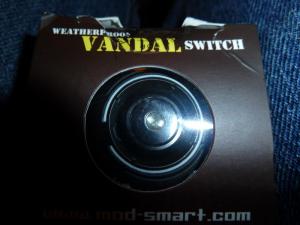

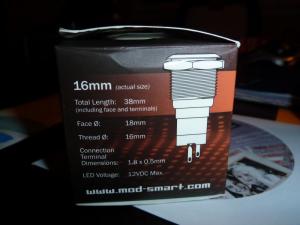

tchiacch Posted November 10, 2012 Author Share Posted November 10, 2012 We came up with a killer idea for a power on switch that will go on the front of our cab (bottom right). We are using a Vandal momentary 16 mm switch DOT with White LED in the middle. This will connect up to the motherboard of the PC to turn it on (using Belkin smart strip to sense PC power to turn everything else on). The cool thing is we found a Tron disc that the switch will fit into perfectly. Here are some shots to show you. Link to comment Share on other sites More sharing options...
Aurich Posted November 10, 2012 Share Posted November 10, 2012 Nice find/combination. I personally prefer my power buttons hidden, but if you're going to show it might as well make it stylish. Link to comment Share on other sites More sharing options...
mameman Posted November 10, 2012 Share Posted November 10, 2012 Nice, do you have some more info on the tron disc? Link to comment Share on other sites More sharing options...
tchiacch Posted November 10, 2012 Author Share Posted November 10, 2012 I find two on ebay. There is one more left only it is slightly different. Search for 1/6 DISC #2 from Hot Toys TRON: Legacy SAM FLYNN with Light Cycle Figure Set If you have trouble getting one let me know. Link to comment Share on other sites More sharing options...

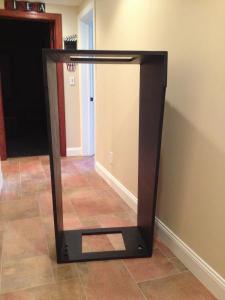

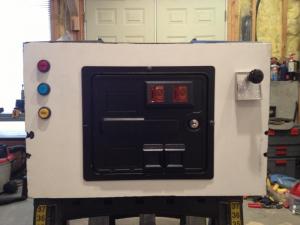

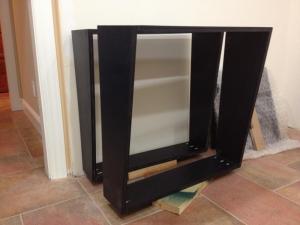

tchiacch Posted November 27, 2012 Author Share Posted November 27, 2012 Priming/Painting work and button hole drilling has been ongoing. We still need to put the launch button as well as the tron power on button on the front too. Here is the front so far. Leg holes are in and have test mounted legs too. Link to comment Share on other sites More sharing options...
Aurich Posted November 27, 2012 Share Posted November 27, 2012 Looking good. You decided to not countersink the buttons on the front? Link to comment Share on other sites More sharing options...
tchiacch Posted November 28, 2012 Author Share Posted November 28, 2012 We have talked about this and our only concern was if we would have issues with the decal eventually peeling around the countersink hole over time. I do agree that countersink makes it look better. Link to comment Share on other sites More sharing options...
Aurich Posted November 28, 2012 Share Posted November 28, 2012 We have talked about this and our only concern was if we would have issues with the decal eventually peeling around the countersink hole over time. I do agree that countersink makes it look better. Commercial table buttons are countersunk, no peeling issues. Vinyl is tough stuff. Your call of course! Link to comment Share on other sites More sharing options...
Lucian045 Posted November 28, 2012 Share Posted November 28, 2012 We have talked about this and our only concern was if we would have issues with the decal eventually peeling around the countersink hole over time. I do agree that countersink makes it look better. If the graphic is cut properly around the hole flush, there should be no issue with it peeling. However, if any part of the vinyl is not cut flush with the hole, then there might be an issue with it peeling. I could only see it happening if someone stuck there finger in there to hit the button and hit the edge sticking up over and over again, would definitely take a long time for it to lift though. Link to comment Share on other sites More sharing options...
monkeychunkuk Posted November 28, 2012 Share Posted November 28, 2012 cant wait to see it running Link to comment Share on other sites More sharing options...
tchiacch Posted December 5, 2012 Author Share Posted December 5, 2012 Added new coindoor artwork. Brad from Bowman is now in print. I can't wait to see these decals on our cab. Now in research mode on how to apply these beauties correctly. Link to comment Share on other sites More sharing options...

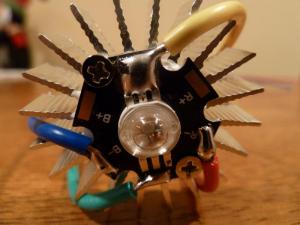

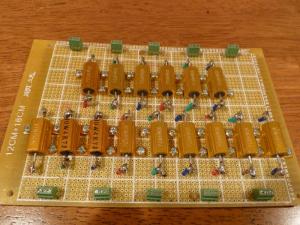

tchiacch Posted December 5, 2012 Author Share Posted December 5, 2012 Ok, finished resistor boards (two of them) and (made ten flashers - DeeGor style ) - since we are building two cabs at same time. Tested connectivity and resistance with meter for both boards. Lit up every flasher to make sure they all work correctly. Getting better at soldering. Link to comment Share on other sites More sharing options...
DeeGor Posted December 5, 2012 Share Posted December 5, 2012 That looks great. I became pretty good at soldering by the time I was finished with my one cab. You'll be a soldering master by the time you're done with both of those. Link to comment Share on other sites More sharing options...
tchiacch Posted December 7, 2012 Author Share Posted December 7, 2012 Guys, it's getting exciting. The awesome Brad from Bowman Signs is printing my art today!! Check this out. Hot off the presses. Link to comment Share on other sites More sharing options...
Aurich Posted December 7, 2012 Share Posted December 7, 2012 Nice, things feel so much more suddenly complete when you put the art on for the first time. Link to comment Share on other sites More sharing options...
