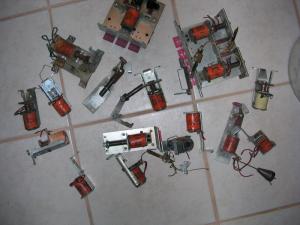

shilmover Posted November 27, 2010 Posted November 27, 2010 It sounds and feels like a gear motor If you play for example the "real" addams family pinball you can hear the gear motor when the bookshelf is moving. most pinball games use a gear motor, so it's a nice add-on when everything else is emulated. Ok. talked me into it... this software better come out soon... Just had someone close to me send me these. All but the 2 large ones on the top right, but if I need more, he has a few more.
shilmover Posted November 27, 2010 Posted November 27, 2010 BTW, chris, How many do you recommend? I was thinking: - 2 for the flippers - 2 for the bumpers above the flippers - 2 or 3 top - 2 or 3 middle You have them attached to the sides of the cabinet? I was thinking maybe I would attach them under the pf LCD (not to the LCD, obviously).

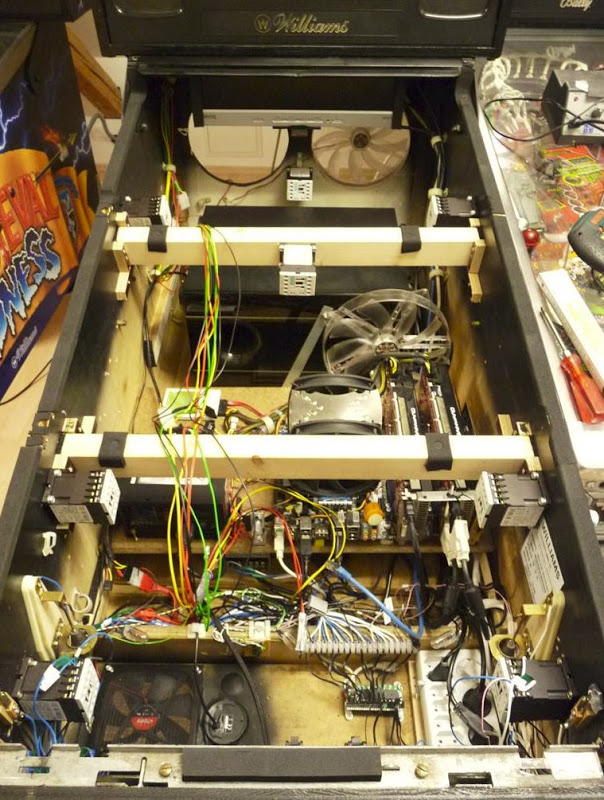

chriz99 Posted November 27, 2010 Author Posted November 27, 2010 BTW, chris,How many do you recommend? I was thinking: - 2 for the flippers - 2 for the bumpers above the flippers - 2 or 3 top - 2 or 3 middle You have them attached to the sides of the cabinet? I was thinking maybe I would attach them under the pf LCD (not to the LCD, obviously). 6 sideways and 2 center/middle cheers chris [sIGPIC][/sIGPIC] * taito egret 29 candy cabs * indy & star wars pachinkos 17" bartop with ledwiz rgbleds * 10" bubble bobble & galaga bartop * arm champs 2 check out hi-res backglasses * best vpin performance * ledwiz config and software
gbeef Posted November 27, 2010 Posted November 27, 2010 thanks chris i got it all hooked up now just waiting on my LED WIZ and the code. Your Machine and paveing the way of the future of VP! My Cabs My Pin Cab Attack of the PINZ cab My Racing Cab OutRun Racing
shilmover Posted November 27, 2010 Posted November 27, 2010 Thanks Chris. I am hoping to go with 8. Just checking if the led-wiz can handle the current.
shilmover Posted November 28, 2010 Posted November 28, 2010 I worked on "flaring the LED holes". Need to work on it more, but here how it was before: After (Hard to tell, but its angles): Original: "flared": Not super noticable, but it does make a difference already... Going to get a better drill bit tomorrow as I believe it would make a big difference... thoughts?
shilmover Posted November 28, 2010 Posted November 28, 2010 Hey Chris, Can you please measure the voltage being pushed out to the leds and solenoids by the led-wiz?
gbeef Posted November 28, 2010 Posted November 28, 2010 You can use a lens to get more flare My Cabs My Pin Cab Attack of the PINZ cab My Racing Cab OutRun Racing
shilmover Posted November 28, 2010 Posted November 28, 2010 You can use a lens to get more flare I think I may try to get some.

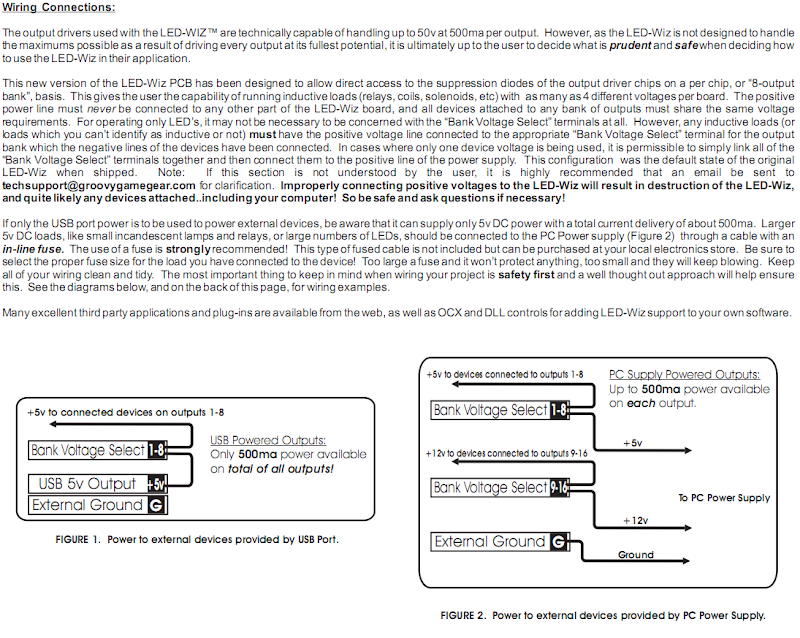

chriz99 Posted November 28, 2010 Author Posted November 28, 2010 Hey Chris,Can you please measure the voltage being pushed out to the leds and solenoids by the led-wiz? you can connect 500mA max per output for example: a 12v siemens contactor needs about 350-450mA with a 4 - 5.5 watt consumption. cheers chris [sIGPIC][/sIGPIC] * taito egret 29 candy cabs * indy & star wars pachinkos 17" bartop with ledwiz rgbleds * 10" bubble bobble & galaga bartop * arm champs 2 check out hi-res backglasses * best vpin performance * ledwiz config and software
Miracleman Posted November 28, 2010 Posted November 28, 2010 Hey guys, had a crazy idea... Can a fourth monitor be added on top of the game to show a 'pinball topper'? It could have an animated series of pics to simulate interactive lighting on toppers like Addams Family and Whitewater, and just still images for others, but even those could be brought to life if desired. You could still have these crazy LEDs behind the monitor to give the lighting effect as well. Just a thought!
chriz99 Posted November 28, 2010 Author Posted November 28, 2010 Hey guys, had a crazy idea...Can a fourth monitor be added on top of the game to show a 'pinball topper'? It could have an animated series of pics to simulate interactive lighting on toppers like Addams Family and Whitewater, and just still images for others, but even those could be brought to life if desired. You could still have these crazy LEDs behind the monitor to give the lighting effect as well. Just a thought! It's crazy, but I like it do it and post some pics/vids plz cheers chris [sIGPIC][/sIGPIC] * taito egret 29 candy cabs * indy & star wars pachinkos 17" bartop with ledwiz rgbleds * 10" bubble bobble & galaga bartop * arm champs 2 check out hi-res backglasses * best vpin performance * ledwiz config and software
chriz99 Posted November 28, 2010 Author Posted November 28, 2010 Gearmotor test with RUDY turn up your volume m6Y99Ukn55A cheers chris [sIGPIC][/sIGPIC] * taito egret 29 candy cabs * indy & star wars pachinkos 17" bartop with ledwiz rgbleds * 10" bubble bobble & galaga bartop * arm champs 2 check out hi-res backglasses * best vpin performance * ledwiz config and software
gbeef Posted November 28, 2010 Posted November 28, 2010 What are those blue things? My Cabs My Pin Cab Attack of the PINZ cab My Racing Cab OutRun Racing
chriz99 Posted November 28, 2010 Author Posted November 28, 2010 What are those blue things? relays cheers chris [sIGPIC][/sIGPIC] * taito egret 29 candy cabs * indy & star wars pachinkos 17" bartop with ledwiz rgbleds * 10" bubble bobble & galaga bartop * arm champs 2 check out hi-res backglasses * best vpin performance * ledwiz config and software
njay Posted November 28, 2010 Posted November 28, 2010 That's crazy chriz, willing to share the motor you did use? My Mini Pin Build: http://www.hyperspin-fe.com/forum/showthread.php?t=5622 My Arcade Bartop Build: http://www.hyperspin-fe.com/forum/showthread.php?t=14570
chriz99 Posted November 28, 2010 Author Posted November 28, 2010 It's a second hand daihatsu front wiper motor, check ebay for it cheers chris [sIGPIC][/sIGPIC] * taito egret 29 candy cabs * indy & star wars pachinkos 17" bartop with ledwiz rgbleds * 10" bubble bobble & galaga bartop * arm champs 2 check out hi-res backglasses * best vpin performance * ledwiz config and software
gbeef Posted November 28, 2010 Posted November 28, 2010 Do you have a video of the shaker working? My Cabs My Pin Cab Attack of the PINZ cab My Racing Cab OutRun Racing
chriz99 Posted November 28, 2010 Author Posted November 28, 2010 yes, the previous afm (ufo shake) and funhouse (hitting rudy) vid. you can't see the effect, you can only feel it... it's a very special feeling that turn into something you don't want to miss anymore. shaker is active so far at... tom (rotation box & magna-save magnet & box magnet) ij (ramp plane/maschinegun & idol rotation & path of adventure) afm (ufo shake & bank motor & martian attack) cc (duell & hitting bad guy) tz (gumball machine & magnets) taf (bookshelf & thing) fh (rudy direct hit & rudys hideout) these "custom shaker mods" are so awesome and not available on the real machines. cheers chris [sIGPIC][/sIGPIC] * taito egret 29 candy cabs * indy & star wars pachinkos 17" bartop with ledwiz rgbleds * 10" bubble bobble & galaga bartop * arm champs 2 check out hi-res backglasses * best vpin performance * ledwiz config and software
shilmover Posted November 29, 2010 Posted November 29, 2010 Hey guys, had a crazy idea...Can a fourth monitor be added on top of the game to show a 'pinball topper'? It could have an animated series of pics to simulate interactive lighting on toppers like Addams Family and Whitewater, and just still images for others, but even those could be brought to life if desired. You could still have these crazy LEDs behind the monitor to give the lighting effect as well. Just a thought! I've thought of that... its on my "list"
shilmover Posted November 29, 2010 Posted November 29, 2010 Guys, I want to see if I can connect real pinball solenoids to the cab. Problem is that the LED-Wiz does not push more than 500mA through to the solenoid, which barely makes a sound on it (it slightly moves). So I came up with an idea last night, bought some parts today and tried it out. The solution is a 12V relay that can handle 10A. The LED-Wiz simply flips the relay on and the relay flips the Pinball coil on. this allows me to drive the relay with a small amount of current and then have the real coil use as much current as it needs (currently it is using the same power supply, but I may run a separate powersupply just for the coils. See the video below. The LED-Wiz is simply turning one LED on/off every second or so. you can hear the relay activate every 1/4 second (listen to the clicking). When I connect the coil to the relay it will fire (you cant miss it in the video... ): vE6OJ8mS2HM
shilmover Posted November 29, 2010 Posted November 29, 2010 You can use a lens to get more flare Has anyone tried the lenses? do they help? I think they tend to focus the beam more, right?
pixelmagic Posted November 29, 2010 Posted November 29, 2010 Guys,I want to see if I can connect real pinball solenoids to the cab. Problem is that the LED-Wiz does not push more than 500mA through to the solenoid, which barely makes a sound on it (it slightly moves). So I came up with an idea last night, bought some parts today and tried it out. The solution is a 12V relay that can handle 10A. The LED-Wiz simply flips the relay on and the relay flips the Pinball coil on. this allows me to drive the relay with a small amount of current and then have the real coil use as much current as it needs (currently it is using the same power supply, but I may run a separate powersupply just for the coils. See the video below. The LED-Wiz is simply turning one LED on/off every second or so. you can hear the relay activate every 1/4 second (listen to the clicking). When I connect the coil to the relay it will fire (you cant miss it in the video... ): I would go for something like this instead of relays: http://www.velleman.eu/distributor/products/view/?id=9071 If your handy with electronics you could build one yourself with part for less then $10 for 4 switches. This is what i am planning to do when the software comes out. [TABLE=width: 500] [TR] [TD][/TD] [TD=align: center]New project homepage: http://blog.pixelmagic.nl/[/TD] [TD][/TD] [/TR] [TR] [TD][/TD] [TD=align: center]LED-Wiz utility: http://pinball.pixelmagic.nl/ledwiz/[/TD] [TD][/TD] [/TR] [TR] [TD][/TD] [TD=align: center]Anyone want to buy my LEDwiz ?? [/TD] [TD][/TD] [/TR] [/TABLE]
shilmover Posted November 29, 2010 Posted November 29, 2010 I would go for something like this instead of relays: http://www.velleman.eu/distributor/products/view/?id=9071If your handy with electronics you could build one yourself with part for less then $10 for 4 switches. This is what i am planning to do when the software comes out. A few questions... - Why would I go this route over $1 relays? - The LED-Wiz is not really a switch. Its just a voltage increast. Would that still work? - Handy with electronics... got a schematic?
