Gannicus

DMD template?

Recommended Posts

Does anyone here have a to scale template that I could print out for the DMD template with speaker holes?

Something preferably like the Medieval Madness front panel as seen here

Share this post


Link to post
Share on other sites

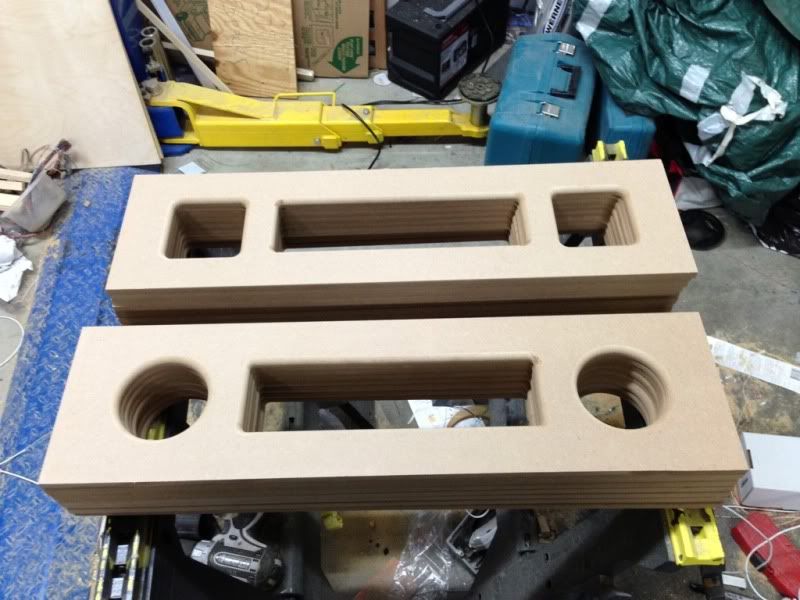

I have them in stock finished or unfinished in round or square holes. PM me if you are interested.


Thanks for the offer shakenbake! I actually enjoy the woodworking aspect of projects like this, so I'm looking to do it myself.

I just need a outline I can print out to get the measurements and proper locations.

Share this post


Link to post
Share on other sites

I'm interested in this too. What exactly is the size of the DMD hole if you're using a real DMD? I've read at least 3 different sizes on these forums. I think most of the sizes I'm seeing is for people using monitors for dmd's but it would be nice to have a finalized measurement for this.

Share this post


Link to post
Share on other sites
I'm interested in this too. What exactly is the size of the DMD hole if you're using a real DMD? I've read at least 3 different sizes on these forums. I think most of the sizes I'm seeing is for people using monitors for dmd's but it would be nice to have a finalized measurement for this.

The size for the DMD opening should be 13.5 inches x 3.5 inches.

Share this post


Link to post
Share on other sites
I totally agree... if you can, wait until you have it in hand and take your own measurements.

totally agree, I have both the Vishay -1 and the B-1 versions and the B-1 display area is 3mm (1/8") smaller both horizontally and vertically than the -1.

the Virtuapin docs are accurate for the B-1 version.

Share this post


Link to post
Share on other sites
