46" / 30" / 19" widebody cabinet

[Guest gstav]

haha! It never stops!

Virtual pinball =no maintenance needed my ass!

[shilmover]

Chris, good luck with the motors. You are killing us!

Okay, so i did a bit of work on the LEDs.

This is the wood that I have as the trim on either side of the pinball

I routed a groove down the middle (it had snowed and was cold here so I did that in the garage... very noisy and dusty

I drilled 3 holes in the wood for the LEDs but did not take a picture of it. The LEDs where about 1/4, 1/2, and 3/4 from the top of the LCD, starting near the backbox.

I then removed the LED from the heatsink:

And wired up the connections:

Here are the LEDs installed temporarily:

From the front:

And a couple more:

Videos coming shortly...

[shilmover]

With 5v no glass:

kkcHt9_C1eE

With 12v no glass:

JsPx3nR-c1c

With 12v & glass:

ngDe22c48pk

Hard to tell, but the 12v & under glass makes a difference. Wont know for sure until I have the software to really test with.

[Ext2k]

Great work shilmover!! it's amazing!!! I love this, but i can't put it in my 46"

but It's fantastic!

[shilmover]

Great work shilmover!! it's amazing!!! I love this, but i can't put it in my 46"

but It's fantastic!

Thanks. Why? My LCD is a 46"

[chriz99]

Great work shilmover!! it's amazing!!! I love this, but i can't put it in my 46"

but It's fantastic!

don't you have a 1 - 1.5cm foam on top of the lcd-rails? you could install some leds in there, or simply split the foam and add a wooden led housing?

[gbeef]

nice work!... that looks awesome. too bad the last video doesnt work

[lettuce]

Thats looks good!!!!

Are these LED able to recreate the flash effect you get from flashers, for instance destroying the UFO on AFM??

[gbeef]

So does the color reflect on to the play field?

[njay]

Thats looks good!!!!

Are these LED able to recreate the flash effect you get from flashers, for instance destroying the UFO on AFM??

Yup it sure does..

[shilmover]

nice work!... that looks awesome. too bad the last video doesnt work

Thanks. It does not work? Works for me?

I am going to try to see if flaring the LED hole will make a difference. Will report back.

Thats looks good!!!!

Are these LED able to recreate the flash effect you get from flashers, for instance destroying the UFO on AFM??

That's the idea. I am hoping to control 6 LEDs on the playfield and 3 on the backbox (plus some extras, but I am keeping that secret for now... )

So does the color reflect on to the play field?

Somewhat, yes...

[Miracleman]

Hey Chris and all others! Took a break from my project but am now ready to resume by getting the 46 inch lcd for the pf. Wanted to see what everyone thought of this one on sale this weekend at Best Buy for $700...

Sony - BRAVIA 46" Class / 1080p / 60Hz / LCD HDTV

Model: KDL46EX400 | SKU: 9763694

It's only a 60hrz lcd, but that's what Chris' Sharp is in his game, so I'm thinking it's ok.

Any suggestions? What brand are other 46 inch VP people using?

Thanks!

[chriz99]

Hey Chris and all others! Took a break from my project but am now ready to resume by getting the 46 inch lcd for the pf. Wanted to see what everyone thought of this one on sale this weekend at Best Buy for $700...

Sony - BRAVIA 46" Class / 1080p / 60Hz / LCD HDTV

Model: KDL46EX400 | SKU: 9763694

It's only a 60hrz lcd, but that's what Chris' Sharp is in his game, so I'm thinking it's ok.

Any suggestions? What brand are other 46 inch VP people using?

Thanks!

sounds good so far.

I would suggest you to check the inputlag (ms) of the sony. you have to search the web (forums, like avs) for that info.

my sharp has nearly no inputlag, which is necessary (especially) for playing pinball games.

[gbeef]

here is an "easy schematic " to install the industry relay:

ps: its better to use an extern 12V-DC poweradapter (I use an old solid 10amps 12V-DC poweradapter) instead the pc-powersupply. its just saver.

ps2: there is electricity. do it only if you know what you do. I will take no responsibility for this.

Hey chris i got everything so far except the diodes, Would you happen to have a live picture of your flipper setup?

[chriz99]

check out ext2k thread for a live pic

http://www.hyperspin-fe.com/forum/showpost.php?p=96804&postcount=78

if you use ledwiz, you need only a positive and negative wire at a1+ / a2- and a diode (like in4007, silver side goes to a1+ and black side to a2-).

without ledwiz you have to use the "easy schematic"

[njay]

but you still need to power them with a seperate supply righto? if you use the ledwiz?

[chriz99]

but you still need to power them with a seperate supply righto? if you use the ledwiz?

exactly

[Ext2k]

And If you need more faster velocity on your ipac signal you need an octocoupler too.

[gbeef]

here is an "easy schematic " to install the industry relay:

ps: its better to use an extern 12V-DC poweradapter (I use an old solid 10amps 12V-DC poweradapter) instead the pc-powersupply. its just saver.

ps2: there is electricity. do it only if you know what you do. I will take no responsibility for this.

hey Chris on your diagram is that dio positioned the right way? Just wanted to double check

Also i noticed you and E2K have fuse boxes installed just wondering what there wired to.

[chriz99]

hey Chris on your diagram is that dio positioned the right way? Just wanted to double check

Also i noticed you and E2K have fuse boxes installed just wondering what there wired to.

diode is positioned right. the fuse is installed in the positive wire (ledwiz manual recommends to use a fuse).

[chriz99]

==>

==>

==>

[shilmover]

==>

==>

==>

Nice!

How does it sound? feel?

[pixelmagic]

Did you put in a complete diahatsu in your pinball ??

[chriz99]

Nice!

How does it sound? feel?

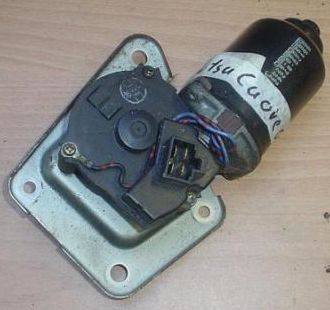

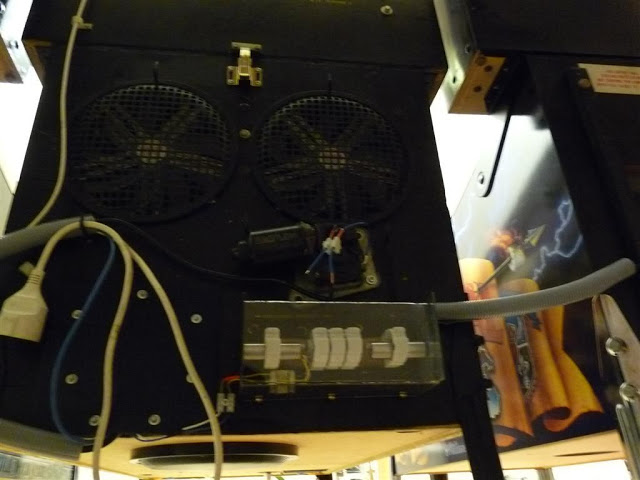

It sounds and feels like a gear motor

If you play for example the "real" addams family pinball you can hear the gear motor when the bookshelf is moving.

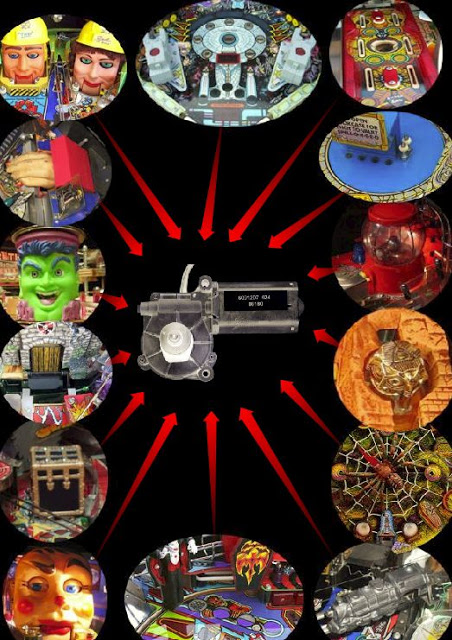

most pinball games use a gear motor, so it's a nice add-on when everything else is emulated.

[g00se]

Wow, this is way too cool. Nice Job!!!
