rayzor753 Posted July 29, 2011 Share Posted July 29, 2011 Lol. I'm glad you all are enjoying our project. Either Zac, or I have been busy every weekend lately, and we haven't been able to get together to work on this thing. I know it's been a while, probably a month or two now, but I'm hoping we can get together and work on this some more next weekend. (shooting for 8/6/11). Believe me, we are just as anxious to get working on this again as you guys are to see some updates.... sorry we've been leaving you all hangin' Link to comment Share on other sites More sharing options...
rayzor753 Posted August 7, 2011 Share Posted August 7, 2011 Zac and I actually got to do some work on our arcade today Stay tuned for updates and pictures of what we got done Link to comment Share on other sites More sharing options...
ZacUSNYR Posted August 7, 2011 Author Share Posted August 7, 2011 Hey look a rare update has been spotted lol So we got together and stared at what we had with the CNC machine and then we basically had to figure out where we left off. Ohhh yea... we remember. We have 3/4" wood with controls designed for half inch wood. So we measured out areas we needed to bring down to 1/2". This was really time consuming so we had to do multiple passes with a smaller bit at different depths. We went for the full 1/4" on one pass and found we were tearing the wood a little bit. Looks good, the thinning up top we haven't cut the holes for the buttons yet. Next up is the trackball. We wanted this thing flush and for the life of us couldn't figure out how you'd mount it flush, short of mounting it to a piece of metal that was flushed to the wood. So we began that cut out. Hole with a beveled edge for the metal to stay on Link to comment Share on other sites More sharing options...
rayzor753 Posted August 7, 2011 Share Posted August 7, 2011 The metal plate still needs to be machine for the trackball to fit through and the bolt holes to mout the trackball assembly. Basically, the trackball is mounting to the metal plate, then being dropped through the square hole. We left a lip for the plate to hang on. Same idea as the joystick mounts. Machining the plate and cutting the P1, P2, Esc, and trackball buttons will be the next task. ( hopefully it won't be 3 months from now lol ) Link to comment Share on other sites More sharing options...
bigrich424 Posted August 8, 2011 Share Posted August 8, 2011 Looks good guys!!!! Gotta find a cnc machine on ebay or something!!!! Link to comment Share on other sites More sharing options...
rayzor753 Posted August 9, 2011 Share Posted August 9, 2011 Looks good guys!!!! Gotta find a cnc machine on ebay or something!!!! Thanks! You don't exactly need a CNC milling machine if you have the patience to use a manual milling machine You can achieve all of the same results, but it just might take a little more time and care to make sure you don't move the table incorrectly while cutting Link to comment Share on other sites More sharing options...
shaybe Posted August 9, 2011 Share Posted August 9, 2011 Hurry up and finish so I can rip off your design! haha, looking good Link to comment Share on other sites More sharing options...
bigrich424 Posted August 9, 2011 Share Posted August 9, 2011 Thanks!You don't exactly need a CNC milling machine if you have the patience to use a manual milling machine You can achieve all of the same results, but it just might take a little more time and care to make sure you don't move the table incorrectly while cutting Yeah well between my laziness and lack of patience i think i better make a friend with access to one!!!! Link to comment Share on other sites More sharing options...

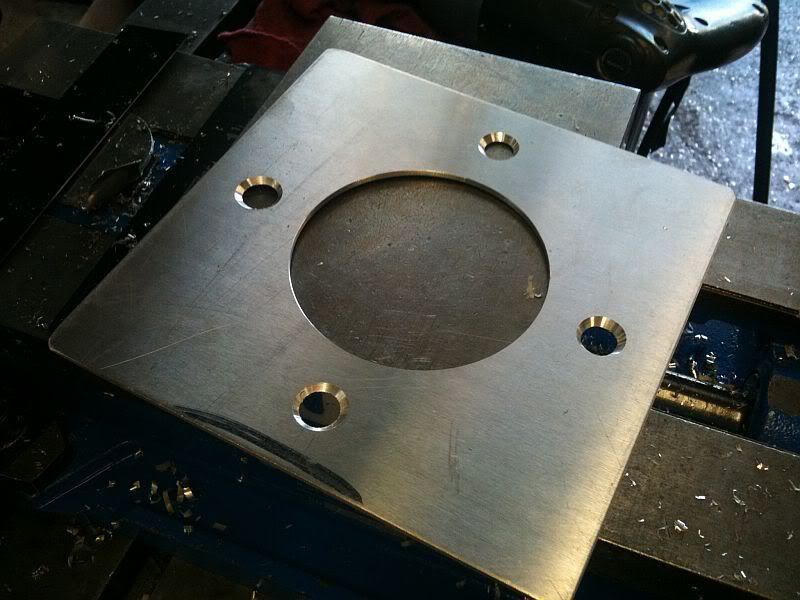

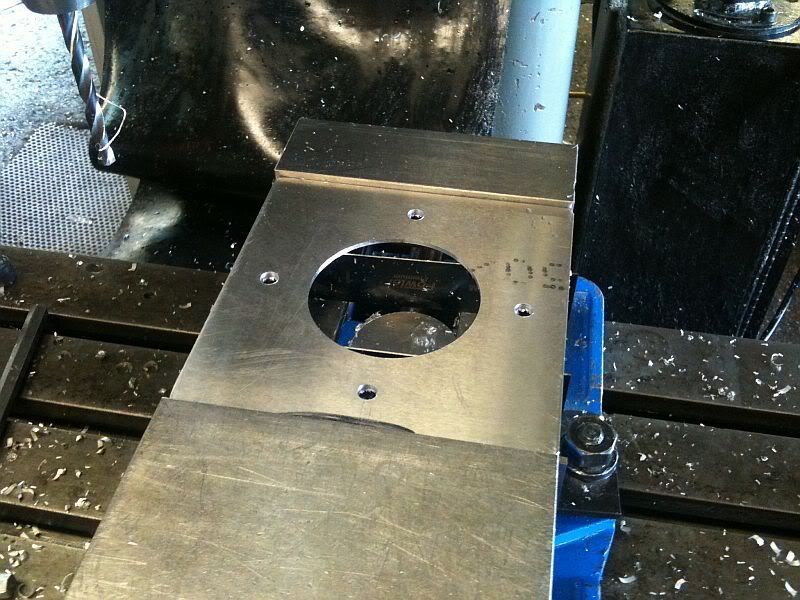

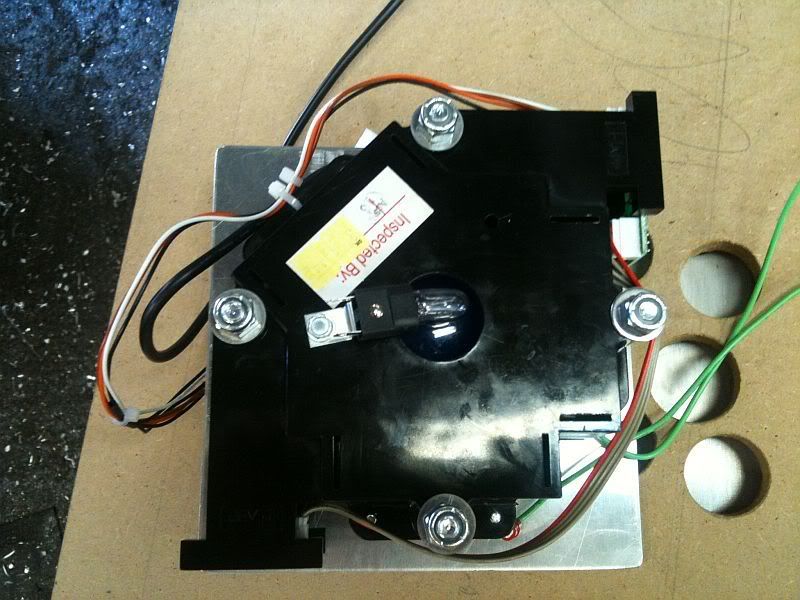

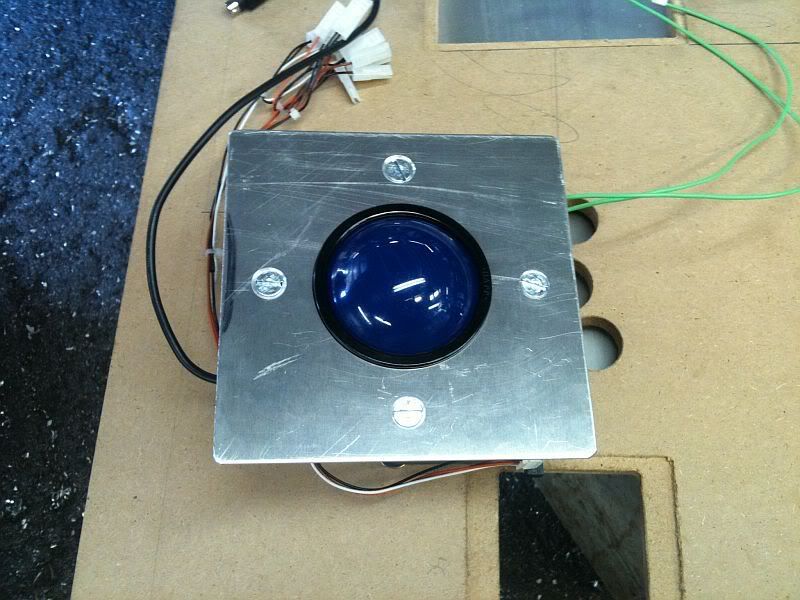

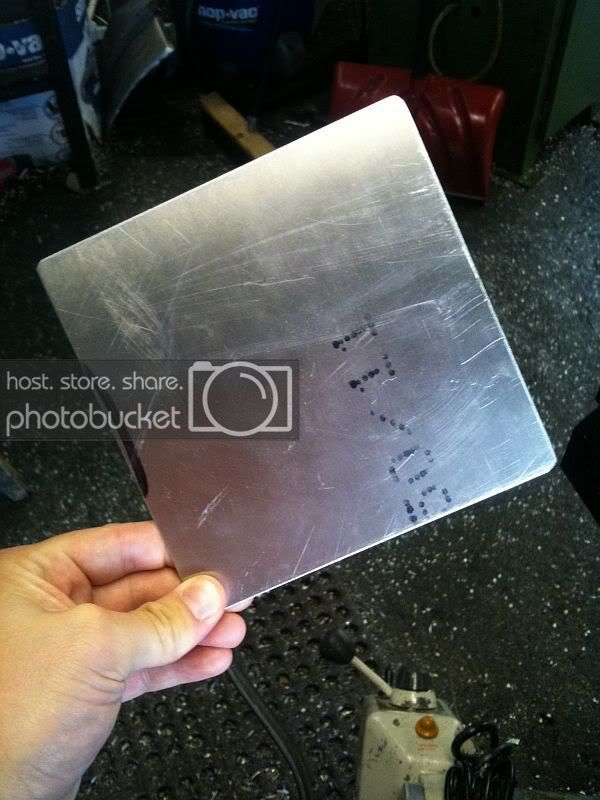

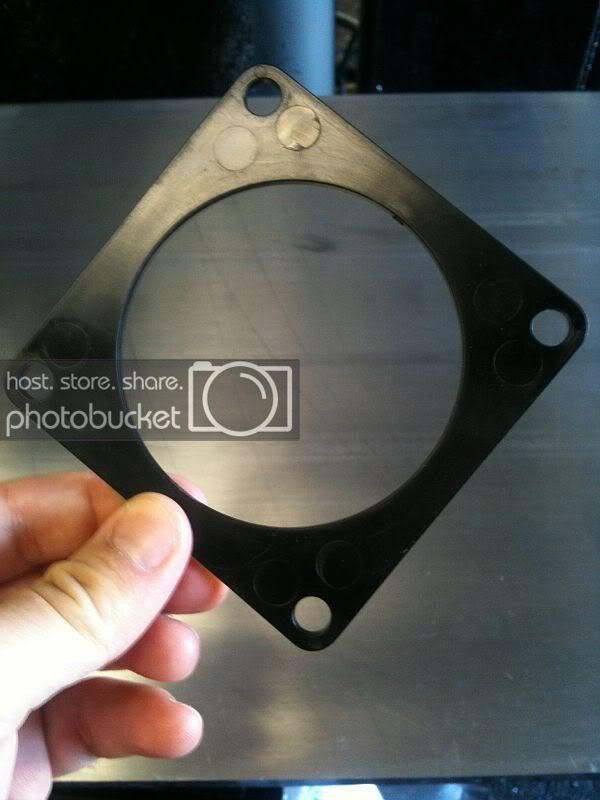

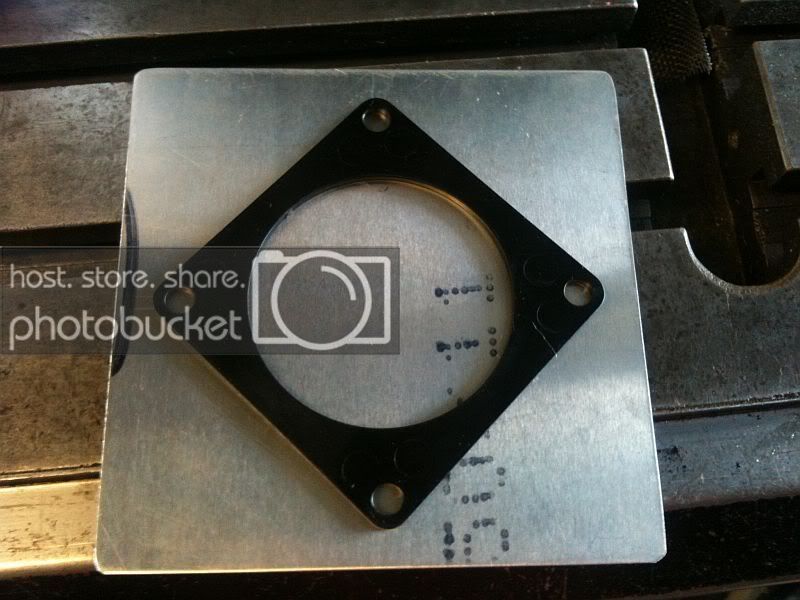

rayzor753 Posted August 21, 2011 Share Posted August 21, 2011 Zac and I worked on the custom trackball mounting plate yesterday. This is the plastic plate that came with the trackball: This is the aluminum plate we are using for the custom mount: Sizing it up: Had my brother program the hole pattern into the CNC machine and started cutting away After cutting out the hole pattern: We counter drilled the holes for the bolts that hold the trackball so that they are flush with the top of the plate. This is what the plate looks like when mounted to the trackball. This plate will sit down in the large square hole that we cut out in the middle of our control panel. We used small washers and nylon lock nuts on the back side of the trackball. The holes in the trackball were actually a little too small for the bolts we used, so I had to drill the holes out a little bit to compensate. Now we need to drill 6 more button holes in the top of the control panel, get and drill out a piece of plexiglass, build the rest of the control panel box, and wire up buttons Hopefully we'll have some more updates for you all soon! Link to comment Share on other sites More sharing options...
SubZero Posted August 21, 2011 Share Posted August 21, 2011 Great stuff guys!! it takes time but she will look awesome! Link to comment Share on other sites More sharing options...
Yukon Posted September 4, 2011 Share Posted September 4, 2011 HUH, when's my arcade gonna be done AAAHHHHHH Sent from my iPhone using Tapatalk Link to comment Share on other sites More sharing options...
ZacUSNYR Posted September 5, 2011 Author Share Posted September 5, 2011 Ray ended up picking up a VGA-to-S-video converter from monoprice and we messed around with that. Really cleaned up the video and makes the NES look like a real NES. We were both shocked how much better it improved the video. Plus it has controls to resize/move the image around the screen We messed with that for a little while and then brain stormed the control panel. I'll be 100% honest and say we have no effing clue what we're doing here. So we just winged it :lol Ray plowed a couple holes through for the center escape button and the player 1 and 2 buttons on the top. I'm pretty decent with AutoIt and will probably be making a custom menu launched by the red button. Ray had to open up the corners of the recess for the track ball to fit - looks good. This sucker is going to be nearly flush with the plexi glass over it. No screw holes through the plexi We had no clue how to mount this thing with the hardware provided so we used our resources to do it the best way we could think of. Next up with cutting the shape of the control panel. We cut one angle and i'll admit, I butchered it due to a slip of the saw. My heart sank We added another cut and it actually added to the shape of the control panel and it was a good save because we both think it looks great. Now we started on the "box" for the control panel. This is way more complicated then we first imagined. But we got it figured out and started cutting/assembling. Just need to do the 3 pieces for the front and cut the button to fit. Then we need to figure out where to mount some support to "snap" the control panel into the arcade. Starting to get exciting because we'll be playing this "turd" shortly! Then we need to get the ambition to tear it down and paint/finish it lol Link to comment Share on other sites More sharing options...
rayzor753 Posted September 5, 2011 Share Posted September 5, 2011 HUH, when's my arcade gonna be done AAAHHHHHH Sent from my iPhone using Tapatalk Your arcade? lol. Link to comment Share on other sites More sharing options...
ZacUSNYR Posted September 5, 2011 Author Share Posted September 5, 2011 Ray's wife is calling our Arcade stupid. I'm going to buy ray a whip so he can put her in her place. Link to comment Share on other sites More sharing options...
rayzor753 Posted September 5, 2011 Share Posted September 5, 2011 Lol, most women don't get it, and dont enjoy video games. My wife is one of them. Fortunately she respects the fact that I <3 video games and tolerates my projects even when she thinks they're stupid lol Link to comment Share on other sites More sharing options...
rayzor753 Posted September 6, 2011 Share Posted September 6, 2011 As Zac stated in his update, I originally purchased this USB powered VGA to S-Video adapter for our HS-NES project, but we decided to test it out on the arcade and see if it looked better than coming right from the S-video output on the video card itself. We were surprised at the results. It actually did make the picture look better after some tweaking. We'll see how it works out with other emulators. So far we only tested it in Windows, in HyperSpin, and in Nestopia. -Ray Link to comment Share on other sites More sharing options...
rayzor753 Posted September 12, 2011 Share Posted September 12, 2011 Just wanted to say congrats to my man Zac and his Bride Kim! They got married on Saturday. Have fun on your honeymoon! ^ LOL had to add this one ^ Link to comment Share on other sites More sharing options...
SubZero Posted September 12, 2011 Share Posted September 12, 2011 Gongrats Zac!! glad that the cab isnt finished yet, otherwise you would take it with you on your honeymoon. and the wife needs you for herself right now GAME OVER, LOL!! Link to comment Share on other sites More sharing options...
pinzach Posted September 19, 2011 Share Posted September 19, 2011 Seeing your stuff makes me realize how damned lazy I am! Oh well. Good luck. Link to comment Share on other sites More sharing options...
chriz99 Posted September 20, 2011 Share Posted September 20, 2011 Awesome work! I love this MK style cab Link to comment Share on other sites More sharing options...
rayzor753 Posted October 3, 2011 Share Posted October 3, 2011 Stay tuned for updates Zac and I are planning to work on our Midway Monster this Sunday (10/09/11) Link to comment Share on other sites More sharing options...
gregbond Posted October 5, 2011 Share Posted October 5, 2011 I can't wait to see it finished. Its looking awesome! Link to comment Share on other sites More sharing options...
ZacUSNYR Posted October 10, 2011 Author Share Posted October 10, 2011 Didn't get much done today because my garage was torn up. Had to make room for my new toy. We boxed in the control panel, found our angle/height (it looks tall but it's on a rolling stand right now) Cutting some pieces on the table saw I think this goes here? I wish one of us knew math heh Link to comment Share on other sites More sharing options...
rayzor753 Posted October 10, 2011 Share Posted October 10, 2011 It's getting close to being playable without the keyboard Next we might have to get working on the marquee lights... Link to comment Share on other sites More sharing options...
rayzor753 Posted October 19, 2011 Share Posted October 19, 2011 Zac and I plan to do some more work on our cab this Saturday, the 22nd. Stay tuned for updates! Link to comment Share on other sites More sharing options...
