Complete Guide for Daphne in HyperSpin and HL3

[rfancella]

Hello All,

There are a few notable threads about Daphne out there already. Please see:

http://www.hyperspin-fe.com/forum/showthread.php?18209-A-Sort-Of-Guide-to-Daphne

http://www.hyperspin-fe.com/topic/1612-whats-the-easiest-way-to-run-daphne-with-hyperspin-roms-or-iso

http://www.hyperspin-fe.com/forum/showthread.php?28561-Daphne-games-missing-yet-there&highlight=daphne

http://www.hyperspin-fe.com/topic/2121-daphne-help

NOTICE: Daphne and Daphne Singe are two different emulators.

Daphne is for the following games: Astron Belt, Badlands, Bega's Battle, Cliff Hanger, Cobra Command, Dragon's Lair, Dragon's Lair 2, Esh's Aurunmilla, Galaxy Ranger, GP World, Interstellar, M.A.C.H. 3, Road Blaster, Space Ace, Star Blazer, Super Don Quix-ote, Thayer's Quest and Us vs Them.

Daphne Singe is for the following games:

American Laser Games: Crime Patrol, Crime Patrol 2, Who Shot Johnny Rock, The Last Bounty Hunter, Mad Dog McCree, Mad Dog McCree 2, Space Pirates and Time Traveler.

WoW Action Max Games: .38 Ambush Alley, Blue Thunder, Hydrosub: 2021, Pops Ghostly and Sonic Fury.

Other Games: Ninja Hayate and Time Gal.

For help setting up these games, please check this: http://www.hyperspin-fe.com/topic/2139-complete-guide-for-american-laser-gameswow-actionmax-in-hypespin-and-RL

About the company (Cinematronics):

Taken from the Cinematronics Wiki: http://en.wikipedia.org/wiki/Cinematronics



Cinematronics Inc. was founded in 1975 by Jim Pearce, Dennis Parte and Gary Garrison in El Cajon, California, although early on Parte and Garrison sold their shares to Tom "Papa" Stroud. Cinematronics' first games, a Pong clone, a Flipper Ball copy and their first original game design, Embargo, were released in 1975, 1976, and 1977, were not particularly notable. The company really began to prosper after the Space Wars game came into production about a year later.

...

In 1983 Cinematronics released Dragon's Lair, one of the first laserdisc-based arcade games. In order to finish the project they partnered with Advanced Microcomputer Systems (later renamed RDI Video Systems), who later tried to sell a home version of the laser-disc machine. While RDI's home console, the Halcyon, was a failure, the Dragon's Lair arcade was a huge success. Cinematronics followed it up with the similar sci-fi-themed laserdisc game, Space Ace. In about 1983 some prototype animation material for a Dragon's Lair sequel was produced, but due to the lack of an agreement between Cinematronics and the animator, Don Bluth, this material sat unused for years, eventually becoming part of the Dragon's Lair II: Time Warp game in the 1990s.

Games produced by Cinematronics:

Alley Master (1988)

Armor Attack (1980)

Baseball The Season II (1987)

Boxing Bugs (1981)

Brix (1983)

Cerberus (1985)

Cosmic Chasm (1983)

Danger Zone (1986)

Double Play: Super Baseball Home Run Derby (1987)

Dragon's Lair (1983)

Embargo (1977)

Express Delivery (1984)

Flipper Ball (1976)

Freeze (1982)

Hovercraft (1983)

Jack the Giantkiller (1982)

Mayhem 2002 (1985)

Naughty Boy (1982)

Power Play (1985)

Redline Racer (1986)

Rip Off (1980) A cocktail version was also manufactured under license by Centuri

Solar Quest (video game) (1981)

Space Ace (1984)

Space Wars (1977)

Star Castle (1980)

Starhawk (1977)

Sundance (1979)

Tail Gunner (1979)

Tailgunner II 1980 This was a cockpit version was otherwise the same as the original Tailgunner. It was made under license by Exidy.

Warrior

War of the Worlds (1982)

World Series - The Season (1985)

World Series Baseball (1984)

Zzyzzyxx (1982)

About the company (RDI Video Systems):

Taken from the RDI WiKi: http://en.wikipedia.org/wiki/RDI_Video_Systems

RDI Video Systems was a video game company founded by Rick Dyer originally as "Advanced Microcomputer Systems", and was well known for its Laserdisc video games, beginning with the immensely popular Dragon's Lair. The company went bankrupt shortly after releasing the Halcyon home video game system, which they claimed would be entirely voice-activated, and have an AI on par with HAL 9000 from the film 2001: A Space Odyssey. Some of theses games have been remastered by Digital Leisure.

Games produced by RDI:

Dragon's Lair

Space Ace

Thayer's Quest (Released first for the Halcyon, and later in arcades)

Raiders vs. Chargers (Released first for the Halcyon, and later in arcades as "NFL Football")

Dragon's Lair II: Time Warp

Orpheus, not released

The Spirits of Whittier Mansion, not released

The Shadow of the Stars, not released

Voyage to the New World, not released

The Emulator:

Taken from the Daphne Emulator WiKi: https://www.daphne-emu.com:9443/mediawiki/index.php/Main_Page

Were you enchanted by laserdisc arcade games back when they were new? Have you ever wished that you could play the original arcade version of Dragon's Lair again? Well, now you can, using Daphne! Daphne lets you play Dragon's Lair and other laserdisc arcade games, just like you remember them from the arcade!

Daphne will allow you to play the following games:

Astron Belt

Badlands

Bega's Battle

Cliff Hanger

Cobra Command

Dragon's Lair

Dragon's Lair II : Timewarp

Esh's Aurunmilla

Galaxy Ranger

GP World

Interstellar

M.A.C.H. 3

Road Blaster

Space Ace

Star Blazer

Super Don Quix-ote

Thayer's Quest

Us vs Them

Your hardware requirements:

At least a Pentium III 500 MHz machine or equivalent (These days, most people have something much better.)

Windows, Mac OSX, or x86/Linux (this covers almost everyone)

One of the following:

(Strongly Recommended) One or more Digital Leisure DVDs to make Daphne easier to use.

(Not Recommended, Expert only) ROM Image files and one of the following:

(Not Recommended, Expert only) Video, Audio, and Frame Files

(Not Recommended, Expert only) A real laserdisc and a real laserdisc player

Ok, Let's get started!

I will assume that you already have all of the appropriate media in which to install the emulator and the games onto your computer. The Daphne emulator consists of two programs, DaphneLoader and Daphne. Daphne is the actual emulator and DaphneLoader is a front end that uses Daphne and give you a nice GUI to make changes to the config. As just about every thread out there says, "Do not try to launch DaphneLoader through your HyperSpin or HyperLaunch setup." Daphne.exe is the actual emulator. That said, you do need DaphneLoader to get things setup and to configure game specific settings.

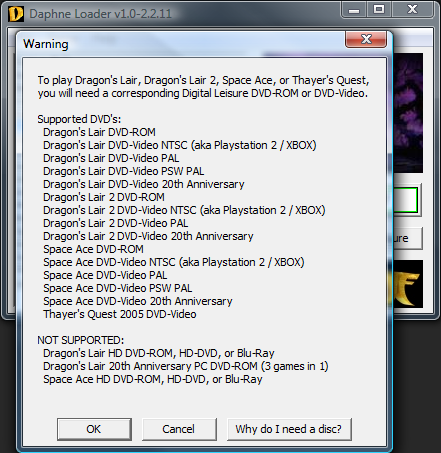

I would highly recommend you get the supported CD/DVD media for the supported games. If you have the media for these games, DaphneLoader will download and keep up-to-date the audio/video files directly from Digital Leisure.

Daphne dowload and setup:

Navigate to the Daphne home page: http://www.daphne-emu.com and download the latest version of Daphne (daphne-1.0v-win32.zip). Once it's downloaded create a new directory in your emulators directory. Mine is located at "C:\Emulation\Emulators|Daphne". Many other people use "C:\HyperSpin\Emulators\Daphne". Open the Zip file and extract all the contents into your ...Daphne directory.

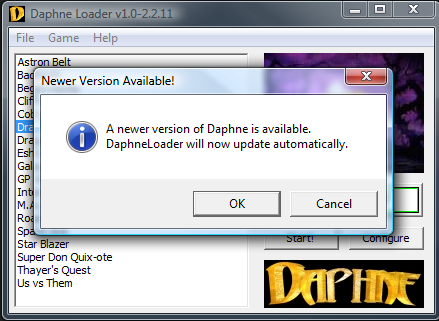

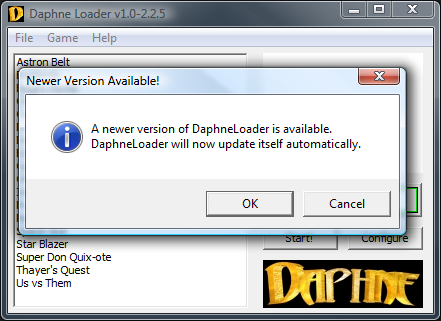

The first time you run DaphneLoader it will update itself. Please click "OK".

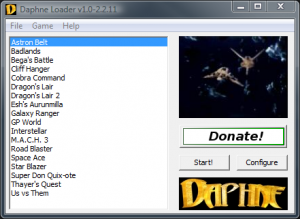

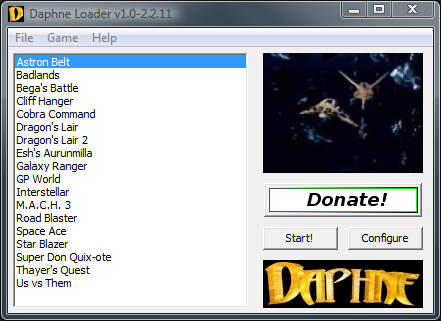

Once the update is finished you will see this:

For this example I will install Dragon's Lair from the DVD-Video Version using DaphneLoader. Click on Dragon's Lair and click the "Start!" button. You will see the Warning dialog box explaining what disc's you need to play the game.

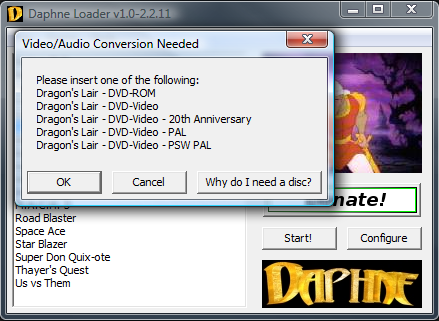

Insert the appropriate disk in your drive (or mount the disk image) and click the "OK" button. You will see the Video/Audio Files Needed dialog box. Click "OK".

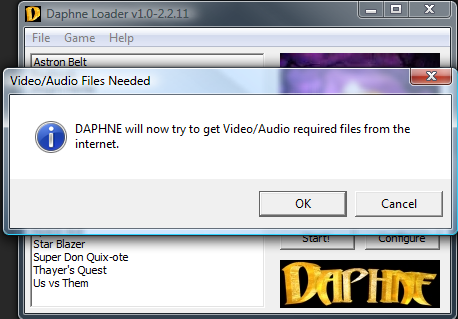

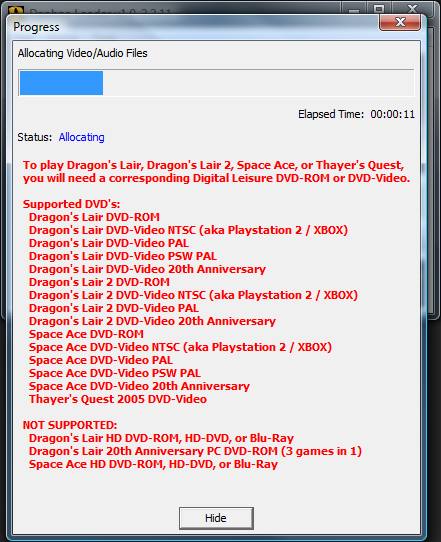

DaphneLoader will now download the most up to date audio/video files and install them into your ...Daphne\vldp_dl\lair directory. This process will take a while (depending on your internet speeds), so go grab a cup of coffee... beer... or what ever your poison is and wait.

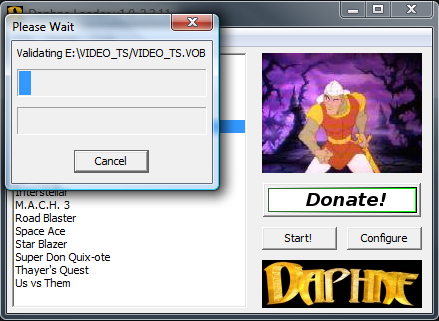

Once that process is complete, you will be asked to validate your media. Click "OK" and let the process run.

DaphneLoader will then start converting your files. Go refill your coffee... beer...

Once converted and validated, you will get another update screen. Click "OK"... again....

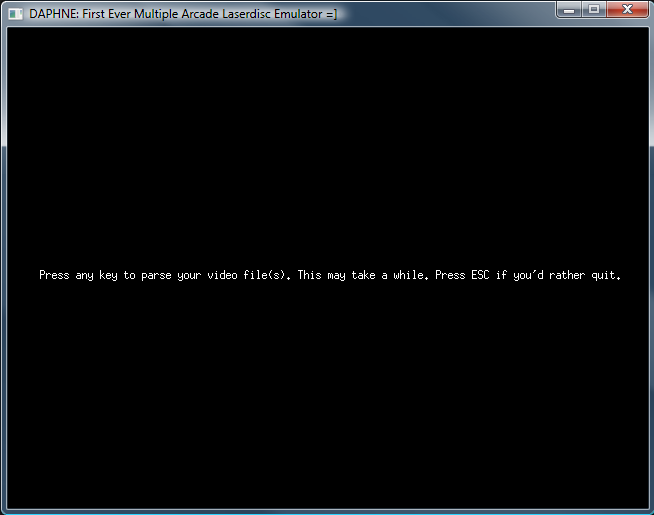

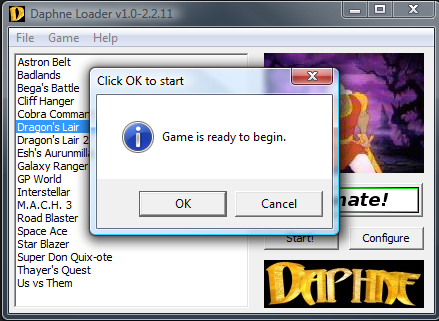

"Game is ready to begin." Click "OK" and hit a key to parse the video files:

Finally! The game will launch and you can play!!! Close out the game and continue on with installing the other games you want.

The download process will give you a framefile that is needed to play the game. I recommend copying the framefile to the ...Daphne\framefile directory. In this example it's called ...Daphne\vldp_dl\lair\lair.txt

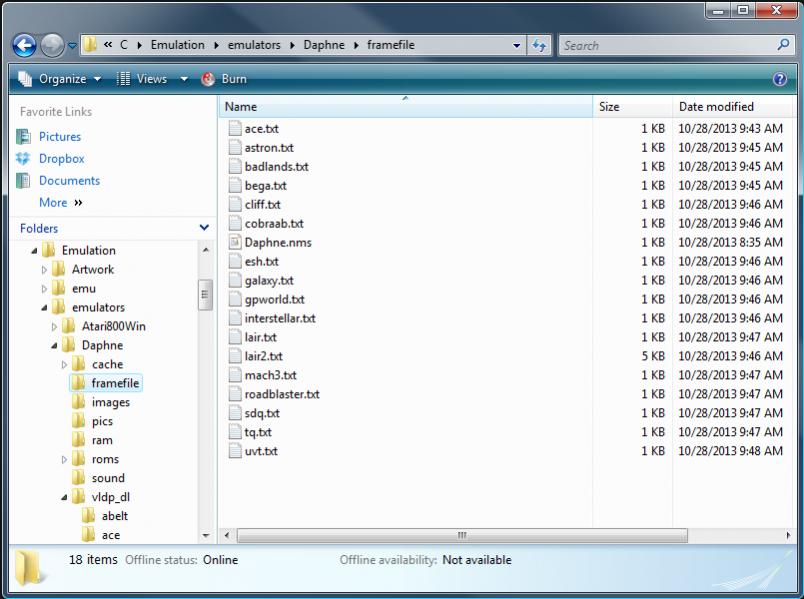

Again, copy the framefile into the framefile directory for each game and name them like this (so they match the database in HyperList):

As everyone will first ask when replying to Daphne problems, "Make sure all the games are working in DaphneLoader first!".

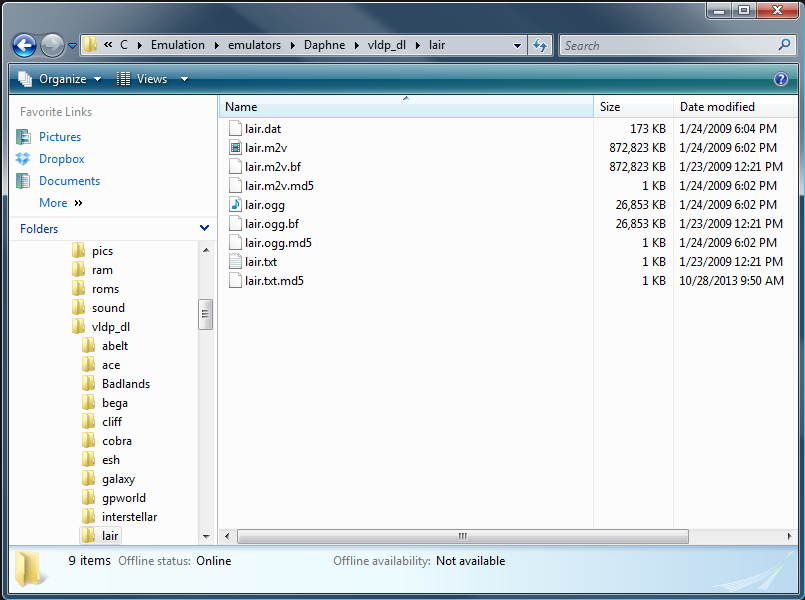

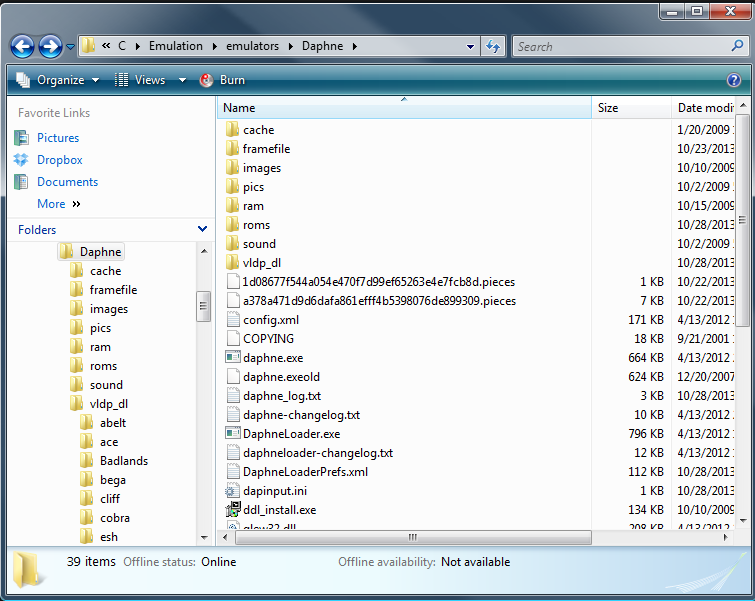

If you have downloaded the games, make sure all the audio/video files, framefiles and rom files are included. The framefiles must match up to the audio/video files and you must have the matching roms also. The directory structure should be like this:

Framefiles: ...Daphne\framefile

Roms: ...Daphne\roms

Audio/Video in their own directories: ...Daphne\vldp_dl

My example:

Framefile: C:\Emulation\Emulators\Daphne\framefile\lair.txt

Roms: C:\Emulation\Emulators\Daphne\roms\dl_revf2.zip

Audio/Video: C:\Emulation\Emulators\Daphne\vldp_dl\lair

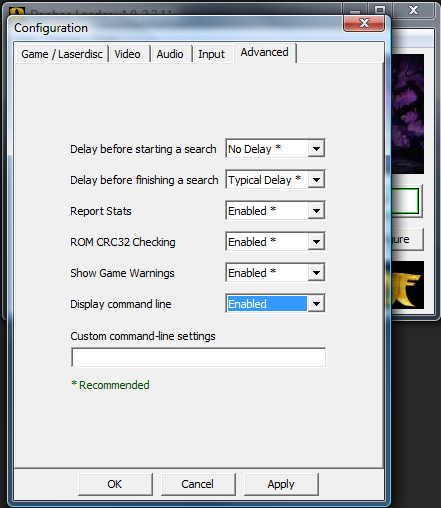

Now, to make changes in your per-game config:

Most people will not need to do this, but some may want some default changes to the way a game plays. With DaphneLoader open, select the game you want to make changes to. Click the "Configure" button. Make any appropriate changes you would like in any of the tabs except the Input tab. Make sure and Enable the Display command line option in the Advanced tab before you hit "OK".

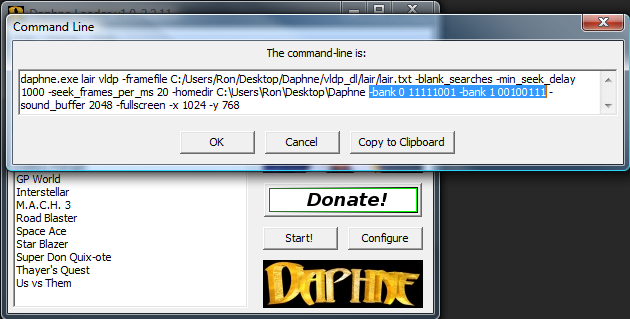

Now, click the "Start!" button and the command like window will appear first:

Pay close attention to the two bank settings. Mine shows "-bank 0 11111001 -bank 1 00100111". Write these down or save them somewhere for use in HyperLaunchHQ. Click the "Cancel" button and make any changes to the other games you have installed. Record those bank settings for each game as well.

The last thing we need to do before we start the HyperSpin setup, is to make a minor change to the framefiles.

Open each framefile in your favorite text editor and put the full path to the audio/video directory. Example:

Original:

.

151 lair.m2v

Modified:

C:\Emulation\emulators\Daphne\vldp_dl\lair\


151 lair.m2v

Save the modified file and test it again. Go back to DaphneLoader and Start the game again. Make double sure it still runs.

All the other games, or if you have the A/V files and framefiles:

For the games that do not require CD/DVD media, or if you have downloaded all the Audio/Video files and framefiles from a different source, here is how to set them up in DaphneLoader.

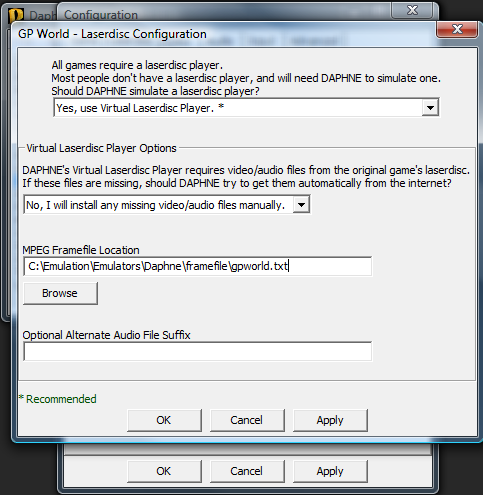

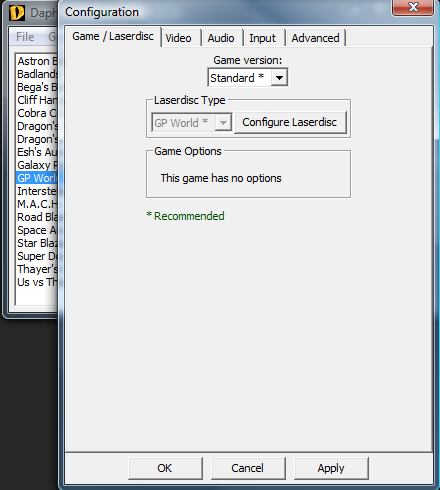

For this example I will use GP World. Select GP World in the list and click the "Configure" button on the right. In the Game/Laserdisc tab, click on "Configure Laserdisc":

Under the Virtual Laserdisc Player Options, change it from "Yes..." to "No, I will install...". This will give you an additional option to browse to your framefile. Click the "Browse" button and navigate to your ...Daphne\framefile\gpworld.txt framefile and click "Open":

Hit the "OK" button and hit "OK" again on the Configuration window. Click on "Start!" to test the game. Let it parse the video and that game should be done.

Do this for the rest of the games you have available.

We are ready to bring up HyperHq!

Daphne and HyperHQ config.

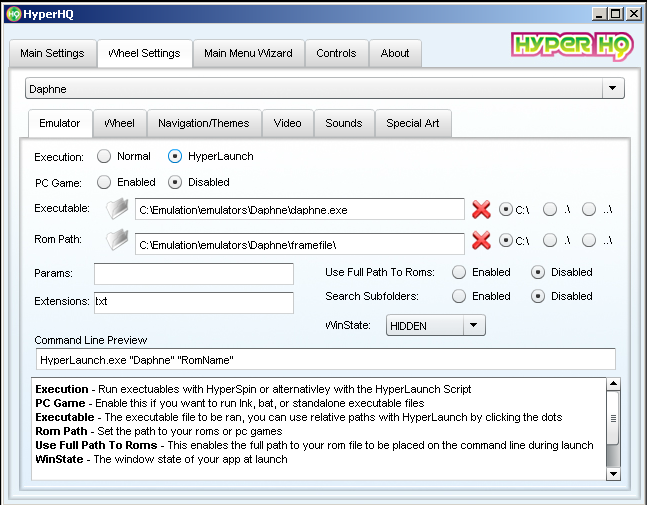

Launch HyperHQ and add your Daphne wheel. Once the wheel is added, click on Wheel Settings and choose Daphne in the wheel drop down. Make your changes like this:

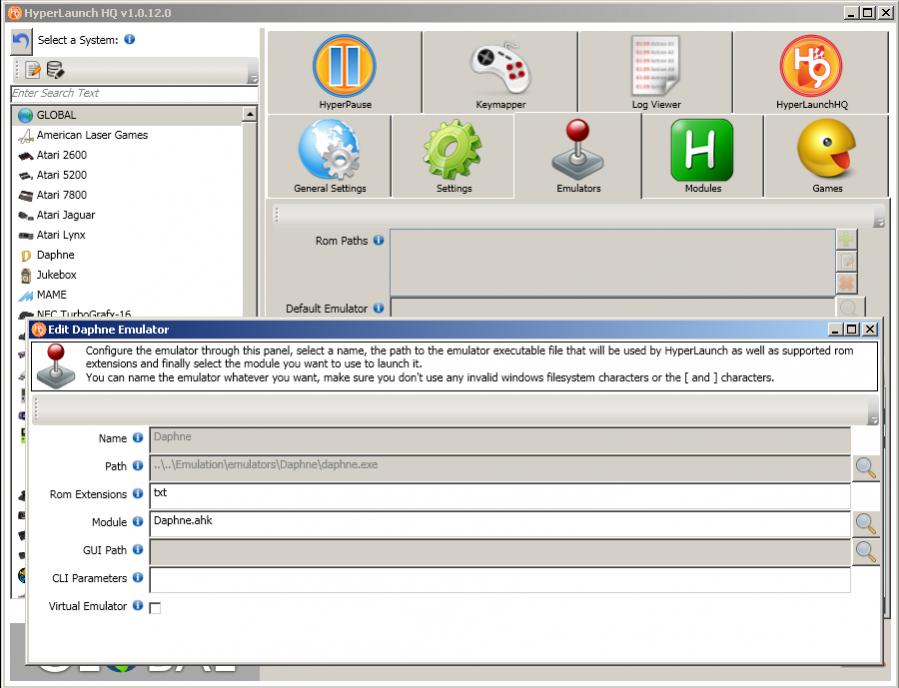

Now close out HyperHQ and open up HyperLaunchHQ. You will have to setup your Global emulator for Daphne. Select GLOBAL on the left. Make sure the Emulators tab is selected and scroll down to Daphne (not Daphne Singe, see the top of this post for a Singe link) and double click on it. Set your Path to the daphne.exe as seen below:

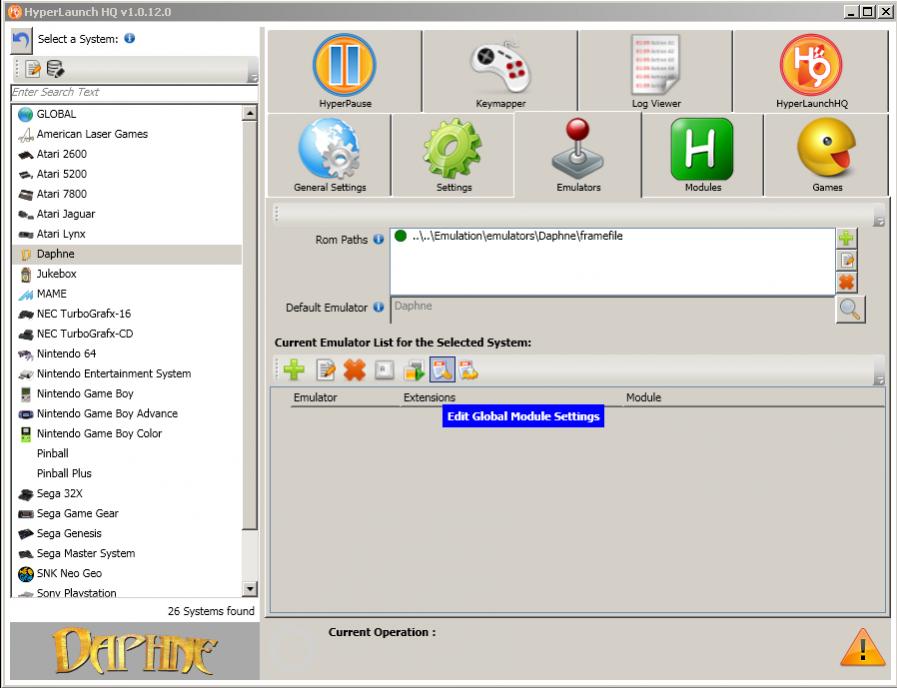

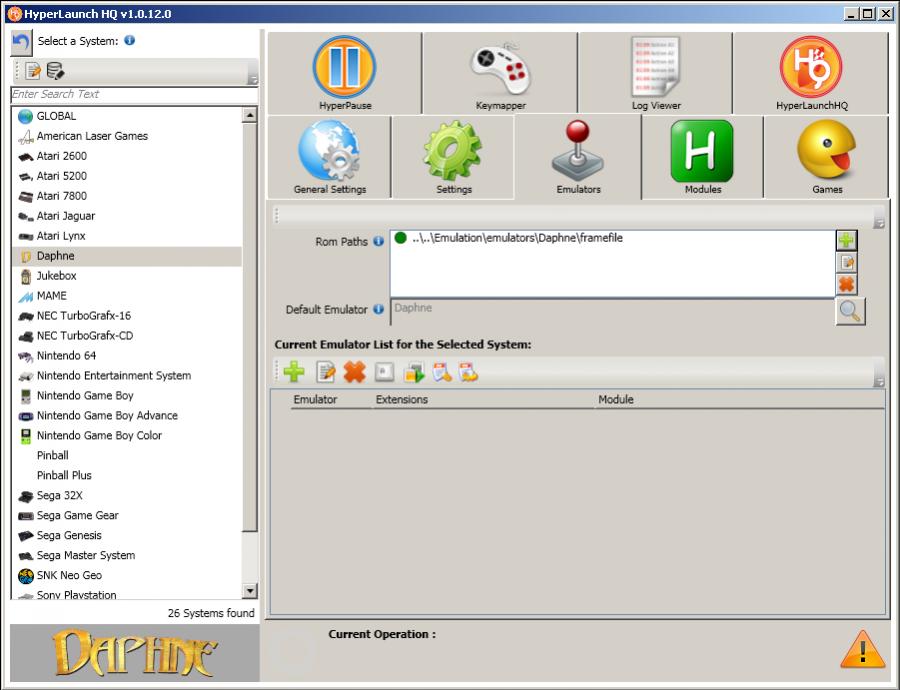

Close that window and click on the emulator Daphne on the left. Make sure the Emulators tab is selected and set your Rom Paths to your ...Daphne\framefile directory. Set your Default Emulator to Daphne as seen below:

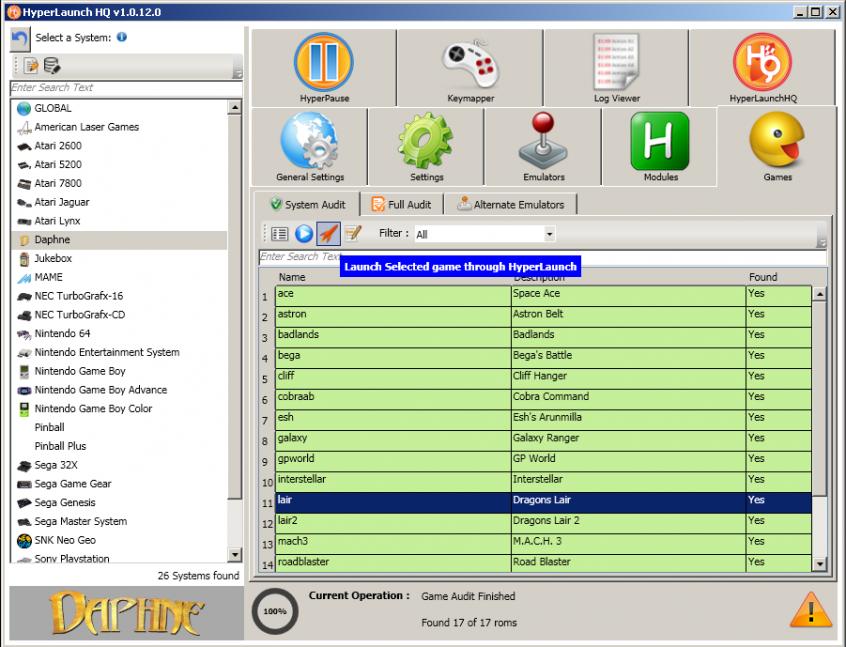

Now, click on the Games tab and hit the blue "Audit All the games..." button and your installed games should show up in green. Go ahead and select lair and click the "Launch..." button to test:

All your games that run in Daphne should now be setup in HyperSpin and HyperLaunchHQ!!!

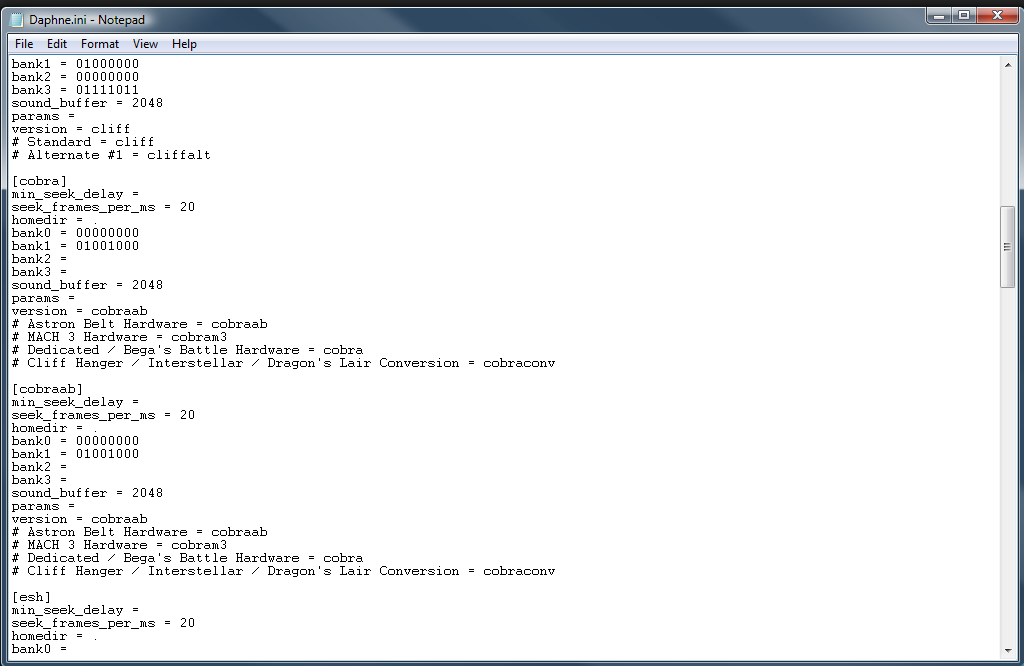

There are two game names that do not match between the RL Daphne.ini settings file and the HyperList xml file.

Cobra Command and Road Blaster. If your Audit list shows cobra and rb in red, the easiest way is to fix the game names (hopefully this will be updated sometime) in your ...HyperLaunch\Modules\Daphne\Daphne.ini file.

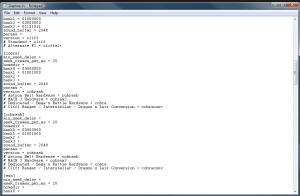

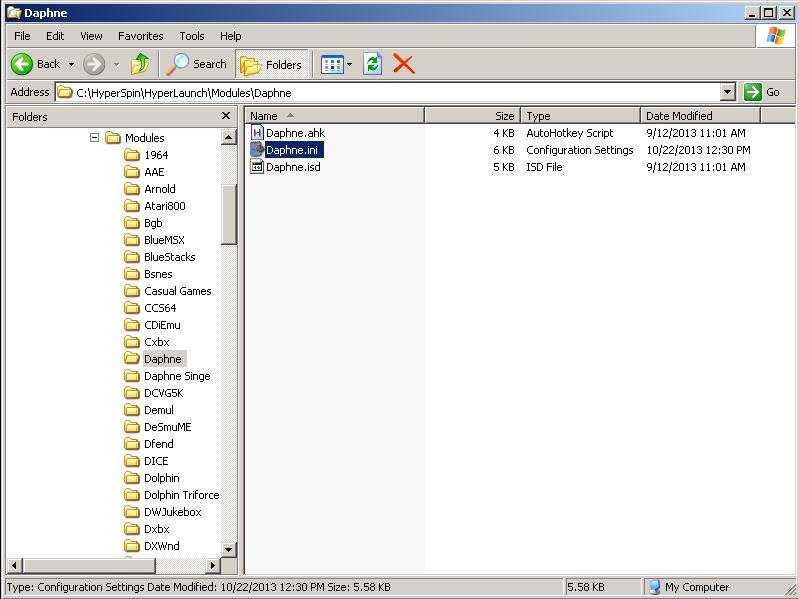

Find the file in your HyperLaunch instillation and edit it in your favorite editor. Scroll down and find the game setting tag called [cobra]. In the HyperList xml file it's called cobraab. I copied the entire [cobra] section and pasted it below. Changed [cobra] to [cobraab] and did the same for [rb] to [roadblaster]:

Save the file and I then re-ran the audit and all the games show green! "Super Green!"

One last thing. Your per game settings!

While you still have HyperLaunchHQ open, click on the Emulators tab. Click on the "Edit Global Module Settings":

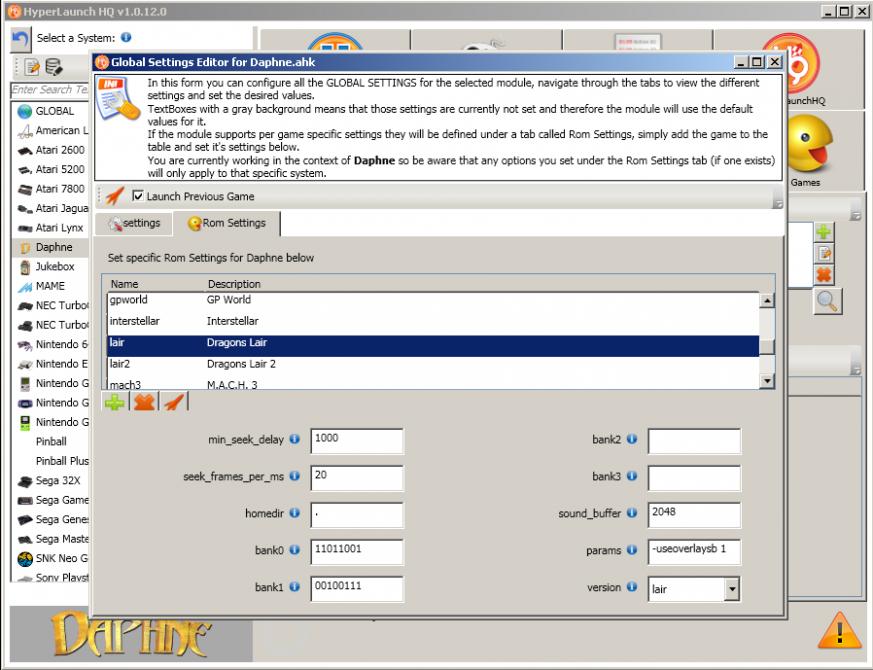

Click on the "Rom Settings" tab. Scroll down and select lair. At the bottom of this screen you will see two boxes: bank0 and bank1. Look back at your command line notes for lair and make them match:

Close that window. Close out HyperLaunchHQ and bring up HyperSpin.

Enjoy!!!

<EDIT>

Djvj has edited the Daphne.ahk module for RL to allow for per game control changes. Please see this thread:

http://www.hyperspin-fe.com/topic/1447-daphne-module

</EDIT>

Any comments and corrections will be greatly appreciated!

Thank you,

Ron Fancella

[Joshd99]

hey ron man I apologize,it's just i'm tired of messing with this for so long and coming up with nothing. yea you were right the archives are empty, I have to games space ace and dragons lair thy both work out of hyperspin. so maybe if get thoses missing files it will work?

[dc240969]

I have all the Daphne games on my system. I can select them and run them, however l cant insert coin and then start. I can from a keyboard. I have an xbox controller, and cabinet setup button layout etc. I have tried to change the controls in Daphneloader, they save, but when l try to run in HS l can only select and run in cabinet, xbox controller wont respond. which other settings are called into play when HS loads an emulator that would need corrected.

[clintc]

Rfancella, I have Daphne working with no problems, but I'm trying to figure out what rom version I need or what settings to make dragons lair one beep when I need to do a move. Or is it not supposed to beep. And do you know why on dragons lair 2 why it gives intructions for left and right and written on the screen. I was in first grade at showbiz pizza the last time I played the real machines.

[rfancella]

Josh,

Very cool. Glad it's working. To fix your DaphneLoader problem:

1). Select the game in DaphneLoader and hit the Configure button on the right.

2). On the Game/Laserdisc tab, click the Configure Laserdisc button.

3). Make sure the drop down under Virtual Laserdisc Player Options says "No, I will install any missing video/audio files manually."

4). Click the Browse button below MPED Framefile Location.

5). Browse to the new framefile.

Or instead of step 4 & 5 you can just type in the box under MPEG Framefile Location:

framefile\ace.txt

As for your IPac, the easiest thing to do is to use the built in ahk Keymapper function to map your buttons to the default of Daphne.

The other way to go is to use the new Daphne controls ini option in the module. The module notes are here with the part of interest bold:

;----------------------------------------------------------------------------
; Notes:
; Executable should be Daphne.exe NOT Daphneloader.exe
; You need the module's ini from GIT, remove the (Example) from the filename. It has settings for each game so they work properly.
[b]; If you want to define custom controls for each game, follow this process:
; 1) Manually run DaphneLoader.exe
; 2) Select each game you want to configure and click the Configure button. Select the Input tab and define your controls and hit OK and repeat for each game.
; 3) Create a folder in your emu directory called "controls" and copy your current dapinput.ini into it. This will be your default controls used for all games that a custom one was not created.
; 4) Launch each game you defined controls for through DaphneLoader. DaphneLoader will set your custom controls in the dapinput.ini. Now exit the game.
; 5) After each game you launch, copy the dapinput.ini into the controls folder and name it after the rom name you use in your xml: Example: lair.ini[/b]
;----------------------------------------------------------------------------

Also, make sure that you have renamed your Daphne (Example).ini as Daphne.ini so your per-game configs are there.

Thanks,

Ron

[Joshd99]

Success!!! it's runing in hyperspin!!! just one thing but i relly don't care I can't setup game configs throw daphne loader I tryed runing it throw the loader and the same errs. this is going into a cabinet so i just need it work i can config controls with win ipac.But hay man" Thank you very much.. and for your patience with me i just started messing with hyperspin, I go back to the atari 2600 day one look at this and i was hooked my Goal is to get every system that brout me fond memories, thanks again "best wishs to you and family in this new year"

[Joshd99]

yea but what about the old: vldp_dl folder and it's content?

[rfancella]

..\DLDVDROM

151    dl-slates.m2v
323    dls00.vob.m2v
1366    dls01.vob.m2v
2044    dls01d1.vob.m2v
2085    dls01d2.vob.m2v
2133    dls01d3.vob.m2v
2213    dls01b.vob.m2v
2297    dls02.vob.m2v
2729    dls02d1.vob.m2v
2801    dls02d2.vob.m2v
2849    dls02d3.vob.m2v
2921    dls02d4.vob.m2v
2956    dls02b.vob.m2v
3041    dls03.vob.m2v
3349    dls03d1.vob.m2v
3421    dls03b.vob.m2v
3505    dls04.vob.m2v
3865    dls04d1.vob.m2v
3925    dls04d2.vob.m2v
3999    dls04b.vob.m2v
4080    dls05.vob.m2v
4639    dls05d1.vob.m2v
4663    dls05d2.vob.m2v
4711    dls05d3.vob.m2v
4759    dls05d4.vob.m2v
4839    dls05d5.vob.m2v
4875    dls05d6.vob.m2v
4923    dls05d7.vob.m2v
4983    dls05b.vob.m2v
5065    dls06.vob.m2v
5423    dls06d1.vob.m2v
5459    dls06d2.vob.m2v
5495    dls06d3.vob.m2v
5543    dls06b.vob.m2v
5625    dls07.vob.m2v
5947    dls07d1.vob.m2v
6039    dls07d2.vob.m2v
6091    dls07d3.vob.m2v
6199    dls07b.vob.m2v
6281    dls08.vob.m2v
6647    dls08d1.vob.m2v
6695    dls08d2.vob.m2v
6731    dls08d3.vob.m2v
6827    dls08b.vob.m2v
6909    dls09.vob.m2v
7489    dls09d1.vob.m2v
7525    dls09d2.vob.m2v
7549    dls09d3.vob.m2v
7597    dls09d4.vob.m2v
7649    dls09d5.vob.m2v
7673    dls09d6.vob.m2v
7745    dls09b.vob.m2v
7828    dls10.vob.m2v
8395    dls10d1.vob.m2v
8449    dls10d2.vob.m2v
8533    dls10d3.vob.m2v
8569    dls10b.vob.m2v
8652    dls11.vob.m2v
8925    dls11d1.vob.m2v
9009    dls11b.vob.m2v
9091    dls12.vob.m2v
9281    dls12d1.vob.m2v
9329    dls12d2.vob.m2v
9389    dls12b.vob.m2v
9471    dls13.vob.m2v
9821    dls13d1.vob.m2v
9881    dls13b.vob.m2v
9964    dls14.vob.m2v
10453    dls14d1.vob.m2v
10501    dls14d2.vob.m2v
10565    dls14d3.vob.m2v
10601    dls14b.vob.m2v
10684    dls15.vob.m2v
11269    dls15d1.vob.m2v
11317    dls15d2.vob.m2v
11349    dls15b.vob.m2v
11432    dls16.vob.m2v
11881    dls16d1.vob.m2v
11917    dls16d2.vob.m2v
11940    dls16d3.vob.m2v
11977    dls16d4.vob.m2v
12048    dls16b.vob.m2v
12132    dls17.vob.m2v
12477    dls17d1.vob.m2v
12537    dls17d2.vob.m2v
12585    dls17b.vob.m2v
12668    dls18.vob.m2v
13029    dls18d1.vob.m2v
13089    dls18d2.vob.m2v
13163    dls18b.vob.m2v
13245    dls19.vob.m2v
13803    dls19d1.vob.m2v
13827    dls19d2.vob.m2v
13875    dls19d3.vob.m2v
13923    dls19d4.vob.m2v
14003    dls19d5.vob.m2v
14039    dls19d6.vob.m2v
14087    dls19d7.vob.m2v
14147    dls19b.vob.m2v
14229    dls20.vob.m2v
14232    dls20.vob.m2v
14575    dls20d1.vob.m2v
14611    dls20d2.vob.m2v
14659    dls20d3.vob.m2v
14707    dls20b.vob.m2v
14788    dls21.vob.m2v
15306    dls21d1.vob.m2v
15365    dls21p1.vob.m2v
15486    dls21b.vob.m2v
15569    dls22.vob.m2v
16148    dls22d1.vob.m2v
16184    dls22d2.vob.m2v
16208    dls22d3.vob.m2v
16256    dls22d4.vob.m2v
16308    dls22d5.vob.m2v
16332    dls22d6.vob.m2v
16404    dls22b.vob.m2v
16486    dls23.vob.m2v
16976    dls23d1.vob.m2v
17024    dls23d2.vob.m2v
17088    dls23d3.vob.m2v
17124    dls23b.vob.m2v
17206    dls24.vob.m2v
18036    dls24d1.vob.m2v
18060    dls24d2.vob.m2v
18142    dls24b.vob.m2v
18224    dls25.vob.m2v
18378    dls25d1.vob.m2v
18486    dls25d2.vob.m2v
18522    dls25b.vob.m2v
18605    dls26.vob.m2v
19054    dls26d1.vob.m2v
19090    dls26d2.vob.m2v
19114    dls26d3.vob.m2v
19150    dls26d4.vob.m2v
19222    dls26b.vob.m2v
19305    dls27.vob.m2v
19872    dls27d1.vob.m2v
19926    dls27d2.vob.m2v
20010    dls27d3.vob.m2v
20046    dls27b.vob.m2v
20130    dls28.vob.m2v
20384    dls28d1.vob.m2v
20450    dls28d2.vob.m2v
20486    dls28d3.vob.m2v
20534    dls28b.vob.m2v
20617    dls29.vob.m2v
20928    dls29d1.vob.m2v
21000    dls29d2.vob.m2v
21030    dls29d3.vob.m2v
21072    dls29b.vob.m2v
21155    dls30.vob.m2v
21740    dls30d1.vob.m2v
21788    dls30d2.vob.m2v
21820    dls30b.vob.m2v
21902    dls31.vob.m2v
22418    dls31d1.vob.m2v
22478    dls31p1.vob.m2v
22599    dls31b.vob.m2v
22680    dls32.vob.m2v
23938    dls32d1.vob.m2v
23962    dls32d2.vob.m2v
23986    dls32d3.vob.m2v
24010    dls32d4.vob.m2v
24034    dls32d5.vob.m2v
24094    dls32d6.vob.m2v
24158    dls32d7.vob.m2v
24238    dls32b.vob.m2v
24320    dls33.vob.m2v
25098    dls33d1.vob.m2v
25146    dls33d2.vob.m2v
25194    dls33d3.vob.m2v
25300    dls33d4.vob.m2v
25360    dls33d5.vob.m2v
25396    dls33b.vob.m2v
25479    dls34.vob.m2v
25850    dls34d1.vob.m2v
25886    dls34d2.vob.m2v
25957    dls34b.vob.m2v
26040    dls35.vob.m2v
26578    dls35d1.vob.m2v
26613    dls35d2.vob.m2v
26637    dls35b.vob.m2v
26720    dls36.vob.m2v
27050    dls36d1.vob.m2v
27085    dls36d2.vob.m2v
27122    dls36d3.vob.m2v
27158    dls36b.vob.m2v
27242    dls32.vob.m2v
28498    dls32d1.vob.m2v
28522    dls32d2.vob.m2v
28546    dls32d3.vob.m2v
28570    dls32d4.vob.m2v
28594    dls32d5.vob.m2v
28654    dls32d6.vob.m2v
28718    dls32d7.vob.m2v
28798    dls32b.vob.m2v
28880    dls38.vob.m2v
31190    dls38d1.vob.m2v
31238    dls38d2.vob.m2v
31298    dls38d3.vob.m2v
31346    dls38d4.vob.m2v
31394    dls38d5.vob.m2v
31454    dls38d6.vob.m2v
31502    dls38b.vob.m2v

sry again dude dang it I Had to step out but i'am back for the rest of the night it's 820pm here ny. ok so that is basically everything that is in the DLDVDROM folder, every files name. kinda new to this page how do ya except friends request?

Not a problem at all.

So, there are two ways to make it work. The easy way and the right way.

We'll start with the right way.

1). Make a new folder like this:

D:\HYPERSPIN-TEST\Emulators\Daphne\vldp_dl

2). Rename the folder DLDVDROM to lair

3). Move the folder lair inside the new vldp_dl folder so it's like this:

D:\HYPERSPIN-TEST\Emulators\Daphne\vldp_dl\lair

Inside this folder should be all your m2v and oog files

4). Rename your framefile from dl_dvdrom.txt to lair.txt

5). Make the first line of your framefile:

..\vldp_dl\lair\

That's it. It should work in HyperLaunchHQ now.

Let me know how it goes.

Thanks,

Ron

[Joshd99]

code

..\DLDVDROM

151 dl-slates.m2v

323 dls00.vob.m2v

1366 dls01.vob.m2v

2044 dls01d1.vob.m2v

2085 dls01d2.vob.m2v

2133 dls01d3.vob.m2v

2213 dls01b.vob.m2v

2297 dls02.vob.m2v

2729 dls02d1.vob.m2v

2801 dls02d2.vob.m2v

2849 dls02d3.vob.m2v

2921 dls02d4.vob.m2v

2956 dls02b.vob.m2v

3041 dls03.vob.m2v

3349 dls03d1.vob.m2v

3421 dls03b.vob.m2v

3505 dls04.vob.m2v

3865 dls04d1.vob.m2v

3925 dls04d2.vob.m2v

3999 dls04b.vob.m2v

4080 dls05.vob.m2v

4639 dls05d1.vob.m2v

4663 dls05d2.vob.m2v

4711 dls05d3.vob.m2v

4759 dls05d4.vob.m2v

4839 dls05d5.vob.m2v

4875 dls05d6.vob.m2v

4923 dls05d7.vob.m2v

4983 dls05b.vob.m2v

5065 dls06.vob.m2v

5423 dls06d1.vob.m2v

5459 dls06d2.vob.m2v

5495 dls06d3.vob.m2v

5543 dls06b.vob.m2v

5625 dls07.vob.m2v

5947 dls07d1.vob.m2v

6039 dls07d2.vob.m2v

6091 dls07d3.vob.m2v

6199 dls07b.vob.m2v

6281 dls08.vob.m2v

6647 dls08d1.vob.m2v

6695 dls08d2.vob.m2v

6731 dls08d3.vob.m2v

6827 dls08b.vob.m2v

6909 dls09.vob.m2v

7489 dls09d1.vob.m2v

7525 dls09d2.vob.m2v

7549 dls09d3.vob.m2v

7597 dls09d4.vob.m2v

7649 dls09d5.vob.m2v

7673 dls09d6.vob.m2v

7745 dls09b.vob.m2v

7828 dls10.vob.m2v

8395 dls10d1.vob.m2v

8449 dls10d2.vob.m2v

8533 dls10d3.vob.m2v

8569 dls10b.vob.m2v

8652 dls11.vob.m2v

8925 dls11d1.vob.m2v

9009 dls11b.vob.m2v

9091 dls12.vob.m2v

9281 dls12d1.vob.m2v

9329 dls12d2.vob.m2v

9389 dls12b.vob.m2v

9471 dls13.vob.m2v

9821 dls13d1.vob.m2v

9881 dls13b.vob.m2v

9964 dls14.vob.m2v

10453 dls14d1.vob.m2v

10501 dls14d2.vob.m2v

10565 dls14d3.vob.m2v

10601 dls14b.vob.m2v

10684 dls15.vob.m2v

11269 dls15d1.vob.m2v

11317 dls15d2.vob.m2v

11349 dls15b.vob.m2v

11432 dls16.vob.m2v

11881 dls16d1.vob.m2v

11917 dls16d2.vob.m2v

11940 dls16d3.vob.m2v

11977 dls16d4.vob.m2v

12048 dls16b.vob.m2v

12132 dls17.vob.m2v

12477 dls17d1.vob.m2v

12537 dls17d2.vob.m2v

12585 dls17b.vob.m2v

12668 dls18.vob.m2v

13029 dls18d1.vob.m2v

13089 dls18d2.vob.m2v

13163 dls18b.vob.m2v

13245 dls19.vob.m2v

13803 dls19d1.vob.m2v

13827 dls19d2.vob.m2v

13875 dls19d3.vob.m2v

13923 dls19d4.vob.m2v

14003 dls19d5.vob.m2v

14039 dls19d6.vob.m2v

14087 dls19d7.vob.m2v

14147 dls19b.vob.m2v

14229 dls20.vob.m2v

14232 dls20.vob.m2v

14575 dls20d1.vob.m2v

14611 dls20d2.vob.m2v

14659 dls20d3.vob.m2v

14707 dls20b.vob.m2v

14788 dls21.vob.m2v

15306 dls21d1.vob.m2v

15365 dls21p1.vob.m2v

15486 dls21b.vob.m2v

15569 dls22.vob.m2v

16148 dls22d1.vob.m2v

16184 dls22d2.vob.m2v

16208 dls22d3.vob.m2v

16256 dls22d4.vob.m2v

16308 dls22d5.vob.m2v

16332 dls22d6.vob.m2v

16404 dls22b.vob.m2v

16486 dls23.vob.m2v

16976 dls23d1.vob.m2v

17024 dls23d2.vob.m2v

17088 dls23d3.vob.m2v

17124 dls23b.vob.m2v

17206 dls24.vob.m2v

18036 dls24d1.vob.m2v

18060 dls24d2.vob.m2v

18142 dls24b.vob.m2v

18224 dls25.vob.m2v

18378 dls25d1.vob.m2v

18486 dls25d2.vob.m2v

18522 dls25b.vob.m2v

18605 dls26.vob.m2v

19054 dls26d1.vob.m2v

19090 dls26d2.vob.m2v

19114 dls26d3.vob.m2v

19150 dls26d4.vob.m2v

19222 dls26b.vob.m2v

19305 dls27.vob.m2v

19872 dls27d1.vob.m2v

19926 dls27d2.vob.m2v

20010 dls27d3.vob.m2v

20046 dls27b.vob.m2v

20130 dls28.vob.m2v

20384 dls28d1.vob.m2v

20450 dls28d2.vob.m2v

20486 dls28d3.vob.m2v

20534 dls28b.vob.m2v

20617 dls29.vob.m2v

20928 dls29d1.vob.m2v

21000 dls29d2.vob.m2v

21030 dls29d3.vob.m2v

21072 dls29b.vob.m2v

21155 dls30.vob.m2v

21740 dls30d1.vob.m2v

21788 dls30d2.vob.m2v

21820 dls30b.vob.m2v

21902 dls31.vob.m2v

22418 dls31d1.vob.m2v

22478 dls31p1.vob.m2v

22599 dls31b.vob.m2v

22680 dls32.vob.m2v

23938 dls32d1.vob.m2v

23962 dls32d2.vob.m2v

23986 dls32d3.vob.m2v

24010 dls32d4.vob.m2v

24034 dls32d5.vob.m2v

24094 dls32d6.vob.m2v

24158 dls32d7.vob.m2v

24238 dls32b.vob.m2v

24320 dls33.vob.m2v

25098 dls33d1.vob.m2v

25146 dls33d2.vob.m2v

25194 dls33d3.vob.m2v

25300 dls33d4.vob.m2v

25360 dls33d5.vob.m2v

25396 dls33b.vob.m2v

25479 dls34.vob.m2v

25850 dls34d1.vob.m2v

25886 dls34d2.vob.m2v

25957 dls34b.vob.m2v

26040 dls35.vob.m2v

26578 dls35d1.vob.m2v

26613 dls35d2.vob.m2v

26637 dls35b.vob.m2v

26720 dls36.vob.m2v

27050 dls36d1.vob.m2v

27085 dls36d2.vob.m2v

27122 dls36d3.vob.m2v

27158 dls36b.vob.m2v

27242 dls32.vob.m2v

28498 dls32d1.vob.m2v

28522 dls32d2.vob.m2v

28546 dls32d3.vob.m2v

28570 dls32d4.vob.m2v

28594 dls32d5.vob.m2v

28654 dls32d6.vob.m2v

28718 dls32d7.vob.m2v

28798 dls32b.vob.m2v

28880 dls38.vob.m2v

31190 dls38d1.vob.m2v

31238 dls38d2.vob.m2v

31298 dls38d3.vob.m2v

31346 dls38d4.vob.m2v

31394 dls38d5.vob.m2v

31454 dls38d6.vob.m2v

31502 dls38b.vob.m2v

sry again dude dang it I Had to step out but i'am back for the rest of the night it's 820pm here ny. ok so that is basically everything that is in the DLDVDROM folder, every files name. kinda new to this page how do ya except friends request?

[Joshd99]

code

..\DLDVDROM

151 dl-slates.m2v

323 dls00.vob.m2v

1366 dls01.vob.m2v

2044 dls01d1.vob.m2v

2085 dls01d2.vob.m2v

2133 dls01d3.vob.m2v

2213 dls01b.vob.m2v

2297 dls02.vob.m2v

2729 dls02d1.vob.m2v

2801 dls02d2.vob.m2v

2849 dls02d3.vob.m2v

2921 dls02d4.vob.m2v

2956 dls02b.vob.m2v

3041 dls03.vob.m2v

3349 dls03d1.vob.m2v

3421 dls03b.vob.m2v

3505 dls04.vob.m2v

3865 dls04d1.vob.m2v

3925 dls04d2.vob.m2v

3999 dls04b.vob.m2v

4080 dls05.vob.m2v

4639 dls05d1.vob.m2v

4663 dls05d2.vob.m2v

4711 dls05d3.vob.m2v

4759 dls05d4.vob.m2v

4839 dls05d5.vob.m2v

4875 dls05d6.vob.m2v

4923 dls05d7.vob.m2v

4983 dls05b.vob.m2v

5065 dls06.vob.m2v

5423 dls06d1.vob.m2v

5459 dls06d2.vob.m2v

5495 dls06d3.vob.m2v

5543 dls06b.vob.m2v

5625 dls07.vob.m2v

5947 dls07d1.vob.m2v

6039 dls07d2.vob.m2v

6091 dls07d3.vob.m2v

6199 dls07b.vob.m2v

6281 dls08.vob.m2v

6647 dls08d1.vob.m2v

6695 dls08d2.vob.m2v

6731 dls08d3.vob.m2v

6827 dls08b.vob.m2v

6909 dls09.vob.m2v

7489 dls09d1.vob.m2v

7525 dls09d2.vob.m2v

7549 dls09d3.vob.m2v

7597 dls09d4.vob.m2v

7649 dls09d5.vob.m2v

7673 dls09d6.vob.m2v

7745 dls09b.vob.m2v

7828 dls10.vob.m2v

8395 dls10d1.vob.m2v

8449 dls10d2.vob.m2v

8533 dls10d3.vob.m2v

8569 dls10b.vob.m2v

8652 dls11.vob.m2v

8925 dls11d1.vob.m2v

9009 dls11b.vob.m2v

9091 dls12.vob.m2v

9281 dls12d1.vob.m2v

9329 dls12d2.vob.m2v

9389 dls12b.vob.m2v

9471 dls13.vob.m2v

9821 dls13d1.vob.m2v

9881 dls13b.vob.m2v

9964 dls14.vob.m2v

10453 dls14d1.vob.m2v

10501 dls14d2.vob.m2v

10565 dls14d3.vob.m2v

10601 dls14b.vob.m2v

10684 dls15.vob.m2v

11269 dls15d1.vob.m2v

11317 dls15d2.vob.m2v

11349 dls15b.vob.m2v

11432 dls16.vob.m2v

11881 dls16d1.vob.m2v

11917 dls16d2.vob.m2v

11940 dls16d3.vob.m2v

11977 dls16d4.vob.m2v

12048 dls16b.vob.m2v

12132 dls17.vob.m2v

12477 dls17d1.vob.m2v

12537 dls17d2.vob.m2v

12585 dls17b.vob.m2v

12668 dls18.vob.m2v

13029 dls18d1.vob.m2v

13089 dls18d2.vob.m2v

13163 dls18b.vob.m2v

13245 dls19.vob.m2v

13803 dls19d1.vob.m2v

13827 dls19d2.vob.m2v

13875 dls19d3.vob.m2v

13923 dls19d4.vob.m2v

14003 dls19d5.vob.m2v

14039 dls19d6.vob.m2v

14087 dls19d7.vob.m2v

14147 dls19b.vob.m2v

14229 dls20.vob.m2v

14232 dls20.vob.m2v

14575 dls20d1.vob.m2v

14611 dls20d2.vob.m2v

14659 dls20d3.vob.m2v

14707 dls20b.vob.m2v

14788 dls21.vob.m2v

15306 dls21d1.vob.m2v

15365 dls21p1.vob.m2v

15486 dls21b.vob.m2v

15569 dls22.vob.m2v

16148 dls22d1.vob.m2v

16184 dls22d2.vob.m2v

16208 dls22d3.vob.m2v

16256 dls22d4.vob.m2v

16308 dls22d5.vob.m2v

16332 dls22d6.vob.m2v

16404 dls22b.vob.m2v

16486 dls23.vob.m2v

16976 dls23d1.vob.m2v

17024 dls23d2.vob.m2v

17088 dls23d3.vob.m2v

17124 dls23b.vob.m2v

17206 dls24.vob.m2v

18036 dls24d1.vob.m2v

18060 dls24d2.vob.m2v

18142 dls24b.vob.m2v

18224 dls25.vob.m2v

18378 dls25d1.vob.m2v

18486 dls25d2.vob.m2v

18522 dls25b.vob.m2v

18605 dls26.vob.m2v

19054 dls26d1.vob.m2v

19090 dls26d2.vob.m2v

19114 dls26d3.vob.m2v

19150 dls26d4.vob.m2v

19222 dls26b.vob.m2v

19305 dls27.vob.m2v

19872 dls27d1.vob.m2v

19926 dls27d2.vob.m2v

20010 dls27d3.vob.m2v

20046 dls27b.vob.m2v

20130 dls28.vob.m2v

20384 dls28d1.vob.m2v

20450 dls28d2.vob.m2v

20486 dls28d3.vob.m2v

20534 dls28b.vob.m2v

20617 dls29.vob.m2v

20928 dls29d1.vob.m2v

21000 dls29d2.vob.m2v

21030 dls29d3.vob.m2v

21072 dls29b.vob.m2v

21155 dls30.vob.m2v

21740 dls30d1.vob.m2v

21788 dls30d2.vob.m2v

21820 dls30b.vob.m2v

21902 dls31.vob.m2v

22418 dls31d1.vob.m2v

22478 dls31p1.vob.m2v

22599 dls31b.vob.m2v

22680 dls32.vob.m2v

23938 dls32d1.vob.m2v

23962 dls32d2.vob.m2v

23986 dls32d3.vob.m2v

24010 dls32d4.vob.m2v

24034 dls32d5.vob.m2v

24094 dls32d6.vob.m2v

24158 dls32d7.vob.m2v

24238 dls32b.vob.m2v

24320 dls33.vob.m2v

25098 dls33d1.vob.m2v

25146 dls33d2.vob.m2v

25194 dls33d3.vob.m2v

25300 dls33d4.vob.m2v

25360 dls33d5.vob.m2v

25396 dls33b.vob.m2v

25479 dls34.vob.m2v

25850 dls34d1.vob.m2v

25886 dls34d2.vob.m2v

25957 dls34b.vob.m2v

26040 dls35.vob.m2v

26578 dls35d1.vob.m2v

26613 dls35d2.vob.m2v

26637 dls35b.vob.m2v

26720 dls36.vob.m2v

27050 dls36d1.vob.m2v

27085 dls36d2.vob.m2v

27122 dls36d3.vob.m2v

27158 dls36b.vob.m2v

27242 dls32.vob.m2v

28498 dls32d1.vob.m2v

28522 dls32d2.vob.m2v

28546 dls32d3.vob.m2v

28570 dls32d4.vob.m2v

28594 dls32d5.vob.m2v

28654 dls32d6.vob.m2v

28718 dls32d7.vob.m2v

28798 dls32b.vob.m2v

28880 dls38.vob.m2v

31190 dls38d1.vob.m2v

31238 dls38d2.vob.m2v

31298 dls38d3.vob.m2v

31346 dls38d4.vob.m2v

31394 dls38d5.vob.m2v

31454 dls38d6.vob.m2v

31502 dls38b.vob.m2v

sry again dude dang it I Had to step out but i'am back for the rest of the night it's 820pm here ny. ok so that is basically everything that is in the DLDVDROM folder, every files name. kinda new to this page how do ya except friends request?

[Polemicist]

OMG. Why did I read this. Seriously Daphne / Singe will be the death of me.

Again great tutorial now time to put it into practice once Taito basics are done.

[rfancella]

code

--DAPHNE version 1.0.12

--Command line is: daphne.exe lair vldp -framefile D:\HYPERSPIN-TEST\Emulators\Daphne\framefile\dl_dvdrom.txt -blank_searches -min_seek_delay 1000 -seek_frames_per_ms 20 -homedir D:\HYPERSPIN-TEST\Emulators\Daphne -fastboot -bank 0 11011001 -bank 1 00100111 -sound_buffer 2048 -fullscreen -x 1600 -y 1200 -opengl

--CPU : AuthenticAMD 3800 MHz || Mem : 4096 megs

--OS : Windows XP/.NET || Video : NVIDIA GeForce GTX 260

--OpenGL: Compiled In

--RGB2YUV Function: MMX

--Line Blending Function: MMX

--Audio Mixing Function: MMX

Setting alternate home dir:

D:\HYPERSPIN-TEST\Emulators\Daphne

Setting sound buffer size to 2048

Setting screen width to 1600

Setting screen height to 1200

Set 1600x1200 at 32 bpp with flags: 80000002

Initializing sound system ...

GI Sound chip initialized at 2000000 Hz

No joysticks detected

Remapping input ...

Loading compressed ROM image dl_f2_u1.bin...8192 bytes read.

Loading compressed ROM image dl_f2_u2.bin...8192 bytes read.

Loading compressed ROM image dl_f2_u3.bin...8192 bytes read.

Loading compressed ROM image dl_f2_u4.bin...8192 bytes read.

Framefile parse succeeded. Video/Audio directory is: D:/HYPERSPIN-TEST/Emulators/Daphne/framefile/../DLDVDROM/

OpenGL v2.0 is supported.

Booting ROM ...

Play

LDP : disc is already playing, play command ignored

Play

Display disable received

Search to 323 received - [25] Attract Mode, Sequence 0 Attract Mode

NOTE: converting FPKS from 23976 to 29970. This may be less accurate.

search succeeded d0

Play

Freeing memory used to store audio stream...

Shutting down sound system...

Shutting down video display...

this is the Daphne log, when I run the game out of hyperspin. The only lair.m2v Ive seen is that lair txt file

Code D:\HYPERSPIN-TEST\Emulators\Daphne\framefile\vldp_dl\lair

Ok, so that tells me where the audio/video files are.

Video/Audio directory is: D:/HYPERSPIN-TEST/Emulators/Daphne/framefile/../DLDVDROM/

You can fix it by editing the first line of your framefile.

D:\HYPERSPIN-TEST\Emulators\Daphne\framefile\dl_dvdrom.txt

Please post the contents of that file and i'll let you know what to change it to.

Thanks,

Ron

PS: if you accept my friend request, I can tell you what to do in the chat.

[Joshd99]

code

--DAPHNE version 1.0.12

--Command line is: daphne.exe lair vldp -framefile D:\HYPERSPIN-TEST\Emulators\Daphne\framefile\dl_dvdrom.txt -blank_searches -min_seek_delay 1000 -seek_frames_per_ms 20 -homedir D:\HYPERSPIN-TEST\Emulators\Daphne -fastboot -bank 0 11011001 -bank 1 00100111 -sound_buffer 2048 -fullscreen -x 1600 -y 1200 -opengl

--CPU : AuthenticAMD 3800 MHz || Mem : 4096 megs

--OS : Windows XP/.NET || Video : NVIDIA GeForce GTX 260

--OpenGL: Compiled In

--RGB2YUV Function: MMX

--Line Blending Function: MMX

--Audio Mixing Function: MMX

Setting alternate home dir:

D:\HYPERSPIN-TEST\Emulators\Daphne

Setting sound buffer size to 2048

Setting screen width to 1600

Setting screen height to 1200

Set 1600x1200 at 32 bpp with flags: 80000002

Initializing sound system ...

GI Sound chip initialized at 2000000 Hz

No joysticks detected

Remapping input ...

Loading compressed ROM image dl_f2_u1.bin...8192 bytes read.

Loading compressed ROM image dl_f2_u2.bin...8192 bytes read.

Loading compressed ROM image dl_f2_u3.bin...8192 bytes read.

Loading compressed ROM image dl_f2_u4.bin...8192 bytes read.

Framefile parse succeeded. Video/Audio directory is: D:/HYPERSPIN-TEST/Emulators/Daphne/framefile/../DLDVDROM/

OpenGL v2.0 is supported.

Booting ROM ...

Play

LDP : disc is already playing, play command ignored

Play

Display disable received

Search to 323 received - [25] Attract Mode, Sequence 0 Attract Mode

NOTE: converting FPKS from 23976 to 29970. This may be less accurate.

search succeeded d0

Play

Freeing memory used to store audio stream...

Shutting down sound system...

Shutting down video display...

this is the Daphne log, when I run the game out of hyperspin. The only lair.m2v Ive seen is that lair txt file

Code D:\HYPERSPIN-TEST\Emulators\Daphne\framefile\vldp_dl\lair

[rfancella]

--DAPHNE version 1.0.12

--Command line is: D:\HYPERSPIN-TEST\Emulators\Daphne\daphne.exe lair vldp -blank_searches -prefer_samples -fullscreen -noissues -opengl -fastboot -x 1024 -y 768 -useoverlaysb 1 -min_seek_delay 1000 -seek_frames_per_ms 20 -homedir . -bank 0 11011001 -bank 1 00100111 -sound_buffer 2048 -framefile D:\HYPERSPIN-TEST\Emulators\Daphne\framefile\lair.txt

--CPU : AuthenticAMD 3800 MHz || Mem : 4096 megs

--OS : Windows XP/.NET || Video : NVIDIA GeForce GTX 260

--OpenGL: Compiled In

--RGB2YUV Function: MMX

--Line Blending Function: MMX

--Audio Mixing Function: MMX

Setting alternate home dir:

.

Setting screen width to 1024

Setting screen height to 768

Setting sound buffer size to 2048

Set 1024x768 at 32 bpp with flags: 80000002

Initializing sound system ...

GI Sound chip initialized at 2000000 Hz

No joysticks detected

Remapping input ...

Loading compressed ROM image dl_f2_u1.bin...8192 bytes read.

Loading compressed ROM image dl_f2_u2.bin...8192 bytes read.

Loading compressed ROM image dl_f2_u3.bin...8192 bytes read.

Loading compressed ROM image dl_f2_u4.bin...8192 bytes read.

Framefile parse succeeded. Video/Audio directory is: D:/HYPERSPIN-TEST/Emulators/Daphne/framefile/vldp_dl/lair/

Could not open file : D:/HYPERSPIN-TEST/Emulators/Daphne/framefile/vldp_dl/lair/lair.m2v

Could not initialize laserdisc player!

Shutting down sound system...

Shutting down video display..

Nice Josh, thank you!

One word, please post things like logs and config files in Code blocks. Makes them much easier to read. At the start of the log type [ CODE] (only without the space between the [ and the C) and at the end of the log type [ /CODE] (again without the space between the [ and the /). It will look like this:

--DAPHNE version 1.0.12
--Command line is: D:\HYPERSPIN-TEST\Emulators\Daphne\daphne.exe lair vldp -blank_searches -prefer_samples -fullscreen -noissues -opengl -fastboot -x 1024 -y 768 -useoverlaysb 1 -min_seek_delay 1000 -seek_frames_per_ms 20 -homedir . -bank 0 11011001 -bank 1 00100111 -sound_buffer 2048 -framefile D:\HYPERSPIN-TEST\Emulators\Daphne\framefile\lair.txt
--CPU : AuthenticAMD 3800 MHz || Mem : 4096 megs
--OS : Windows XP/.NET || Video : NVIDIA GeForce GTX 260
--OpenGL: Compiled In
--RGB2YUV Function: MMX
--Line Blending Function: MMX
--Audio Mixing Function: MMX
Setting alternate home dir:
.
Setting screen width to 1024
Setting screen height to 768
Setting sound buffer size to 2048
Set 1024x768 at 32 bpp with flags: 80000002
Initializing sound system ...
GI Sound chip initialized at 2000000 Hz
No joysticks detected
Remapping input ...
Loading compressed ROM image dl_f2_u1.bin...8192 bytes read.
Loading compressed ROM image dl_f2_u2.bin...8192 bytes read.
Loading compressed ROM image dl_f2_u3.bin...8192 bytes read.
Loading compressed ROM image dl_f2_u4.bin...8192 bytes read.
Framefile parse succeeded. Video/Audio directory is: D:/HYPERSPIN-TEST/Emulators/Daphne/framefile/vldp_dl/lair/
Could not open file : D:/HYPERSPIN-TEST/Emulators/Daphne/framefile/vldp_dl/lair/lair.m2v
Could not initialize laserdisc player!
Shutting down sound system...
Shutting down video display..

We are getting somewhere now....

Please post your framefile in code tags. And what is the path to your m2v and oog files?

It looks like the first line of your framefile is not right. Framefile errors are the most common problem with Daphne.

Thanks,

Ron

[Joshd99]

--DAPHNE version 1.0.12

--Command line is: D:\HYPERSPIN-TEST\Emulators\Daphne\daphne.exe lair vldp -blank_searches -prefer_samples -fullscreen -noissues -opengl -fastboot -x 1024 -y 768 -useoverlaysb 1 -min_seek_delay 1000 -seek_frames_per_ms 20 -homedir . -bank 0 11011001 -bank 1 00100111 -sound_buffer 2048 -framefile D:\HYPERSPIN-TEST\Emulators\Daphne\framefile\lair.txt

--CPU : AuthenticAMD 3800 MHz || Mem : 4096 megs

--OS : Windows XP/.NET || Video : NVIDIA GeForce GTX 260

--OpenGL: Compiled In

--RGB2YUV Function: MMX

--Line Blending Function: MMX

--Audio Mixing Function: MMX

Setting alternate home dir:

.

Setting screen width to 1024

Setting screen height to 768

Setting sound buffer size to 2048

Set 1024x768 at 32 bpp with flags: 80000002

Initializing sound system ...

GI Sound chip initialized at 2000000 Hz

No joysticks detected

Remapping input ...

Loading compressed ROM image dl_f2_u1.bin...8192 bytes read.

Loading compressed ROM image dl_f2_u2.bin...8192 bytes read.

Loading compressed ROM image dl_f2_u3.bin...8192 bytes read.

Loading compressed ROM image dl_f2_u4.bin...8192 bytes read.

Framefile parse succeeded. Video/Audio directory is: D:/HYPERSPIN-TEST/Emulators/Daphne/framefile/vldp_dl/lair/

Could not open file : D:/HYPERSPIN-TEST/Emulators/Daphne/framefile/vldp_dl/lair/lair.m2v

Could not initialize laserdisc player!

Shutting down sound system...

Shutting down video display..

there are only 3 files in the lair folder = lair.m2v.bf , lair.ogg.bf , and the lair file.

I downloaded the video files all in one rar it also came with a dl_dvdrom txt to be placed in the framefile folder. so in the daphne config= MPEG framefile location is as follow: D:\HYPERSPIN-TEST\Emulators\Daphne\framefile\dl_dvdrom.txt

[rfancella]

Josh,

Also, the paths don't really matter. They could be different for everyone. So long as the first line in your txt framefile points to your .m2v and .oog files.

Thanks,

Ron

[rfancella]

Josh,

Are your roms (not games) in D:\HYPERSPIN-TEST\Emulators\Daphne\roms ??

Is there an ace.zip? And does it have the following content?

sa_a3_u1.bin
sa_a3_u2.bin
sa_a3_u3.bin
sa_a3_u4.bin
sa_a3_u5.bin

Thanks,

Ron

[Joshd99]

I don't get it when i load the game outside of hyperspin it works fine? this what I get from daphne log =--DAPHNE version 1.0.12

--Command line is: D:\HYPERSPIN-TEST\Emulators\Daphne\daphne.exe ace vldp -blank_searches -prefer_samples -fullscreen -noissues -opengl -fastboot -x 1024 -y 768 -useoverlaysb 1 -min_seek_delay 1000 -seek_frames_per_ms 20 -homedir . -bank 0 00000010 -bank 1 00000001 -sound_buffer 2048 -framefile D:\HYPERSPIN-TEST\Emulators\Daphne\framefile\ace.txt

--CPU : AuthenticAMD 3800 MHz || Mem : 4096 megs

--OS : Windows XP/.NET || Video : NVIDIA GeForce GTX 260

--OpenGL: Compiled In

--RGB2YUV Function: MMX

--Line Blending Function: MMX

--Audio Mixing Function: MMX

Setting alternate home dir:

.

Setting screen width to 1024

Setting screen height to 768

Setting sound buffer size to 2048

Set 1024x768 at 32 bpp with flags: 80000002

Initializing sound system ...

GI Sound chip initialized at 2000000 Hz

No joysticks detected

Remapping input ...

Loading ./roms/ace/sa_a3_u1.bin ... 0 bytes read into memory

ROM sa_a3_u1.bin couldn't be found in roms/ace/, or in ./roms/ace.zip

Could not load ROM images! You must supply these.

Shutting down sound system...

Shutting down video display...

please help...?

[Joshd99]

The tutorial was very helpful thank you very much, but I got an err from Daphne? i think it's because the text file that's in the framefile folder is a "dl_dvdrom txt file that's all that is in there well I have two the other one is for spaceace which reads=ace_dvdrom i well start over and use the dvdrom files instead hope this well work as it does out of hyperspin ?

[rfancella]

And thanks to 32assassin also!

[sllimc]

Easier way.

Open HyperLaunchHQ.

Go to global on the left.

Click on the Emulators tab.

Find Daphne and select.

Hit the button that says "Edit Global Module Settings"

In the box for Global Settings, remove -opengl so it says:

vldp -blank_searches -prefer_samples -fullscreen -noissues -fastboot -x 1024 -y 768

Instead of:

vldp -blank_searches -prefer_samples -fullscreen -noissues -opengl -fastboot -x 1024 -y 768

Thanks,

Ron

Thanks Ron, This worked for me. You're a rock star.

[rfancella]

Easier way.

Open HyperLaunchHQ.

Go to global on the left.

Click on the Emulators tab.

Find Daphne and select.

Hit the button that says "Edit Global Module Settings"

In the box for Global Settings, remove -opengl so it says:

vldp -blank_searches -prefer_samples -fullscreen -noissues -fastboot -x 1024 -y 768

Instead of:

vldp -blank_searches -prefer_samples -fullscreen -noissues -opengl -fastboot -x 1024 -y 768

Thanks,

Ron

[32assassin]

you are getting an Open GL error because your video card probably dos not support that video driver.

this worked in Hyperlaunch 2 see if it works in RocketLauncher

1. go to HyperSpin\Hyperlaunch\Modules\Daphne\

2. Open Daphne.ini

3. at the top you will see this

[settings]
globalParams = vldp -blank_searches -prefer_samples -fullscreen -noissues -opengl -fastboot -x 1024 -y 768
pauseOnExit = false

4. remove -opengl, so that the top looks like this

[settings]
globalParams = vldp -blank_searches -prefer_samples -fullscreen -noissues -fastboot -x 1024 -y 768
pauseOnExit = false

I had the same error in Hyperlaunch 2, I did not have to modify the Daphne.ini when I upgraded to RL.

[rfancella]

Are you using HyperLaunch3 or an older version??

It probably works in DaphneLoader because it uses those settings. Through HyperLaunch, it uses the settings in HyperLaunch. So any setting you use in DaphneLoader are not applied in HL. The older HL settings do not set this at all, where RL uses -opengl as a global parameter. Try setting it to OpenGL in DaphneLoader and see if it errors??

You can probably just make a small ini file change...

Thanks,

Ron

[sllimc]

getting the same problem with Space Ace

--DAPHNE version 1.0.12

--Command line is: C:\Hyperspin\Emulators\Daphne\daphne.exe ace vldp -blank_searches -prefer_samples -fullscreen -noissues -opengl -fastboot -x 1024 -y 768 -useoverlaysb 1 -min_seek_delay 1000 -seek_frames_per_ms 20 -homedir . -bank 0 00000010 -bank 1 00000001 -sound_buffer 2048 -framefile C:\Hyperspin\Emulators\Daphne\framefile\ace.txt

--CPU : GenuineIntel 2800 MHz || Mem : 2048 megs

--OS : Windows XP/.NET || Video : Intel® 82845G/GL/GE/PE/GV Graphics Controller

--OpenGL: Compiled In

--RGB2YUV Function: MMX

--Line Blending Function: MMX

--Audio Mixing Function: MMX

Setting alternate home dir:

.

Setting screen width to 1024

Setting screen height to 768

Setting sound buffer size to 2048

Set 1024x768 at 32 bpp with flags: 80000002

Initializing sound system ...

GI Sound chip initialized at 2000000 Hz

No joysticks detected

Remapping input ...

Loading compressed ROM image sa_a3_u1.bin...8192 bytes read.

Loading compressed ROM image sa_a3_u2.bin...8192 bytes read.

Loading compressed ROM image sa_a3_u3.bin...8192 bytes read.

Loading compressed ROM image sa_a3_u4.bin...8192 bytes read.

Loading compressed ROM image sa_a3_u5.bin...8192 bytes read.

Framefile parse succeeded. Video/Audio directory is: C:/Hyperspin/Emulators/Daphne/vldp/ace/

OpenGL v2.0 is required for VLDP OpenGL mode.

OpenGL v2.0 initialization failed.

Booting ROM ...

Shutting down sound system...

Shutting down video display...

[rfancella]

Does it error if you run Space Ace throught RL??

I ask because in the Daphne.ini, in the HL modules folder for Daphne, it is the only one that specifies YUV in the file. Also, launch a game and when you get the error, post the daphne_log.txt

Ron
