Medieval Madness 39/27/19 Standard body build

Recommended Posts

This is going to be a slow going build thread, as I have multiple other projects I'm working on at the same time. But I'm almost finished with my Hyperspin cabinet, so I figured I would start a HyerPIN cabinet. I picked up a Medieval Madness cab (empty) for the build.


During the playfield install


I used 2x2's to make the frame for the LED playfield


Decased the LED and mounted it to the frame with long screws all around it


Added a 1x4 to the front to clean it up


Here is how I built it up. It sits perfectly flush with the bottom of the rails


Added some cross bracing to the back of the frame which I will later add a piece of 1x6 on top of it to finish the look


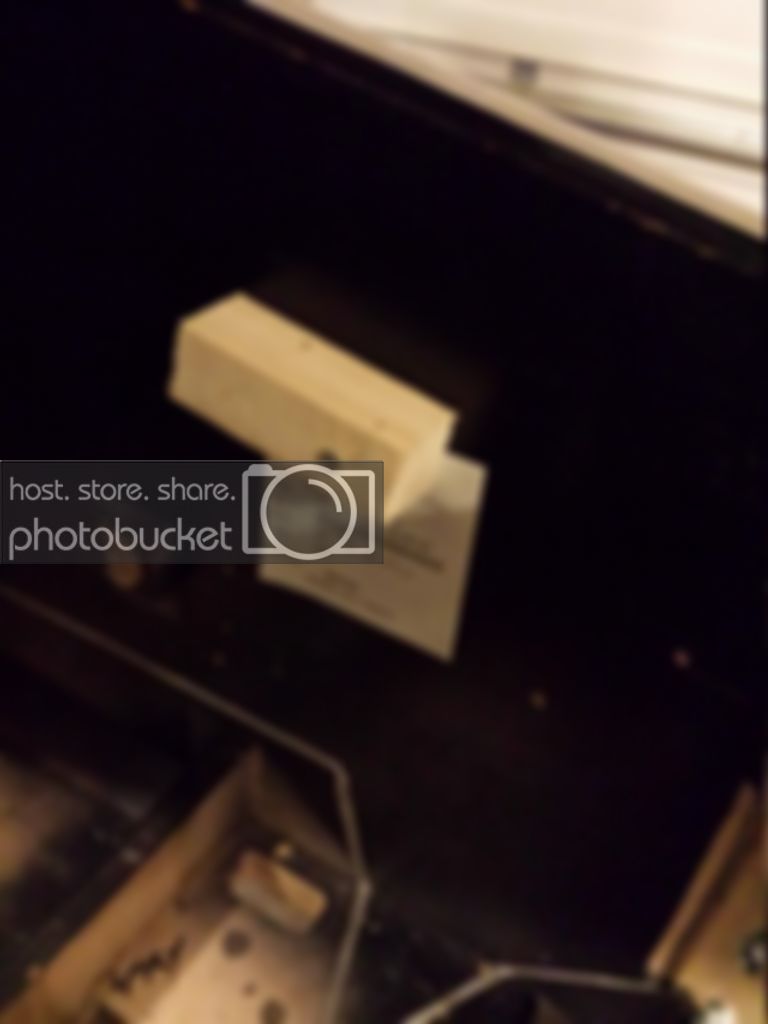

Added some stops for the front of the frame to rest on


Share this post


Link to post
Share on other sites

Wow, It is going to be nice when you are done, but that Cab looks nearly spotless. I bet it was worth enough to buy you two cabs from Mameman :D

Can't wait to see your build!

Share this post


Link to post
Share on other sites
Wow, It is going to be nice when you are done, but that Cab looks nearly spotless. I bet it was worth enough to buy you two cabs from Mameman :D

Can't wait to see your build!

Thanks, the cab is in really good condition. One of the back box stickers has a small gouge in it, but shouldn't be too hard to fix or even replace. I pretty much have the hard drive setup, just need to start piecing together parts for the PC build. Which I'm still not sure about. ....any suggestions??? :)

Share this post


Link to post
Share on other sites

I think I might cry. This is a great table. So sad to see it being modded. Nothing against you modding it, but I love this table man :-( ;-)

Share this post


Link to post
Share on other sites

Well, if it still had all the internals and playfield I may have just restored it. But as it was only the empty cab, I decided to use it as my Hyperpin setup. It's still going to look completely original except for the digital playfield and backbox.

Share this post


Link to post
Share on other sites

Installed the new front buttons, legs and leg guards



Installed new back box hinge


Installed smart power strip inside cab


Motherboard is mounted on slide out tray


Share this post


Link to post
Share on other sites

Then........ I learned a costly lesson.....

Always make sure everything is secure when you are moving your cab. When I was installing the new legs I tilted the cab a little bit and my test backbox monitor fell onto my playfield monitor! Needless to say, $300 down the toilet!! :facepalm:


Share this post


Link to post
Share on other sites
Ouch... It is possible to order the screen and fix the tv, might save you a bit of cash.

I was looking into that, but haven't been able to find a replacement screen yet. I have the westinghouse dw39f1y1 39" LED tv. If anyone knows where to get the screen please let me know. How hard is it to replace the screen?

**EDIT**

After looking at the screen, it basically lifts right off and is connected by these 2 ribbon cables. I contacted Westinghouse parts department via email about a replacement screen. Hopefully it won't cost that much.


Edited by fireslayer26

Share this post


Link to post
Share on other sites

Well I went by a local tv repair shop and they said I could probably buy 2 brand new tv's for the cost of getting a new screen would be. They said even though it was a $300 tv, the manufacturer would probably charge $600+ for a new screen. Makes no sense, but said that's the way it was. So until I can buy a new playfield screen I'll just work on other things. Today I got the DMD screen installed. It's a 19" Dell.


Share this post


Link to post
Share on other sites

Sorry for your loss - that's gotta hurt. Most people REALLY don't get the risk calculation - There is alot of risk involved in making these cabs.

My TV was/is about $900, I am always scared to pull it out - thinking of worse case senarios. Sorry again :-(

Share this post


Link to post
Share on other sites

Yea man, it sucked! As soon as it happened I thought I was gonna be sick. I got it on sale and used a gift card. Had it less than a month. But oh well, live and learn.

Share this post


Link to post
Share on other sites

I know your pain. I deceased my 32" back glass monitor and dropped in the process

Sent from my C5306 using Tapatalk

Share this post


Link to post
Share on other sites

Things are going good. Instead of getting another Westinghouse, I got an Insignia 39", which I actually like better! It has power on memory, unlike the Westinghouse and it has a really thin black bezel that I was able to keep on when I installed it, so it looks more finished, unlike the Westinghouse that you had to completely decase.

New playfield installed


Back glass surround done


Edited by fireslayer26

Share this post


Link to post
Share on other sites

Here is a quick video of it in action. Oh..... and I did switch over to Pinballx to try it out since I was having trouble with Hyperpin on my Win7 64bit system. :vroam:
