russdx Posted August 1, 2012 Share Posted August 1, 2012 yes thats the one njay looks like a really nice display, it will run off your 12v from your psu Link to comment Share on other sites More sharing options...
njay Posted August 1, 2012 Share Posted August 1, 2012 Ordered plus a nice pindmd board Link to comment Share on other sites More sharing options...
JaronSenna Posted August 3, 2012 Share Posted August 3, 2012 Hi NJay, please keep us posted on how you are able to hookup your 12V plasma dmd to your PC PSU and the pindmd. I have 2 out of the three parts you mentioned, but have not yet dropped the money on a dmd because they are so ridiculously expensive to get (transported)... Link to comment Share on other sites More sharing options...
njay Posted August 3, 2012 Share Posted August 3, 2012 If you order with mouser you pay 350 they will pay the customs and taxes if you choose the default fedex shipping deliver date 21 nov 2012 haha ... hopefully sooner Link to comment Share on other sites More sharing options...
njay Posted August 14, 2012 Share Posted August 14, 2012 So i looked again at the diagrams, if you plug in a standard molex connecter from your pc psu and just cut the red 5v line would that be enough? does it need the 4th pin key nc? Link to comment Share on other sites More sharing options...
PinKitty Posted August 14, 2012 Share Posted August 14, 2012 (edited) hi njay that's how i would do it and fuse it with a 3amp fuse for safty Edited August 14, 2012 by PinKitty Link to comment Share on other sites More sharing options...
russdx Posted August 14, 2012 Share Posted August 14, 2012 far as im aware, standard molex with the 5v cut is fine for the vishay 12v plasma displays + add the fuse if you want Link to comment Share on other sites More sharing options...
njay Posted August 14, 2012 Share Posted August 14, 2012 Thanks both ... can't wait really only 3 weeks to go Link to comment Share on other sites More sharing options...
njay Posted August 14, 2012 Share Posted August 14, 2012 Speaking about fuses, can anyone tell me which one to use, the only ones i can find are for cars 3 amps Link to comment Share on other sites More sharing options...
PinKitty Posted August 14, 2012 Share Posted August 14, 2012 that will work Link to comment Share on other sites More sharing options...
njay Posted August 15, 2012 Share Posted August 15, 2012 So i ordered an inline fuse holder with a 4a glass fuse inside , should be enough? 3a would be to low according to the specs 100 % lit it uses 3.5 a Link to comment Share on other sites More sharing options...
PinKitty Posted August 15, 2012 Share Posted August 15, 2012 Hey Njay, I think the 4a is a good choice, seeing the specs say it uses 3.5a at 100% lit. I thought I was over-amping when I said 3a. I did not realize that the 12V plasma required so much amprage. I'm only using 1/3 amp on my high voltage plasmas. Link to comment Share on other sites More sharing options...
njay Posted August 16, 2012 Share Posted August 16, 2012 Thanks pinkitty for your help Link to comment Share on other sites More sharing options...
Aurich Posted October 30, 2012 Share Posted October 30, 2012 (edited) Sorry to resurrect an older thread, but has anyone heard any word on using the XPin DMDs with the pinDMD board yet? I've seen several "about to test it!" messages, but no one seems to have actually tried. I know they're out in the wild now and not vaporware, so it seems like it would be a good thing to know. Edited November 2, 2012 by Aurich Derp, now -> not Link to comment Share on other sites More sharing options...
Aurich Posted November 1, 2012 Share Posted November 1, 2012 ** crickets ** I'm looking into finding out for myself! Link to comment Share on other sites More sharing options...
boogies2 Posted November 2, 2012 Share Posted November 2, 2012 LOL - I believe PinballLooking was testing. FWIW: The Xpin DMD guy posted on Pinside that they had them in stock, and I asked him about the Hyperpin testing with the Russ's PinDMD board. He said that he'd forgot, and he'd check into it. I am waiting too - So you aren't the only one hearing crickets Link to comment Share on other sites More sharing options...
Aurich Posted November 2, 2012 Share Posted November 2, 2012 LOL - I believe PinballLooking was testing.FWIW: The Xpin DMD guy posted on Pinside that they had them in stock, and I asked him about the Hyperpin testing with the Russ's PinDMD board. He said that he'd forgot, and he'd check into it. I am waiting too - So you aren't the only one hearing crickets Yeah, PinballLooking never replied to the Xpin guy or me (sent him an email) so I took matters into my own hands and ordered a 5V board this morning. I should have it shortly, I'm in CA and he's in AZ, and he promised to ship quickly, so as soon as I have an answer I'll update everyone. Link to comment Share on other sites More sharing options...
boogies2 Posted November 5, 2012 Share Posted November 5, 2012 I got the PinDMD from VirtuaPin, but still waiting for the Vishay DMD. The PinDMD has a connector that goes to the DMD, and has what looks like a Mini-HDMI port. Do I need to buy a Mini-HDMI <-> USB convertor to be able to connect to the PC? Link to comment Share on other sites More sharing options...
Aurich Posted November 6, 2012 Share Posted November 6, 2012 I got the PinDMD from VirtuaPin, but still waiting for the Vishay DMD. The PinDMD has a connector that goes to the DMD, and has what looks like a Mini-HDMI port. Do I need to buy a Mini-HDMI <-> USB convertor to be able to connect to the PC? No, that's a standard mini USB port, just get a mini USB cable to connect to your PC. Link to comment Share on other sites More sharing options...
Aurich Posted November 6, 2012 Share Posted November 6, 2012 Yeah, PinballLooking never replied to the Xpin guy or me (sent him an email) so I took matters into my own hands and ordered a 5V board this morning. I should have it shortly, I'm in CA and he's in AZ, and he promised to ship quickly, so as soon as I have an answer I'll update everyone. Quoting myself here to report that the Xpin DMDs work out of the box with the pinDMD. I'll start a new thread for it, I doubt many are still reading this sticky, but if you ask for the 5V version it's good to go. Link to comment Share on other sites More sharing options...
boogies2 Posted November 6, 2012 Share Posted November 6, 2012 Thanks for the quick response. I am really more disappointed now that I have to wait longer when the XPin is in stock What color did you get? How does it look? Any chance of a vid? Link to comment Share on other sites More sharing options...
Aurich Posted November 6, 2012 Share Posted November 6, 2012 Thanks for the quick response. I am really more disappointed now that I have to wait longer when the XPin is in stock What color did you get? How does it look? Any chance of a vid? Details and a video in a new thread. Link to comment Share on other sites More sharing options...

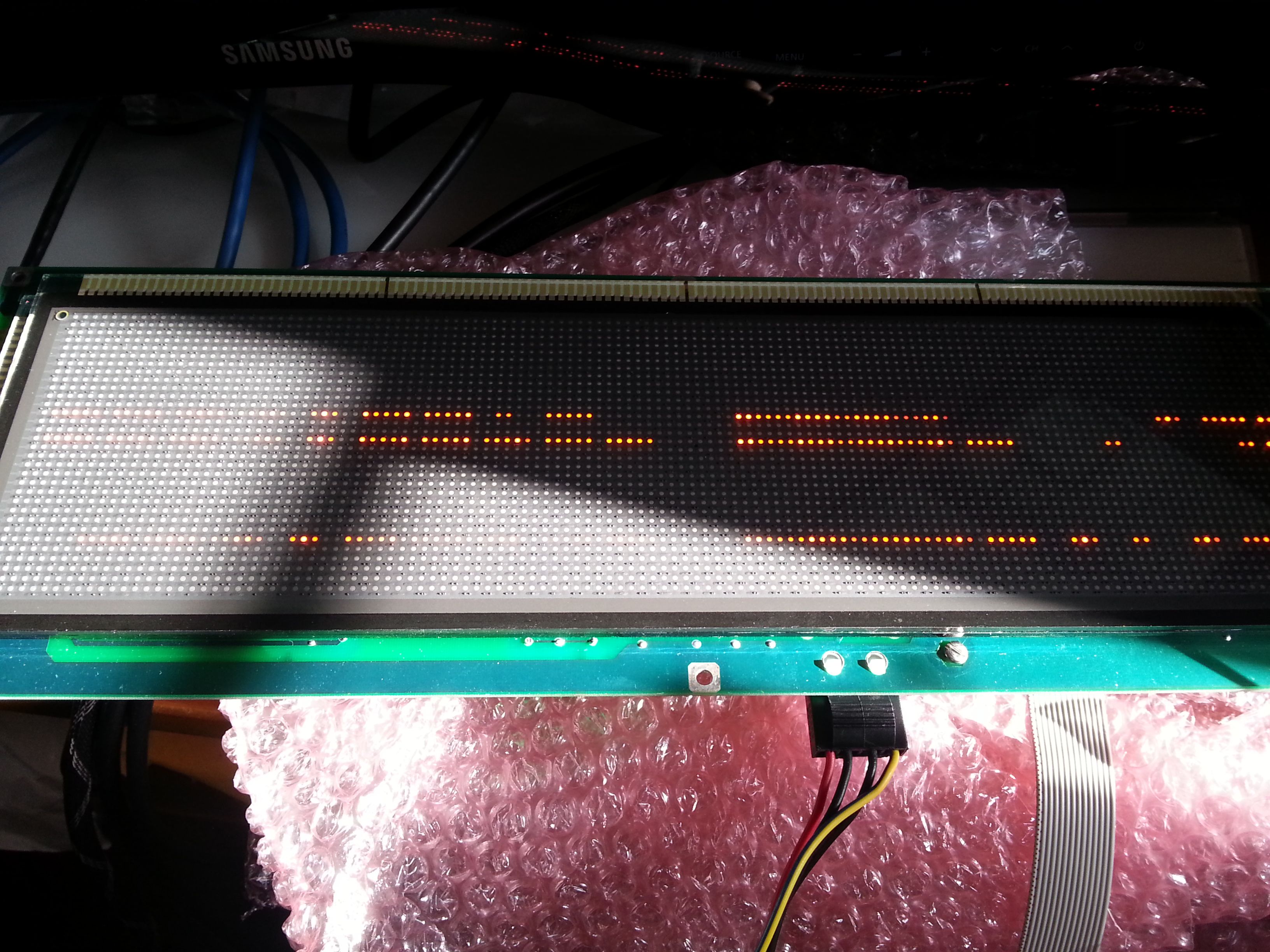

mikekim Posted November 11, 2012 Share Posted November 11, 2012 hey guys i need some help with getting my dmd to work. i have the 12V Vishay APD-128G032A with the PinDMD board and i'm having problems getting it to display properly. the USB drivers have been loaded - the green light is showing on the PinDMD board. plasma display is powered by a meanwell 12v psu i have replaced the VpinMame.dll with the one from the pindmd website and rerun the install to install the new .dll file, as per the installation instructions. however when i run the rom test this is all get on the screen - the lines move and change with the rom display. when i run the about screen the version is showing as 2.5 pindmd by russdx jun 8 2012 any ideas?? thanks Mike. Link to comment Share on other sites More sharing options...
russdx Posted November 11, 2012 Share Posted November 11, 2012 you need to update the firmware with the plasma version, the original led firmware that comes with the board will not work http://www.pindmd.com/downloads/firmware/ http://www.pindmd.com/AN003.pdf Link to comment Share on other sites More sharing options...
mikekim Posted November 11, 2012 Share Posted November 11, 2012 (edited) edit: some progress - flashed the firmware on the pindmd with the dmd128x32plasma.hex file the panel displays the pindmd logo now but with flicker http://youtu.be/8G5zeCQba40 following the instuctions to remove flicker when i try and load the pindmd1001 template into the ft_prog v2.6.8 it says that the following error "failed to load a valid template. This is not a valid device type" Edited November 11, 2012 by mikekim Link to comment Share on other sites More sharing options...
