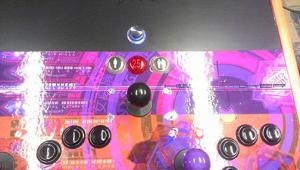

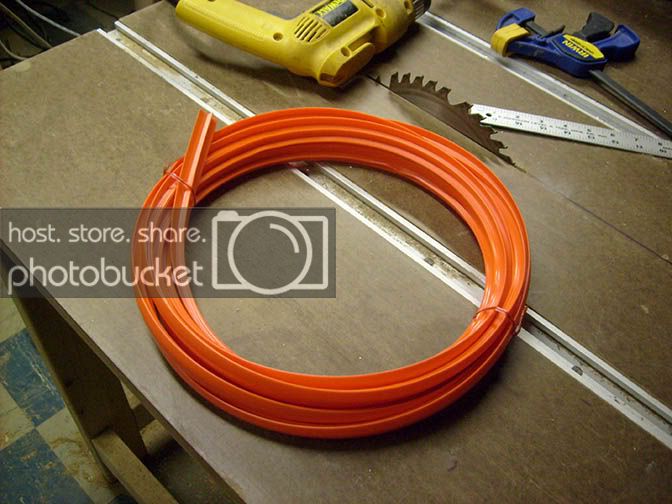

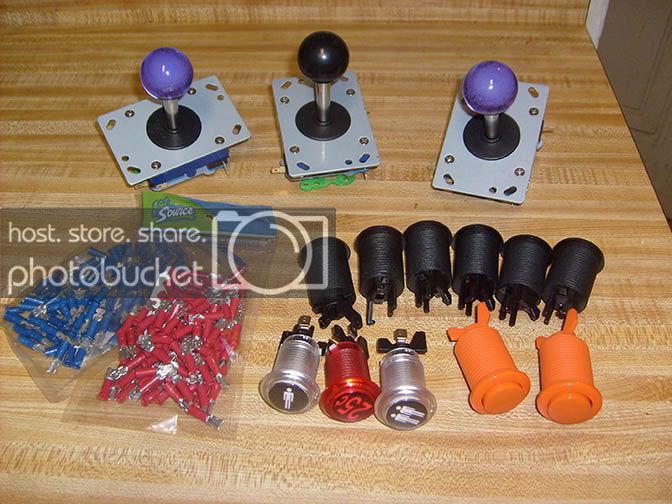

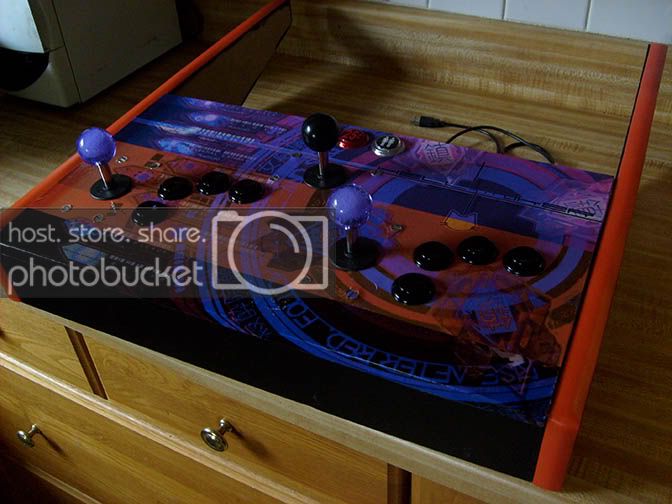

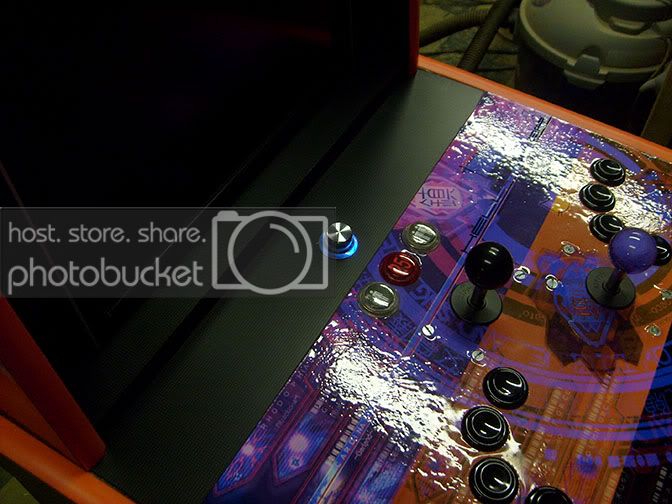

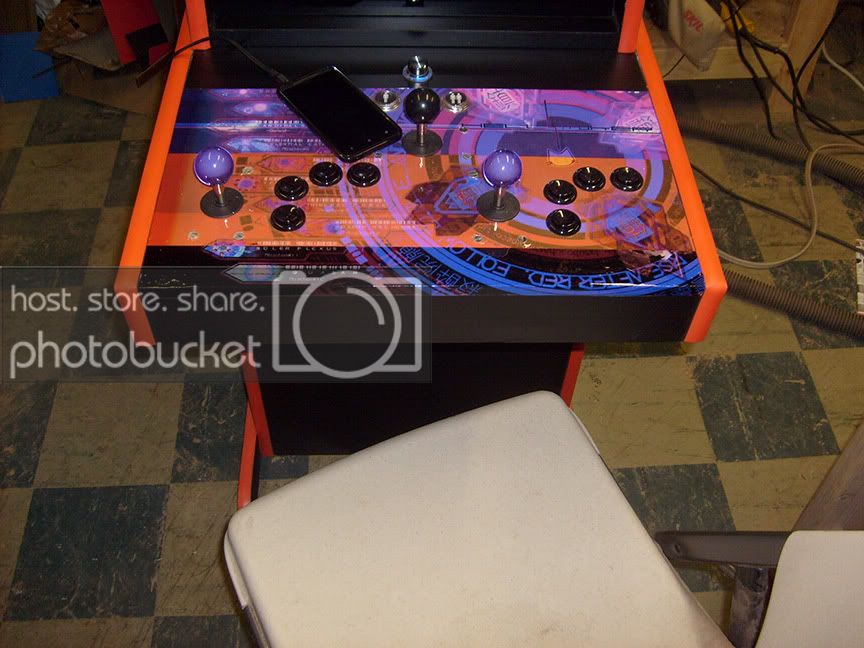

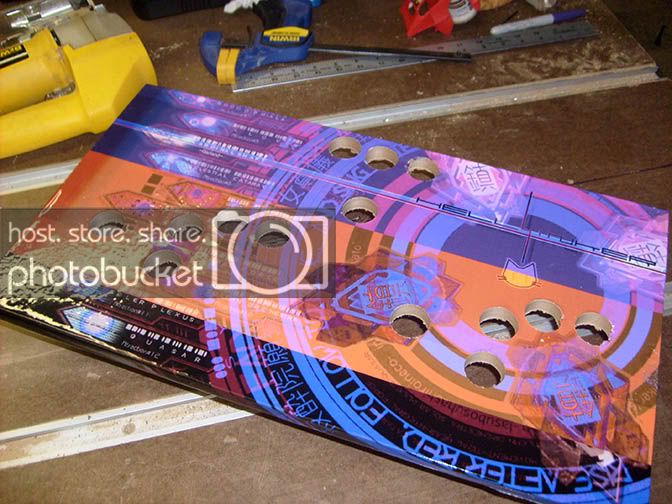

nitussi Posted July 15, 2012 Share Posted July 15, 2012 Started on a new sit down vertical cab yesterday and my goal is to get it done in about 3 to 4 days; spending about 5-6 hours a day after work. So it's nothing really fancy. The cab is designed to be in 3 parts; the base, the top, and the control panel. So on day one I started with the control panel.. DAY ONE: The cp. Simple stuff here. Zippy joysticks and Happ like buttons. 8-way 1 & 2 players and a single 4-way. These joysticks are great when using a wood panel. Nothing is better than glue and biscuits when connecting thin woods like MDF. Biscuit joiner not needed, just need the proper router bit. China made dual joypad has a total of 28 inputs, not bad for $5. But sucks if you do not like to solder. Earlier I printed out the artwork on cheap vinyl and laminated it for protection. Random artwork from the internet to match orange t-molding I had laying around.. again nothing fancy. Then I drilled the holes on the drill press. The base of the cp with black formica(laminate) front and sides for durability. Also preparing my router for cutting t-molding channel. Finished product. Wiring the cp took about 2 hours, so not bad for a total of 6 hours including an hour and a half for glue to dry. Tonight I will start on the base of the cab and will post results tomorrow. Thanks! Link to comment Share on other sites More sharing options...
sparkywallnut Posted July 15, 2012 Share Posted July 15, 2012 I'll be following this build. Great job so far. Link to comment Share on other sites More sharing options...

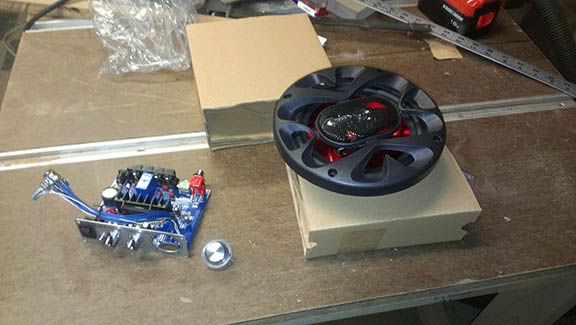

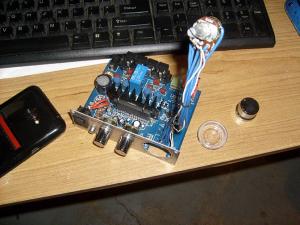

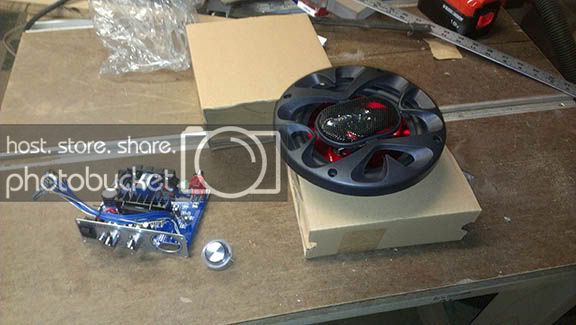

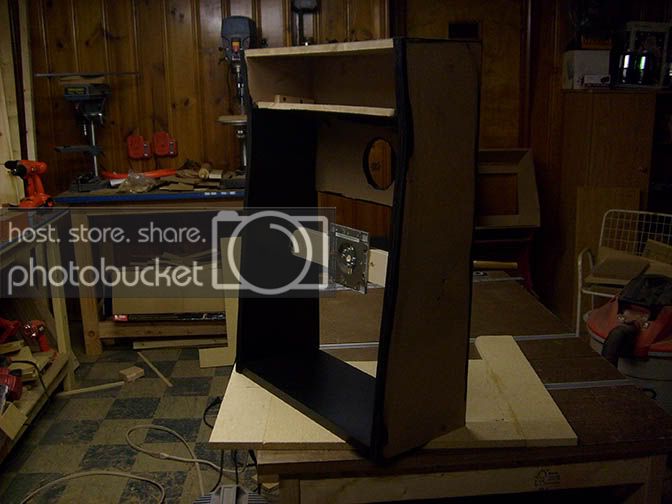

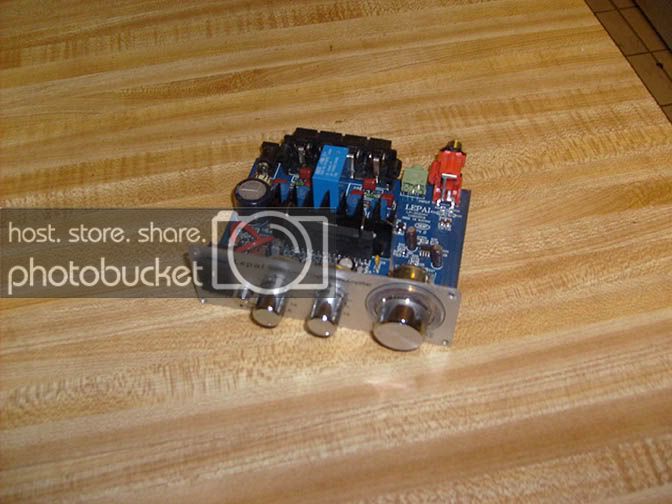

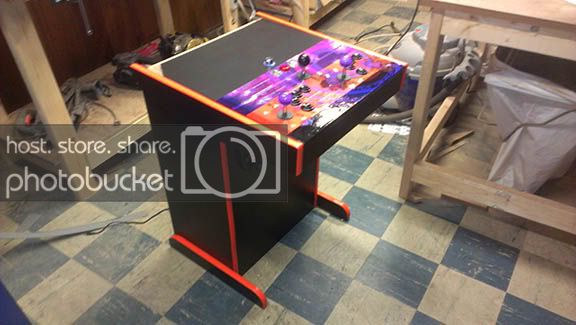

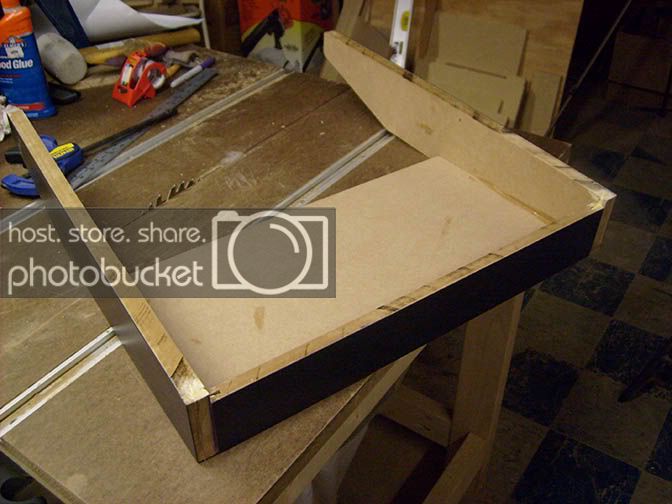

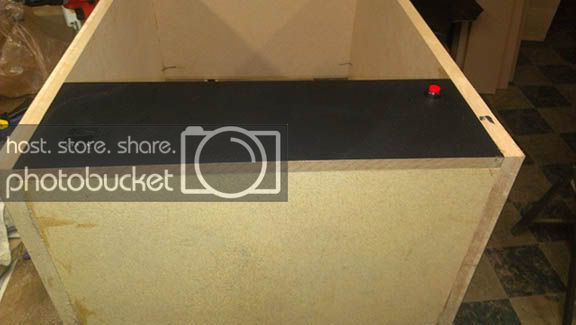

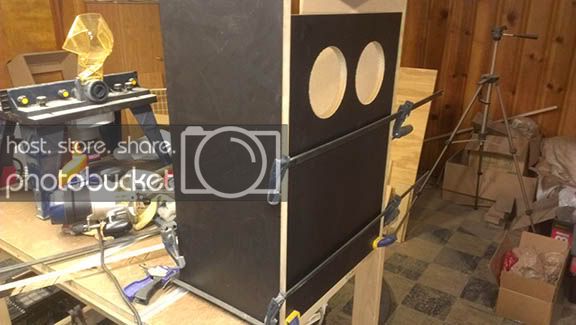

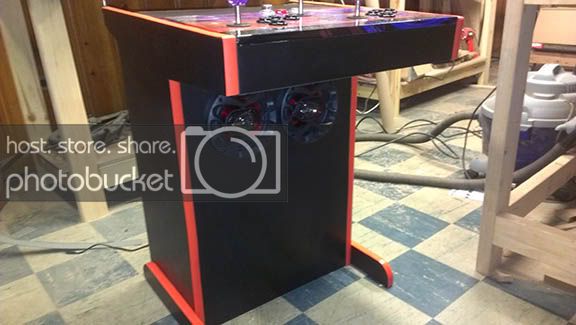

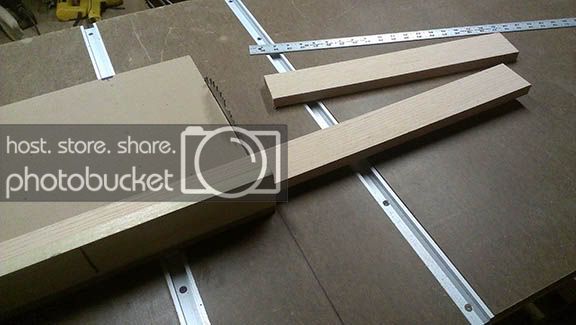

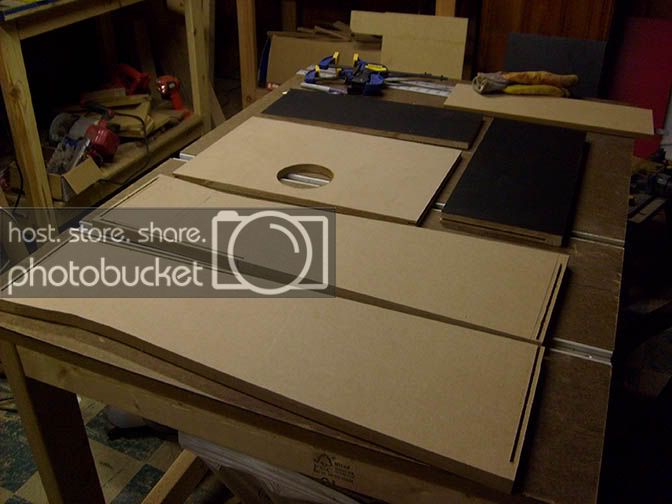

nitussi Posted July 16, 2012 Author Share Posted July 16, 2012 Ok yesterday I hung out with the fellas, but I was still able to get back to work later. Excuse the camera phone pictures.. DAY TWO: The base. Luv these T-amps. Clean, cheap, and powerful. Had to remove the volume pot and extend it several inches. Also 6 1/2in speakers I had laying around. Think I paid $15 for them. I glued, biscuit, and formica this BOX! Hope it comes out right! Once dried.. I added a little paint, T-amp, and speakers ..well if doesn't look right when I'm finished, at least it will sound good. I may add another pair of speakers at the top half ..maybe 3inch full range. Red oak for the feet. I am gonna hate painting and laminating this beautiful hardwood. Ok I am finally finished with the build of the base. Took a little longer than I wanted, but 6 1/2 hours isn't that bad. Later on tonight I gotta figure out how to mount this 24in 1920x1200 Dell monitor vertically for the top build. Link to comment Share on other sites More sharing options...
rdhanded2 Posted July 16, 2012 Share Posted July 16, 2012 I like the idea of the t-amp. How are you planning to mount it? Link to comment Share on other sites More sharing options...

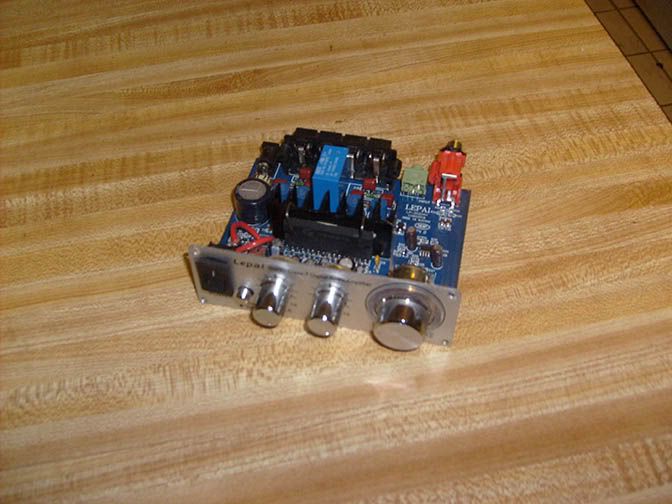

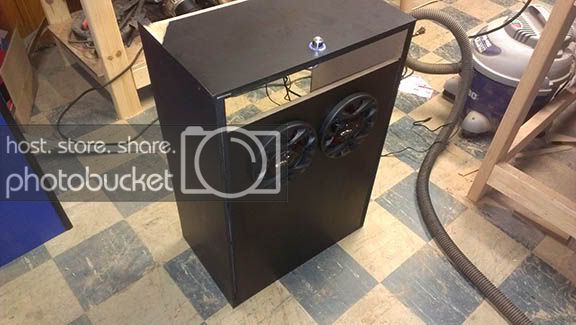

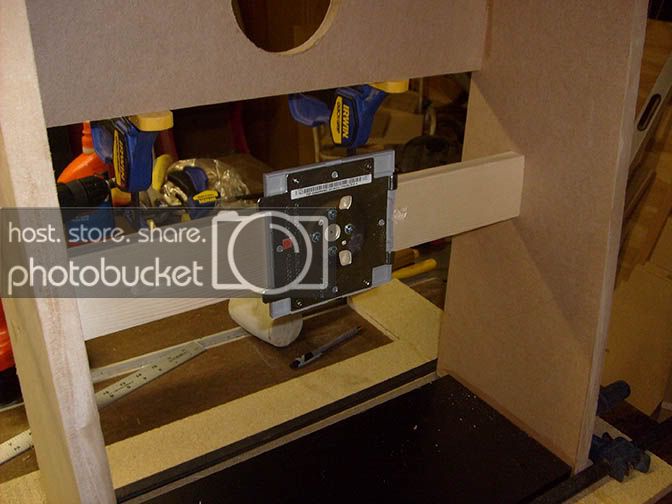

nitussi Posted July 16, 2012 Author Share Posted July 16, 2012 I like the idea of the t-amp. How are you planning to mount it? Well I have already lengthened the wires and installed it here. Just the Volume pot is all that is needed. I mounted it underside the top, upside down ..if that makes any sense. You can see its on because of the blue light. Link to comment Share on other sites More sharing options...
rdhanded2 Posted July 16, 2012 Share Posted July 16, 2012 very cool Link to comment Share on other sites More sharing options...
Guest mrbell1984 Posted July 16, 2012 Share Posted July 16, 2012 Love the control panel! amazing. Link to comment Share on other sites More sharing options...

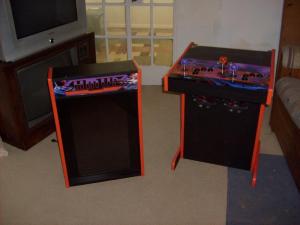

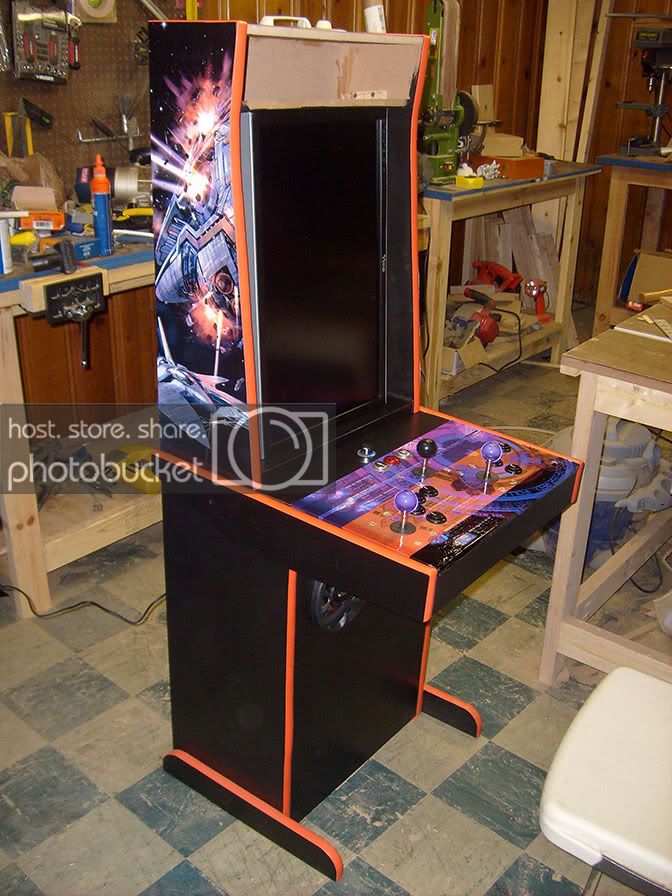

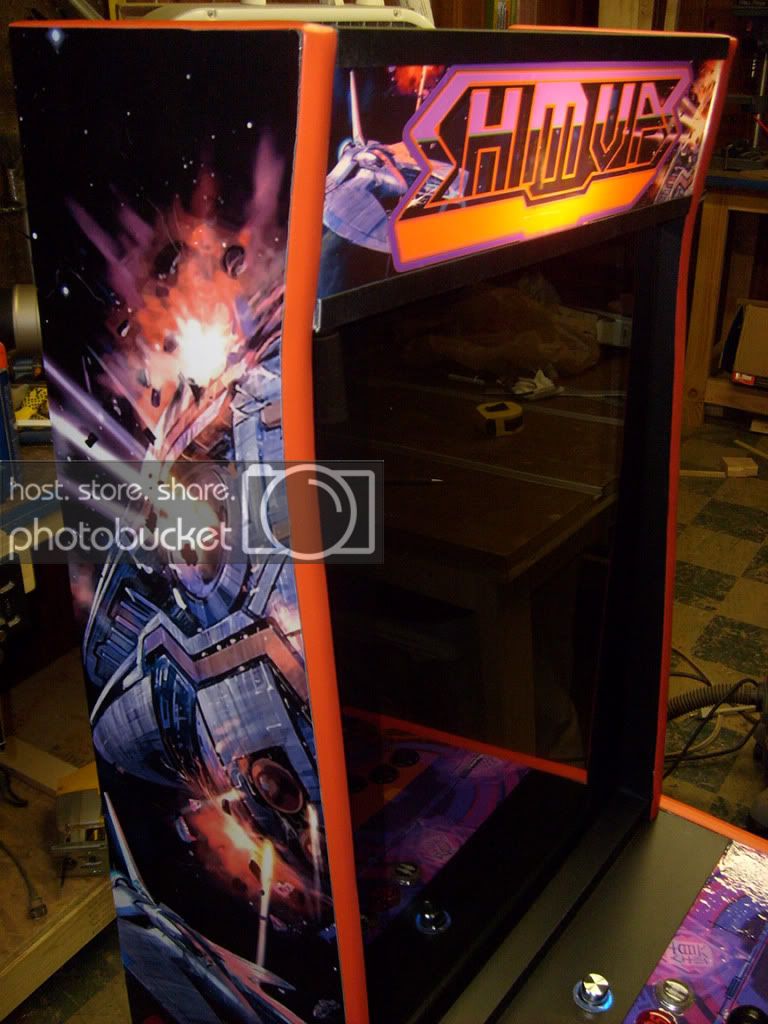

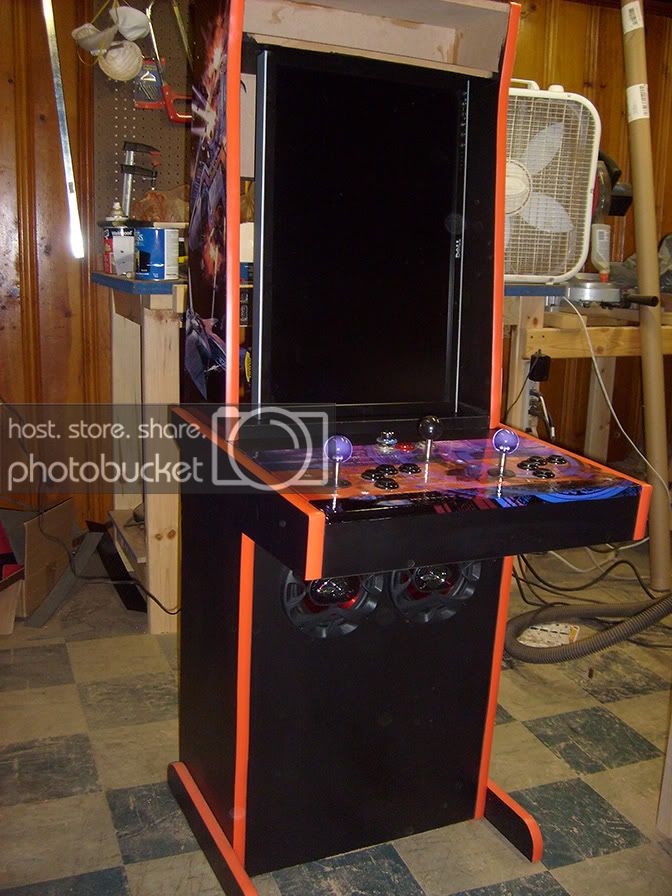

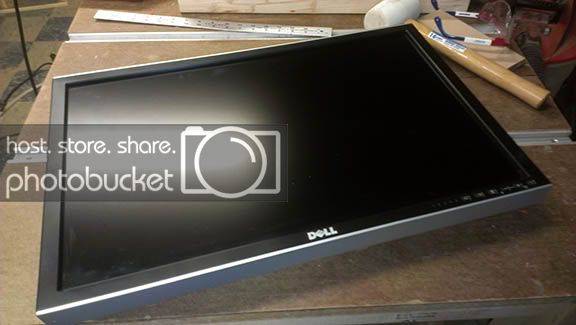

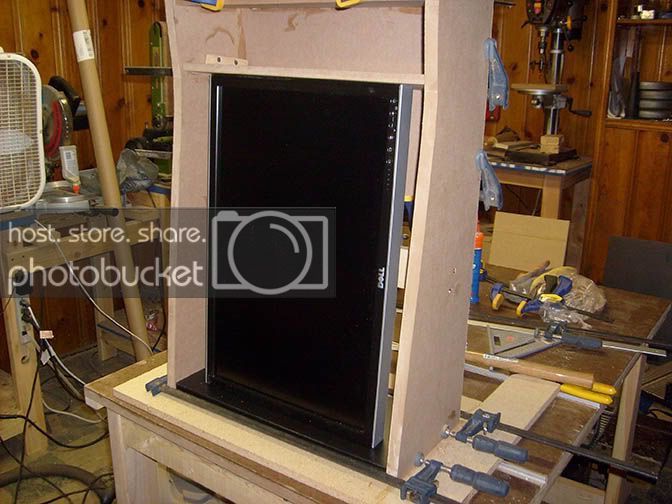

nitussi Posted July 17, 2012 Author Share Posted July 17, 2012 Ok, results of another 6 hours of work.. DAY THREE: The top half. Ready for glue. Like these Dell's because of the quick disconnect bracket. Next, added a little paint.. Side art from the web. This cab is for my obsession with shooters, so I thought it to be appropriate. It was low resolution so I enhanced it a little and then vectored it in illustrator. Thanks to the original artist and the poster too. Ok this is it.. not bad for figuring it out as you go! I can't wait to clean this baby up and get to playing. But I think I will take a day or two break and work on the computer part of it. As far as the bezel and marquee.. I'm trying to think of a name for it. I am so stumped on it! Link to comment Share on other sites More sharing options...
koolbrez67 Posted July 17, 2012 Share Posted July 17, 2012 Ok yesterday I hung out with the fellas, but I was still able to get back to work later. Excuse the camera phone pictures..DAY TWO: The base. Luv these T-amps. Clean, cheap, and powerful. Had to remove the volume pot and extend it several inches. Also 6 1/2in speakers I had laying around. Think I paid $15 for them. Nice amps where did you get them? I would like to get one myself. I got my speakers now just need a amp. Link to comment Share on other sites More sharing options...
nitussi Posted July 17, 2012 Author Share Posted July 17, 2012 Nice amps where did you get them? I would like to get one myself. I got my speakers now just need a amp. http://www.parts-express.com/pe/showdetl.cfm?Partnumber=310-300 Link to comment Share on other sites More sharing options...
rdhanded2 Posted July 17, 2012 Share Posted July 17, 2012 They are cheaper on amazon. Atleast they were yesterday when I was looking. Link to comment Share on other sites More sharing options...
trublu289 Posted July 18, 2012 Share Posted July 18, 2012 Nice amps where did you get them? I would like to get one myself. I got my speakers now just need a amp. http://www.parts-express.com/wizards/searchResults.cfm?FTR=class+t+amp&search_type=main&WebPage_ID=3&searchFilter=class+t+amp&x=0&y=0 I've gotten dozens of those amps from parts express pretty good stuff. Link to comment Share on other sites More sharing options...
nitussi Posted July 18, 2012 Author Share Posted July 18, 2012 kinda butchered the original to fit my needs. Hope its ok. Link to comment Share on other sites More sharing options...
nitussi Posted July 18, 2012 Author Share Posted July 18, 2012 Can't make up my mind?? Link to comment Share on other sites More sharing options...
boa279 Posted July 18, 2012 Share Posted July 18, 2012 I like the middle one best Link to comment Share on other sites More sharing options...
rdhanded2 Posted July 19, 2012 Share Posted July 19, 2012 I like the bottom one Link to comment Share on other sites More sharing options...
Jumpstile Posted July 19, 2012 Share Posted July 19, 2012 I think the middle one is best as well... - J* Link to comment Share on other sites More sharing options...

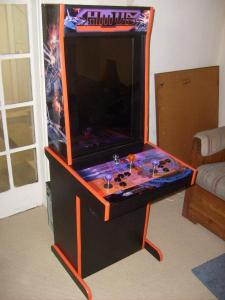

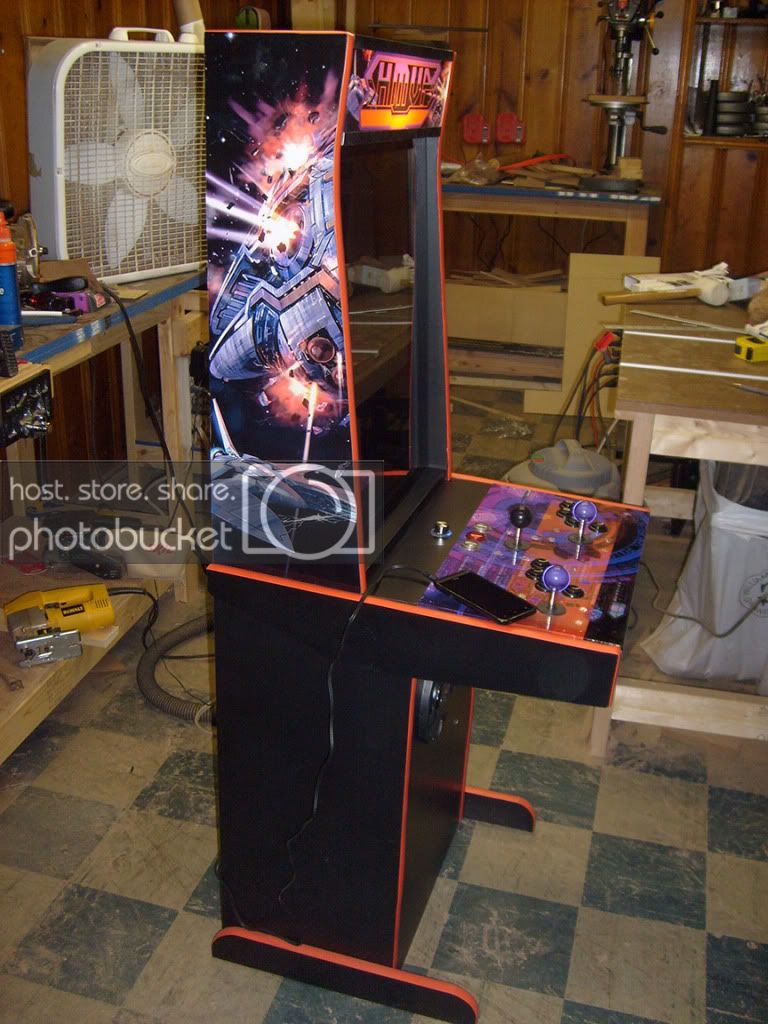

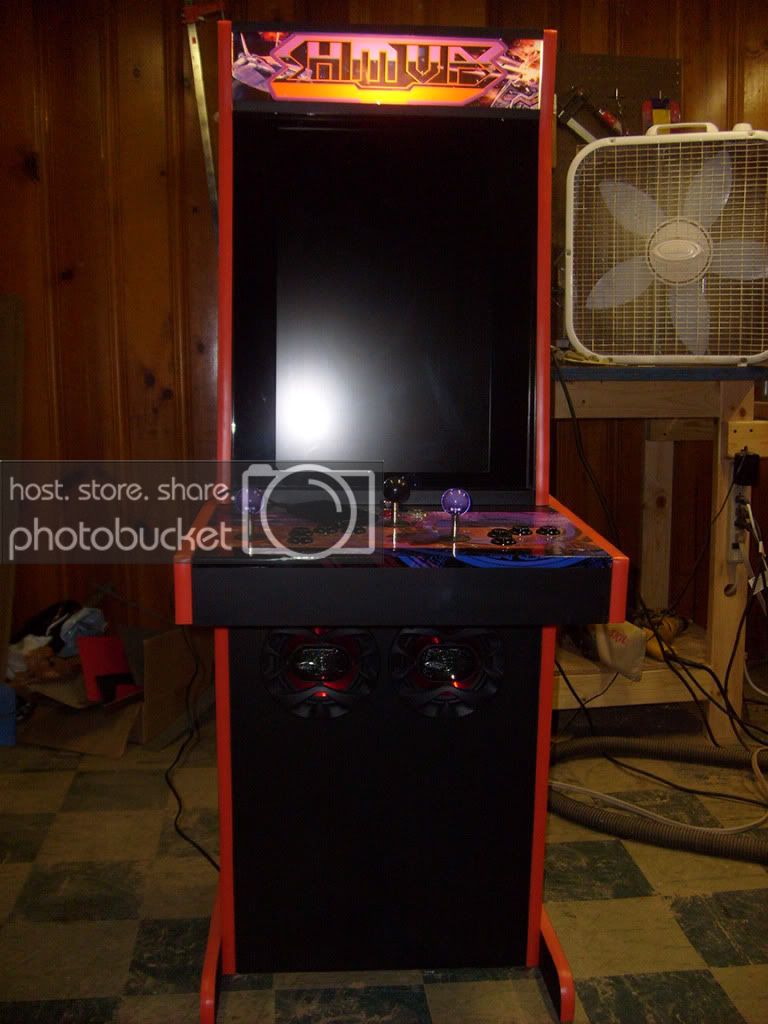

nitussi Posted July 19, 2012 Author Share Posted July 19, 2012 thanks guys! I chose the last one because I was in a hurry to complete, but I like them all. Ok, this sit down vertical cabinet is about 99% complete. Well, the actual build. Total combined build time was around 23 hours give or take. From start to finish in 5 days. I also made a video that I may post, but I will post a real video as soon as I get Hyperspin working on it. Thanks ! Link to comment Share on other sites More sharing options...
Pyramid_Head Posted July 19, 2012 Share Posted July 19, 2012 Very very nice! I love the design and the artwork! Link to comment Share on other sites More sharing options...
boomerps2 Posted July 22, 2012 Share Posted July 22, 2012 I would like to see a pic of how you mounted the volume control. Link to comment Share on other sites More sharing options...
nitussi Posted July 29, 2012 Author Share Posted July 29, 2012 Only a few screws and this thing breaks down in less than a minute. Here is a video of it booting and running... dual core cpu, 2 gigs of ram, 80 gig sata HD, old Geforce 7950 GT, 200MB version of Windows XP... was gonna replace the bios boot screen, but it only comes up for like a second so I didn't bother. Even jeepguy81's HS bootscreen only last for a second. Attract mode is set at 5 seconds. Amazing vertical cocktail themes courtesy of jeepguy81;the TRON theme is NICE! Also props to SORPH for his work on the shmups themes. I got a lot of inspiration from these guys! Link to comment Share on other sites More sharing options...
