SubZero Posted October 7, 2015 Share Posted October 7, 2015 Hey guys, i am looking for someone who has this cabinet....anyone? Link to comment Share on other sites More sharing options...
albert_c Posted October 8, 2015 Share Posted October 8, 2015 My buddy has it. Basically just holds a 32" TV screen and has Akishop's PS360+ as a PCB to interface to consoles. Absolutely nothing special about it. Link to comment Share on other sites More sharing options...
SubZero Posted October 8, 2015 Author Share Posted October 8, 2015 i know, but i want to build it myself from mdf, and with my alterations it will become something special i love the vewlix but i also love retro look so with this design and some alterations i'll be a happy camper. need the measurements of all parts been looking for ages for someone who has it and can help me out. i got my mind set on this project so another design is a no go Link to comment Share on other sites More sharing options...
phulshof Posted October 8, 2015 Share Posted October 8, 2015 I too would love the dimensions for a similar project. Sent from my SM-G920F using Tapatalk Link to comment Share on other sites More sharing options...
Frank Drebin Posted October 8, 2015 Share Posted October 8, 2015 I could pretty easily draw that out on sketchup with proper dimensions if you guys were interested. Link to comment Share on other sites More sharing options...

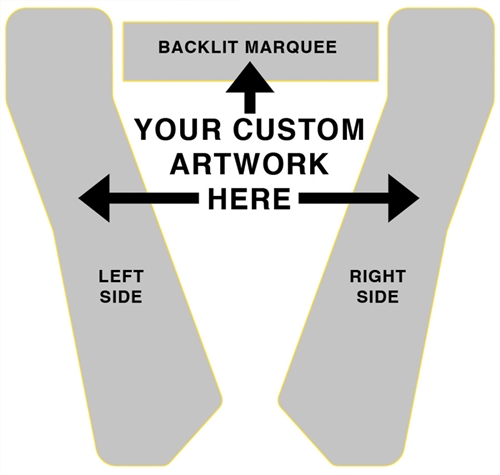

SubZero Posted October 8, 2015 Author Share Posted October 8, 2015 So you know the exact dimensions....or you just know by looking at it? well i want to see what you can come up with. this is the only thing i have with some measurements I would have just bought it an altered it but i live in the Netherlands so shipping will cost a ton of money. and i can make it more sturdy from mdf Link to comment Share on other sites More sharing options...
SubZero Posted October 8, 2015 Author Share Posted October 8, 2015 Maybe Albert can get us the measurements of the 2 side panels the one shown above and the bottom portion where the TV side panels attach to. and the CP rest on that will help out tremendously, i will let MAMEMAN make it into a CAD file with a few add ons Link to comment Share on other sites More sharing options...
namdor Posted October 8, 2015 Share Posted October 8, 2015 I've purchased a different cabinet and the owner of rec room was great to communicate with. I bet he would give the dimensions to you if you asked because you needed to make sure it was going to fit or because you were going to do vinyl artwork on every side or something like that. Link to comment Share on other sites More sharing options...
SubZero Posted October 8, 2015 Author Share Posted October 8, 2015 most of the times there not so keen on giving dimensions of there products......since you purchased one from him he would lightly give the dimension to you faster then me. could you be so kind to ask him? Link to comment Share on other sites More sharing options...
Frank Drebin Posted October 8, 2015 Share Posted October 8, 2015 I don't have the exact dimensions, no. But I definitely could make a side panel that looks like that with correct dimensions for the LCD and control panel height. You building your own control panel or using fightsticks? Link to comment Share on other sites More sharing options...

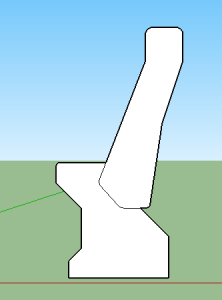

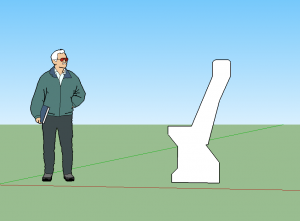

Frank Drebin Posted October 8, 2015 Share Posted October 8, 2015 Quick sketch. Not sure if you wanted 2 piece or not. Link to comment Share on other sites More sharing options...
madhatter3339 Posted October 8, 2015 Share Posted October 8, 2015 I found something similar to that! I also saw a model in sketchup online so you can get exact measurements if you want!! Sketchup is a free and powerful program to use if you do any kind of woodworking it'll save you from making mistakes!! arcade cab side measurements 2.pdf Link to comment Share on other sites More sharing options...
Frank Drebin Posted October 8, 2015 Share Posted October 8, 2015 ^^ Looks like a standup model vs the sitdown originally posted. But ya, lots out there. Link to comment Share on other sites More sharing options...

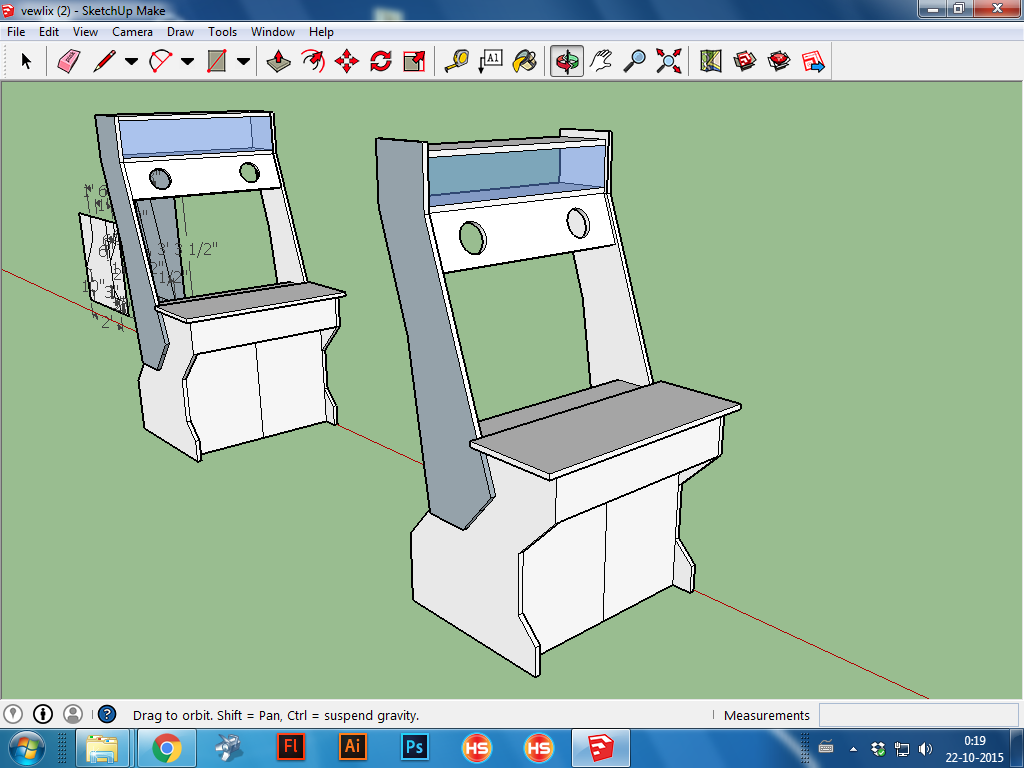

SubZero Posted October 22, 2015 Author Share Posted October 22, 2015 And its coming to LIFE! thanks to MR. Drebin. Link to comment Share on other sites More sharing options...
HazzardActual Posted October 22, 2015 Share Posted October 22, 2015 gonna make that a public file Sub Z? I want one too Link to comment Share on other sites More sharing options...
SubZero Posted October 22, 2015 Author Share Posted October 22, 2015 Yeah, when the file is 100% i will share it Link to comment Share on other sites More sharing options...
Asparky Posted October 22, 2015 Share Posted October 22, 2015 Is this what you are looking for ? vewlix-vlx-1-base.pdf Link to comment Share on other sites More sharing options...
Frank Drebin Posted October 22, 2015 Share Posted October 22, 2015 Yeah, when the file is 100% i will share it Clean it up and make it legible OK? Link to comment Share on other sites More sharing options...
Goodboyparker Posted October 24, 2015 Share Posted October 24, 2015 Is this what you are looking for ? vewlix-vlx-1-base.pdf Thanks Asparky - those plans look good. He has a website and a flickr album (https://www.flickr.com/photos/donovanmyers/albums/72157615957035070/page1) documenting the build. FYI Link to comment Share on other sites More sharing options...
phulshof Posted October 30, 2015 Share Posted October 30, 2015 Any progress on this? Link to comment Share on other sites More sharing options...
shitoken Posted November 2, 2015 Share Posted November 2, 2015 HI Drebin Your sketch looks good would you mind to help to me a sketch if I give you a photo and screen size? Link to comment Share on other sites More sharing options...
albert_c Posted November 8, 2015 Share Posted November 8, 2015 I'll see if I can stop by my buddy's house this week. Remind me what dimensions you need. I'll snap pics and get all the measurements. Link to comment Share on other sites More sharing options...
albert_c Posted November 8, 2015 Share Posted November 8, 2015 I'll have the exact measurements in one or two days. Link to comment Share on other sites More sharing options...
SubZero Posted November 8, 2015 Author Share Posted November 8, 2015 Sweet thanks a lot dude, really appreciate it Link to comment Share on other sites More sharing options...
albert_c Posted November 11, 2015 Share Posted November 11, 2015 Ok, here we go: CP Dimensions: 36-3/8" x 14-38" Marquee Depth (front to back): 10-1/2" Marquee Heigh (top trim to bottom trim)t: 7-1/2" Speaker Grill Height: 8.75" Depth (front edge of pedestal to back edge of pedastel measured from the side): 25-1/2" Width of pedestal (outside edge to outside edge): 34-1/4" Overall Depth (front edge of legs to wall): 32" Floor to top of CP height: 28" with 5-5/8" drop towards the back of pedestal to set monitor Inside horizontal monitor opening: 32-1/2" Let me know if this works. It was late and my buddy had to fly out the next day. If you need better measurements, I can try again next week. Link to comment Share on other sites More sharing options...
