JogZter Posted December 15, 2012 Share Posted December 15, 2012 What I did is I used those standard modding leds for a PC and basically drilled a 4mm hole with a 45 degree angle next to the hole for the flipper buttons so that it connected with the hole of the flipper button almost at the very outside. Into that very small tunnel I basically inserted the led and moved it right up to the top. This way it now illuminates the button completely since it hits the front rim of the button, which is circular and thus break the light nicely. I used one led per button, which is perfectly fine for me. You might want to try it "outside" the cab first to check whether it is to your liking. I did so with a prototype first but was happy with the results and just went with it. The leds take their power from the computer. So not really difficult to set up. Link to comment Share on other sites More sharing options...
freezy Posted December 15, 2012 Author Share Posted December 15, 2012 Sounds promising! I'm not sure I fully understand though. Could you maybe post an image of the LEDs you used? I think that would clear up a lot. Cheers! Link to comment Share on other sites More sharing options...

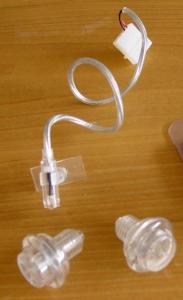

JogZter Posted December 15, 2012 Share Posted December 15, 2012 I am sorry, maybe half of it got lost in my bad translation. I included a pic of the led I use as well as the buttons. Was the drilling part understandable though? I removed the plasic casing from the LED so I could fit just the LED through the 4mm whole I drilled. If I am not mistaken, you can still buy those pre-wired LED sets online. I was wondering though where you got those leaf switches? THey are impossible to find in Germany Link to comment Share on other sites More sharing options...

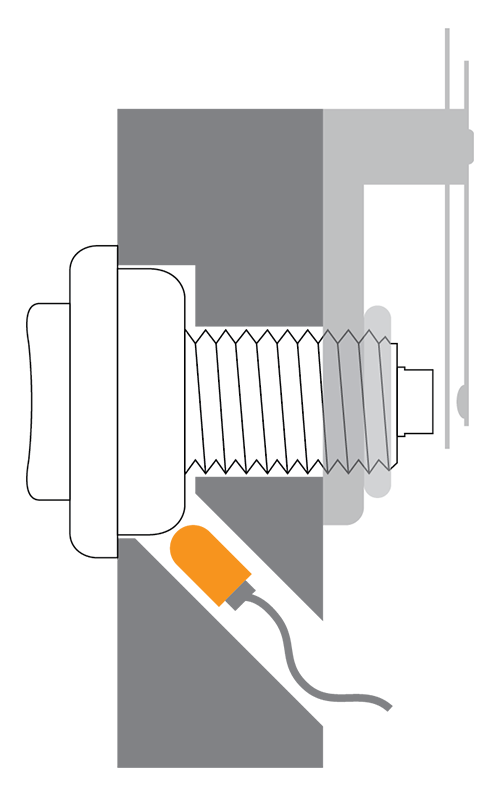

freezy Posted December 15, 2012 Author Share Posted December 15, 2012 Like this? EDIT: The leaf switches I got from VirtuaPin.net along with some other gear (see first post). Link to comment Share on other sites More sharing options...
JogZter Posted December 15, 2012 Share Posted December 15, 2012 That's exactly it. Pictures says more than a 1000 words, eh?! Link to comment Share on other sites More sharing options...
freezy Posted December 15, 2012 Author Share Posted December 15, 2012 Cool. Ordered four of those. Link to comment Share on other sites More sharing options...

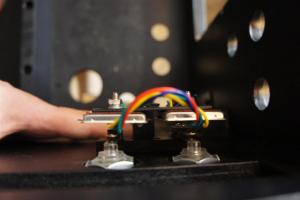

Ton Posted December 15, 2012 Share Posted December 15, 2012 I actually still have no idea how people illuminate their flipper buttons, because the leaf thingie and screw nut cover nearly everything of the button and just on top is the contact, so the light has to come from the sides somehow. Like this Link to comment Share on other sites More sharing options...

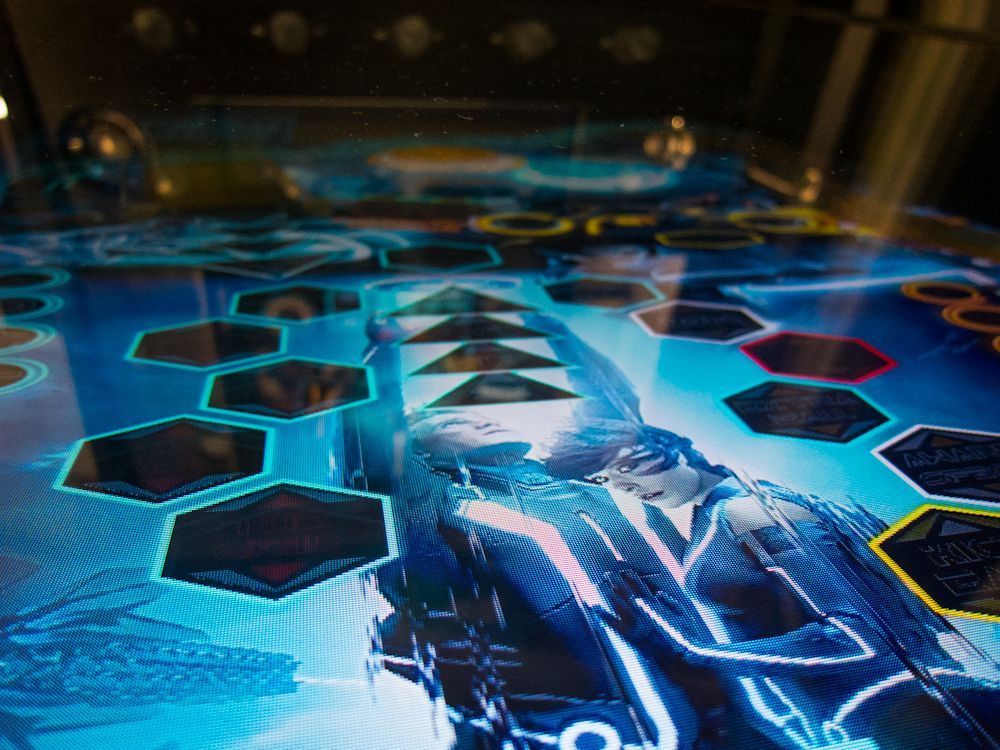

viriiguy Posted December 16, 2012 Share Posted December 16, 2012 And for the record, I'm still quite pleased with the TV's image quality Ok, where did you find a Tron table at?? The build is looking great! Keep it up! Link to comment Share on other sites More sharing options...
evil eye Posted December 16, 2012 Share Posted December 16, 2012 I believe that's a Future Pinball table. Not a recreation of the Stern table. Link to comment Share on other sites More sharing options...
viriiguy Posted December 16, 2012 Share Posted December 16, 2012 Cool! I just found Slamt!lts youtube... Gonna become a VIP supporter Link to comment Share on other sites More sharing options...
freezy Posted December 16, 2012 Author Share Posted December 16, 2012 Yeah this is an original FP table, but I believe Slamt!lt also has the Stern version available for VIP supporters. Link to comment Share on other sites More sharing options...
freezy Posted December 18, 2012 Author Share Posted December 18, 2012 Added some more LED strip below the apron. Looks awesome! Then I seem to have a heat problem. In the coin door, every bulb I put it seems to die after a few hours. The normal #555 bulbs just went belly up, then I ordered some LED bulbs which got really hot (even outside the coin door, hanging the the open). This one I disconnected before it died: They're supposed to run on 12V and I measured the voltage with a multimeter, it's 11.9something Volts. Do I also need a resistor for those? Seems weird because all the 12V bulbs of the other buttons seem to run without major problems and they are also directly connected to the PSU (they are also warm but don't break after a few hours). Maxxsinner? Professional advice? Cheers! EDIT: I guess the image says it all: 6.3 V AC. Link to comment Share on other sites More sharing options...
mameman Posted December 18, 2012 Share Posted December 18, 2012 dont those run AC ? i have always just used the std bulbs at 5v. never had a problem. Link to comment Share on other sites More sharing options...
freezy Posted December 18, 2012 Author Share Posted December 18, 2012 Okay that was kind of stupid. I could swear that I've read 12V on led4pin.com. I'll pull the 5V from the PC's PSU then I guess. Still doesn't explain why the conventional bulbs broke, those were the same as the others behind the other buttons. Link to comment Share on other sites More sharing options...
freezy Posted December 18, 2012 Author Share Posted December 18, 2012 dont those run AC ?i have always just used the std bulbs at 5v. never had a problem. Nah I don't think any of the bulbs run DC. Link to comment Share on other sites More sharing options...
mikekim Posted December 18, 2012 Share Posted December 18, 2012 Freezy, I replaced all my bulbs with 5v leds. All run from the 5v supply from the psu, no heat issues at all. Sent from my mind, using the psychic friends network.. Link to comment Share on other sites More sharing options...
freezy Posted December 18, 2012 Author Share Posted December 18, 2012 Freezy,I replaced all my bulbs with 5v leds. All run from the 5v supply from the psu, no heat issues at all. Good to know, I might do just that. Would like to keep the "classic" bulbs though, since I like the "analog" blinking. But I indeed didn't realize that even the bulbs are probably supposed to run on 5V instead of 12V. Link to comment Share on other sites More sharing options...
freezy Posted December 30, 2012 Author Share Posted December 30, 2012 @JogZter: You're the man, now those buttons are lighting up! Link to comment Share on other sites More sharing options...
evil eye Posted December 30, 2012 Share Posted December 30, 2012 Did you go with bulbs or LED's? Looks good. Link to comment Share on other sites More sharing options...
freezy Posted December 30, 2012 Author Share Posted December 30, 2012 One LED for each button, with integrated resistor (I assume that's why there isn't any heat): Drilled the hole as suggested by JogZter: Link to comment Share on other sites More sharing options...
evil eye Posted December 30, 2012 Share Posted December 30, 2012 Very nice Link to comment Share on other sites More sharing options...
freezy Posted March 2, 2013 Author Share Posted March 2, 2013 So a few weeks passed and I think that the artwork has become something I can live with (and my Photoshop skills tripled). I think I haven't mentioned yet that I'm building this baby at work with the financial support of a few co-workers, so obviously the theme is related to our company (which is called "Lotaris", we're in the mobile licensing business, so the pirates give a nice ironical touch). Seeing the artwork you'll probably think I'm crazy, but there is a ton of insider jokes in there that I won't go into. Here you see the artwork progressing from its first sketch to the final version. And here all the pieces: Resolution is at 150dpi, I hope that's enough: Let me know what you think! Link to comment Share on other sites More sharing options...
mikekim Posted March 2, 2013 Share Posted March 2, 2013 I like it will look good on your cab Link to comment Share on other sites More sharing options...
vulbas Posted March 2, 2013 Share Posted March 2, 2013 verry good job Link to comment Share on other sites More sharing options...
Pinball999 Posted March 3, 2013 Share Posted March 3, 2013 Where can we apply to join your company? Link to comment Share on other sites More sharing options...
