acidblue0 Posted February 2, 2013 Share Posted February 2, 2013 Ahh thanks Link to comment Share on other sites More sharing options...
acidblue0 Posted February 2, 2013 Share Posted February 2, 2013 I got my pindmd and xpin display in. I wanted to just test the display to make sure its working before I start anything. Installed the driver for the pindmd and plugged the display up to it. The display has a green light on the back. When I hit the test button it does nothing. Link to comment Share on other sites More sharing options...
jasonsmith Posted February 2, 2013 Share Posted February 2, 2013 If you're not seeing the PinDMD logo on the DMD after a boot then it's not getting a signal from the pc. The X-Pin needs the pc signal to create the test routine. Link to comment Share on other sites More sharing options...
russdx Posted February 2, 2013 Share Posted February 2, 2013 (edited) xpin needs the signal from pinDMD firmware (not pc) if the pinDMD is plugged into the DMD and the pinDMD is plugged into the pc using a usb cable you should see the firmware logo on the DMD. if you dont some thing is wrong!!! does the pinDMD show up as a 'pinDMD2' device on your pc? (best way to confirm its alive) Edited February 2, 2013 by russdx Link to comment Share on other sites More sharing options...
acidblue0 Posted February 2, 2013 Share Posted February 2, 2013 xpin needs the signal from pinDMD firmware (not pc) if the pinDMD is plugged into the DMD and the pinDMD is plugged into the pc using a usb cable you should see the firmware logo on the DMD. if you dont some thing is wrong!!! does the pinDMD show up as a 'pinDMD2' device on your pc? (best way to confirm its alive) When I goto device manager it shows pindmd2 as device Link to comment Share on other sites More sharing options...
russdx Posted February 2, 2013 Share Posted February 2, 2013 Ok its alive. But nothing shows up on the DMD? What voltage are you powering the DMD? Is the ribbon cable plugged in firmly both ends? Link to comment Share on other sites More sharing options...
acidblue0 Posted February 2, 2013 Share Posted February 2, 2013 Ok its alive. But nothing shows up on the DMD? What voltage are you powering the DMD? Is the ribbon cable plugged in firmly both ends? Nothing shows up on the dmd. I though the dmd gets power from the usb? Ribbon is snug Link to comment Share on other sites More sharing options...
russdx Posted February 2, 2013 Share Posted February 2, 2013 noooooooooooooooooo the dmd needs its own power!!! this is very important, only the pinDMD2 device is powered using the usb! you need to power your xpin using another 2amp power source (your pc psu is a good one) xpin / pinLED connected to a pinDMD can blow it to pieces as the dmd tries to draw 2amps through the pinDMD it does say this in the install guide in a big red warning box hopefully the pinDMD dmd gpio is still alive connect your DMD to 5v using the power header on the DMD and hopefully the pinDMD is not dead hehe. Link to comment Share on other sites More sharing options...
acidblue0 Posted February 3, 2013 Share Posted February 3, 2013 (edited) Where do I plugged the power up to the display? Is the power header a special connection? The pindmd is fine. I thought the display was powered by the Pindmd. I didn't research how to power up the dmd Edited February 3, 2013 by acidblue0 Link to comment Share on other sites More sharing options...

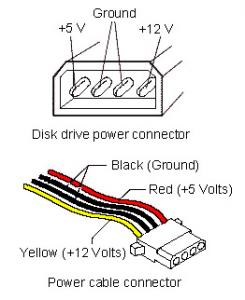

Zablon Posted February 3, 2013 Share Posted February 3, 2013 (edited) Acid, you should see plug molex or pins with +5 0 -5 (or +12 0, 0, +5)b etc by each pin similar to this spot on the bottom right: You need to plug that into a power connection from your PC (same connectors you would plug external fans to or old IDE drives (the big 4 pin ones). As I dont know if yours is 12v or 5v, you need to be very careful because you only want whichever volt is required...not all 4 wires (unless 12v) Edited February 3, 2013 by Zablon Link to comment Share on other sites More sharing options...
russdx Posted February 3, 2013 Share Posted February 3, 2013 Im pretty sure xpin is 5v Link to comment Share on other sites More sharing options...
wowter Posted February 3, 2013 Share Posted February 3, 2013 (edited) You can get the xpin in a 5v version, and also a 65v version. If you did not specify anything when ordering, the needed voltage is probably 65v.......... something else: has anyone ever tried/seen/bought the Babcock/microsemi PD01F221 ???? it is a plasma DMD 128x32 with onboard DC-DC converter (it accepts 12v), and what looks like the standard 14 pin connector. Sounds great, right? Cant find any for sale though... Edited February 3, 2013 by wowter Link to comment Share on other sites More sharing options...
russdx Posted February 3, 2013 Share Posted February 3, 2013 i think those will be extremely rare wowter as not many where made. one dude on vpforums had one but for some reason it wouldn't work correctly with pinDMD1 although it might be ok with pinDMD2 hehe. Link to comment Share on other sites More sharing options...

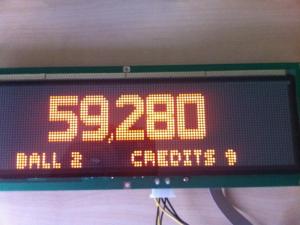

mikekim Posted February 3, 2013 Share Posted February 3, 2013 picked up my LEE-128G032-1 today and it works without any issues no segments, as Russ said, just 4096 LEDS. simple to connect - just cut the yellow off a pc molex connector, as it only runs at 5V plugged in the PINDMD2.. not as bright as the plasma version, but still looks very nice running. Link to comment Share on other sites More sharing options...
russdx Posted February 3, 2013 Share Posted February 3, 2013 i love the way they used the standard hdd molex connector as it really does make it plug and play, wish the other DMD's would do the same!!! lol id love to see the pick and place machine placing all 4096 little 0603 leds as well LOL Link to comment Share on other sites More sharing options...
acidblue0 Posted February 3, 2013 Share Posted February 3, 2013 Talked with the guy with xpin. It's not working cause its setup up for a real pinball and not a 5v. I'm gonna send the display back so he can make the mod for a vp setup. Feel alot better Link to comment Share on other sites More sharing options...
russdx Posted February 3, 2013 Share Posted February 3, 2013 sounds about right, when ordering xpin you need to ask for the 5v version, as the other version is designed to be a plug and play for a real pinball as it feeds off the 65v source, but as most cab users have a nice 5v source from the psu its much easier to use the 5v version even though the pinDMD2 still shows up as a device im hoping having the un-powered DMD connected to it has not blown the dmd gpio drivers. hopefully its ok Link to comment Share on other sites More sharing options...
acidblue0 Posted February 4, 2013 Share Posted February 4, 2013 sounds about right, when ordering xpin you need to ask for the 5v version, as the other version is designed to be a plug and play for a real pinball as it feeds off the 65v source, but as most cab users have a nice 5v source from the psu its much easier to use the 5v version even though the pinDMD2 still shows up as a device im hoping having the un-powered DMD connected to it has not blown the dmd gpio drivers. hopefully its ok Me too Link to comment Share on other sites More sharing options...
antropus Posted March 5, 2013 Share Posted March 5, 2013 To anyone interested in using a real plasma DMD instead of the LED version, please check this thread out: http://www.vpforums.org/index.php?showtopic=23249&st=0 -Kris Link to comment Share on other sites More sharing options...

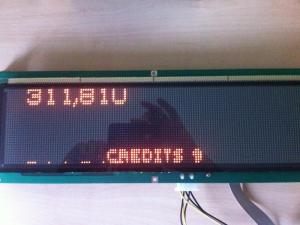

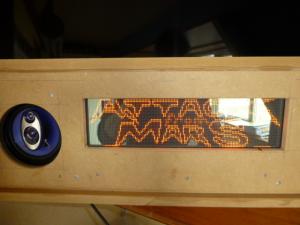

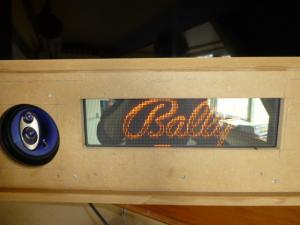

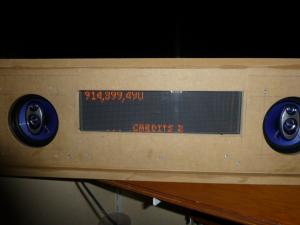

ei8ht Posted March 9, 2013 Share Posted March 9, 2013 Hi, my plasma DMD (Vishay APD128G032A) just arrived yesterday. After I hooked it up with pinDMD2 (Rev 5.84, but already tested all other ones) I saw that I have the same issues than Mikekim. The screen were it shows the pinDMD logo is flickering and the picture itselfs is unclear. It seems that the bottom line is showing at the top. I will try to test the DMD in real pinball mashine and will tell you the result. If it is not working I will write mouser an email and ask for a replacement. What I want to know is does anybody runs a Vishay APD128G032A with pinDMD2 without problems? Link to comment Share on other sites More sharing options...
russdx Posted March 9, 2013 Share Posted March 9, 2013 i dont think this is a DMD problem but a firmware problem, there is another member on vpforums that runs the same display without any problems which is weird, i think the tolerance on some of the signals is quite high and it might change on different dmd's thats why it works on some and not others. checking on a real pinball would be best because it might not be a fault with the DMD and mouser would be replacing a good display which is alot of hassle. if its ok on a real pinball ill have to try and find out which part of the firmware needs 'loosing' up a bit so it works better with these displays. i run the exact same display my self but 192x64 and it runs great. so its a bit strange some displays have issues. but im sure we can resolve it all Link to comment Share on other sites More sharing options...
ei8ht Posted March 9, 2013 Share Posted March 9, 2013 I try to check it on a real pinball next week and report to you. I hope there is no need to replace it and it works and the problem will be solved with a later firmware... Link to comment Share on other sites More sharing options...
russdx Posted March 9, 2013 Share Posted March 9, 2013 when mike had a similar problem i thought it might be a dodgy display, but 2 of them doing it probably the firmware? im pretty sure its not the DMD, just need to tweak the firmware a bit. one of the signals is probably to fast, probably the row reset signal by the looks of it Link to comment Share on other sites More sharing options...
ei8ht Posted March 9, 2013 Share Posted March 9, 2013 Just let me know if should test it for you... Link to comment Share on other sites More sharing options...
russdx Posted March 9, 2013 Share Posted March 9, 2013 deffo get the dmd tested in a real pinball so we can confirm its a firmware thing on the pinDMD Link to comment Share on other sites More sharing options...
