Indiana Jones and the Pinball Crusade (46/28/15) build project

Recommended Posts

Hey everyone,

After many weeks of planning and WAY too many questions for the experts around here, I am starting my build thread.

I first want to thank everyone for spending so much time answering all my questions, sending me links to parts, making suggestions, and just being extremely helpful! (mameman, chriz99, maxxsinner, sacredgaming, Zen74, luvthatapex, pinballlooking, pixelmagic, Numiah, zebulon, DeeGor, Zablon, Takedown, H4CK3R, and anyone else I may have forgotten. You’ve all been amazing!)

I am going to do my best to list (and link) to the parts I bought. Hopefully this will help others.


  • Cabinet

- Standard Williams Widebody based on mameman’s plans (
)

- 2 sheets Double-sided ¾” MDO plywood. (worth the extra money for MDO)

- Ultimate Cab-Builder’s Kit (Widebody) from virtuapin.net (
)

- Custom made Williams style speaker panel (made by mameman)

- PinCab Leg Protectors - Black (set of 4) (
)

- Custom Artwork by Josh White (dfwArcade) (
)

- Gatehouse 12" Continuous Hinge (For Cabinet back door) (
)

- Panel Mount Computer Type Power Connector (
)

- Liberty 18 in. Ball Bearing Full Extension Drawer Slide (2 Pack) (
)

- Playfield Glass. 3/16" Tempered. (
) (Local place)

  • Screens

- Samsung UN46D6000 46-Inch 1080p 120Hz LED HDTV (
)

- HANNspree 28” 1080p 60Hz LCD HDTV (
)

- Dynex 15” Class / LED / 720p / 60Hz / HDTV (
)

  • Computer

- PNY - GeForce GTX 460 1GB GDDR5 PCI Express Graphics Card (Playfield) (
)

- Zotac GT430 1GB graphics card (Backglass & DMD) (
)

- Core i5 2500K LGA 1155 Boxed Processor (
)

- 4GB RAM

- ModXStream Pro 600W Modular ATX Power Supply (
)

- Gigabyte GA-Z68X-UD3H-B3 LGA 1155 Z68 ATX Intel Motherboard (
)

- Lian Li Replacement PC-Q06 / Modders ATX Aluminum Motherboard Tray (
)

- COOLER MASTER Hyper 212 Plus RR-B10-212P-G1 (
)

  • Sound

- Pyramid 409G 4-Inch 100 Watts TwoWay Dual Cone Speakers (
)

- Eagle Tech ET-AR504LR-BK 2.1 Soundstage Speakers with Subwoofer & Remote (
)

  • Cabinet Buttons, Switches, Wiring, Etc.

- Stern Green Start Button & Lamp Assembly (
)

- Williams/Bally "Launch Ball" Button - Red (
)

- Williams/Bally Orange "Extra Ball" Button Assembly (
)

- Mot-Ion Adaptor Digital Plunger Kit (
)

- LED-Wiz 32-port USB Lighting and Output Controller (
)

- I-PAC 2 New FS32 Version (
)

- 4x CLEAR IL TRANSLUCENT PUSHBUTTON PSL-L with Rollie Leaf Switch (Flippers) (
)

- 4x IL-LUMINATION RGB 5VDC LED (Flipper Button RGB LED's) (
)

- 400 ft. - 18 AWG copper stranded wire (
)

- 35x 3AG Fuse Holder (
)

- 35x Fuse 250V Fast 3AG .500A Cart (
)

- 9-Pin Molex male/female connectors (
)

- 22/18 Gauge Female Quick Disconnects (.187" size) (
)

- 22/18 Gauge Female Quick Disconnects (.250" size) (
)

- 22/18 Gauge Pro Nylon Butt Connectors (
)

- Belkin Conserve Smart AV F7C007q Energy-Saving Power Strip (
)

- Slotted Wire Duct (
)

  • Force Feedback

- Williams/Bally Knocker Assembly (AE-23-80) (
)

- Knocker Strike Plate (
)

- Wiper Motor Front VW Volkswagen Vanagon 91 90 89 88 Auto 251955119191955113A (For Gear) (
)

- 8x Siemens Contactor 3RH1140-1BB40 (
)

- L298N Dual H Bridge DC Stepper Motor Drive Controller Board (For shaker) (
)

- 2x V5/8B 5/8" Bore Hub (For shaker) (
)

- 2x 0.25 Solid Shaft Collar (For shaker) (
)

- Pittman 9414H255-R2 19 Volt DC Dual Shaft Motor (Shaker motor) (
)

- Halex 1-1/4 in. X 1-1/2 in. Conduit Hanger (For shaker motor) (
)

  • Power

- 12V 15A 180W Switching Power Supply (
)

- 24V DC14.6A 350W Regulated Switching Power Supply (
)

- 2x 40A Automotive 12V Relay (For Knocker & Gear Motor) (
)

  • Lighting

- 5x Cree LED MCPCB STAR 3LED RD/GN/BLU (
)

- 5x STARBOARD HEATSINK 2.88C/W 1" (
)

- Arctic Silver Alumina AATA-5G Thermal Adhesive (for LED heatsinks) (
)

- 5x 33 OHM 5W 5% Wirewound Resistor (For Red LED) (
)

- 10x 27 OHM 5W 5% Wirewound Resistor (For Blue & Green LED's) (
)

- 5x Plastic Light Domes With Screw Tabs (Clear) (
)

- 2x 22 LED Car Truck Flash Strobe Light White (
)

  • Cooling

- 3x Rosewill RCA-220 220mm 4-Blue LED Case Fan (
)

- ENERMAX UC-8EB 80mm Case Fan (
)

- Cooler Master R4-C2R-20AC-GP 120mm Case Fan (
)

- SilverStone 120mm fan filter (
)

  • Tools and Misc. Materials

- Bondo Body Filler (Fill staple and screw holes) (
)

- Valspar black satin paint (
)

- Rust-Oleum black satin spray paint (
)

- 4" foam rollers (
)

- Optix .093 Plexiglass (
)

- Plaskolite Pro Grade Plexiglass Cutter (
)

- 3M 3-Pack 80-Grit 9"W x 11"L Stripping Sandpaper (
)

  • Misc. Resources

- Awesome Shaker Motor for Cheap (
)

- Mameman's Williams Widebody Cabinet Plans (
)

- NTCore 4GB .EXE Patch (
)

- Visual Pinball 9 Hardware Rendering/Graphics Fix Thread (
)

- Visual Pinball 9 NVIDIA Missing/Blurry Graphics Fix (
)

- Setup Guide for VP9 / HP / UltraVP / DMD (
)

- Multiple Screens Config (
)

- PixelMagic's LED-Wiz Configuration Utility (
)

- NVIDIA 270.61 Video Drivers (These worked best for me and fixed a lot of issues I was having) (
)

Check the thread for all build progress with as many pics as I could take of every step. Hope they help the next person with their build!

Here is a link to my Google photo album of all the pics from the thread and possibly a few more. (I don't think they are in order though)

https://plus.google.com/photos/112739737929790334012/albums/5714264625471030625

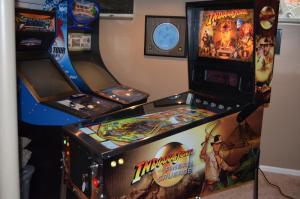

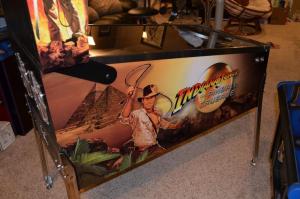

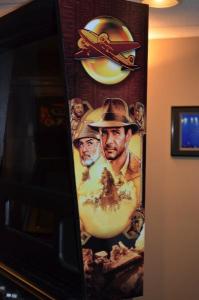

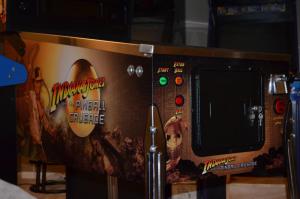

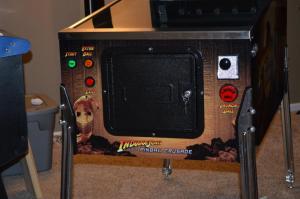

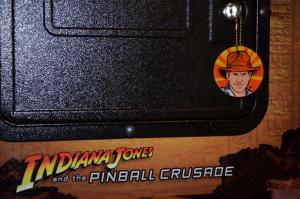

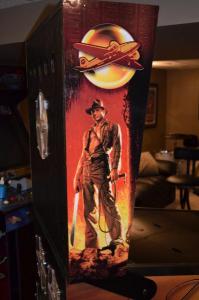

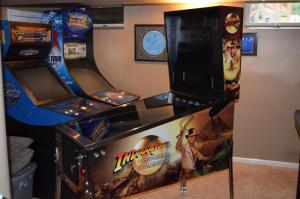

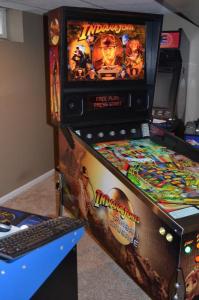

And here are some final pics!


Thanks all!

Bill










Edited by bill55

Share this post


Link to post
Share on other sites

"No time for love Dr. Jones!"

Williams Indy is my favorite table, so I'm really looking forward to see what you do with this.

It looks like you're already off to a great start. Can't wait to see pics.

Share this post


Link to post
Share on other sites

Indiana Jones sounds cool.

I can’t wait to see I come together with lots of photos.

I am not sure if you have received your mini domes yet but they are only 1 ½ “ across.

Share this post


Link to post
Share on other sites
Indiana Jones sounds cool.

I can’t wait to see I come together with lots of photos.

I am not sure if you have received your mini domes yet but they are only 1 ½ “ across.

Shoot. Didn't even check the size. Which ones do I need?

Edit: Turns out I linked to the wrong ones. Check it out now. Are those the right ones?

Edited by bill55

Share this post


Link to post
Share on other sites
Shoot. Didn't even check the size. Which ones do I need?

Edit: Turns out I linked to the wrong ones. Check it out now. Are those the right ones?

Good those will work. They are a much better size.

Share this post


Link to post
Share on other sites

Ok....a few pics to get started....

Enough wood for 4 pins. Got some friends interested too and got all the wood at once. Fit like a glove in the minivan.

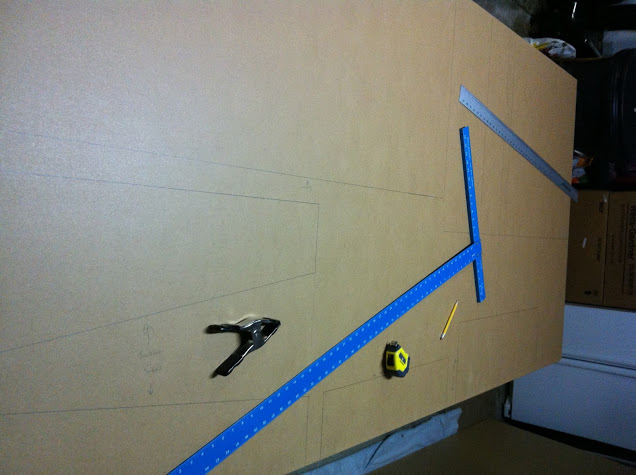

Drawing out the first one.

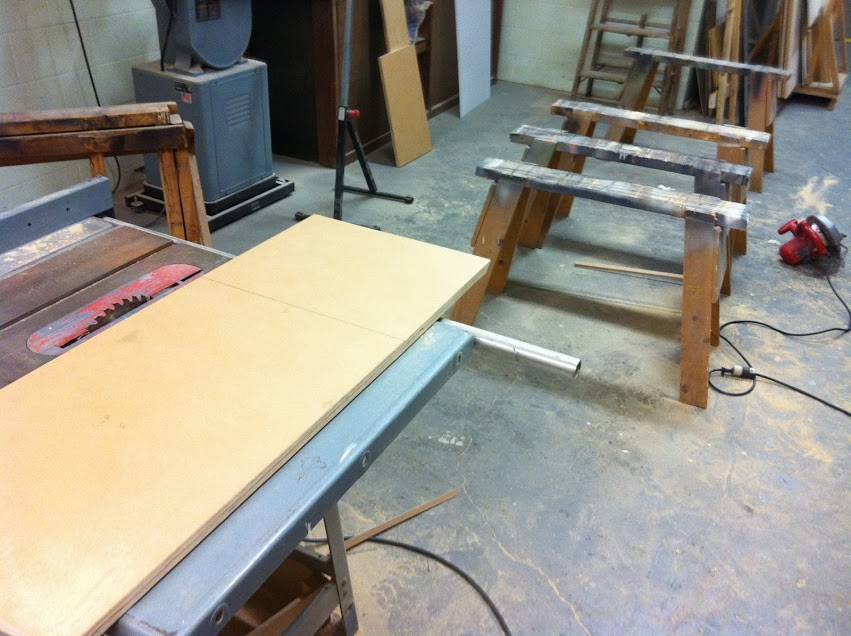

A friend works at a local TV station which had a nice (and warm) wood shop that we were able to use.

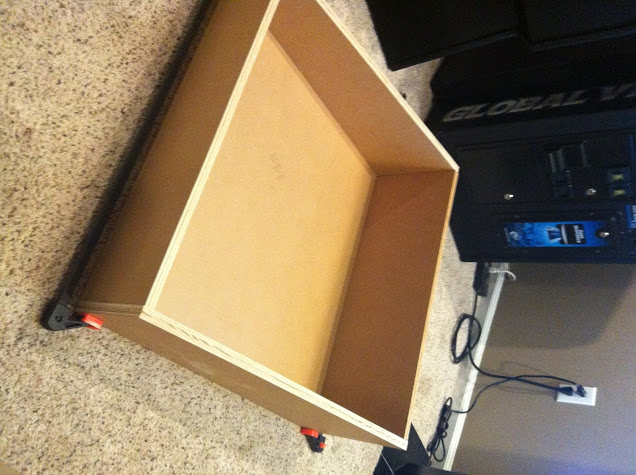

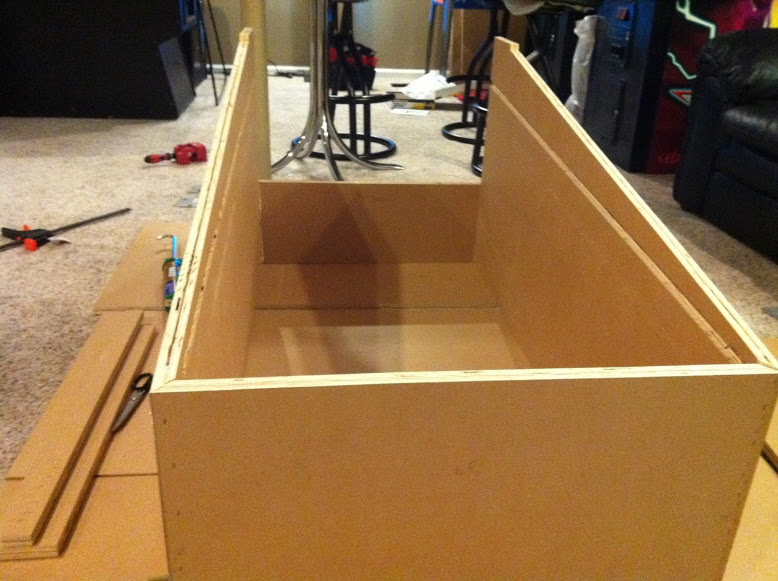

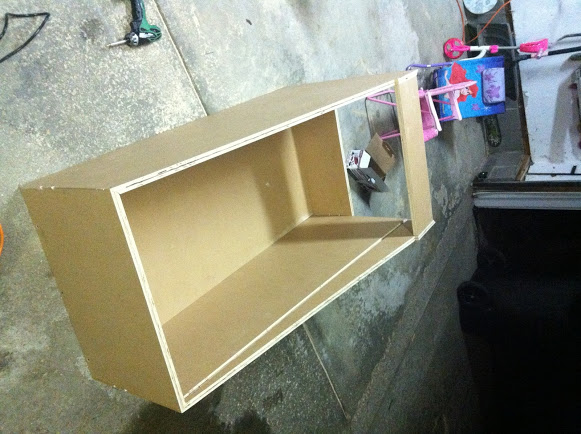

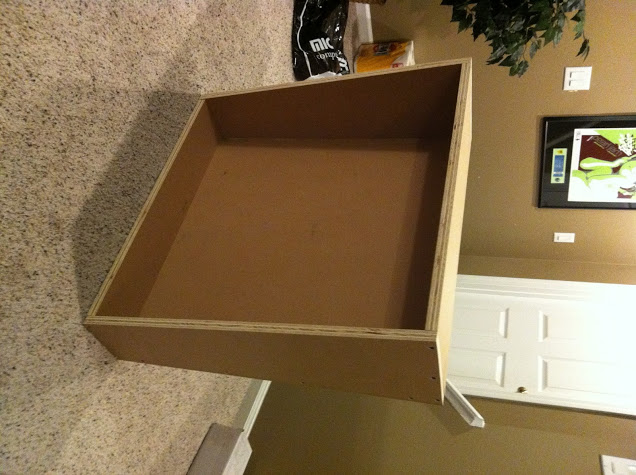

Backbox taking form.

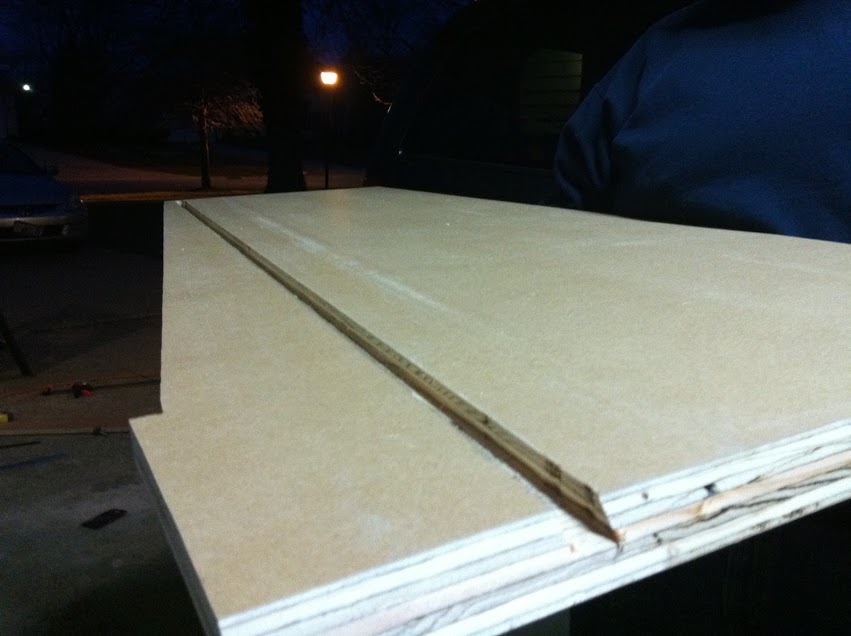

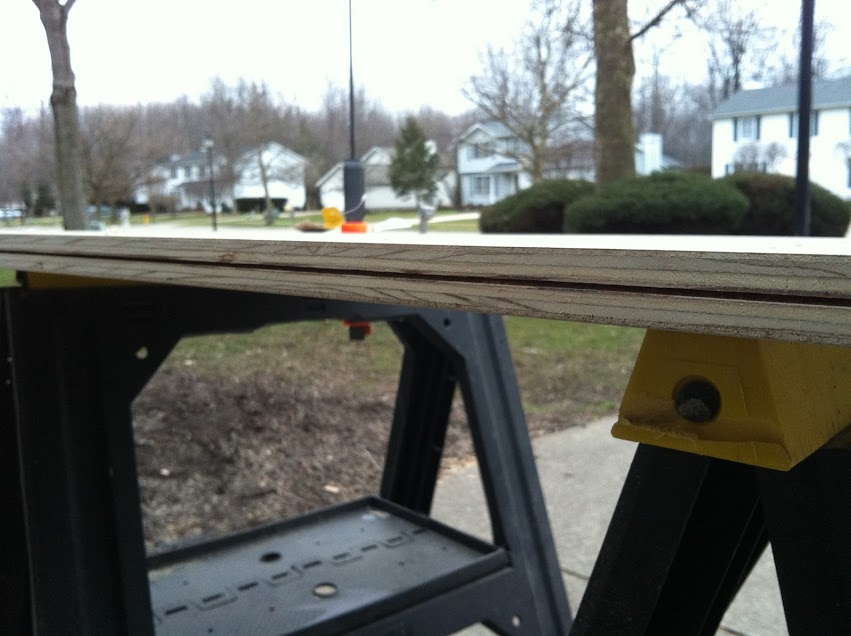

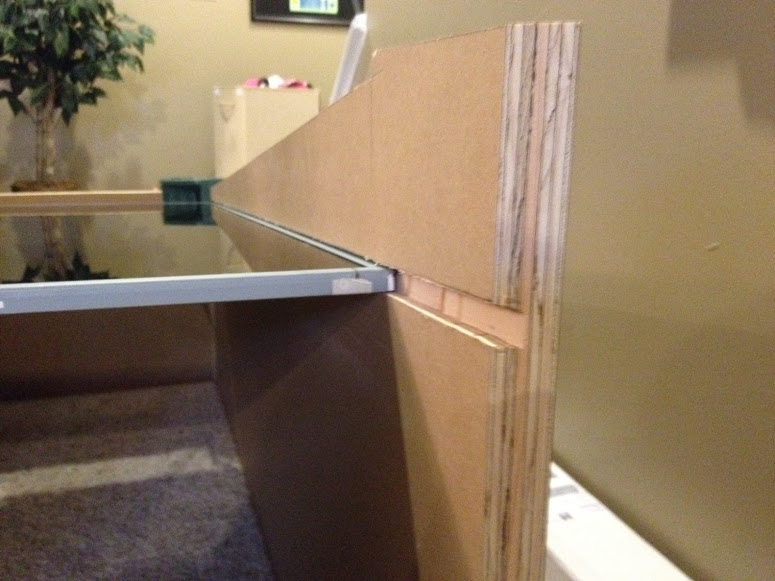

Got the slot cut in the sides for the playfield glass rails.

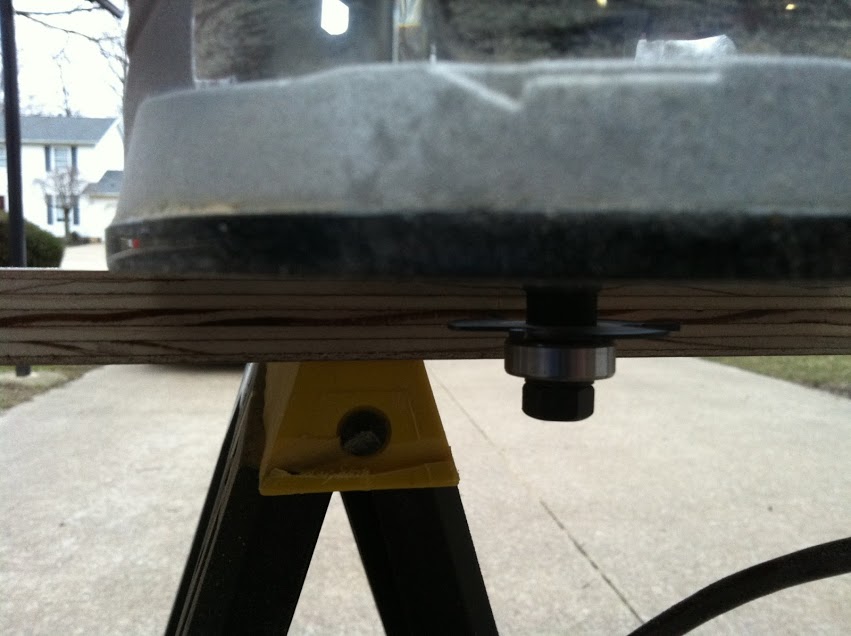

Routed out the slot for the monitor to slide in.


Share this post


Link to post
Share on other sites

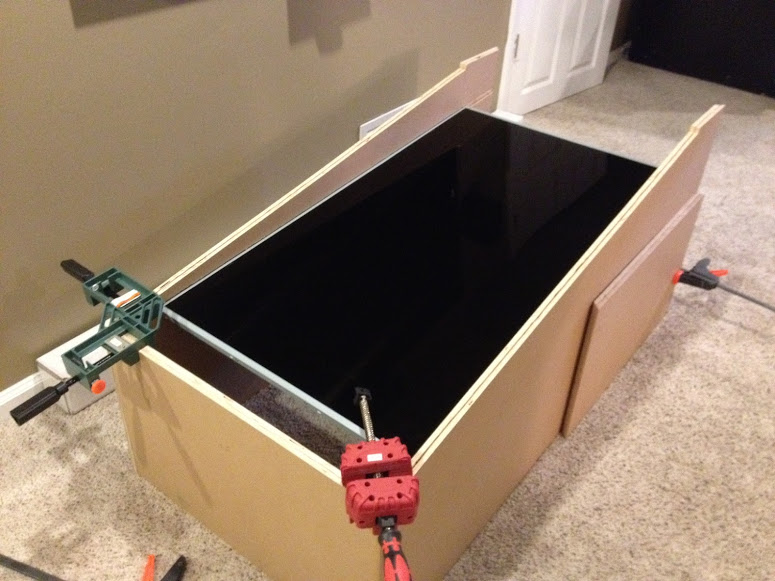

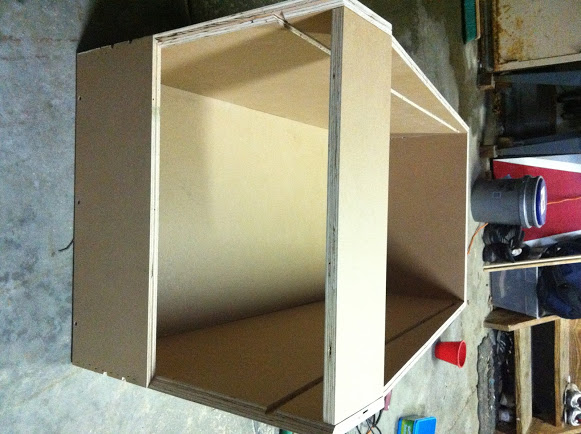

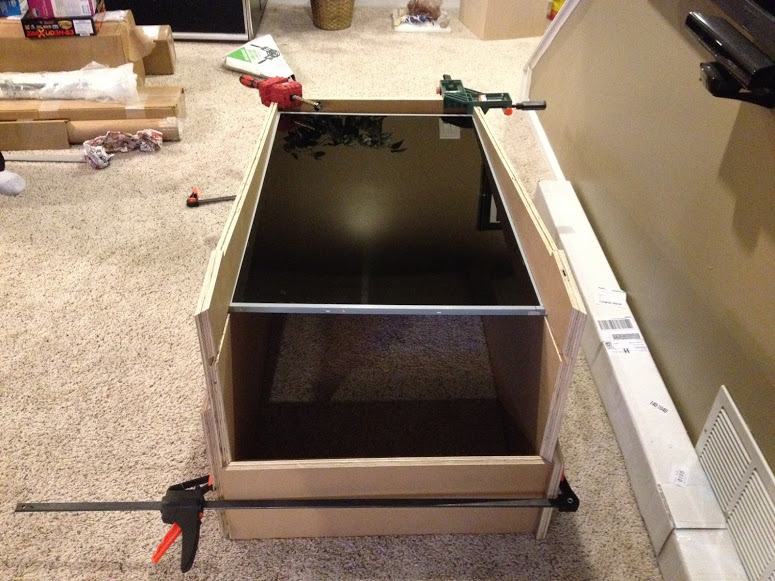

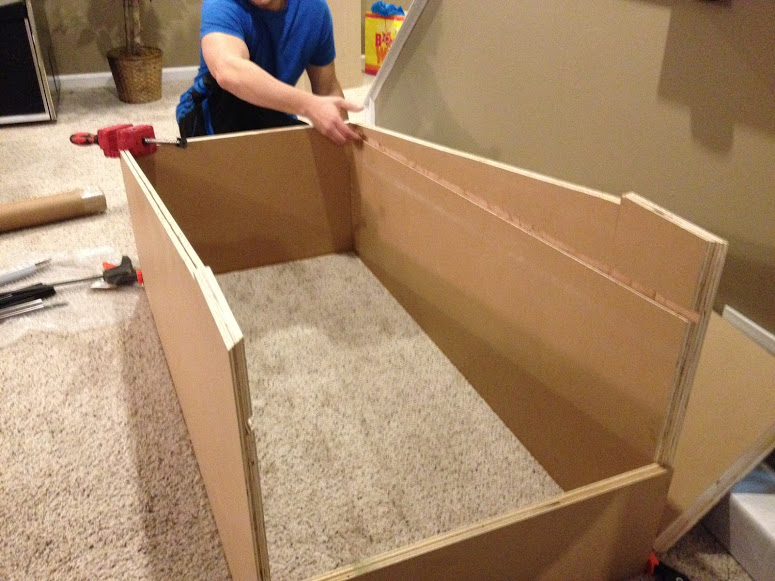

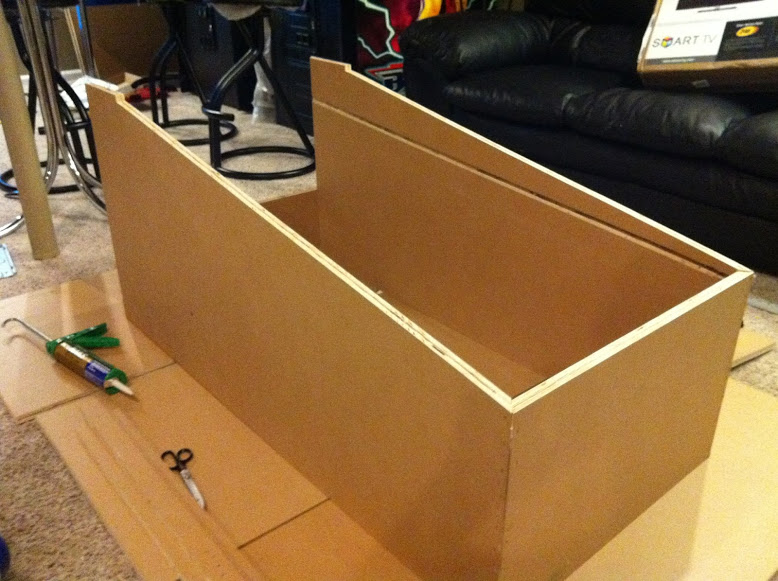

Clamping together the cabinet body to make sure the screen fits before gluing and stapling it.

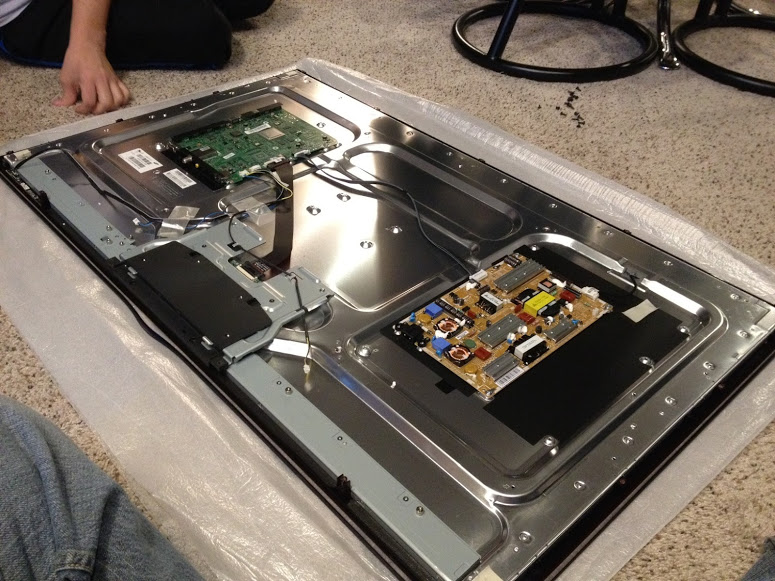

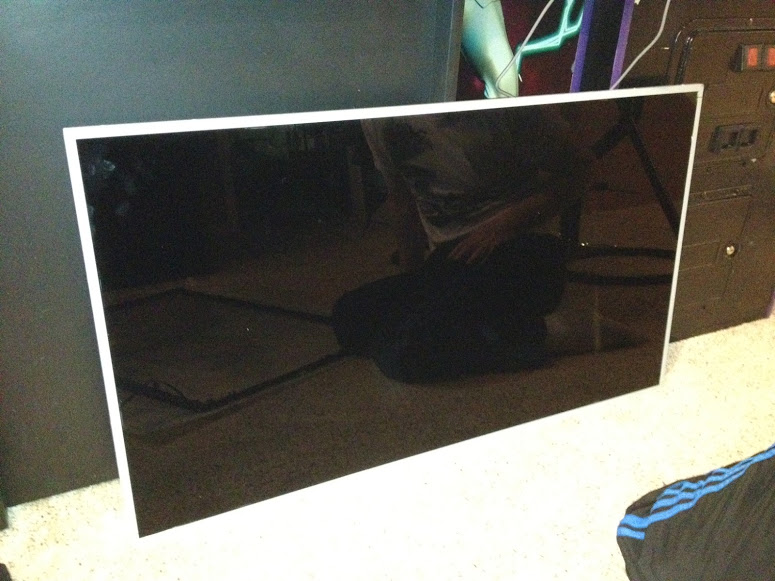

Decasing the 46" Samsung playfield screen.

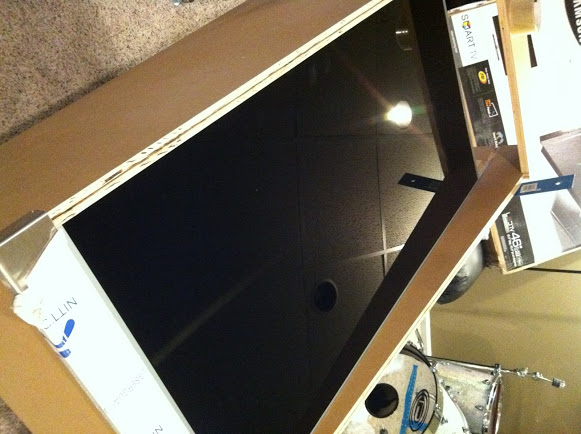

Good fit.

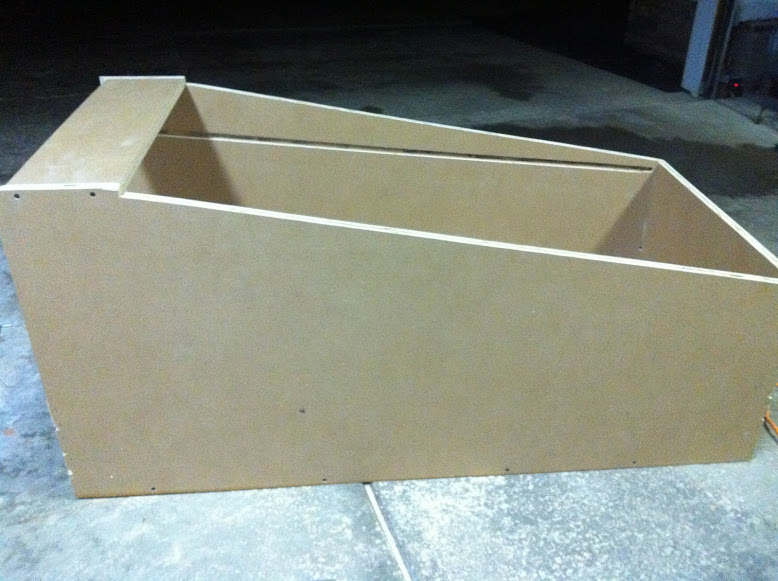

Glued and stapled.





Share this post


Link to post
Share on other sites

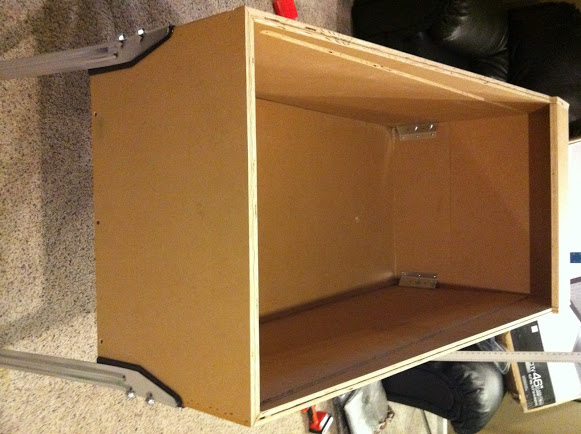

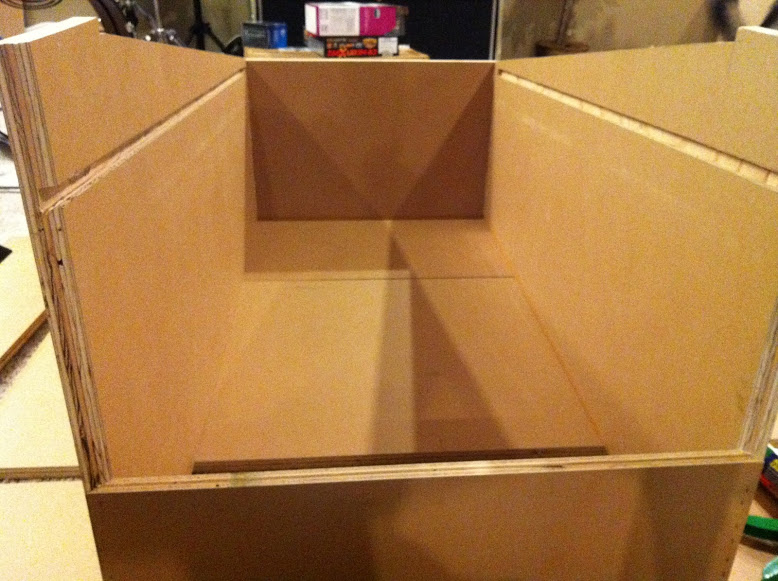

Cut and installed the bottom and top of the cabinet.

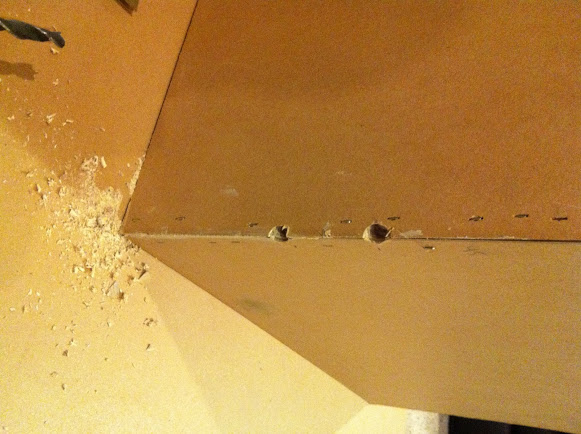

Drilled out the holes for the legs. Not as hard as I expected. Used 3 different sized bits and drilled from the inside out. Any small chips around the holes are easily covered by the legs. (You can see my nice stapling job on the first corner I put together. lol. First time using the air stapler.)

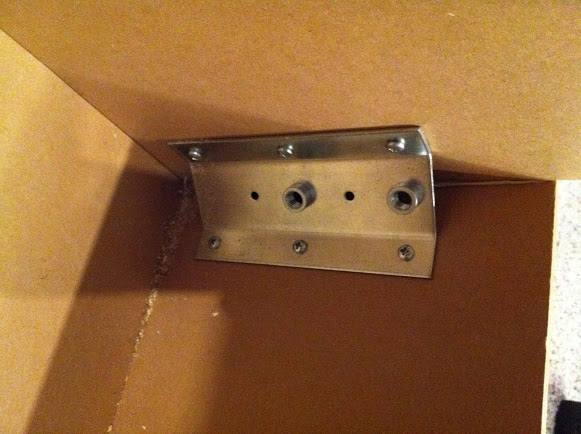

Mounting the leg brackets.

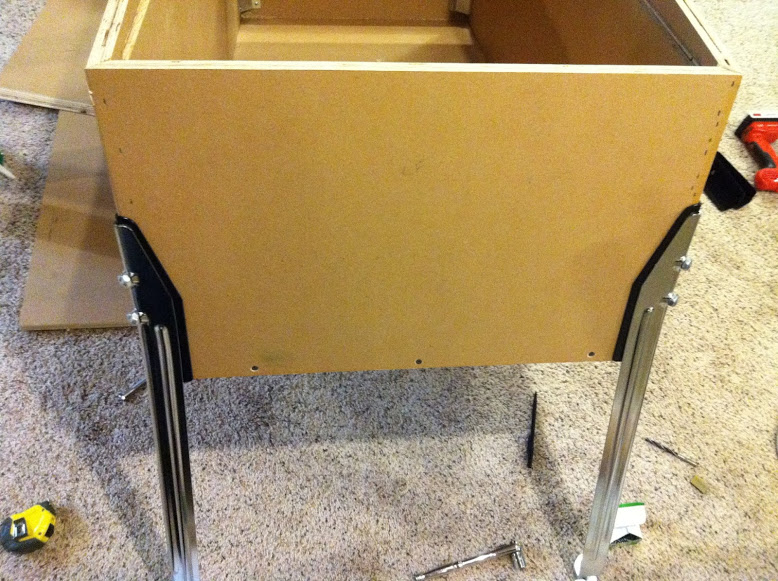

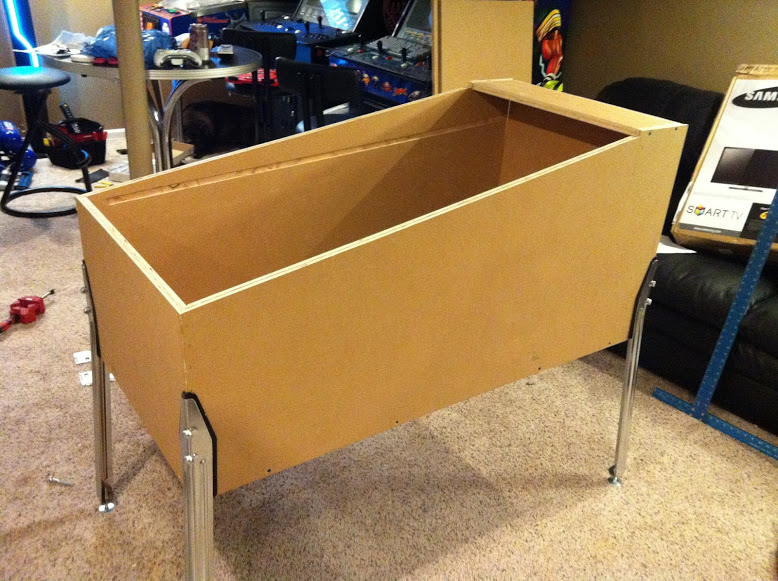

Feels like an accomplishment seeing it up on the legs.

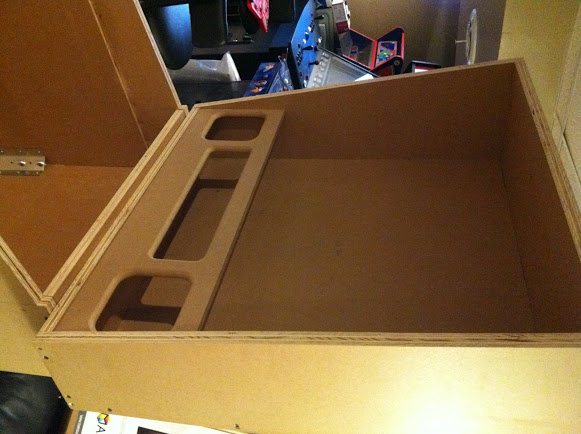

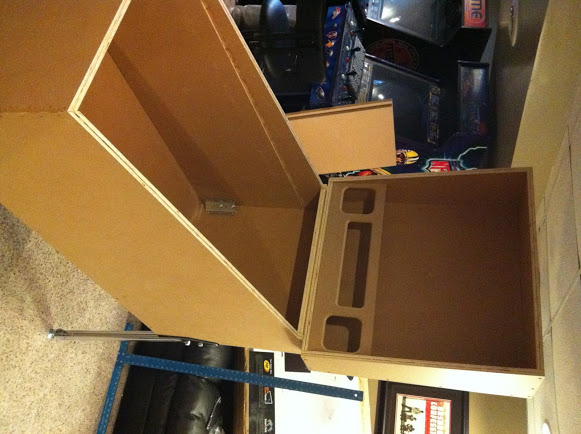

Set the backbox on top to see how it looks.


Sweet work on the speaker panel Mameman!


Share this post


Link to post
Share on other sites

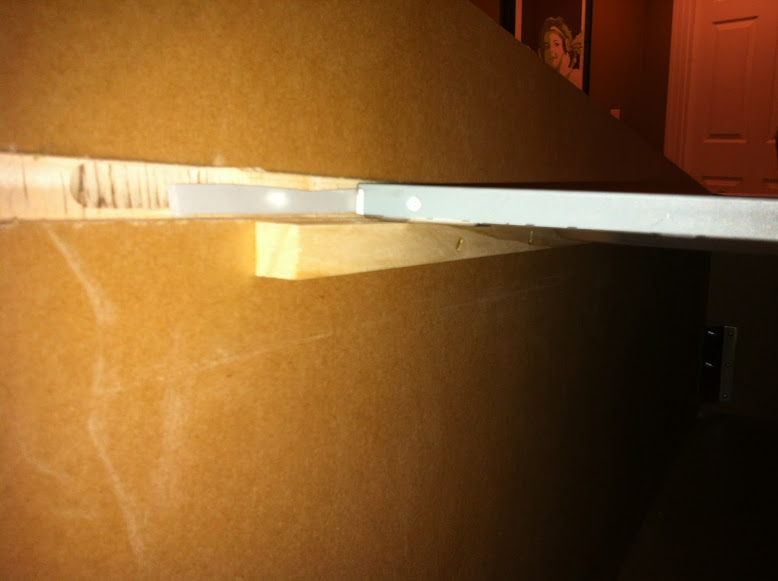

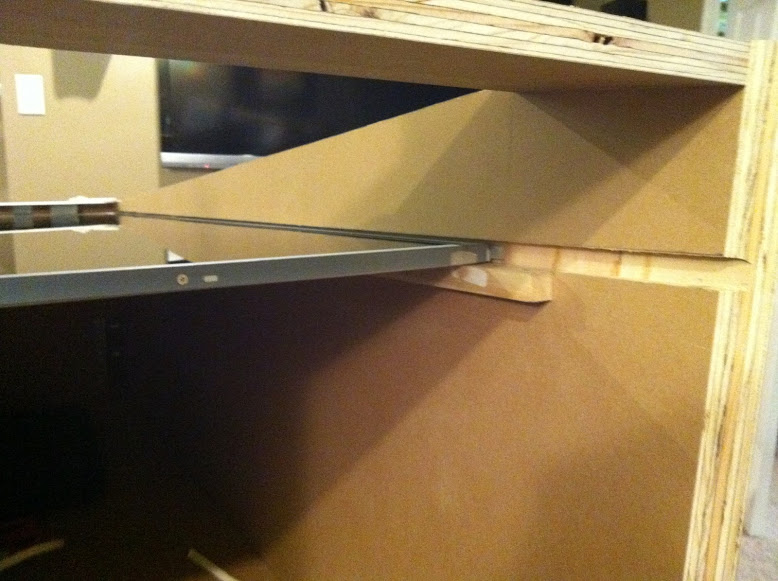

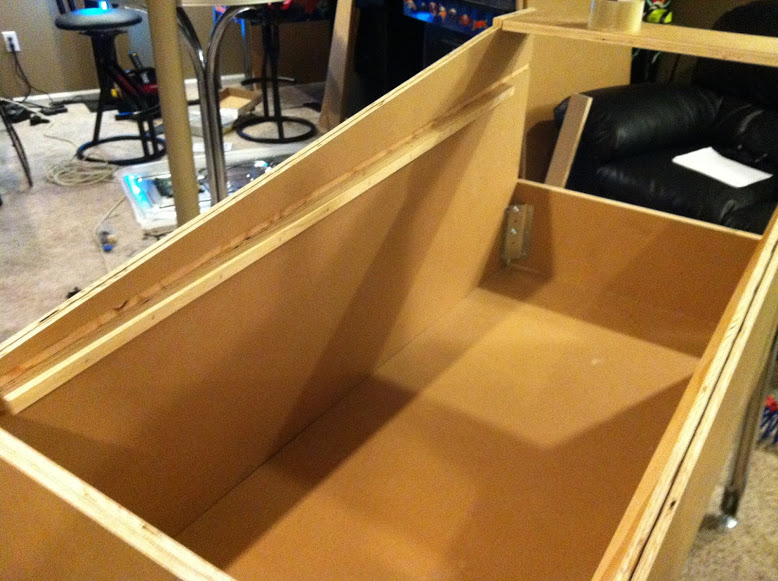

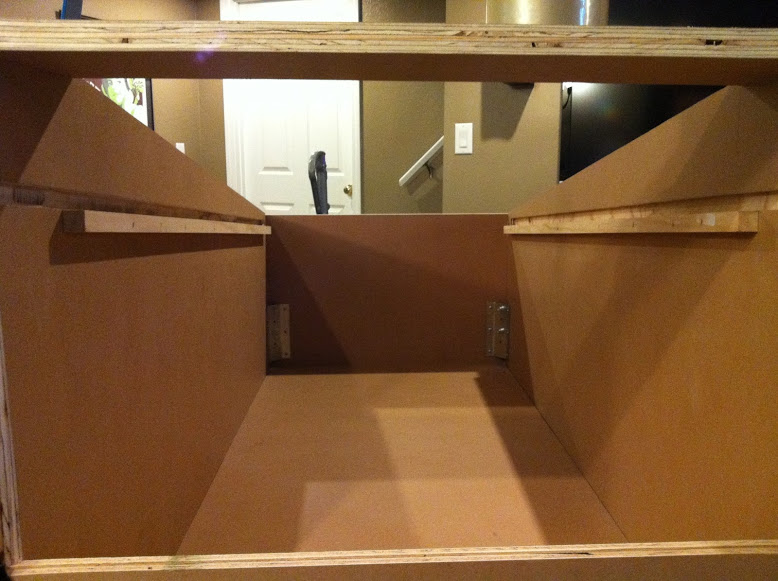

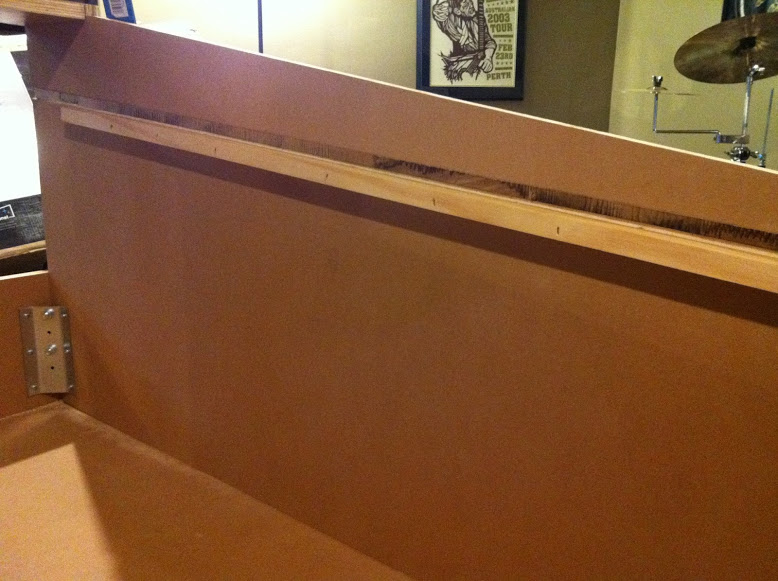

I bought some 1/2" x 3/4" molding and mounted it just under the bottom of the playfield screen slot in the sides. Gives it a little extra support under the screen. (I had to dremel off one small metal nut that was part of the casing. Also had to bend one small metal tab down. It was close to the one side and would hit the rails. Super easy and took just a minute to do.)




Put the screen back in to make sure everything still fit well.

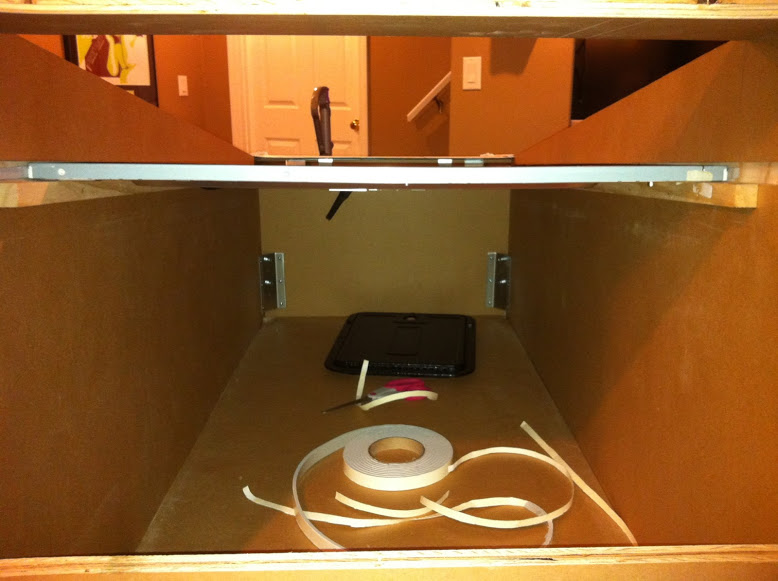

The slots were just a little too deep so I used some weather stripping and mounted it inside the slot for the monitor. Fit perfect and gives it a little cushion on the sides.




Share this post


Link to post
Share on other sites

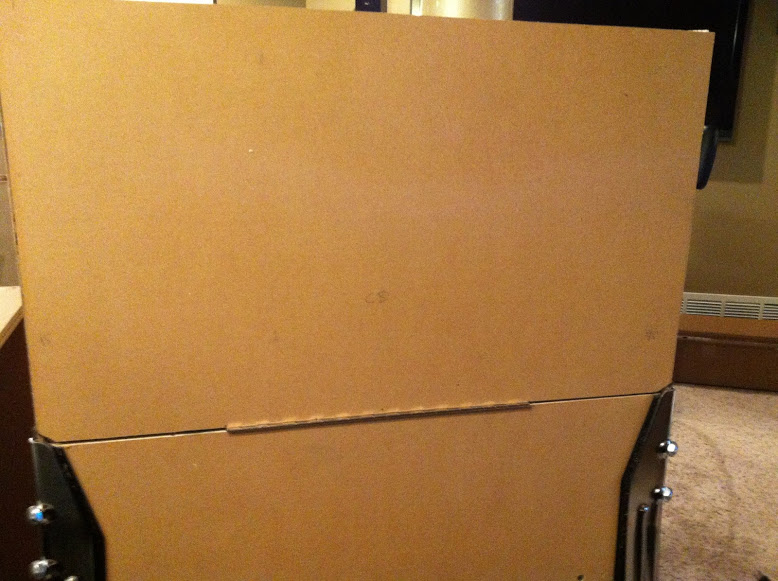

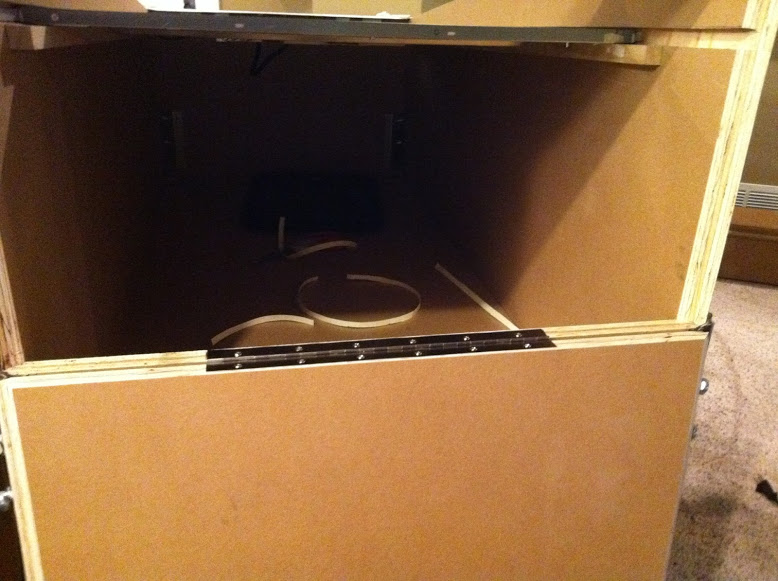

Installed the back door on the hinge.

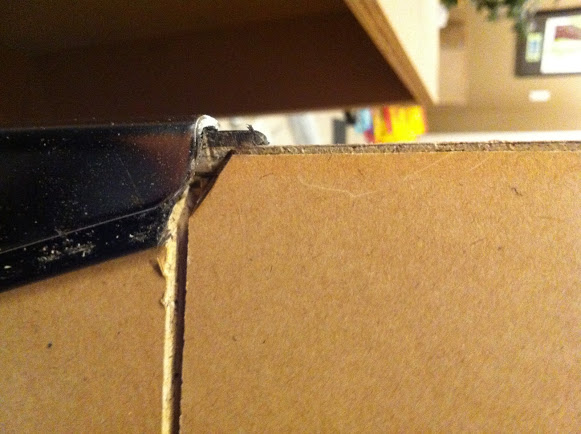

Had to notch the corner of the back door and the leg protector so the door would open. From the side you can't see a thing.

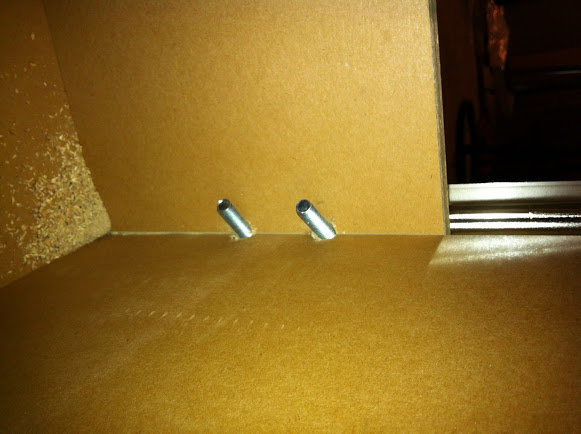

Latch to keep the back door closed.


Share this post


Link to post
Share on other sites

looking super :)

i always find myself drilling through a staple when putting the leg holes in. would think by now I would have learn't where not to put them :)

Share this post


Link to post
Share on other sites

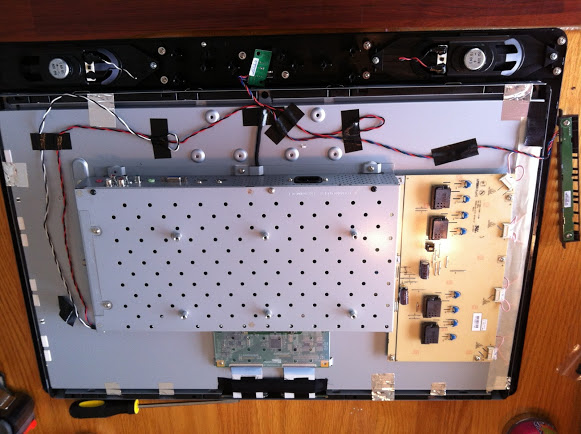

Decasing the HANNspree backglass screen.

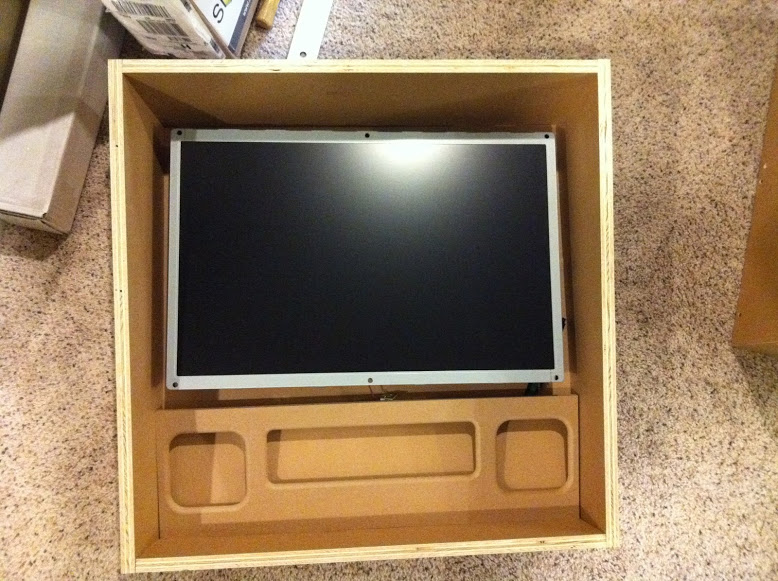

Fits easily without the case on.

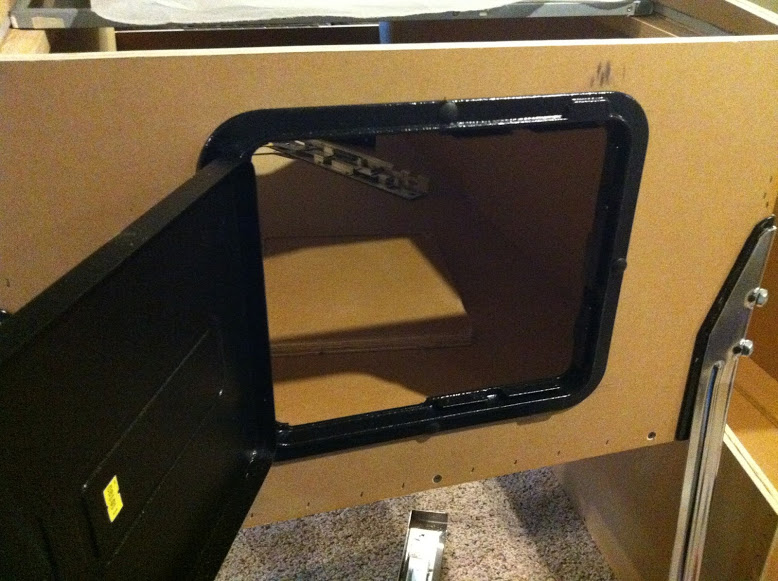

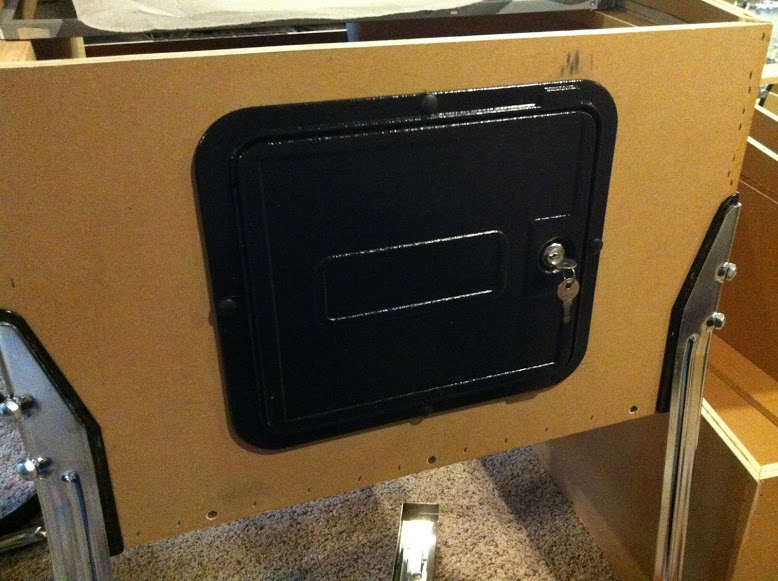

Got the coin door in.

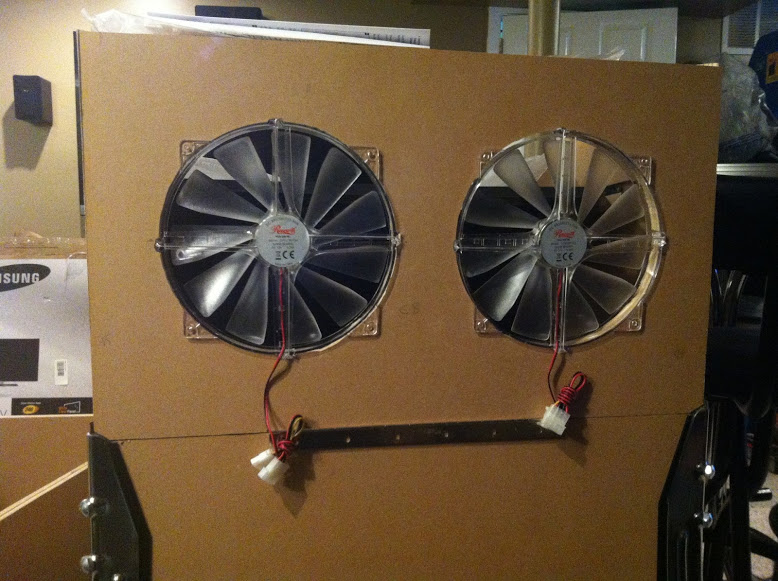

Cut the holes in the back door of the cabinet for the fans. (Used a Rotozip with circle cutting attachment. Still not perfect, but you can't tell once the fans are in.)


Pic of the other 2 my friends are doing along with mine. Made some nice progress on theirs over the weekend.


Share this post


Link to post
Share on other sites

Last pics until I do more work. This should be up to date now.

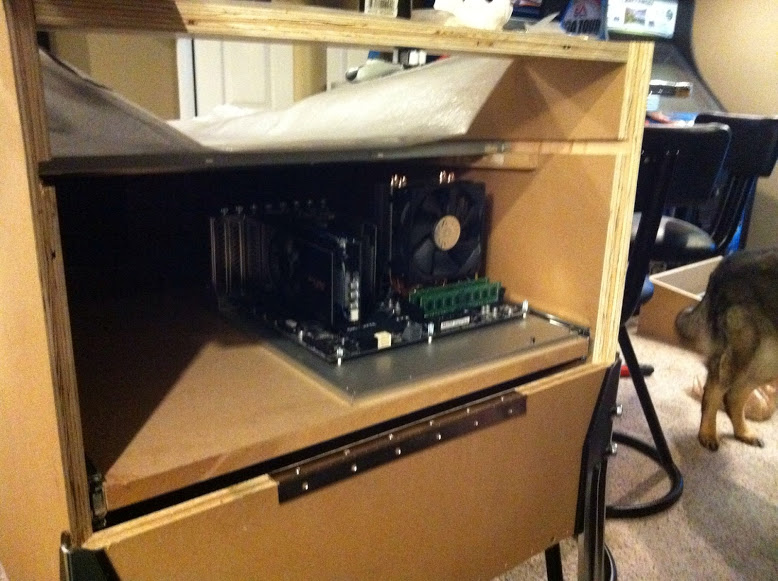

I installed the PC drawer yesterday.

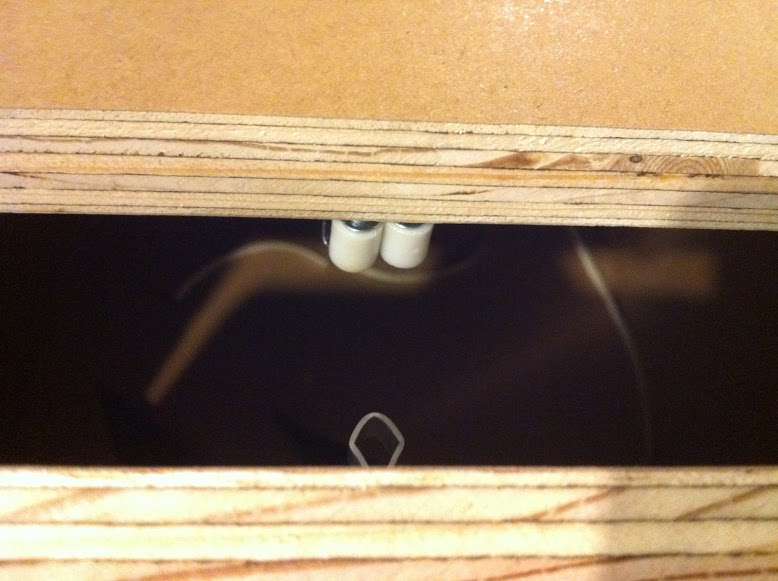

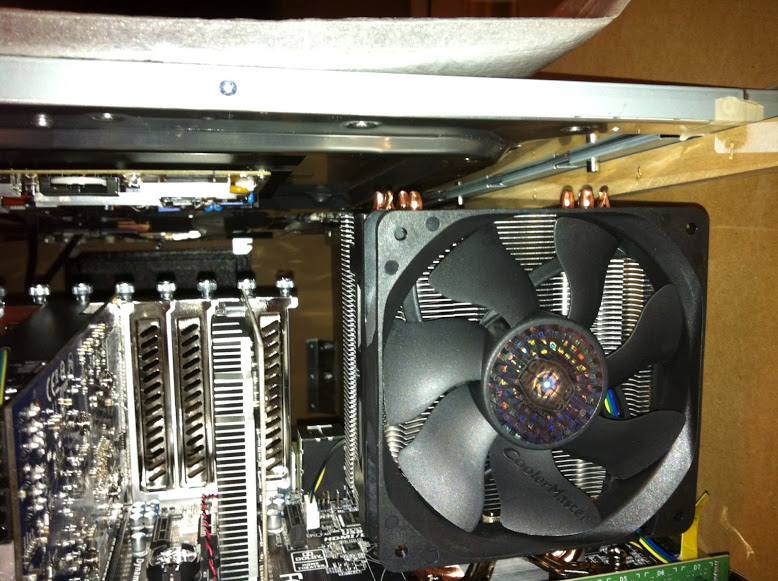

Just enough clearance for the CPU heatsink.

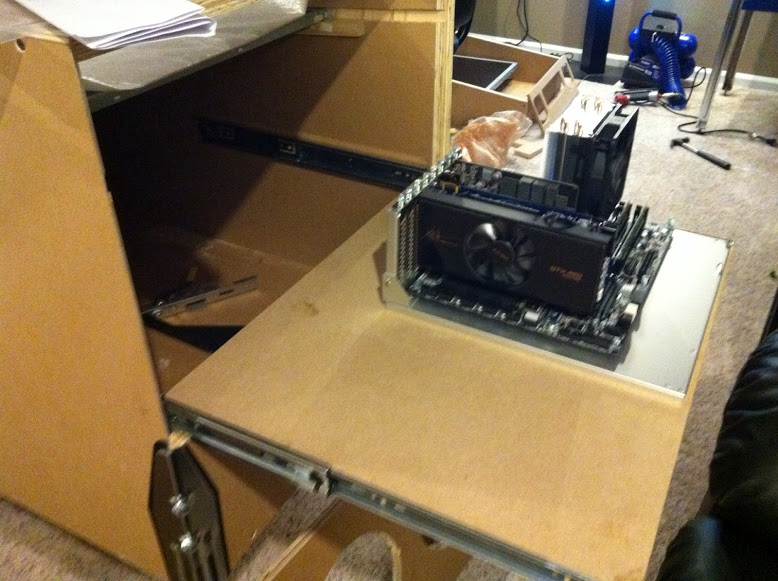

With the drawer fully out.

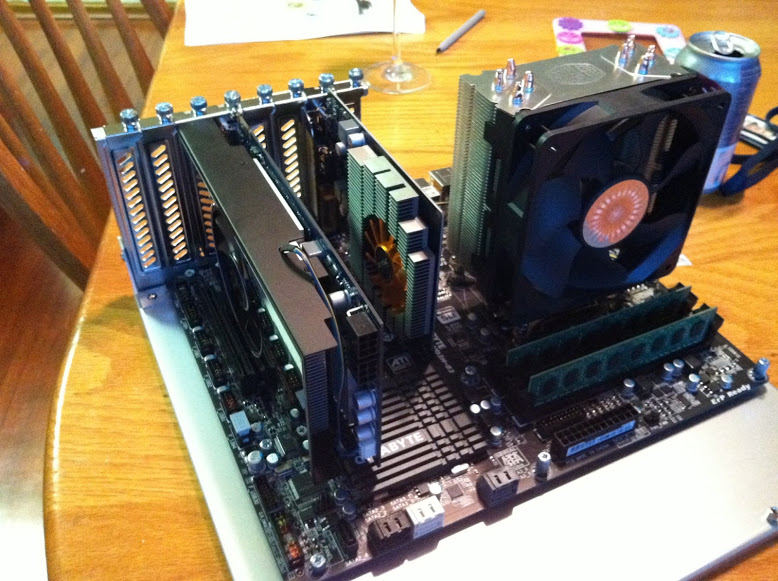

A pic of the computer minus the power supply and drive.


Share this post


Link to post
Share on other sites

Routed out the slot for the monitor to slide in.

I built my computer 6+ months ago and am just now getting back into steps to produce the cab. This thread is exactly what I was hoping for. Great information and photos. The links are particularly useful. Thank you!

Hope you don't mind some questions:

How did you determine the best playfield monitor slot position (bottom of cab up to slot)?

What is that measurements, if you don't mind?

Is the slot position consistent from front to rear? It appears so, but can't be 100% sure there was not some downward slop toward the front.

Did you consider a 32" backglass screen? I was under the impression that they fit, with just a little more notching fun.

Sorry if I am out of the loop, does Mameman produce the speaker grills or did he just happen to have extra (I guess that is a question for him).

Thanks,

Matt

Share this post


Link to post
Share on other sites

I think the tv has a too Small mounting it will Be beölen in the Middle of the Table when you make a contruction under the Playfield Looks via chriz then you have nö Problem with a broken table
