Watchmen Pinball - 40/27/DMD - Standard Body


mikekim

Recommended Posts

  • Replies 321
  • Created
  • Last Reply
What LCD'S did u use?

Very nice!!!

Quote from the very first post in this thread..

"I have opted for the Samsung ES6300 40" screen for the main play field and a Samsung T27A300 27 inch Widescreen LED for the back glass."

Not sure if you can get them any more as I did pick them up nearly 2 years ago now..

Sent from my GT-N7100 using Tapatalk

Link to comment
Share on other sites

I love the look of this build. Did you need to do anything special to get a 40" LCD into the standard cabinet?

My 40 fits inside with no issues, most of todays 40" samsung range will fit inside a standard cab, with little or no routing, as the bezels are 5mm.

Sent from my GT-N7100 using Tapatalk

Link to comment
Share on other sites

  • 3 weeks later...

not really an update as such, but a new addition (just love gadgets that can add to the build)

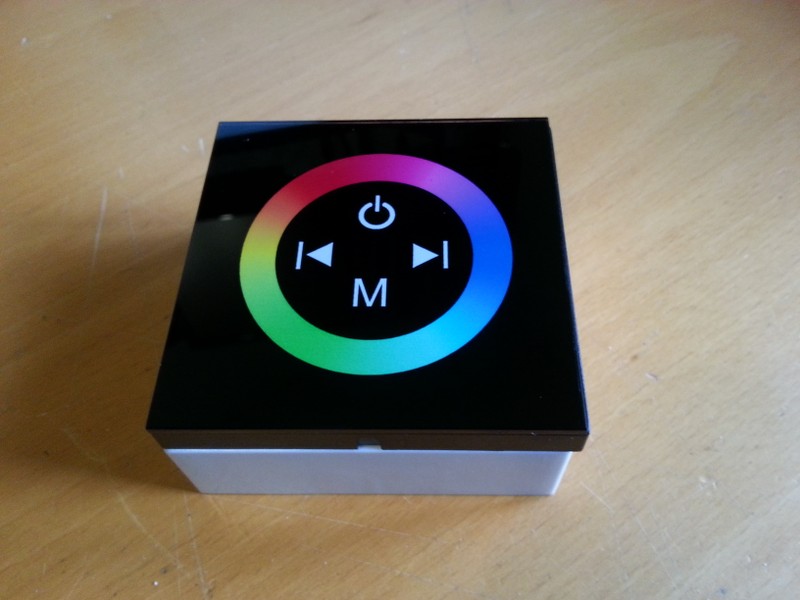

this is a touch wheel RGB LED controller that allows you to select any colour for your LED strips simply and quickly.

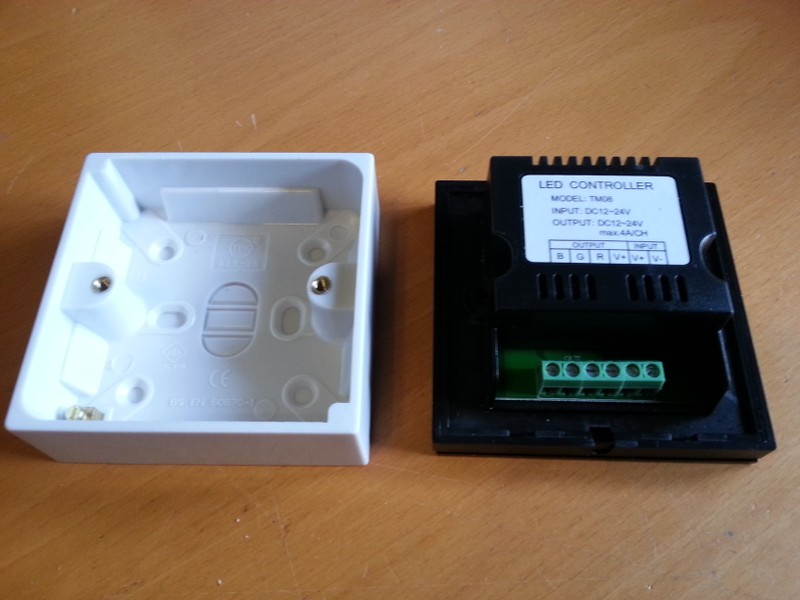

it fits in a standard 25mm 1 gang back box.

(if the led strip wasn't somewhere else i would post some pics of it running)

Link to comment
Share on other sites

  • 2 weeks later...
What a build this is :)

I'd hate to think what this has cost you so far, it seems it has the best components you can buy. Looking forward to completion and seeing it in action.

Sent from my SM-N9005 using Tapatalk

if i include the £2000+ cost of the pc used then the price (including all the spare bits i have left over) is pretty close to the £10k mark :dontknow:

Link to comment
Share on other sites

if i include the £2000+ cost of the pc used then the price (including all the spare bits i have left over) is pretty close to the £10k mark :dontknow:

That's fn awesome :) and I thought I was mad with my G4D spend but this is something else. You must have a very understanding partner, my wife would go ape shit crazy if I spent 10k on a vpin, I would like to though lol.

Sent from my SM-N9005 using Tapatalk

Link to comment
Share on other sites

update

time to start the wiring...


started wiring the virtual output tray. quite laborious really prepping all the wires and screwing onto the terminals on Zeb's wonderful boards.

using orange for 24v, Yellow for 12v, Red for 5v, and black for common (ground)

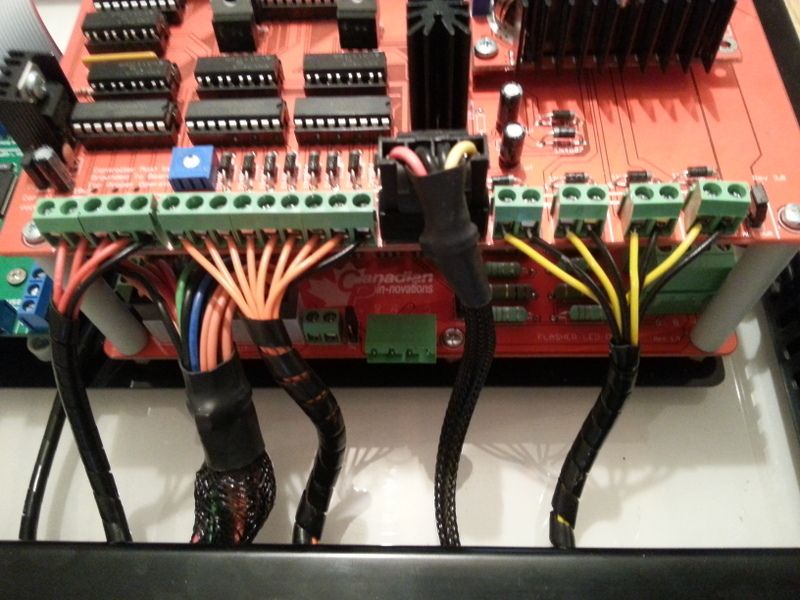

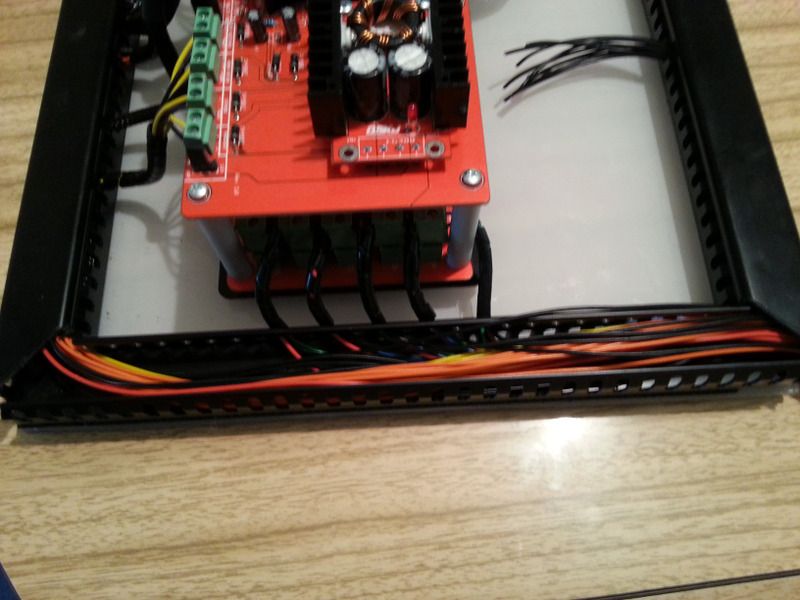

shot of the flasher wiring and all the other wiring in the cable tray.

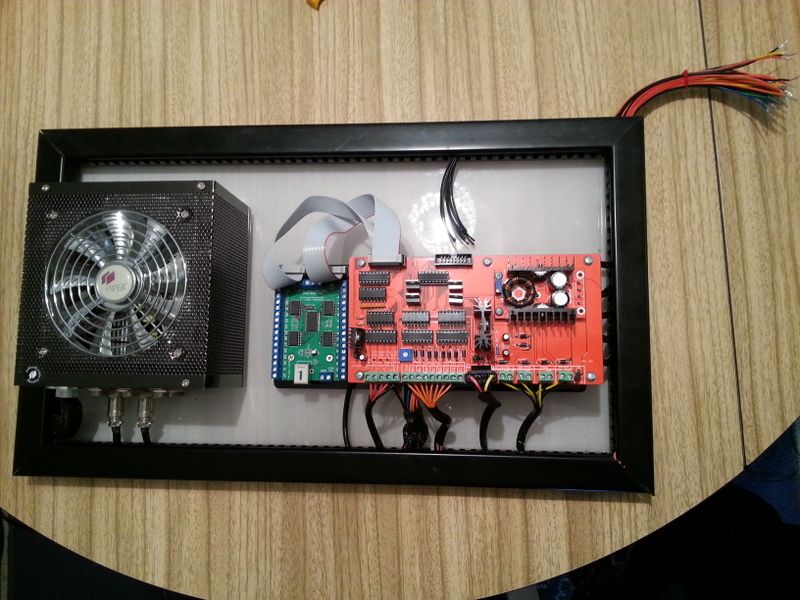

shot of tray with cable trays closed - looks pretty clean - still need to wire up the common (black cables) to a terminal block.

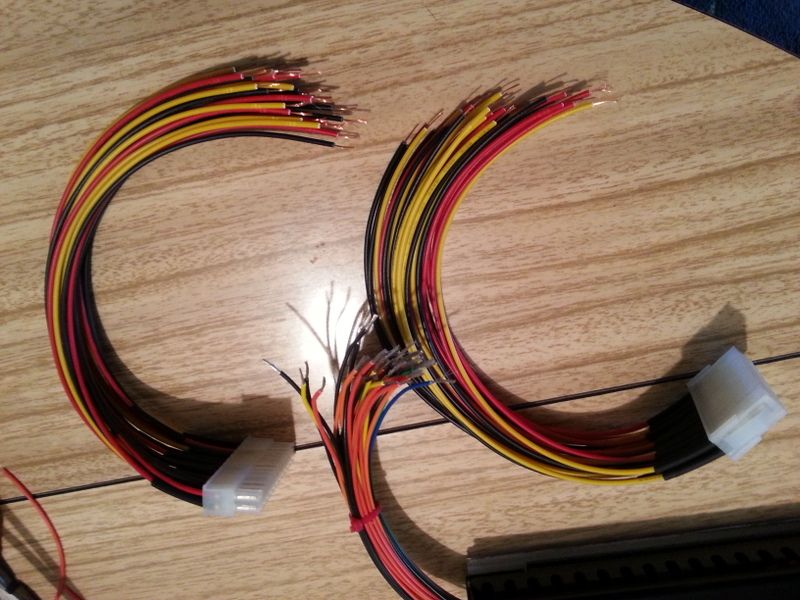

shot of wires ready to be toned out and soldered onto the 24 way connectors, which will make the tray easily removable if needed.

forgot to take up my multimeter, so this will have to wait until next week.

Link to comment
Share on other sites

update

just some soldering today

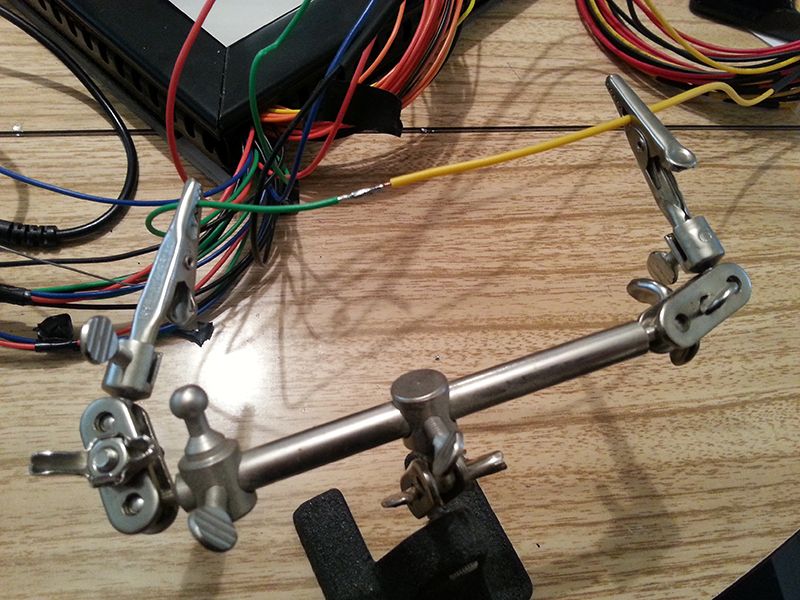

used steadying arms to hold the cables to make the soldering easier

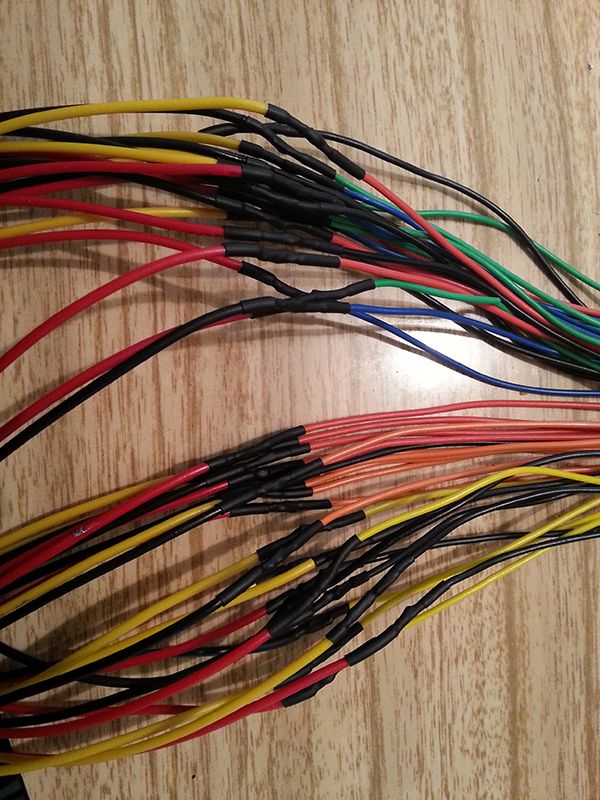

all cables soldered and heat shrink tubing applied..

hours of fun for all the family :face palm: hey at least that part is done.

next up the flasher rgbs..

Link to comment
Share on other sites

update

only managed to get a couple of hours work in today, due to other commitments

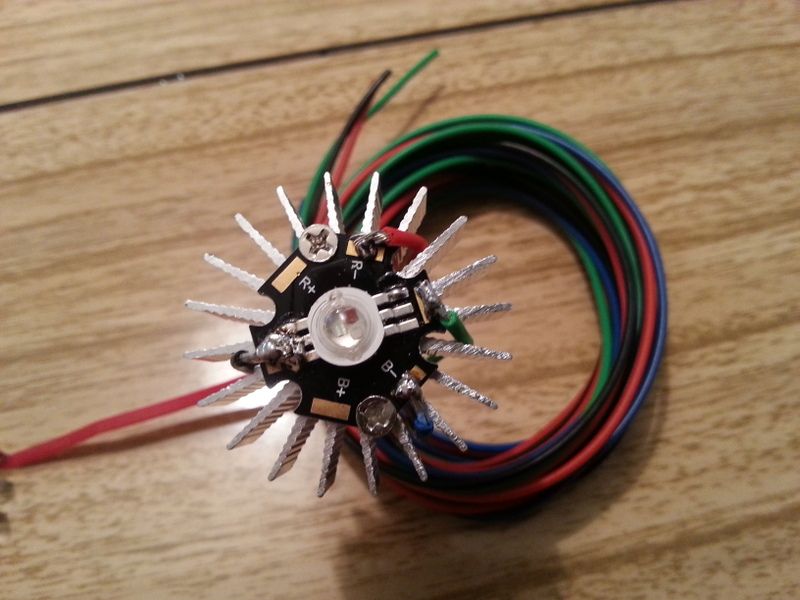

soldered the connections for the flashers to 1.7m of 20AWG cable

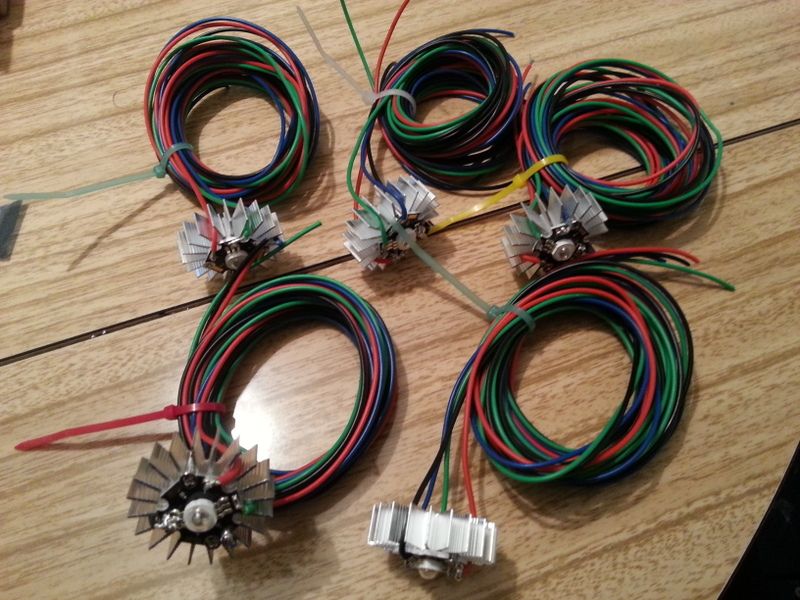

all 5 done ready for installation into the cab.

Link to comment
Share on other sites

update

time to start on the cab internals

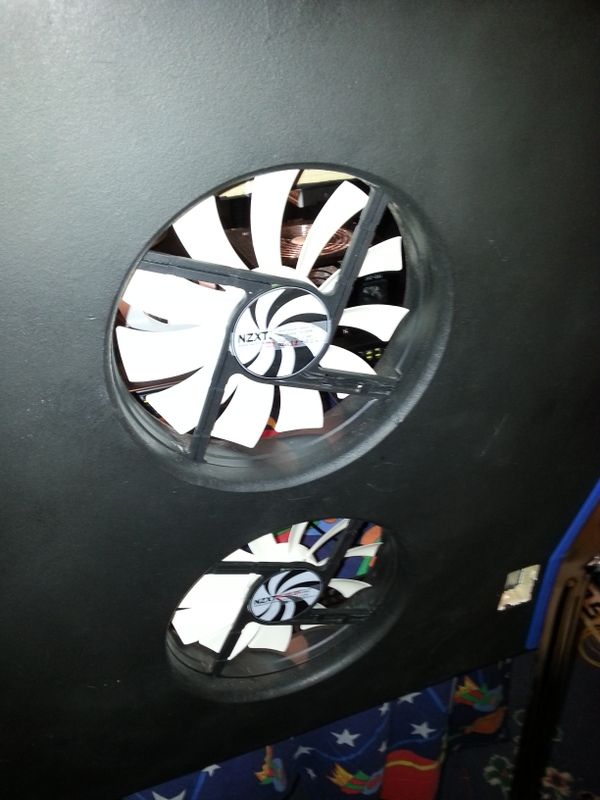

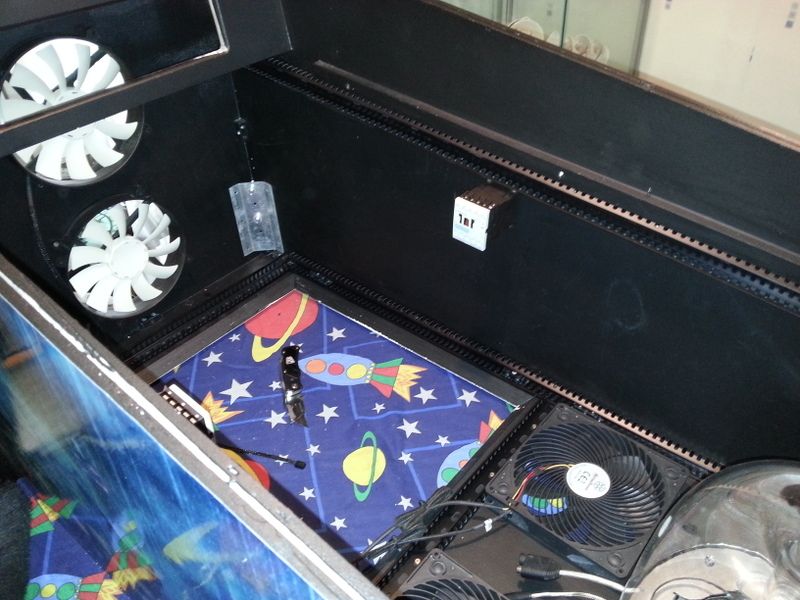

installed the rear fans.

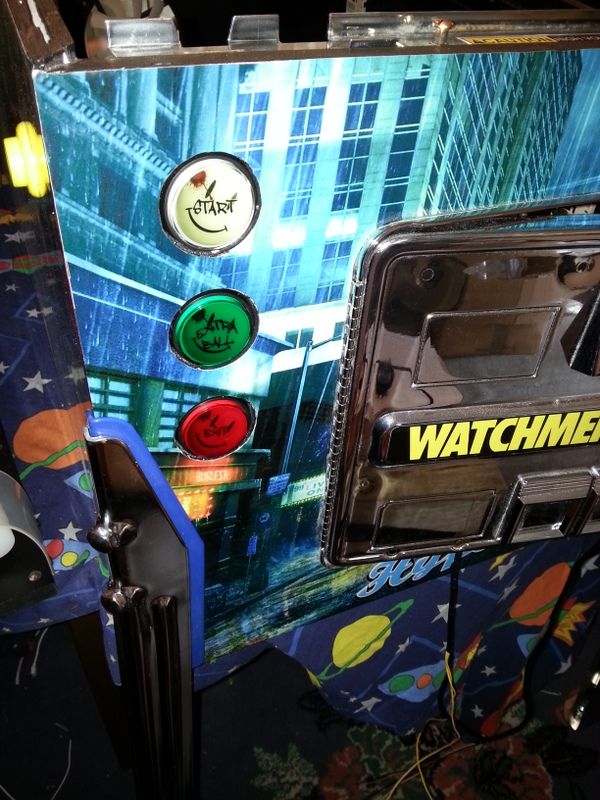

flush fitted the front buttons, and installed the new chrome legs and coloured protectors


installed the launch button and plunger


started to install all of the cable tray to hide all of the wiring. (note the quality duvet cover used to protect the table :hahaha:)


installed inlet fans, contactors and sub. had to lower the position of the front contactors as the plunger tube was snagging the contactor


test installation of the I/O board tray.. seems to fit ok - there is enough clearance for the PC tray underneath. might have to look at moving the bumper contactors, as they keep fouling installation and removal of the tray.

still have to work out where to put the shaker / gear motors yet.

Link to comment
Share on other sites

update

picked up some more bits for the build..


dual leaf flipper buttons, so i only need one set of buttons on the side of the cab (for dual flippers and magnasave).

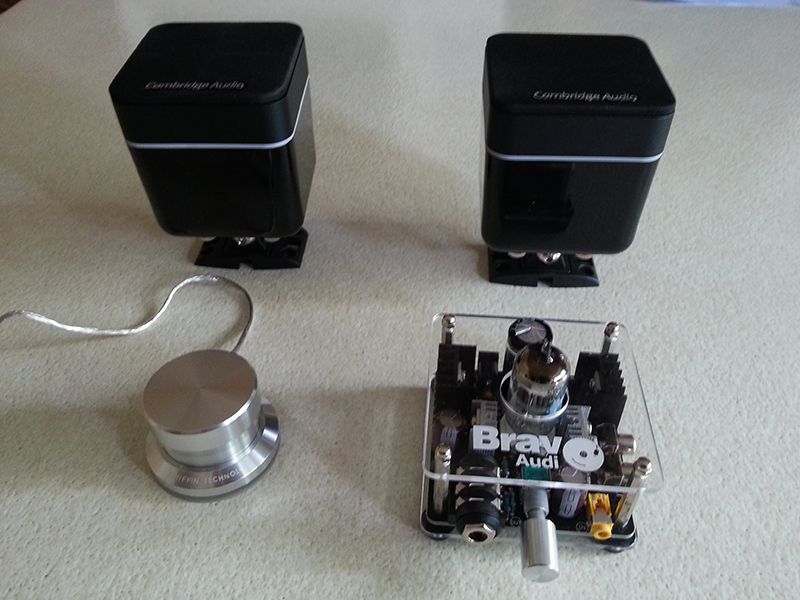

Bravo Audio V2 tube amp (with Phillips 12UA7 upgraded tube, to replace the cheap chinese one originally installed) for the secondary audio system.

Cambidge audio minx speakers have been sat around for a while, will finally get used..

Griffen powemate USB control is new - this will be installed on the underside of the cab to control the master volume levels

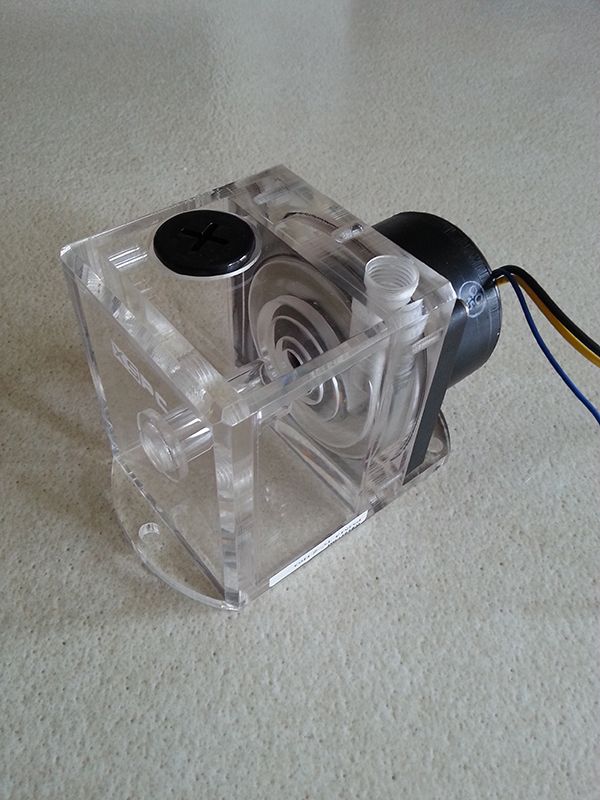

new reservoir and Laing D5 pump to replace the existing PC water-cooling unit, thats starting to make some funny noises when running.

Link to comment
Share on other sites

Great buys

Erm please educate me what are dual leaf switches ?

you can have two sets of flippers attached to one button.

if you push the button half way it activates only the big leaf switches, a full press activates both switches.

Link to comment
Share on other sites

update.

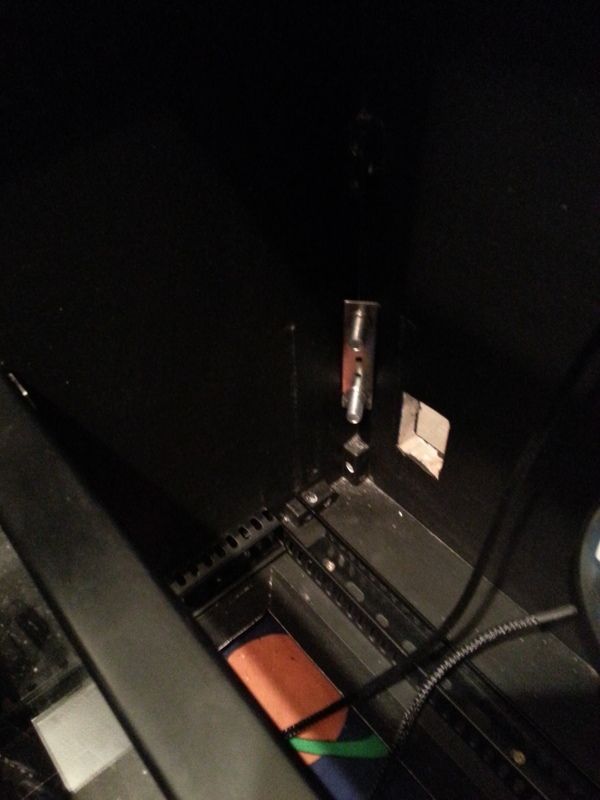

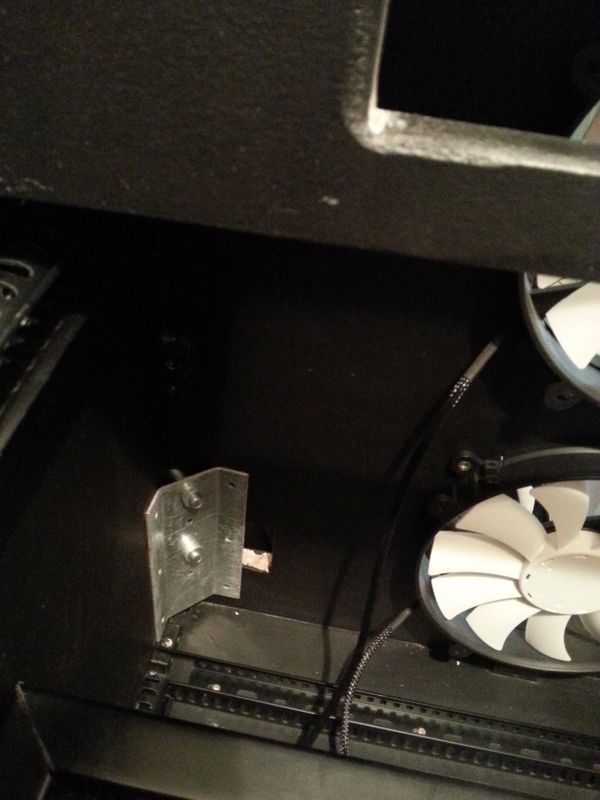

one thing i noticed last week was that i has misjudged where the power comes into the cab and when i attached the rear legs the plate was fouling the hole.


so i picked up a new smaller leg plate that would clear the hole, just for that rear corner. i could have modified the plate, but this was the easiest solution.

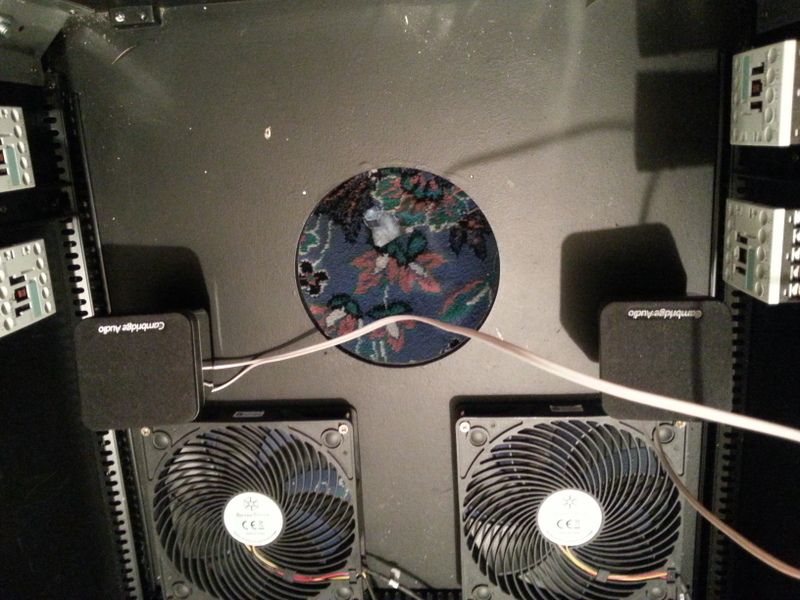

installed the secondary speakers inside the cab - they are pointing upwards towards the underside of the screen, should work well for the mechanical sounds. (pic is upside down, but you get the idea)

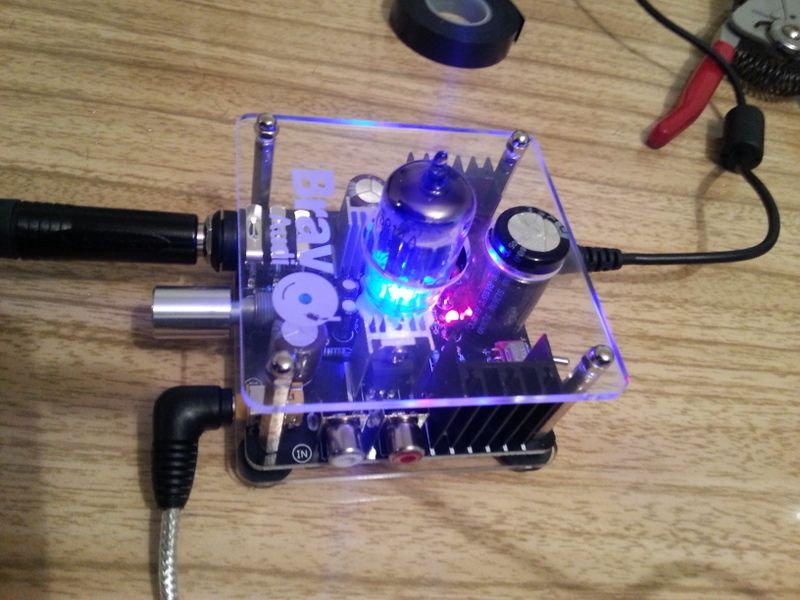

tested the amp (after making up a custom cable for the speakers (basically soldered a stereo jack plug to to the speaker left and right cables)


the valve makes a nice blue glow - the sound quality is fantastic (tested with my phone), however its not very loud,as this is essentially a headphone amp, but should suffice for mechanical sounds.

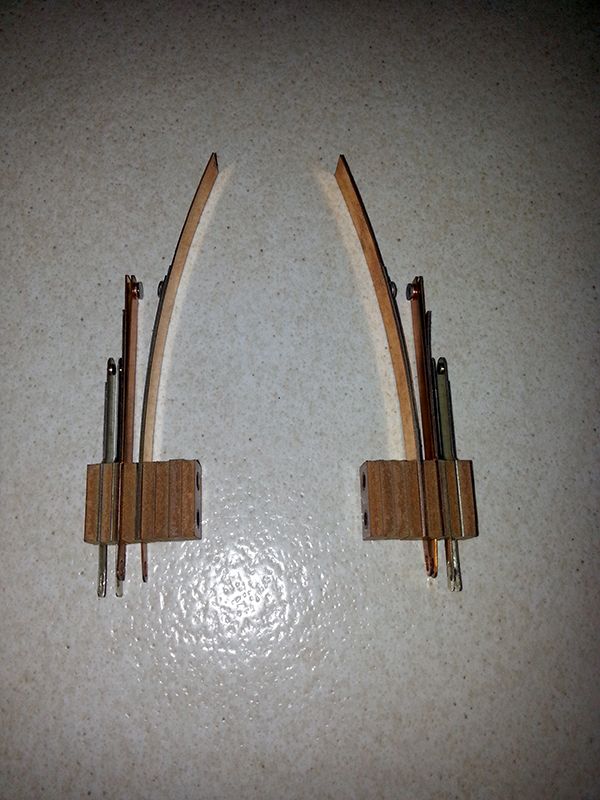

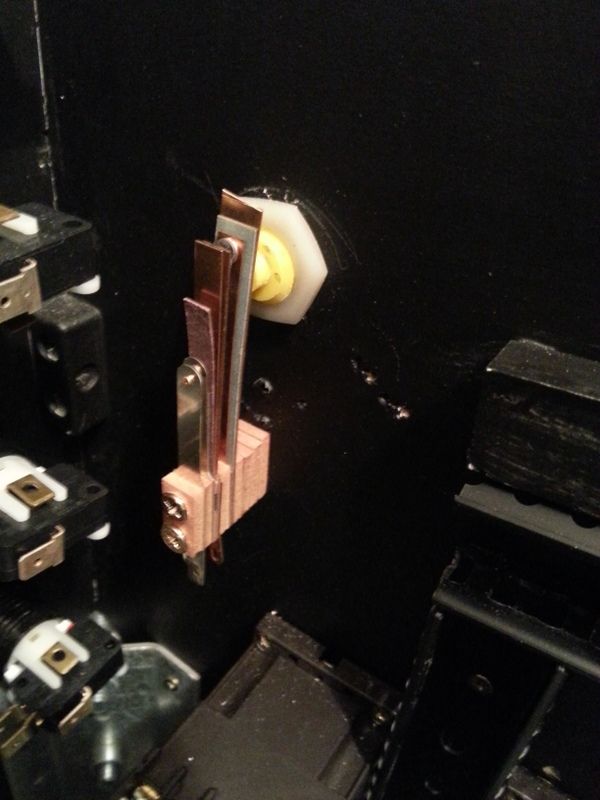

Installed the dual leaf switches. had to cut them down a bit to fit the cab.


tested the push and a full press activates the second leaf contact.

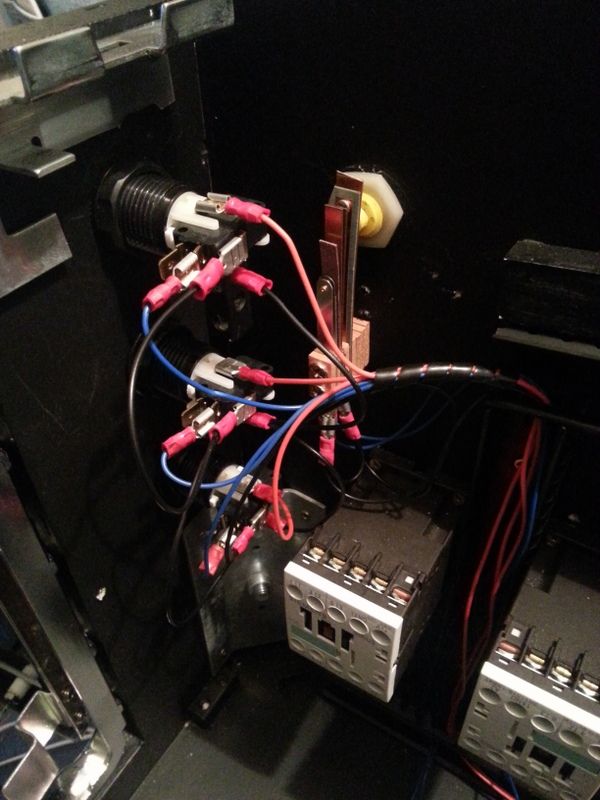

started on the button wiring.


i'm using blue for the connections to the ipac, black for ground and red for the 5v on the button lights, will look at tidying the wiring up later when the rest is done.

Link to comment
Share on other sites

  • 2 weeks later...

update:

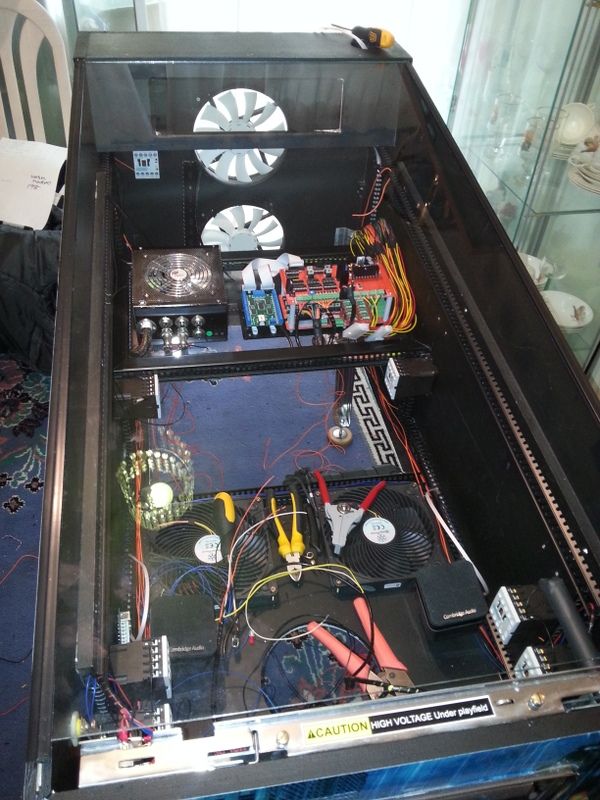

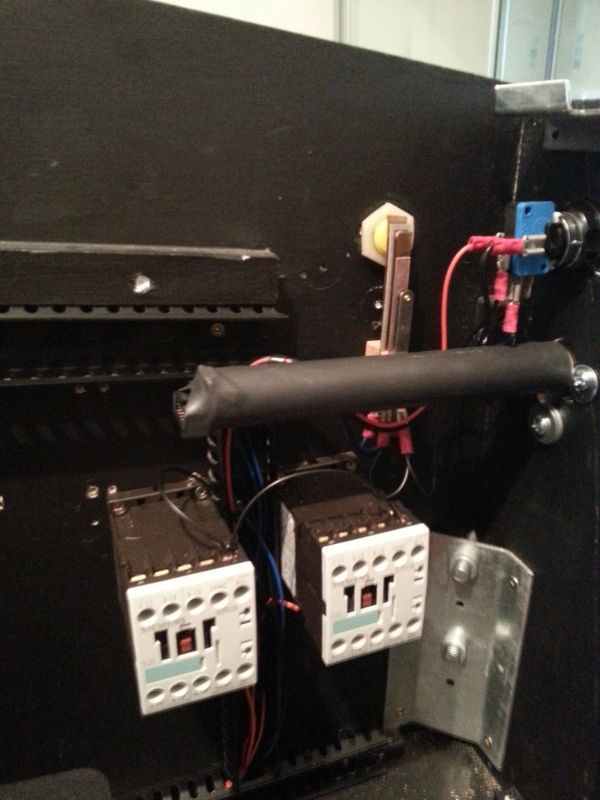

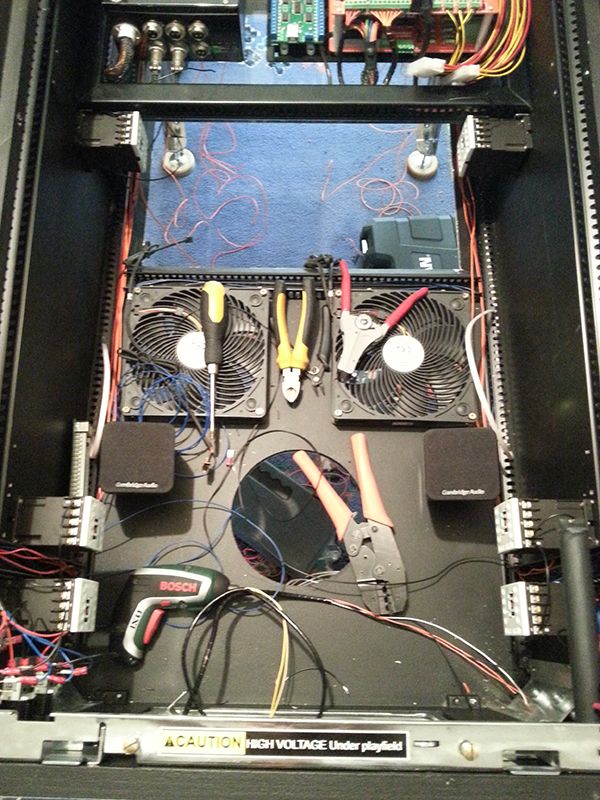

wired up the contactors selected final positions for the bumper ones that don't foul the tray when removed. (excuse the carnage of tools and wire)

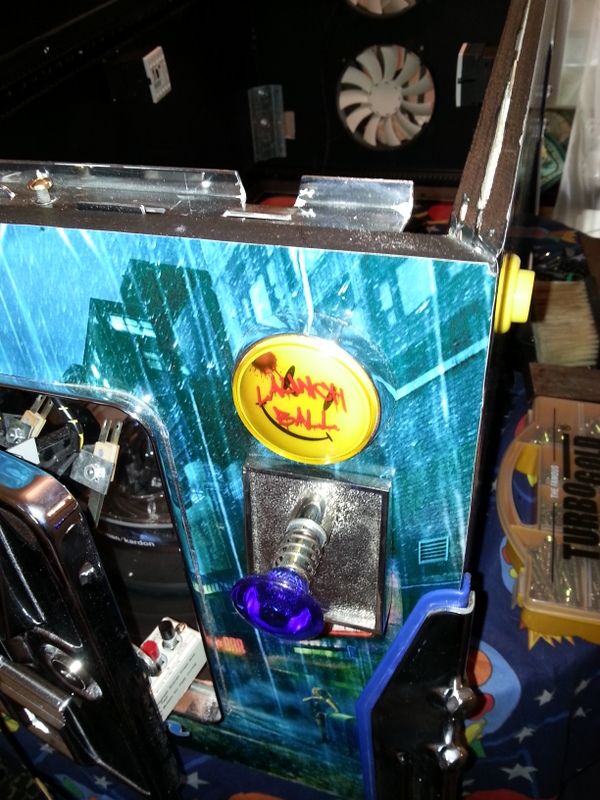

finished installation of the plunger - making sure that it was clear of all cables.


tried out the fitment of the glass... only had it a about a year :flute: - luckily it fits with no problems


Chrome polished Lockdown bar installed - will need to adjust so it clamps the class down properly. this will be done when the side rails are installed


final shot showing chromed legs, blue leg protectors and oak pinball feet.. if i say so myself its gonna look epic when completed..

Link to comment
Share on other sites
