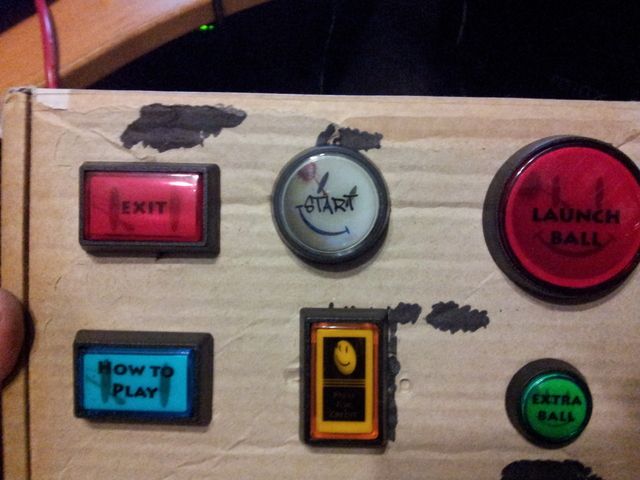

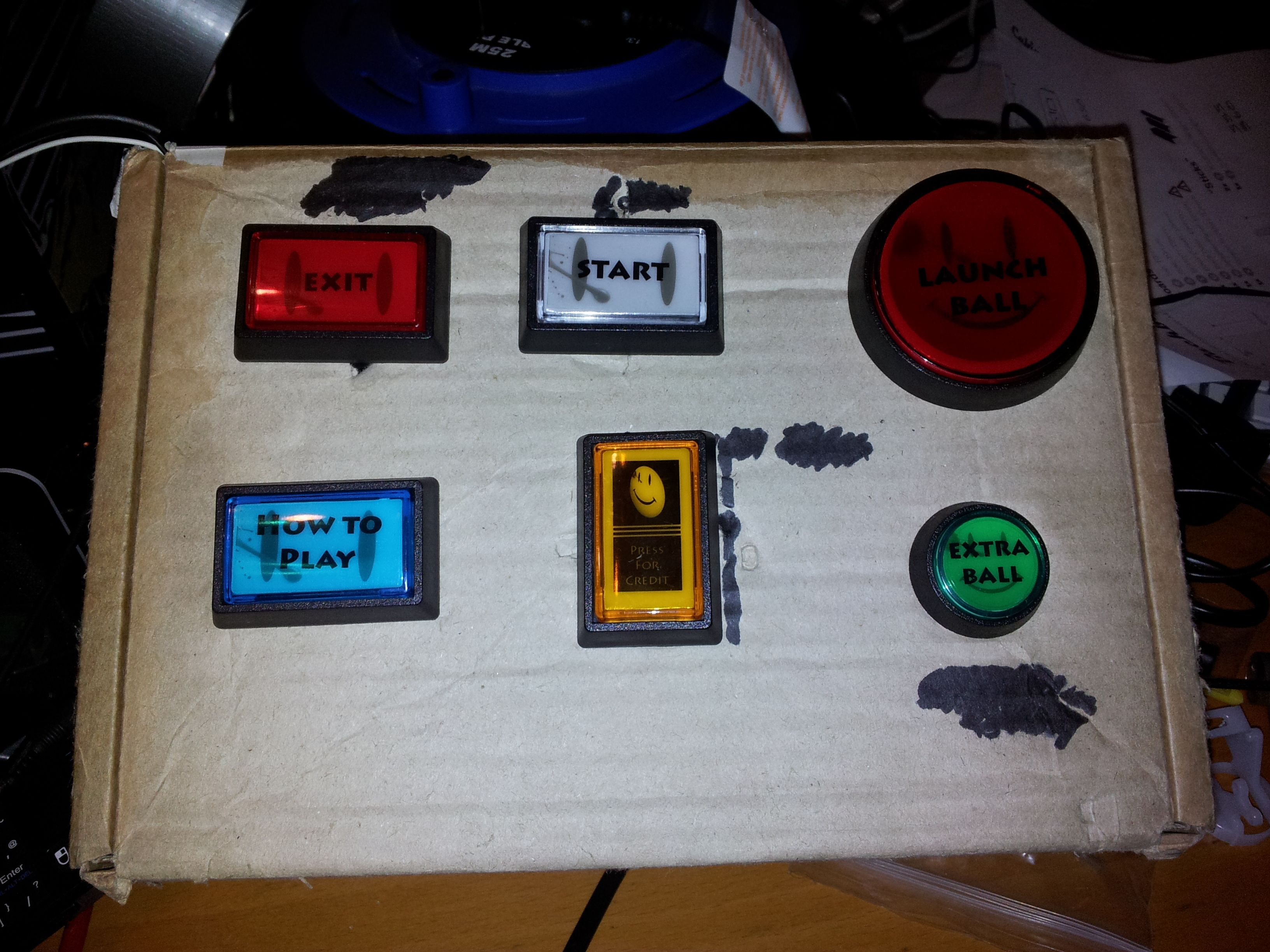

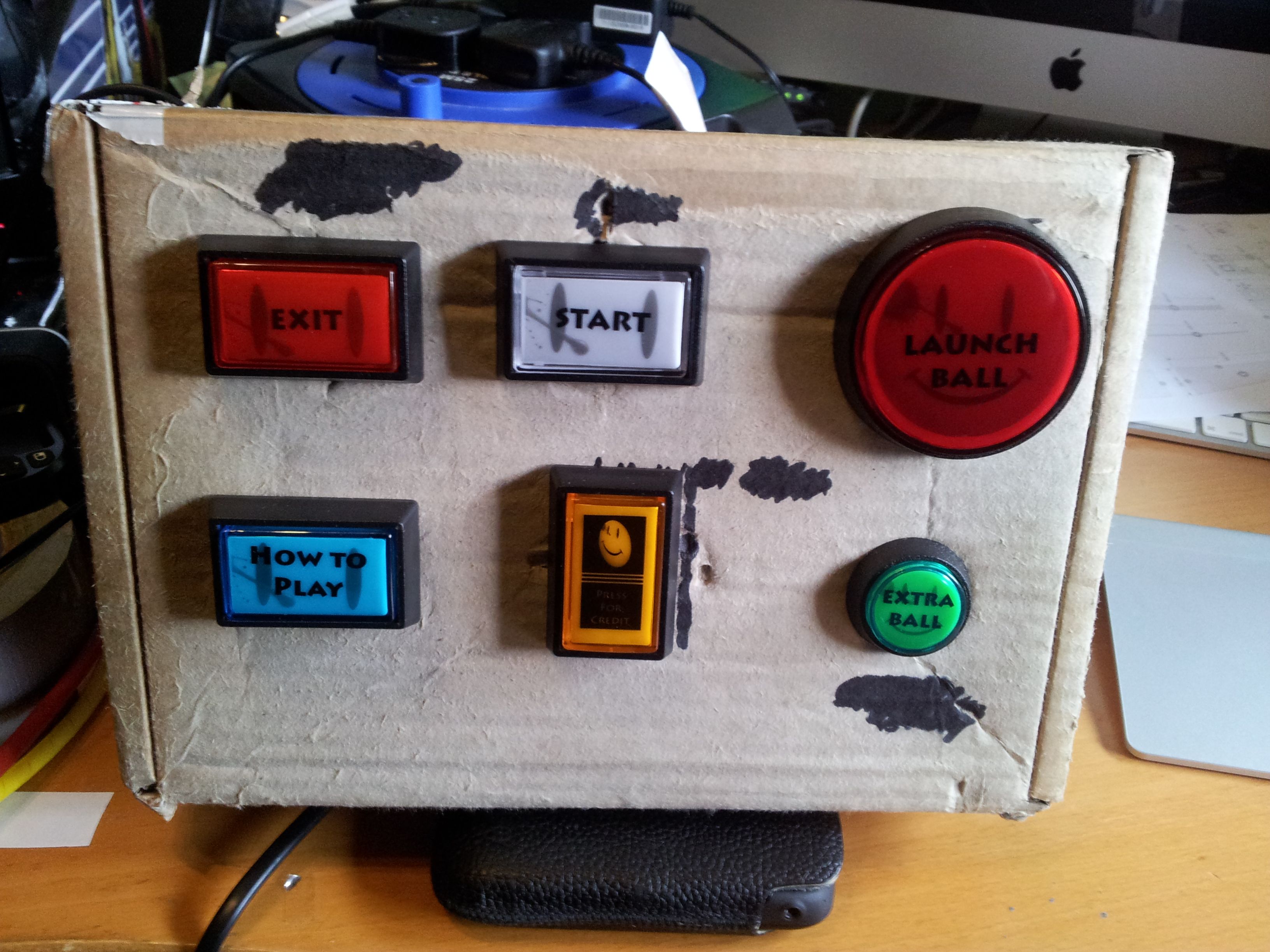

mikekim Posted August 30, 2012 Author Share Posted August 30, 2012 Progress update: playing around with the ipac and buttons for the past couple of days. built the obligatory cardboard box with all the buttons that i will be using on my cab, to test the ipac programming (also a good excuse to play some pinball with proper leaf buttons, rather than keyboard). at the moment the box is all illuminated from a single 12v power source. looking to replace the buttons, as i'm not happy with the square ones, don't think they will look right on the cab (probably 4cm diameter round ones, are the current replacement options). also have ordered a Yellow Launch Ball button never realised how hard it is go get a good shot of illuminated buttons with a camera phone - will have to break out the DSLR for the build shots the nice tidy internal shot - NOT next instalment::: my LEDWiz and 2 of Zebs booster boards have arrived this week, so i will be playing with them next will also probably pick up the contactors and test them out properly before starting on the cab body Link to comment Share on other sites More sharing options...
DeeGor Posted August 30, 2012 Share Posted August 30, 2012 at the moment the box is all illuminated from a single 12v power source. I'm not sure if you're using regular bulbs or not, but if you are, don't leave the bulbs on for too long. At 12v, they will melt your buttons. power them at 5v or better yet, go with leds. Link to comment Share on other sites More sharing options...
mikekim Posted August 30, 2012 Author Share Posted August 30, 2012 I'm not sure if you're using regular bulbs or not, but if you are, don't leave the bulbs on for too long. At 12v, they will melt your buttons. power them at 5v or better yet, go with leds. thanks for the tip - i have noticed they get quite warm (they are only on for a couple of minutes). have ordered some led replacements Link to comment Share on other sites More sharing options...
mikekim Posted August 30, 2012 Author Share Posted August 30, 2012 UPDATE new buttons arrived today while i was at work. here is the start button installed on the test panel for a size comparison (with button art applied) same button with illumination Link to comment Share on other sites More sharing options...
Spies Posted August 31, 2012 Share Posted August 31, 2012 next instalment:::my LEDWiz and 2 of Zebs booster boards have arrived this week, so i will be playing with them next Why a booster board instead of relays? Link to comment Share on other sites More sharing options...
mikekim Posted August 31, 2012 Author Share Posted August 31, 2012 Why a booster board instead of relays? seems like a lot less hassle than 32 fuses & various relays + it gives me the option of taking the arduino route later on without having to totally rewire the cab. Link to comment Share on other sites More sharing options...
Spies Posted August 31, 2012 Share Posted August 31, 2012 Fair enough Following this thread with interest Link to comment Share on other sites More sharing options...
mikekim Posted September 1, 2012 Author Share Posted September 1, 2012 update resistors haven't turned up yet, so i cant play with my leds still had some other goodies arrive this morning... the transparent flasher caps the yellow launch button and the 5v leds. so i installed the new button and leds into the test box (currently running off an old 5v phone charger) - they will be powered via the pc power supply when in the cab had the leds running for about an hour - no heat from them at all also i have ordered the contactors and power supplies (both 12 and 24v). they should be arriving on Monday Link to comment Share on other sites More sharing options...
monkeychunkuk Posted September 1, 2012 Share Posted September 1, 2012 You know a lot about electronics what di u do as a job? Link to comment Share on other sites More sharing options...
mikekim Posted September 1, 2012 Author Share Posted September 1, 2012 You know a lot about electronics what di u do as a job? i know very little about electronics, (other than what i have read here and on various other forums) but i know quite a few electricians. as for a Job, i provide I.T. support and Audio Visual solutions for very wealthy VIP clients... NDA's prevent me from telling you who exactly i work for, but the pay is great and the work diverse, (this project is being totally financed by one of the cash bonuses i received this summer ) Link to comment Share on other sites More sharing options...
mikekim Posted September 3, 2012 Author Share Posted September 3, 2012 Quick update: all the links to items i have purchased are in the first post to help people who are looking to source items. Link to comment Share on other sites More sharing options...
mikekim Posted September 4, 2012 Author Share Posted September 4, 2012 Update.. contactors, Diodes and PSU's turned up yesterday. the 24AWG wire is due to arrive tomorrow Also picked up the 18mm (3/4") Plywood sheets for the cab build. should be able to make a start on the woodworking this weekend hopefully.. Link to comment Share on other sites More sharing options...
Spies Posted September 4, 2012 Share Posted September 4, 2012 For your nudging, why not go with a modified tilt bob? Piece of wood round the base with 3 brass screws which are wired to the ipac. As seen here: http://pinballarcadefans.com/showthread.php/118-Cabinet-Builds Link to comment Share on other sites More sharing options...
monkeychunkuk Posted September 4, 2012 Share Posted September 4, 2012 Why plywood over Mdf? Link to comment Share on other sites More sharing options...
mameman Posted September 4, 2012 Share Posted September 4, 2012 Why plywood over Mdf? Lighter More resilient to moisture Easier to fasten Safer to work with More authentic Link to comment Share on other sites More sharing options...
monkeychunkuk Posted September 4, 2012 Share Posted September 4, 2012 LighterMore resilient to moisture Easier to fasten Safer to work with More authentic hmmmm wish i had read this before i started my build Link to comment Share on other sites More sharing options...
mikekim Posted September 4, 2012 Author Share Posted September 4, 2012 I far prefer working with plywood opposed to MDF. For your nudging, why not go with a modified tilt bob? Piece of wood round the base with 3 brass screws which are wired to the ipac.As seen here: http://pinballarcadefans.com/showthread.php/118-Cabinet-Builds I have picked up a ms sidewinder pro, so will be looking into trying that. I also picked up an arduino kit the other day that has a couple of tilt sensors, so who knows what I'll be using for tilt functionality Link to comment Share on other sites More sharing options...
mattdavis Posted September 5, 2012 Share Posted September 5, 2012 I did that. Since I am just now reaching the final stages of the build, I am not too sure how well it will work, but initial play testing suggests it works fine and it is easily adjustable. For your nudging, why not go with a modified tilt bob? Piece of wood round the base with 3 brass screws which are wired to the ipac.As seen here: http://pinballarcadefans.com/showthread.php/118-Cabinet-Builds Link to comment Share on other sites More sharing options...
