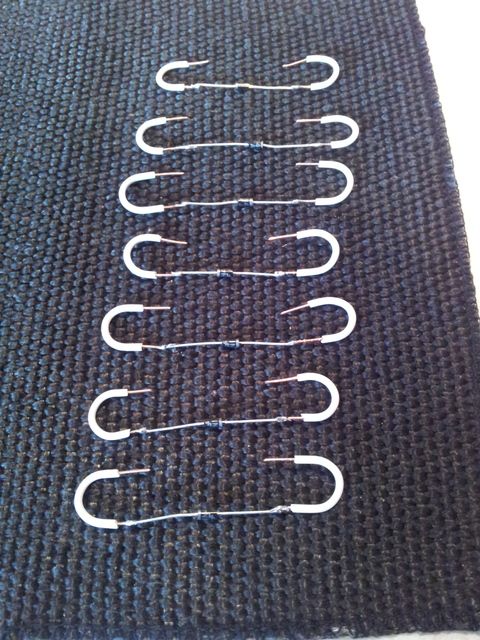

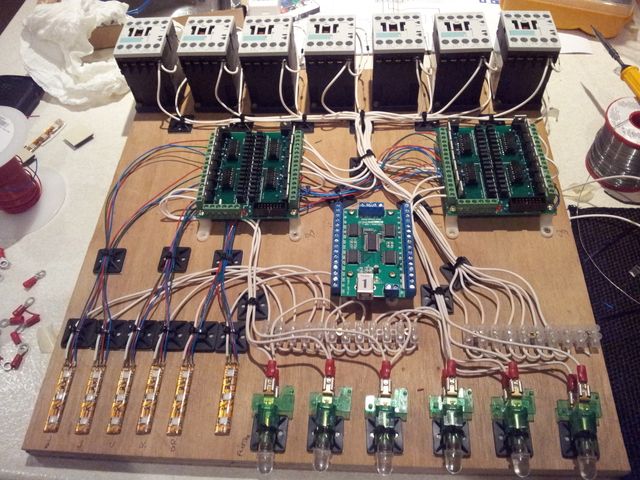

mikekim Posted September 8, 2012 Author Share Posted September 8, 2012 Update started cutting the wood today. got the base wood cut completed, (no pics though - after all cut wood is pretty much the same as other peoples shots). i will post some shots when starting assembly. I did however start work this afternoon on wring up the electronics test bed, as i want to make sure that all the toys work before wiring them into the cab. diodes for contactors: test station prior to connecting LedWiz to Zebs booster boards: strange how soldering and wiring is quite therapeutic in its own way. all thats left to do before testing, is to connect the LEDWiz inputs to their corresponding connection on the booster boards and connect the power sources to the boards. Link to comment Share on other sites More sharing options...
monkeychunkuk Posted September 8, 2012 Share Posted September 8, 2012 Mike you put my wiring to shame and it's my trade great work looks very tidy do upload pictures of the wood it's great to see all the components in folks builds Link to comment Share on other sites More sharing options...
richie_jones Posted September 10, 2012 Share Posted September 10, 2012 Great build so far mike..Would be good to see a vid of the test board working. Link to comment Share on other sites More sharing options...
cartman1973 Posted September 17, 2012 Share Posted September 17, 2012 Great build Mike. Love the Watchman theme, hope it's not too late but got to ask - wouldn't the image of Sally Jupiter as Silk Spectre look great on the sides of the back box, like the one painted on the side of the plane in the book/movie? Just my two cents... Link to comment Share on other sites More sharing options...
mikekim Posted September 17, 2012 Author Share Posted September 17, 2012 Great build Mike. Love the Watchman theme, hope it's not too late but got to ask - wouldn't the image of Sally Jupiter as Silk Spectre look great on the sides of the back box, like the one painted on the side of the plane in the book/movie? Just my two cents... That might be worth a look, I'll see if there is any high res artwork available Link to comment Share on other sites More sharing options...
monkeychunkuk Posted September 18, 2012 Share Posted September 18, 2012 Great build Mike. Love the Watchman theme, hope it's not too late but got to ask - wouldn't the image of Sally Jupiter as Silk Spectre look great on the sides of the back box, like the one painted on the side of the plane in the book/movie? Just my two cents... What he said! Link to comment Share on other sites More sharing options...
mikekim Posted September 21, 2012 Author Share Posted September 21, 2012 had a bit of a play with photoshop and came up with this: figured that it would need to look distressed, as the movie is set in the mid 80's and the original silk spectre was 40 years prior. the shape of the images are the same as the sides of the backbox design i'm toying with (looking for something different rather than the standard square box) Link to comment Share on other sites More sharing options...
monkeychunkuk Posted September 21, 2012 Share Posted September 21, 2012 That is amazing !!!! Thats gonna look great Link to comment Share on other sites More sharing options...
DeeGor Posted September 21, 2012 Share Posted September 21, 2012 The art does look great, but it seems like the art style clashes with your cabinet side art. I liked your other version much better. Just my 2 cents. Link to comment Share on other sites More sharing options...
mikekim Posted September 21, 2012 Author Share Posted September 21, 2012 alternatively i was thinking about this design: perhaps i should get 2 of the marquee monitors (one for each side and randomize the artwork ) Link to comment Share on other sites More sharing options...

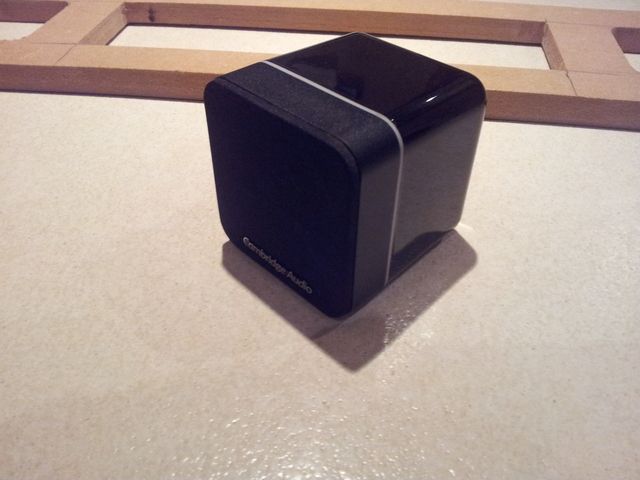

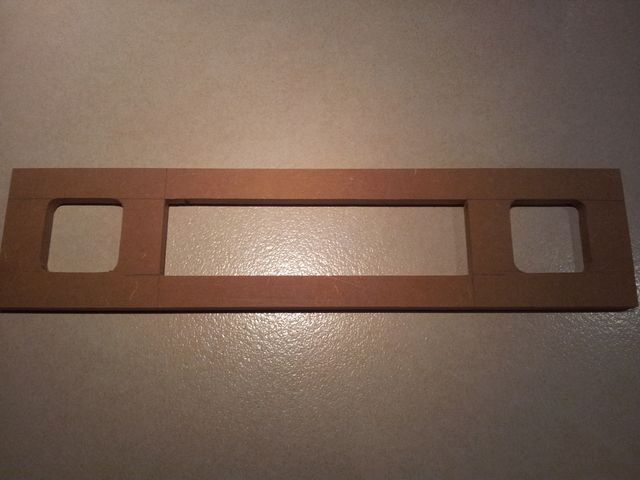

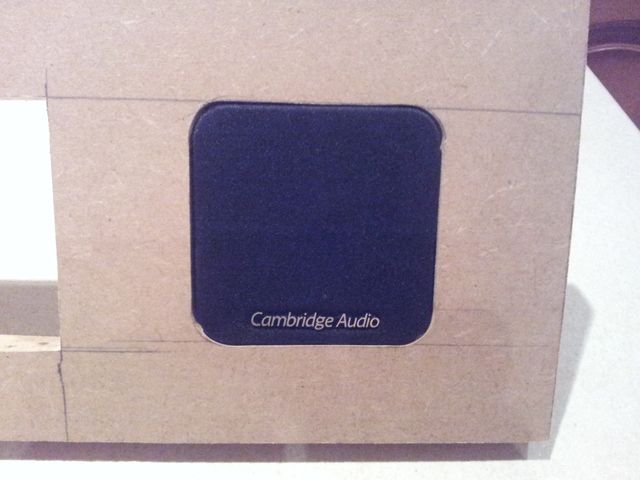

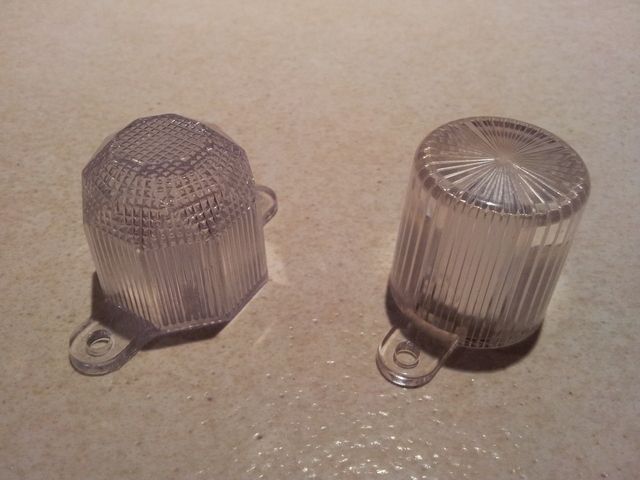

mikekim Posted September 21, 2012 Author Share Posted September 21, 2012 additional update flasher caps have arrived - will probably use the octagonal ones, just prefer them to the round ones: got the speaker / DMD panel cut today: test fit with speaker: Cambridge Audio Minx speaker: hopefully I should be able to start on construction of the cab body this weekend (fingers crossed), so i should be able to post some pics over the next couple of days. Link to comment Share on other sites More sharing options...
monkeychunkuk Posted September 22, 2012 Share Posted September 22, 2012 Wow that thing is gonna sound great are you putting a bass speaker in? Link to comment Share on other sites More sharing options...
mikekim Posted September 22, 2012 Author Share Posted September 22, 2012 Wow that thing is gonna sound great are you putting a bass speaker in? Yes, using the sub from a set of creative labs 2100's Sent from my GT-I9100 using Tapatalk 2 Link to comment Share on other sites More sharing options...
monkeychunkuk Posted September 22, 2012 Share Posted September 22, 2012 Thats gonna sound soooo good i Link to comment Share on other sites More sharing options...
evil eye Posted September 24, 2012 Share Posted September 24, 2012 alternatively i was thinking about this design: perhaps i should get 2 of the marquee monitors (one for each side and randomize the artwork ) Do this, 100%. Love the Miss Jupiter look too, but you need side art to match that. This one compliments your side art perfectly and was a focal point of the movie to boot. Link to comment Share on other sites More sharing options...
cartman1973 Posted September 24, 2012 Share Posted September 24, 2012 +1 on this. Much as I like what you came up with for Sally Jupiter, this fits better with the overall look you've designed, and as evil eye says it is a pivotal point of the story - looks great! Link to comment Share on other sites More sharing options...
monkeychunkuk Posted September 25, 2012 Share Posted September 25, 2012 Have to agree Muss Jupiter is lovely but Strays from your over all design Link to comment Share on other sites More sharing options...

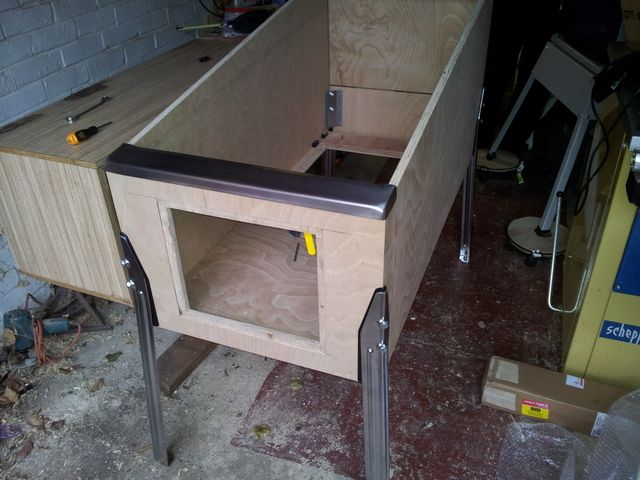

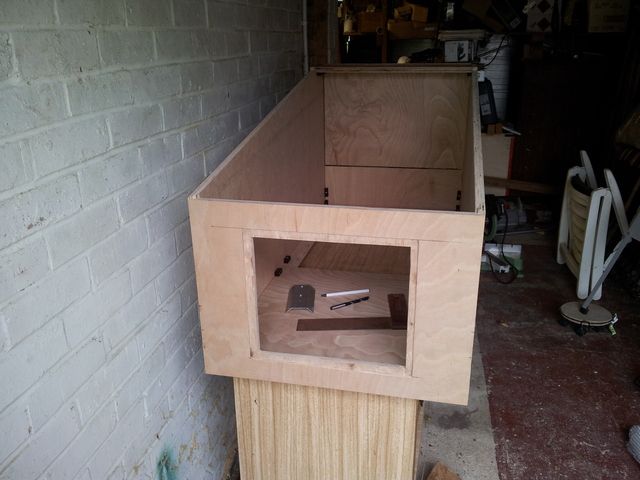

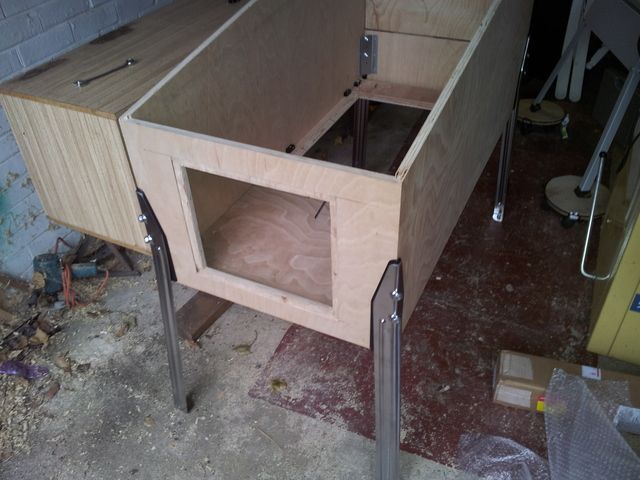

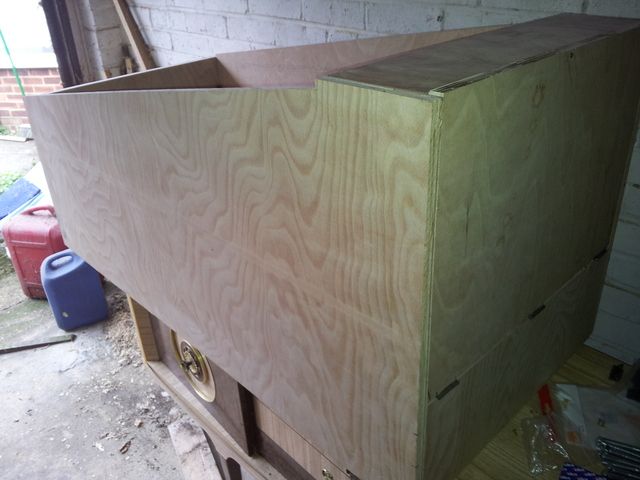

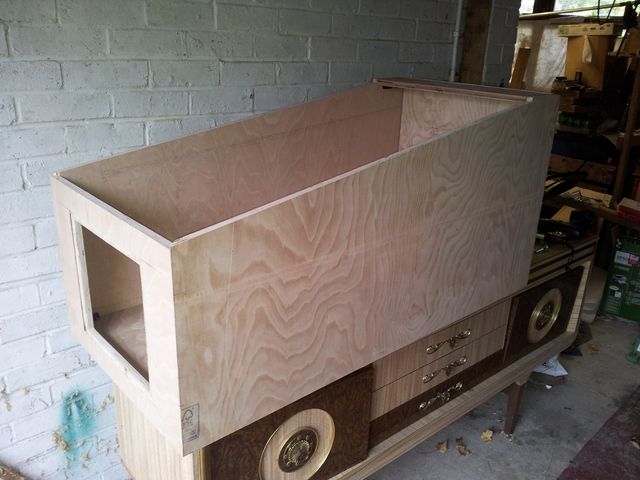

mikekim Posted September 30, 2012 Author Share Posted September 30, 2012 Update: managed to get a couple of hours spare to finally start finally started putting the cab together. (been really busy with work and family stuff) test fit of body - put together with cabinet connection blocks. front panel 45 degree mitred for better fit - rear panel straight joint coin door will be rebated flush into wood rather than stuck on externally as in most other designs rear door with a couple of hinges attached (will be recessed later to make top of door flush with top of cab) legs installed - holes drilled from inside out with 6mm pilot hole, then 10 mm main hole. wooden block compressed on the outside of the cab to stop excessive splitting of wood on drill exit Lockdown bar and receiver test fit the hole in the middle of the cab is for the PC motherboard tray Link to comment Share on other sites More sharing options...
jasonsmith Posted October 2, 2012 Share Posted October 2, 2012 Wow Mike, this is a super pin in the making. Finding the force feedback stuff very interesting, you make it look so easy. May I ask what transparent film you are using for your button labels or where to find some? Link to comment Share on other sites More sharing options...
mameman Posted October 2, 2012 Share Posted October 2, 2012 Looking good Link to comment Share on other sites More sharing options...
chriz99 Posted October 2, 2012 Share Posted October 2, 2012 great work Link to comment Share on other sites More sharing options...
mikekim Posted October 3, 2012 Author Share Posted October 3, 2012 Wow Mike, this is a super pin in the making. Finding the force feedback stuff very interesting, you make it look so easy. May I ask what transparent film you are using for your button labels or where to find some? the film i used came from an ebay supplier. ive attached the link so you can look for something similar http://www.ebay.co.uk/itm/140369027818?ssPageName=STRK:MEWNX:IT&_trksid=p3984.m1497.l2649 hope this helps Link to comment Share on other sites More sharing options...
monkeychunkuk Posted October 3, 2012 Share Posted October 3, 2012 Looking great mate a very well made build Link to comment Share on other sites More sharing options...
jasonsmith Posted October 7, 2012 Share Posted October 7, 2012 Thanks Mike, appreciate that. Link to comment Share on other sites More sharing options...

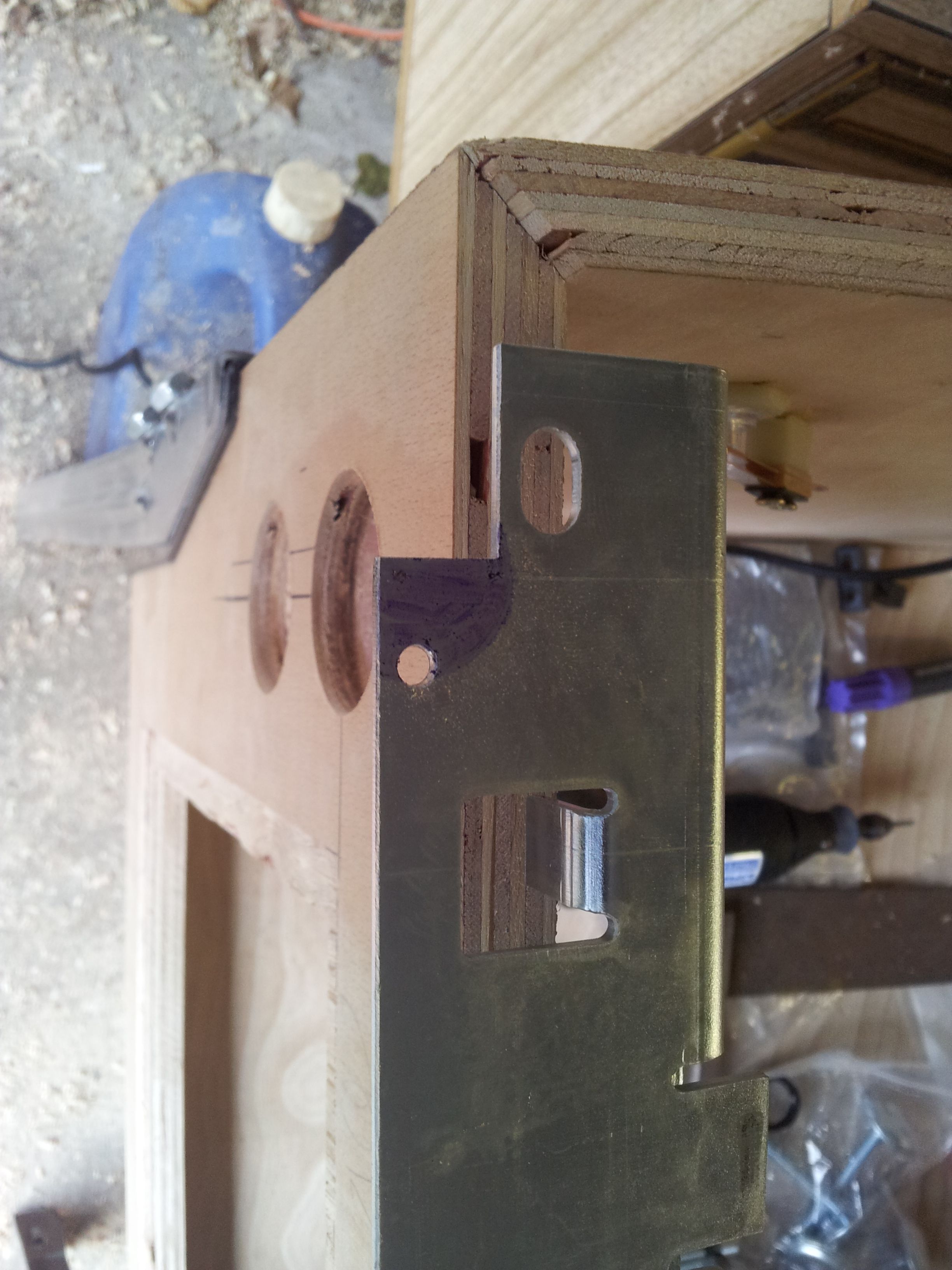

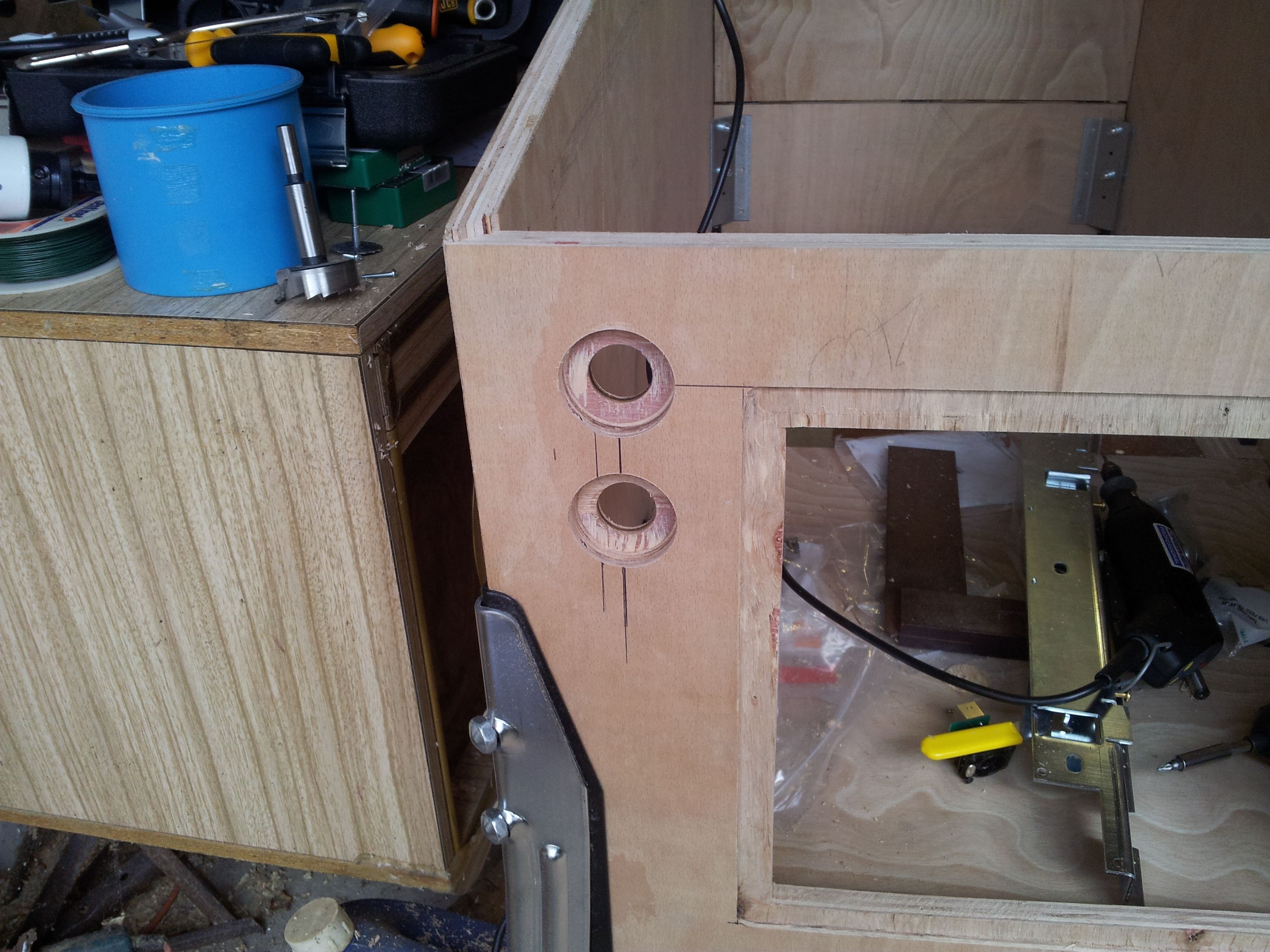

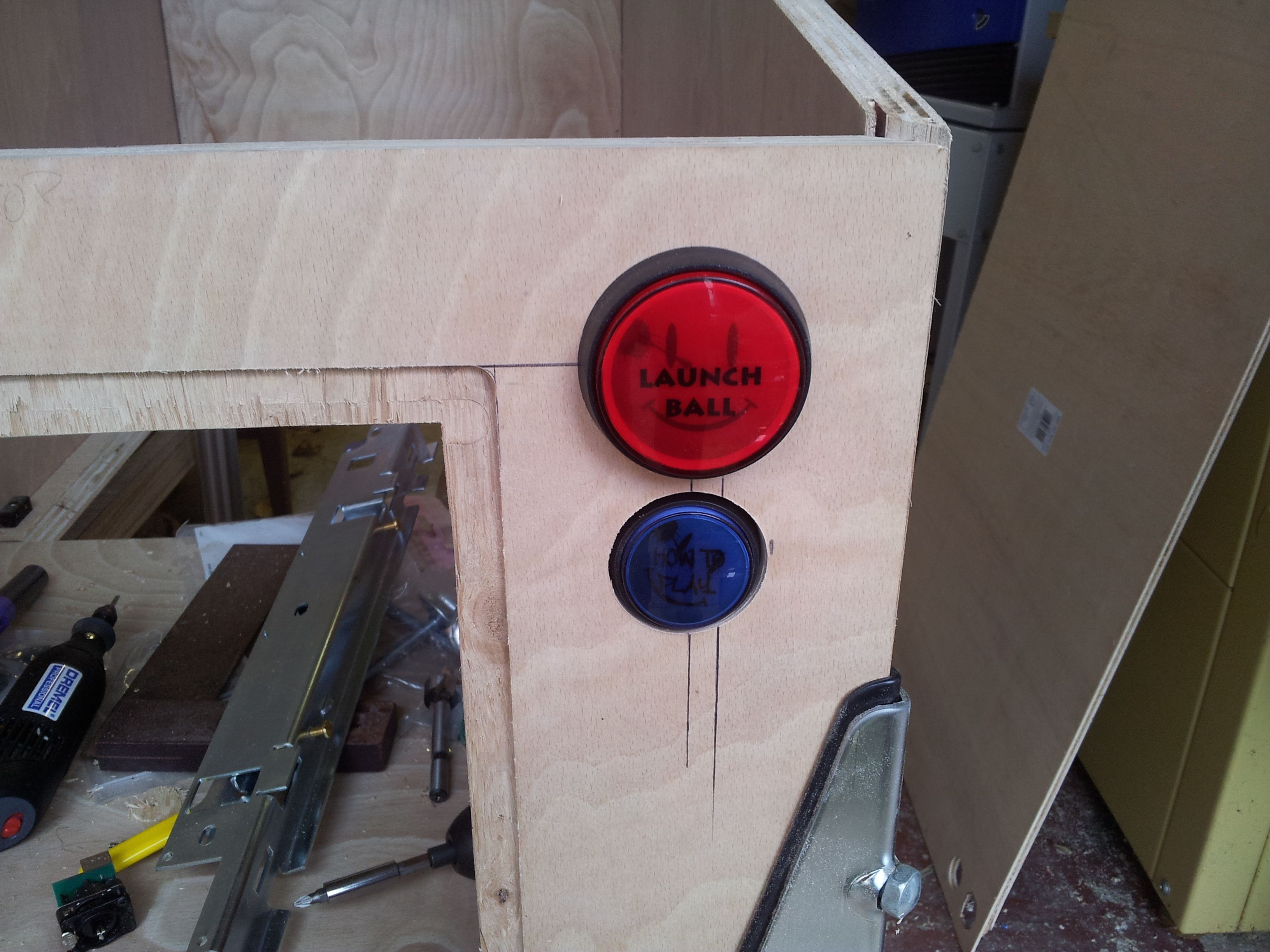

mikekim Posted October 8, 2012 Author Share Posted October 8, 2012 Update not a lot of time to spend on the cab this week - damn real life issues!!! drilled the holes in the front panels, first using a 44mm Forstner Bit for about 5mm deep, then finishing the hole with a 25mm bit (I'm using 44mm starpoint buttons opposed to the normal ones supplied with the V.P. kits) not paying attention to button positioning - i stupidly forgot about the lockdown bar, so had to remove a section of it with a dremel and cutting bit (5mm larger than the area shown in purple on the bar) to get the button and locking nut to fit properly. test fit of spare launch button and how to play button countersunk into the extra ball hole i have decided against using the how to play button, so its relegated to a test fit button. I also countersunk the flipper buttons using 28mm & 16mm forstner bits, but my battery died on my cell, so the shots on those will appear at a later date. the transparent flipper buttons I'm using are shorter than the virtua pin kit ones, so i had to modify (cut down) the leaf spring mounting, so it would still work. pics to follow later. (you can just see the modification on the lockdown bar shot) Link to comment Share on other sites More sharing options...
