chriz99 Posted November 10, 2010 Author Share Posted November 10, 2010 Nice work, getting a more detailed idea on how my cab should become For what purpose are the yellow/blue/white buttons if i may ask ? (do i need to order more buttons ) these buttons are for power on/off 30" backglass lcd volume + ipac shift-key "open coindoor" (to enter pinball service menu) volume - start/shutdown pc Link to comment Share on other sites More sharing options...
shilmover Posted November 10, 2010 Share Posted November 10, 2010 hmm, I don't know here are the measurements of my flasher dome: 32mm height, 32mm diameter I just got mine... I guess I didnt realize that they were so small. Link to comment Share on other sites More sharing options...
gbeef Posted November 10, 2010 Share Posted November 10, 2010 Did you get the small chip version? i was going to order but was holding off also email goovey on which version they sell they didnt reply Link to comment Share on other sites More sharing options...
njay Posted November 10, 2010 Share Posted November 10, 2010 they only sell the small chip one i asked Link to comment Share on other sites More sharing options...
shilmover Posted November 10, 2010 Share Posted November 10, 2010 Let me clarify. I just got the flasher domes, not the LED-Wiz Link to comment Share on other sites More sharing options...
njay Posted November 10, 2010 Share Posted November 10, 2010 yes the domes seem small, but the cree chips are not bigger then 2 or 3 cm in width i thought chris said... but beter check the site Link to comment Share on other sites More sharing options...
shilmover Posted November 10, 2010 Share Posted November 10, 2010 yes the domes seem small, but the cree chips are not bigger then 2 or 3 cm in width i thought chris said... but beter check the site Yes, they will fit no problem. i am also looking at a simple heatsink solution. I will post more info when i get it working. Link to comment Share on other sites More sharing options...
Zeaed Posted November 11, 2010 Share Posted November 11, 2010 Nice cab Me like others are getting inspired by people like you making your own The only thing im a bit confused is about the relays, switches and buttons and putting those things together Would be nice if someone could do an "easy" guide step by step with that one, which i think is the hardest part of the build of either a pin machine or arcade Link to comment Share on other sites More sharing options...
shilmover Posted November 11, 2010 Share Posted November 11, 2010 Chris, Check this out... Just ordered some of these: http://cgi.ebay.com/ws/eBayISAPI.dll?ViewItem&item=170514559011&ssPageName=STRK:MEWNX:IT Link to comment Share on other sites More sharing options...
chriz99 Posted November 11, 2010 Author Share Posted November 11, 2010 Chris,Check this out... Just ordered some of these: http://cgi.ebay.com/ws/eBayISAPI.dll?ViewItem&item=170514559011&ssPageName=STRK:MEWNX:IT this is just a mounting plate. you need heatsinks (and heatpads/glue) like http://www.led-tech.de/en/High-Power-Supply/Coolers/Spike-Heat-Sink-round-70mm-LT-1389_106_114.html or http://www.led-tech.de/en/High-Power-Supply/Coolers/Spike-Heat-Sink-51x51mm-LT-1461_106_114.html Link to comment Share on other sites More sharing options...
shilmover Posted November 11, 2010 Share Posted November 11, 2010 I ordered some of those too. In reading about the smaller ones, it appears that they work well if you dont have the LEDs on all the time. Figured tha for $5 it would be worth it. Link to comment Share on other sites More sharing options...

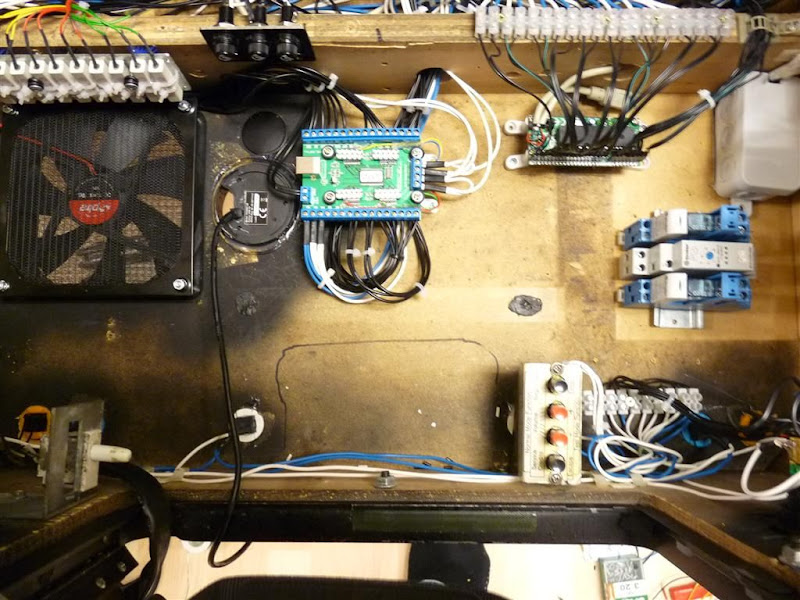

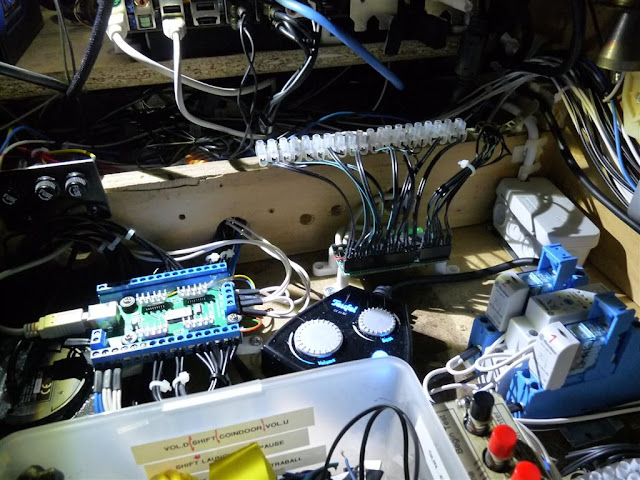

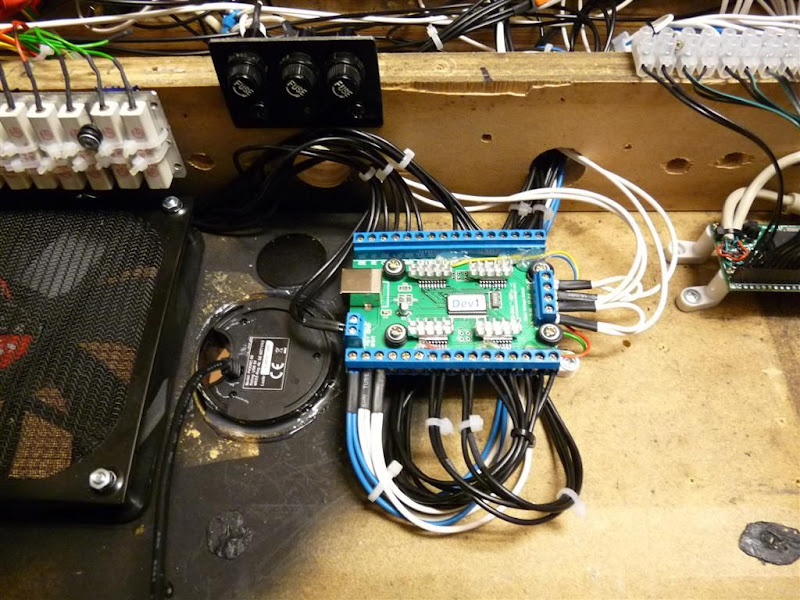

chriz99 Posted November 11, 2010 Author Share Posted November 11, 2010 wiring wiring wiring I hate wiring Link to comment Share on other sites More sharing options...
shilmover Posted November 11, 2010 Share Posted November 11, 2010 Very nice. I need to rewire mine. What guage of wire did you use? 20? Link to comment Share on other sites More sharing options...
chriz99 Posted November 11, 2010 Author Share Posted November 11, 2010 I use AWG25 / 0.5mm diameter wire Link to comment Share on other sites More sharing options...
gbeef Posted November 12, 2010 Share Posted November 12, 2010 very nice, i may go and rewire everything in my cab after seeing ek2 cab and yours! Link to comment Share on other sites More sharing options...
Ext2k Posted November 12, 2010 Share Posted November 12, 2010 Do you have 3 fuses installed? Link to comment Share on other sites More sharing options...
chriz99 Posted November 12, 2010 Author Share Posted November 12, 2010 Do you have 3 fuses installed? yes, for 12v and 5v. Link to comment Share on other sites More sharing options...
pixelmagic Posted November 12, 2010 Share Posted November 12, 2010 these buttons are forpower on/off 30" backglass lcd volume + ipac shift-key "open coindoor" (to enter pinball service menu) volume - start/shutdown pc Uhm, power on/off backglass ?? I heard in the shop here that EU tv's are not allowed to switch on directly when you put power on them. I asume you have the same 'problem' with your backglass lcd ? Just asking myself how to solve that, i guess it's low voltage and only needs a pulse to get 'on' either by remote or by the original power button. Can you give me some hints please ? Link to comment Share on other sites More sharing options...
shilmover Posted November 12, 2010 Share Posted November 12, 2010 Uhm, power on/off backglass ??I heard in the shop here that EU tv's are not allowed to switch on directly when you put power on them. I asume you have the same 'problem' with your backglass lcd ? Just asking myself how to solve that, i guess it's low voltage and only needs a pulse to get 'on' either by remote or by the original power button. Can you give me some hints please ? Its true that most TVs will not turn on when power is applied to them. I did not want to have to push multiple buttons to turn on my cab as I have everything wired back to the original power switch at the bottom of the cabinet (right side under the plunger area), so here is what I did... Note: I do not take responsibility should something go wrong. This works for me, but I cannot guarantee that it will work for you. Your mileage may vary Since you are decasing the TV anyway, find the control board that has the buttons on it on the solder part of the board, find the connections for the switch controlling power. Shorting across those connections should turn the TV on (try it with a small piece of wire. Leave the wire shorted there for a few seconds to see if the TV goes into an on/off/on/off/... cycle as I have seen a couple do this) Solder 2 small wires to the connections (one to each) Solder a rocker/flip switch to the wires (not a pushbutton!). Something like this: http://www.rapidonline.com/netalogue/photos/S75-0095W01.jpg Flipping the switch to the on position and leaving it there should turn your TV on automatically when power is applied. Link to comment Share on other sites More sharing options...
chriz99 Posted November 12, 2010 Author Share Posted November 12, 2010 I am done with wiring have to config the software tomorrow... virtual pinball is ready for the next generation Link to comment Share on other sites More sharing options...
shilmover Posted November 12, 2010 Share Posted November 12, 2010 I am done with wiring have to config the software tomorrow... virtual pinball is ready for the next generation Very nice. I dont know if I mentioned this, but I need the software! Link to comment Share on other sites More sharing options...
shilmover Posted November 13, 2010 Share Posted November 13, 2010 Everyone, I have not received the LEDs I purchased from China yet (no surprise as it will take a bit of time). I did, however, find Heatsinks for them for cheap. 4 for $10 shipped: http://cgi.ebay.com/4-x-3W-Aluminium-Heatsink-Cree-LED-Bulb-/390261067261?pt=LH_DefaultDomain_0&hash=item5add5f4dfd Link to comment Share on other sites More sharing options...
grimwasere Posted November 13, 2010 Share Posted November 13, 2010 anyone know where i can get ledwiz from in uk cheers eric Link to comment Share on other sites More sharing options...
njay Posted November 15, 2010 Share Posted November 15, 2010 hey chris, got a new teaser video for us? Link to comment Share on other sites More sharing options...

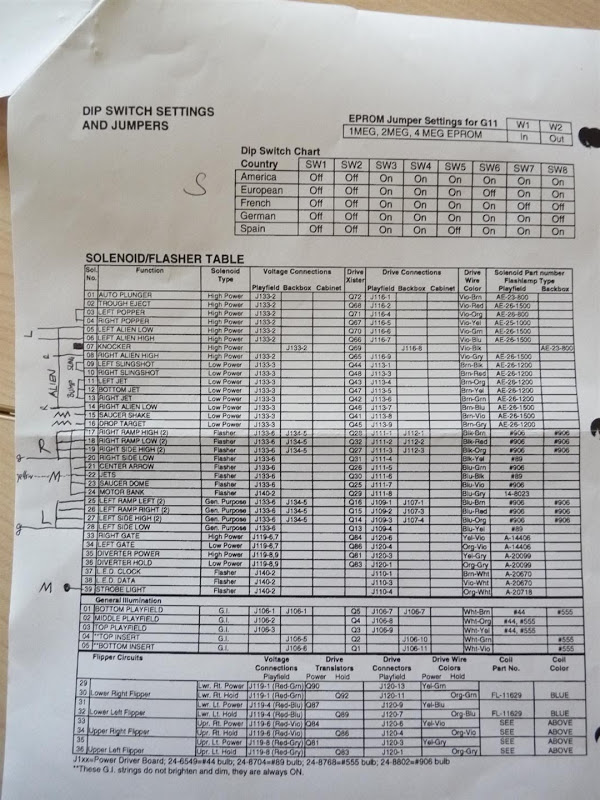

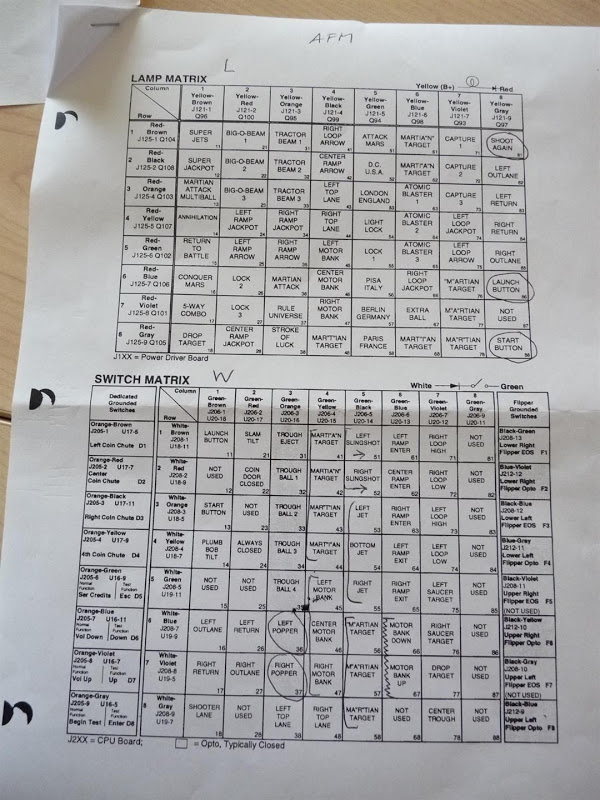

chriz99 Posted November 15, 2010 Author Share Posted November 15, 2010 hey chris, got a new teaser video for us? here are 2 preview vids of ATTACK FROM MARS. ledwiz outputs are not optimized yet, just a first test. check out the balloon tips in the vids ;-) ==> during gameplay ( )3 rgbw topper flasher, 8 force feedback solenoids/contactors for flippers, slingshots, bumpers and special effects, 1 pinball shaker, 1 original replay knocker, rgb button leds for the right button color... the 3 topper lights are mainly for pinball flasher. every pinball has flasher, so you can emulate each color and viewing angle. they are so bright that it reflect to the playfield glass and to the whole room. amazing effect. you have to see this in real. <object width="425" height="344"><param name="movie" value="http://www.youtube.com/watch?v=ElS7v5Kq2zc&hl=de_DE&fs=1&rel=0"></param><param name="allowFullScreen" value="true"></param><param name="allowscriptaccess" value="always"></param><embed src="http://www.youtube.com/watch?v=ElS7v5Kq2zc&hl=de_DE&fs=1&rel=0" type="application/x-shockwave-flash" allowscriptaccess="always" allowfullscreen="true" width="425" height="344"></embed></object> ==> inside pinmame menu to test the ledwiz outputs ( ) <object width="425" height="344"><param name="movie" value="http://www.youtube.com/watch?v=HvIQfjlEkfU&hl=de_DE&fs=1&rel=0"></param><param name="allowFullScreen" value="true"></param><param name="allowscriptaccess" value="always"></param><embed src="http://www.youtube.com/watch?v=HvIQfjlEkfU&hl=de_DE&fs=1&rel=0" type="application/x-shockwave-flash" allowscriptaccess="always" allowfullscreen="true" width="425" height="344"></embed></object> there are many possibilites to optimize the ledwiz output or to generate awesome custom output. you have to look in the pinball manuals for solenoid, lamp and switch matrix. It is really time consuming, but when it's done - it's mind blowing When the software is released, we should open an "ledwiz output" thread to share our configs. Link to comment Share on other sites More sharing options...
