you have to mix red, green and blue to generate white with a rgb-led. the cree leds have an extra fourth diode for ultrabright white. the mixing is better than rgb-white and the extra coldwhite diode gives that strobo kick.

with flasher rotation I mean the flashers on top of the backbox go mad :D

Got it.

If I can get mine to work half as good as tthe Cree, I would be happy as they were much, much cheaper. :D

  • Replies 1.5k
  • Created
  • Last Reply
chriz99 Contributor

chriz99

Posted
  • Author
Posted

just tested ADDAMS FAMILY and TWILIGHT ZONE.

there is a problem with the flasher. I can not drive the flasher via ledwiz :(:dontknow:

I hope we find a fix for it...

cheers

chris

[sIGPIC][/sIGPIC]

* taito egret 29 candy cabs * indy & star wars pachinkos

17" bartop with ledwiz rgbleds * 10" bubble bobble & galaga bartop * arm champs 2

check out hi-res backglasses * best vpin performance * ledwiz config and software

shilmover Rookie

shilmover

Posted
Posted
just tested ADDAMS FAMILY and TWILIGHT ZONE.

there is a problem with the flasher. I can not drive the flasher via ledwiz :(:dontknow:

I hope we find a fix for it...

Just in those two tables? it still works in the others?

luvthatapex Rookie

luvthatapex

Posted
Posted
just tested ADDAMS FAMILY and TWILIGHT ZONE.

there is a problem with the flasher. I can not drive the flasher via ledwiz :(:dontknow:

I hope we find a fix for it...

Which version of Addams? Looks like there are 6 flashers in the script. This is slightly different from the manual.

Solenoid

17 = Flasher 1 (above small flipper left)

18 = Flasher 2 (above swamp)

19 = Flasher 3 (above pop bumper 1)

20 = Flasher 4 (upper left)

21 = Flasher 5 (Top center)

22 = Flasher 6 & Cloud Topper

Does any of this help?

shilmover Rookie

shilmover

Posted
Posted

And then there were 9... :(

Looks like I blew the Red on one of the LEDs. Accidentally bypassed the resistor with 6v. No more red. :)

Correction, I had the resistor for the Red LED on the Blue one and Blue on the Red on... Hence, no Red LED...

chriz99 Contributor

chriz99

Posted
  • Author
Posted

thanks for your help, guys!

Which version of Addams? Looks like there are 6 flashers in the script. This is slightly different from the manual.

Solenoid

17 = Flasher 1 (above small flipper left)

18 = Flasher 2 (above swamp)

19 = Flasher 3 (above pop bumper 1)

20 = Flasher 4 (upper left)

21 = Flasher 5 (Top center)

22 = Flasher 6 & Cloud Topper

Does any of this help?

addams family flasher 17-21 generates an visual pinball overflow/outspd/line0 error, when the ball activates the first flasher.

---------------------------

on twilight zone the same, overflow/outspd/line0 error :hmpf:

---------------------------

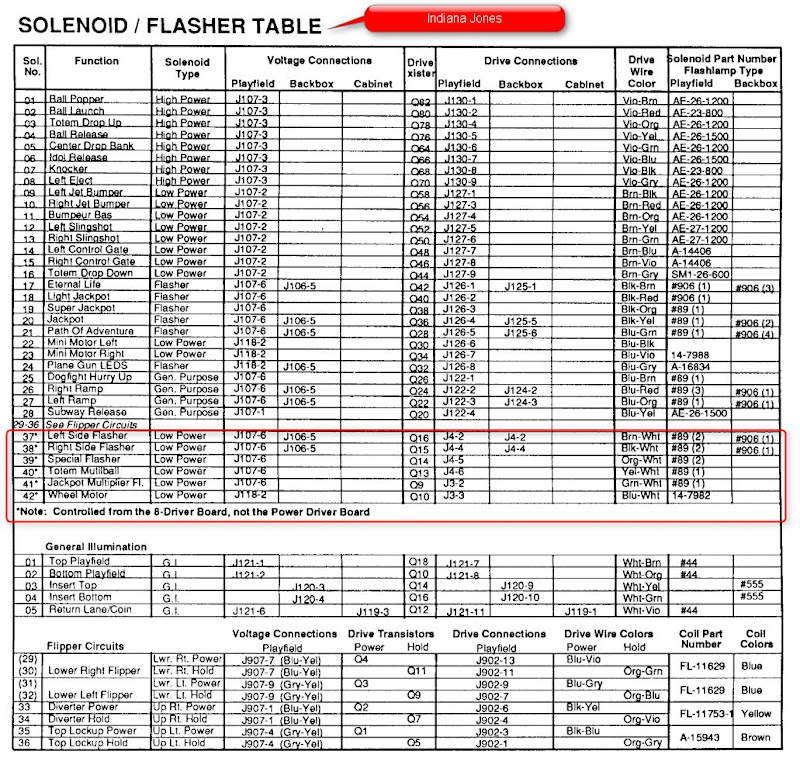

I noticed on indiana jones, that flasher 37-42 are not working... but 17-21 works great!

maybe because 37-42 are controlled via 8-driver-board?


cheers

chris

[sIGPIC][/sIGPIC]

* taito egret 29 candy cabs * indy & star wars pachinkos

17" bartop with ledwiz rgbleds * 10" bubble bobble & galaga bartop * arm champs 2

check out hi-res backglasses * best vpin performance * ledwiz config and software

pixelmagic Enthusiast

pixelmagic

Posted
Posted

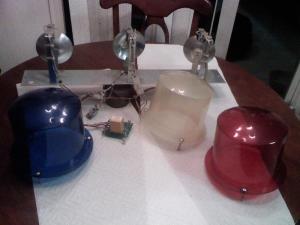

Look at what I just bought... :D
