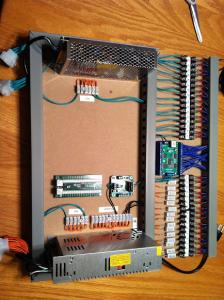

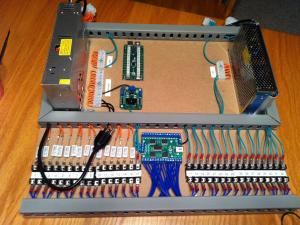

bill55 Posted April 12, 2012 Author Share Posted April 12, 2012 OK....Got some more wiring done yesterday. I'll post a few pics, then I am going to post a few with labeling on them. Let me know if this all looks right to you guys. The power cord you see is coming from my 24v power supply. That is then in daisy chained to the 12v power supply. Closeup pics of the wiring to follow. Link to comment Share on other sites More sharing options...

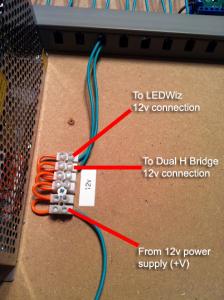

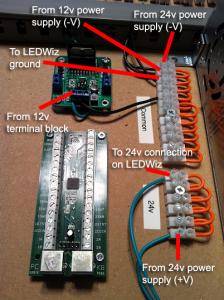

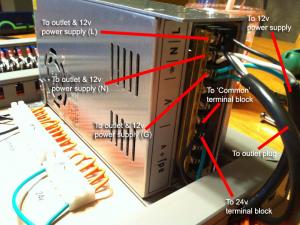

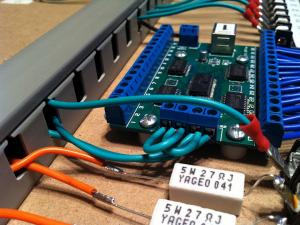

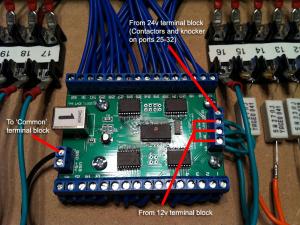

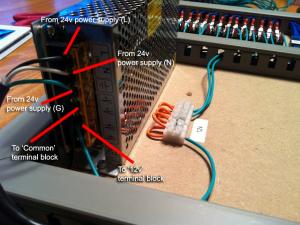

bill55 Posted April 12, 2012 Author Share Posted April 12, 2012 OK guys. Let me know if this all looks right or if I screwed something up :-) I tried to label with as much detail as I thought was needed. Basically how I hooked everything up was connecting the 24v power supply to the outlet via a computer power cable that I cut the end off. I then daisy chained the 12v power supply off these same connections. (Both power supplies are on one power cable to the outlet). I then took the +V from the 12v and 24v power supplies to separate terminal blocks. I took the -V from the 12v and 24v power supplies to the SAME terminal block. (The -V from both power supplies is connected via my 'Common' terminal block. I daisy chained all the terminal block connections together for each block to give myself an easier way to connect multiple things to each. Here is the 24v power supply and all the connections labeled. Here is the 12v power supply and all the connections labeled. Here is the 12v terminal block. Here is the 24v & Common terminal blocks as well as the Dual H Bridge. Last but not least....The LEDWiz Another shot of the LEDWiz Link to comment Share on other sites More sharing options...

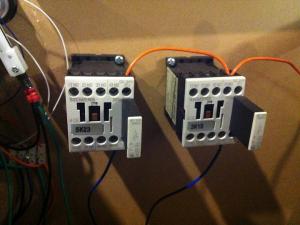

bill55 Posted April 12, 2012 Author Share Posted April 12, 2012 Got my contactors all wired as well. Does this look correct? The orange wire is from my 24v terminal block. I daisy chained all the contactors together. The blue wire on each contactor goes to my LEDWiz. Link to comment Share on other sites More sharing options...
mattdavis Posted April 12, 2012 Share Posted April 12, 2012 Holly Cow Bill, this series of photos is like a VP wiring centerfold (only the pages don't stick together)! The entire thing looks Great! Where did you get the wire conduit? I did not see it in the parts list. Observation: The one thing that jumps out at me is that your hot 12v and 24v source use a common wire color which is also common to the control wires (exiting the ledwiz), which are not uniquely color coded by volts either. Seems like that could come back to haunt you some day. Just to make sure I am following your pattern; the orange wires, post fuse, with resistor, are for cree's (12v) the light blue wires, post fuse, are for leds (12v) or contactor/knocker (24v) the dark blue wires are all ledwiz to fuse bank black is ground, all tied together. from power supplies: light blue is 12v and 24v and orange is linking the 12v together or (separately) the 24v together Thanks, Matt Link to comment Share on other sites More sharing options...
bill55 Posted April 12, 2012 Author Share Posted April 12, 2012 Where did you get the wire conduit? I did not see it in the parts list. Good catch. I forgot that on my list. Probably isn't the only thing I forgot either. Here you go: - Slotted Wire Duct (LINK) Link to comment Share on other sites More sharing options...
bill55 Posted April 12, 2012 Author Share Posted April 12, 2012 Holly Cow Bill, this series of photos is like a VP wiring centerfold (only the pages don't stick together)! The entire thing looks Great! Thanks Observation: The one thing that jumps out at me is that your hot 12v and 24v source use a common wire color which is also common to the control wires (exiting the ledwiz), which are not uniquely color coded by volts either. Seems like that could come back to haunt you some day. I had 4 colors of wire and did mix and match as I needed to. That's why I labelled my terminal blocks and such so I knew what was where. I also have a spreadsheet of my LED-Wiz connections so I know what is what. Not ideal I agree, but I've been as careful as I can. Just to make sure I am following your pattern; the orange wires, post fuse, with resistor, are for cree's (12v) - YES the light blue wires, post fuse, are for leds (12v) or contactor/knocker (24v) - YES. Basically any led-wiz connection not for my cree's the dark blue wires are all ledwiz to fuse bank - YES black is ground, all tied together. YES. Well the black is the common for the stuff powered by the power supply. I won't use that for the ground to my buttons or anything. Is this technically the ground since it's the -V? I wasn't sure of what it was called to be honest since the power supply has a 3rd wire (ground) that connects to the power outlet. from power supplies: light blue is 12v and 24v and orange is linking the 12v together or (separately) the 24v together - Yes. I used orange to join all the terminal contacts. I was using them differently then didn't feel like redoing all those short pieces when I rearranged things. The 12v and 24v connections to and from the terminal blocks are light blue. In hind sight I should have gotten like 8 colors, but this is my first pin. Had no idea how much wire I needed. Thanks, Matt See my replies in BOLD. Link to comment Share on other sites More sharing options...
mattdavis Posted April 13, 2012 Share Posted April 13, 2012 Hi Bill, Is your I-Pac PS2? If so, why PS2 over USB? I thought the only issue with USB was lack of DOS compatibility. Thanks, Matt Link to comment Share on other sites More sharing options...
mameman Posted April 13, 2012 Share Posted April 13, 2012 i think you will find all the ipac have ps2 headers, andy supply's a ps2 to usb cable with them. Everyone one i have ever had of late looks/works like this. Link to comment Share on other sites More sharing options...
bill55 Posted April 13, 2012 Author Share Posted April 13, 2012 I will be plugging it in via USB. I think mameman is right that they all look like this. Link to comment Share on other sites More sharing options...

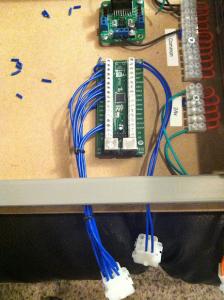

bill55 Posted April 13, 2012 Author Share Posted April 13, 2012 Wired my Ipac connections. I have 9 control connections and 2 ground. I can always add more if needed. Still have 7 open spots on the 2nd molex connector. Link to comment Share on other sites More sharing options...
bill55 Posted April 13, 2012 Author Share Posted April 13, 2012 Ok...need some confirmation that I was interpreting this correctly. This is a diagram of my relay, knocker, and gear motor. Those are the only 2 things that should need a relay I believe. Can someone please confirm if my labeling looks right? I understand that both devices need a separate relay. I only did 1 pic though. I believe for the knocker the 12v connections would need to be 24v instead though. That sound right? Please let me know what (if anything) is wrong with this wiring. Thanks! Bill UPDATE: PICS REMOVED. Corrected ones posted below Link to comment Share on other sites More sharing options...
mameman Posted April 13, 2012 Share Posted April 13, 2012 assuming that is a 12v relay 85 goes to the 12v power rail (+) 86 goes to a trigger port on your ledwiz (-) 87 goes to the ground wire on the wiper motor 30 goes to the your ground rail then run a hot wire from your 12v rail to the wiper motor's positive wire. Link to comment Share on other sites More sharing options...
bill55 Posted April 13, 2012 Author Share Posted April 13, 2012 assuming that is a 12v relay85 goes to the 12v power rail (+) 86 goes to a trigger port on your ledwiz (-) 87 goes to the ground wire on the wiper motor 30 goes to the your ground rail then run a hot wire from your 12v rail to the wiper motor's positive wire. Yes. They are 12v relays. I'll redo my pics and repost. Link to comment Share on other sites More sharing options...

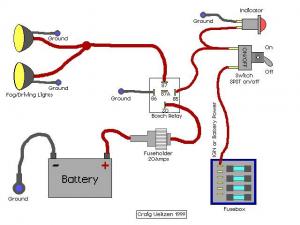

pinballlooking Posted April 13, 2012 Share Posted April 13, 2012 Here is a picture Link to comment Share on other sites More sharing options...

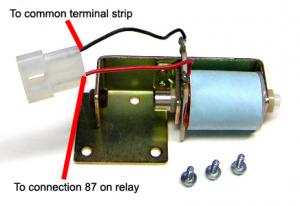

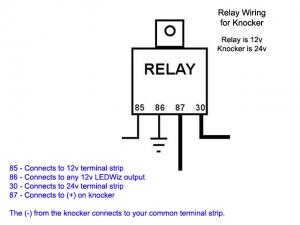

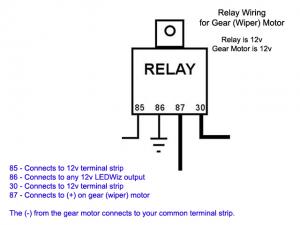

bill55 Posted April 13, 2012 Author Share Posted April 13, 2012 Ok. Here are updated pics. These should be correct now. Relay for Gear Motor: Gear Motor: Relay for knocker: Knocker: Link to comment Share on other sites More sharing options...
russdx Posted April 14, 2012 Share Posted April 14, 2012 what are the Gear Motors used for inside the cabinets?, do they turn some thing on the cab? Link to comment Share on other sites More sharing options...
bill55 Posted April 14, 2012 Author Share Posted April 14, 2012 what are the Gear Motors used for inside the cabinets?, do they turn some thing on the cab? No. They make the noise that the motors Inside real pins made. Link to comment Share on other sites More sharing options...
russdx Posted April 14, 2012 Share Posted April 14, 2012 oh so its purely for sound effect? Link to comment Share on other sites More sharing options...
bill55 Posted April 14, 2012 Author Share Posted April 14, 2012 oh so its purely for sound effect? Yep. Link to comment Share on other sites More sharing options...
mattdavis Posted April 14, 2012 Share Posted April 14, 2012 oh so its purely for sound effect? It is supposed to reproduce the mechanical sound from things like the mouth of Rudy (Funhouse)and Red & Ted (RoadShow), the cannons on Startrek, things like that, not sure what other games. I have not yet investigated how VP/FP knows to run the motor, but I am sure it can be customized for any game. Link to comment Share on other sites More sharing options...
Numiah Posted April 15, 2012 Share Posted April 15, 2012 Same for the visor in Pinbot, rotating chest in TOM or the targetbank in AFM. etc etc etc Link to comment Share on other sites More sharing options...

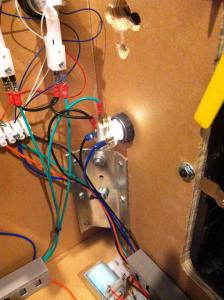

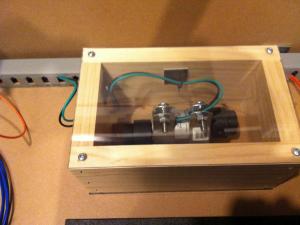

bill55 Posted April 16, 2012 Author Share Posted April 16, 2012 Wiring, wiring, and more wiring. I must say. I expected the wiring to take a while and be sort of a pain. This has been ever more than I anticipated. No major issues yet (knock on wood), but damn has it taken a long time. I would have to guess 15+ hours of wiring overall. I'm sure I could do another quicker, but still....very time consuming. I am almost done though. Still have the LED panel left to go, but everything else is pretty much wired. Shaker Front buttons with power for lighting and controls wired. Link to comment Share on other sites More sharing options...

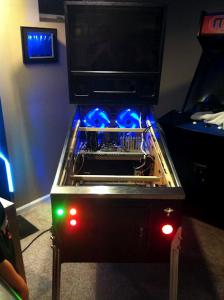

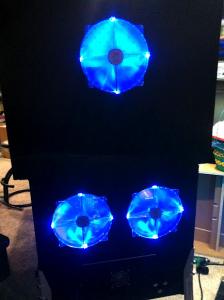

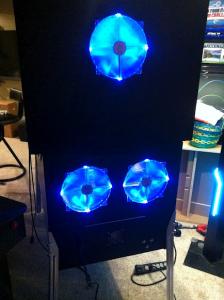

bill55 Posted April 16, 2012 Author Share Posted April 16, 2012 Finally got some power going yesterday. Only the fans and lighting, but still felt like an accomplishment after leaning over that cab stripping wires for hours on end. Link to comment Share on other sites More sharing options...
JaronSenna Posted April 16, 2012 Share Posted April 16, 2012 I have been lurking in this thread and read it a couple times over and I must say: what an awesome job you're doing both in building the cabinet as well as documenting it. Especially the wiring and force-feedback stuff answered a few questions for me! Hope it works out great for you! Link to comment Share on other sites More sharing options...
bill55 Posted April 16, 2012 Author Share Posted April 16, 2012 You are very welcome. I have asked countless questions to so many people around here. (esp Mameman who probably wishes I didn't have his email address) lol. I figured the best thing I could do to help others is post details of what I am doing to hopefully avoid the amount of questions I asked everyone. Hope it helps. I can't wait to get this done and play some pinball!!!! Still have artwork after this is all done. Wish I could have had it done first, but wanted to focus on the build. Link to comment Share on other sites More sharing options...
