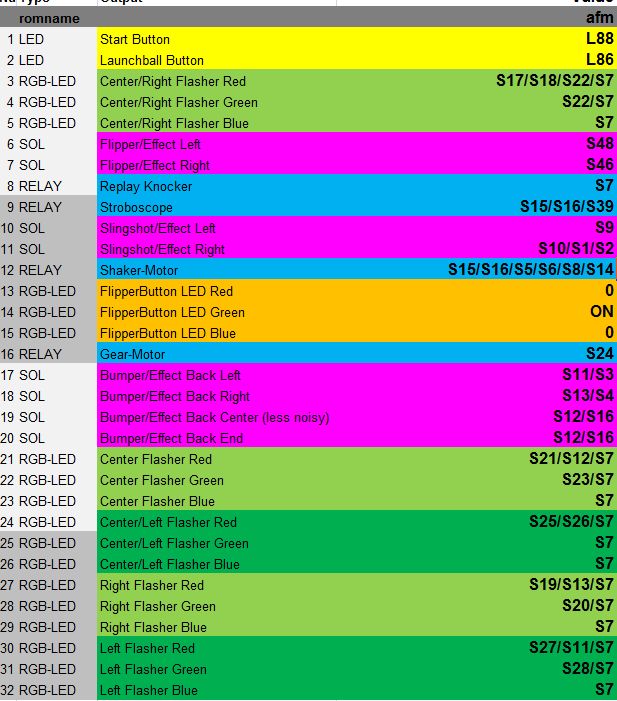

chriz99 Posted February 2, 2011 Author Posted February 2, 2011 Chris99 could you post your afm config here , the version with 5 leds ? So i can compare with your first version and change all others. ( not the one with timers because not working yet ). At this moment i've only installed 5 cree rgbw leds, same ledwiz connections as yours. here is my afm 5-flasher-config afm,L88,L86,S17/S18/S22/S7,S22/S7,S7,S48,S46,S7,S15/S16/S39,S9,S10/S1/S2,S15/S16/S5/S6/S8/S14,0,ON,0,S24,S11/S3,S13/S4,S12/S16,S12/S16,S21/S12/S7,S23/S7,S7,S25/S26/S7,S7,S7,S19/S13/S7,S20/S7,S7,S27/S11/S7,S28/S7,S7 I also have next problem : on port 8 is the replay knocker , not installed here,so the value on position 8 = '0'. But last i was playing and rewarded with a replay in ball 3 , the program ended with error: Line: 0 Subscript out of range: 'OutsPD' replayknocker Any ideas ? hmmm, no clue. please post it in the ledwiz thread, maybe mr. silver can help cheers chris [sIGPIC][/sIGPIC] * taito egret 29 candy cabs * indy & star wars pachinkos 17" bartop with ledwiz rgbleds * 10" bubble bobble & galaga bartop * arm champs 2 check out hi-res backglasses * best vpin performance * ledwiz config and software
pixelmagic Posted February 2, 2011 Posted February 2, 2011 hey erwin, good idea with the config-tool... let's open a seperate topic Done: http://www.hyperspin-fe.com/forum/showthread.php?p=106687#post106687 [TABLE=width: 500] [TR] [TD][/TD] [TD=align: center]New project homepage: http://blog.pixelmagic.nl/[/TD] [TD][/TD] [/TR] [TR] [TD][/TD] [TD=align: center]LED-Wiz utility: http://pinball.pixelmagic.nl/ledwiz/[/TD] [TD][/TD] [/TR] [TR] [TD][/TD] [TD=align: center]Anyone want to buy my LEDwiz ?? [/TD] [TD][/TD] [/TR] [/TABLE]
lettuce Posted February 2, 2011 Posted February 2, 2011 holy cow, the red wire is soldered Chriz would it not of been possible to solder these wires on the underside of the led-wiz?? Speaking of which is there a diagram about for the wiring mod that wolfsoft recommends for the led-wiz??
chriz99 Posted February 2, 2011 Author Posted February 2, 2011 Chriz would it not of been possible to solder these wires on the underside of the led-wiz??Speaking of which is there a diagram about for the wiring mod that wolfsoft recommends for the led-wiz?? if you have a ledwiz with big driver chips, you can solder the wire on the underside. cheers chris [sIGPIC][/sIGPIC] * taito egret 29 candy cabs * indy & star wars pachinkos 17" bartop with ledwiz rgbleds * 10" bubble bobble & galaga bartop * arm champs 2 check out hi-res backglasses * best vpin performance * ledwiz config and software
Guest gstav Posted February 2, 2011 Posted February 2, 2011 yeah Chriz! Which pins is the red wire soldered to? Thought of solder a red cable now when I re-arrange the wires chriz-5-LED-style (Maybe solder that yellow wire while I´m at it! )
chriz99 Posted February 2, 2011 Author Posted February 2, 2011 the red wire is soldered to output 12 (which is the shaker on my setup). it's the 4. contact of the driver chip. cheers chris [sIGPIC][/sIGPIC] * taito egret 29 candy cabs * indy & star wars pachinkos 17" bartop with ledwiz rgbleds * 10" bubble bobble & galaga bartop * arm champs 2 check out hi-res backglasses * best vpin performance * ledwiz config and software
mistermixer Posted February 2, 2011 Posted February 2, 2011 thanx chris99 for the afm config. Don't think the motor'board' has still value with the softwareprobs . Hope the developers can tackle the problems.
chriz99 Posted February 3, 2011 Author Posted February 3, 2011 Pwm Shaker intensity Works, just multiple pwm flashercolor Not well cheers chris [sIGPIC][/sIGPIC] * taito egret 29 candy cabs * indy & star wars pachinkos 17" bartop with ledwiz rgbleds * 10" bubble bobble & galaga bartop * arm champs 2 check out hi-res backglasses * best vpin performance * ledwiz config and software
lettuce Posted February 3, 2011 Posted February 3, 2011 Is there a diagram about for adding the extra wires to the ledwiz that wolfsoft adds to his ledwiz??

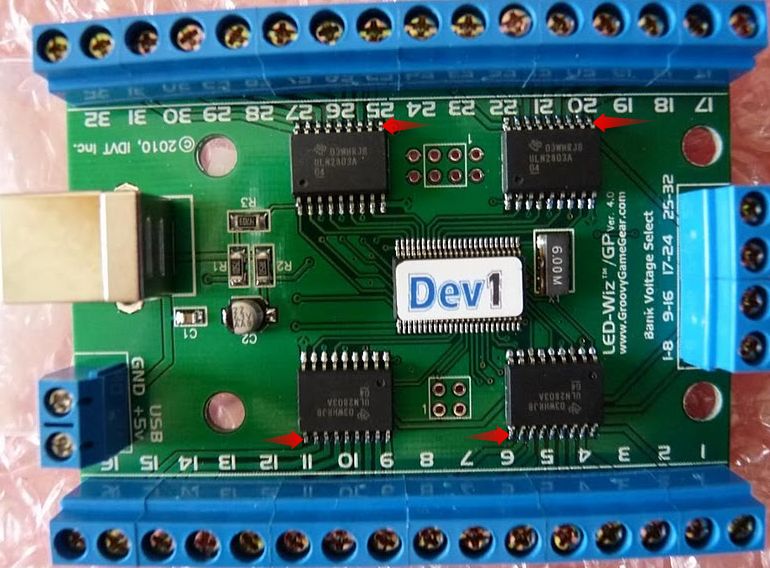

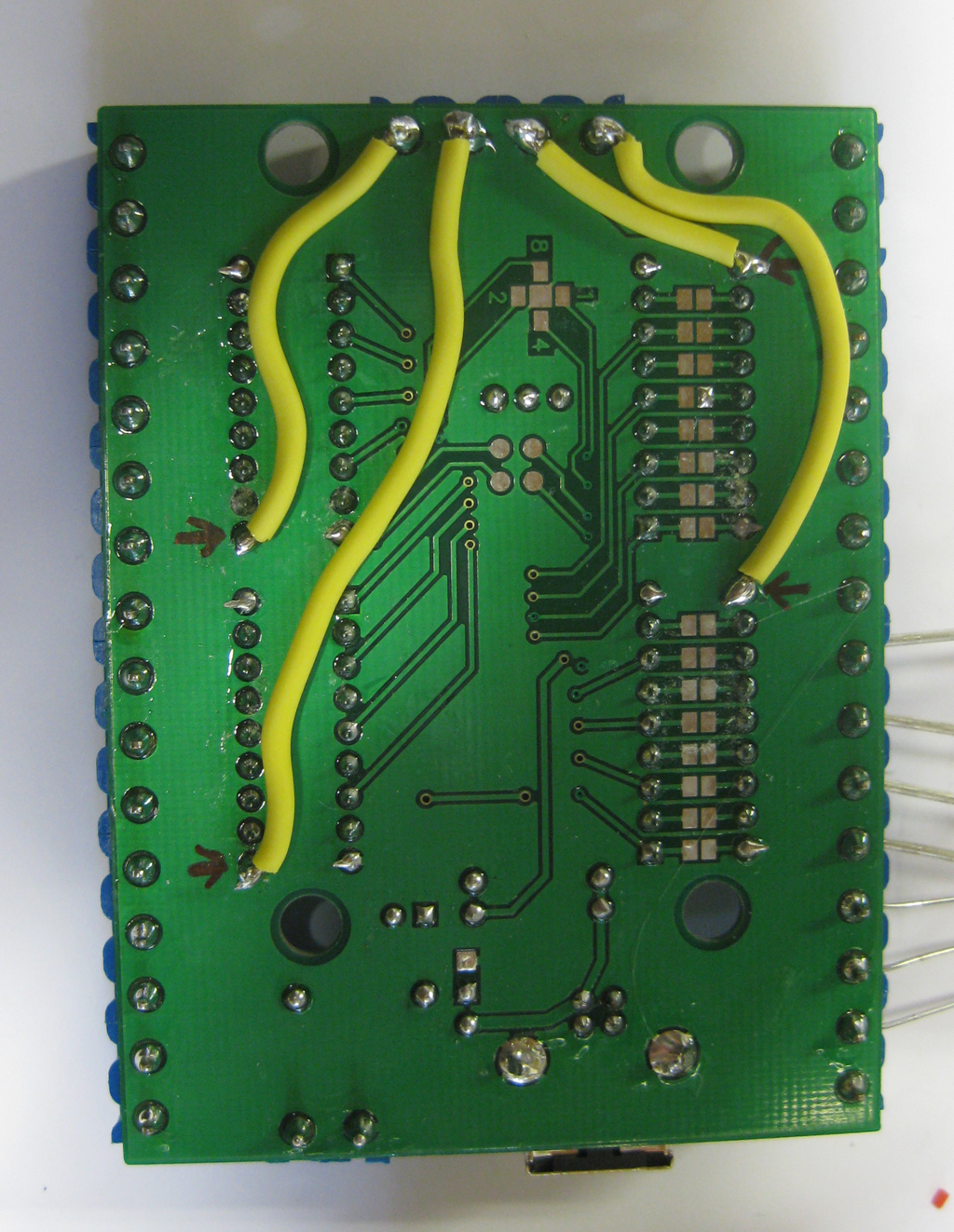

chriz99 Posted February 3, 2011 Author Posted February 3, 2011 here is a pic from klaus. it's always the last pin of the driverchip. you can simply check it with a multimeter. cheers chris [sIGPIC][/sIGPIC] * taito egret 29 candy cabs * indy & star wars pachinkos 17" bartop with ledwiz rgbleds * 10" bubble bobble & galaga bartop * arm champs 2 check out hi-res backglasses * best vpin performance * ledwiz config and software
lettuce Posted February 3, 2011 Posted February 3, 2011 Thanks chriz. So you cannot solder the wires for the shaker controller on the underside with the ver 2 ledwiz?
chriz99 Posted February 3, 2011 Author Posted February 3, 2011 .... cheers chris [sIGPIC][/sIGPIC] * taito egret 29 candy cabs * indy & star wars pachinkos 17" bartop with ledwiz rgbleds * 10" bubble bobble & galaga bartop * arm champs 2 check out hi-res backglasses * best vpin performance * ledwiz config and software
chriz99 Posted February 3, 2011 Author Posted February 3, 2011 I don't know, I think there are a few different versions simply check the underside of your ledwiz cheers chris [sIGPIC][/sIGPIC] * taito egret 29 candy cabs * indy & star wars pachinkos 17" bartop with ledwiz rgbleds * 10" bubble bobble & galaga bartop * arm champs 2 check out hi-res backglasses * best vpin performance * ledwiz config and software
lettuce Posted February 3, 2011 Posted February 3, 2011 Ok cheers, ill ask wolfsoft to see it he know for sure, as i think it will be a hell of alot easier to solder the wires for the shaker controller pcb on the underside rather than the top. How many wires are need for the shaker controller just 2?

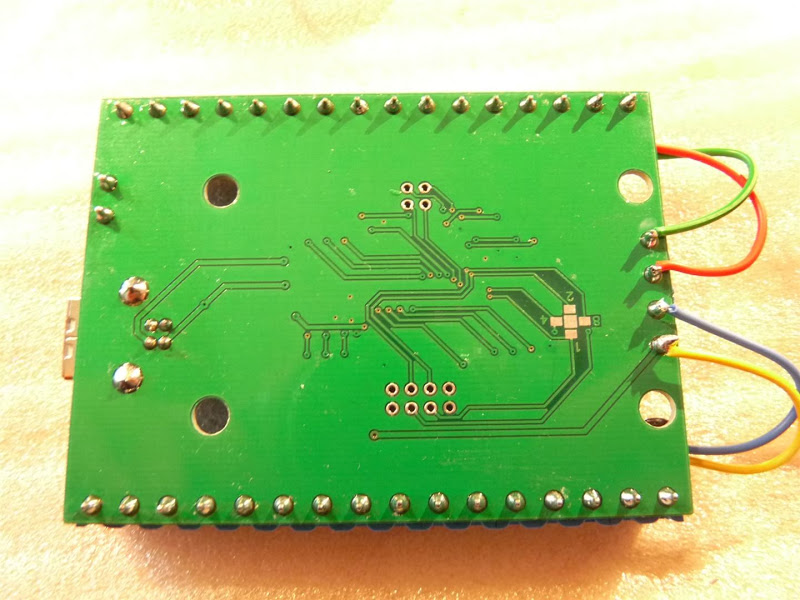

chriz99 Posted February 3, 2011 Author Posted February 3, 2011 here is a pic of my ledwiz wiring... you need 5 wires for your pwm shaker intensity board... 2 to the shaker (+/-), 2 power wires (12v +/-), 1 ledwiz wire cheers chris [sIGPIC][/sIGPIC] * taito egret 29 candy cabs * indy & star wars pachinkos 17" bartop with ledwiz rgbleds * 10" bubble bobble & galaga bartop * arm champs 2 check out hi-res backglasses * best vpin performance * ledwiz config and software
lettuce Posted February 3, 2011 Posted February 3, 2011 Ahh now i see why you didnt solder on the underside....as you cant lol. I'll have to look at mine tomorrow to see if mines like yours or not. So you dont need to solder any wires to the led-wiz for the pwm shaker intensity board then, just 1 wire to a screw terminal?
chriz99 Posted February 3, 2011 Author Posted February 3, 2011 no, you have to solder 1 wire to your ledwiz driver chip (when using pwm shaker intensity board). cheers chris [sIGPIC][/sIGPIC] * taito egret 29 candy cabs * indy & star wars pachinkos 17" bartop with ledwiz rgbleds * 10" bubble bobble & galaga bartop * arm champs 2 check out hi-res backglasses * best vpin performance * ledwiz config and software
zoltar420 Posted February 4, 2011 Posted February 4, 2011 amazing work!!! I only hope I can have a hyperpin this awsome one day! Zoltar
mistermixer Posted February 4, 2011 Posted February 4, 2011 MMMM The relais is switching on and of ( timing in ledcontrol ) but the motor don't start. And it looks so easy to wire up. I'm a total mo... 12v+ directly to powersupply , or outputbank ledwizz ? and gnd also directly or gnd ledwiz Thanx again

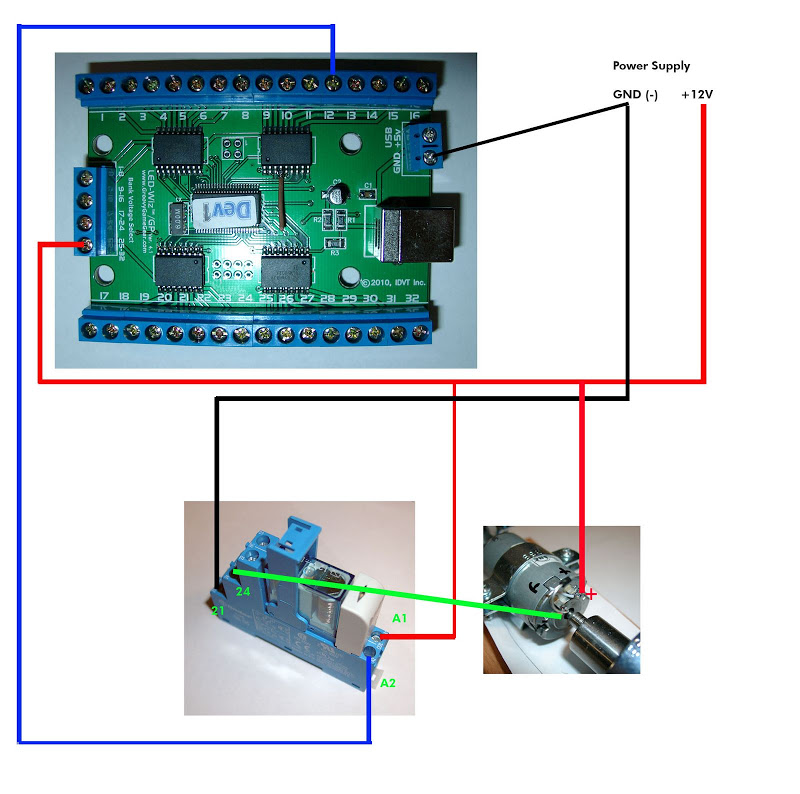

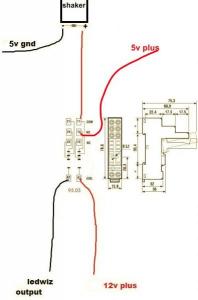

chriz99 Posted February 4, 2011 Author Posted February 4, 2011 got a pic from klaus about the shaker/ledwiz 12v wiring cheers chris [sIGPIC][/sIGPIC] * taito egret 29 candy cabs * indy & star wars pachinkos 17" bartop with ledwiz rgbleds * 10" bubble bobble & galaga bartop * arm champs 2 check out hi-res backglasses * best vpin performance * ledwiz config and software
lettuce Posted February 4, 2011 Posted February 4, 2011 Is it ok to daisy chain the +12V wire from the shaker>>>Relay>>>Led-wiz??? Or do you have to run 3 seprate wires from the psu for +12v? Can you also add the wire in that pic for the pwm shaker intensity board chriz?? Although did i read that you dont run your shaker at +12v chriz?
mistermixer Posted February 4, 2011 Posted February 4, 2011 Danke ! cabinet i sshaking like hell pwoeuwww
chriz99 Posted February 4, 2011 Author Posted February 4, 2011 Is it ok to daisy chain the +12V wire from the shaker>>>Relay>>>Led-wiz??? Or do you have to run 3 seprate wires from the psu for +12v?Can you also add the wire in that pic for the pwm shaker intensity board chriz?? Although did i read that you dont run your shaker at +12v chriz? yes, you can daisy chain the +12V if you drive the shaker with the pwm shaker intensity board, you don't need the blue finder relay anymore. just wire the brown cable (on the pic) to your pwm shaker intensity board (and no extra wire on the ledwiz screw terminal on that output). connect 12V + and - to the intensity board and wire 2 cables from the intensity board to your shaker. that's it. Danke ! cabinet i sshaking like hell pwoeuwww cool! if 12V is too much action, you can also use 5V or 6V via an extern power adapter.... or simply use the intensity board. cheers chris [sIGPIC][/sIGPIC] * taito egret 29 candy cabs * indy & star wars pachinkos 17" bartop with ledwiz rgbleds * 10" bubble bobble & galaga bartop * arm champs 2 check out hi-res backglasses * best vpin performance * ledwiz config and software
lettuce Posted February 4, 2011 Posted February 4, 2011 Yeah think ill run a +5v line from my PC psu for the shaker. If im Using +5v do i still have to run +12v to the relay and ledwiz or just +5v?? Is wolfsoft selling the intensity board yet?
chriz99 Posted February 4, 2011 Author Posted February 4, 2011 relay still needs 12V. check the wolfsoft shop, maybe it's listed. cheers chris [sIGPIC][/sIGPIC] * taito egret 29 candy cabs * indy & star wars pachinkos 17" bartop with ledwiz rgbleds * 10" bubble bobble & galaga bartop * arm champs 2 check out hi-res backglasses * best vpin performance * ledwiz config and software
