chriz99

46" / 30" / 19" widebody cabinet

Recommended Posts

Chris,

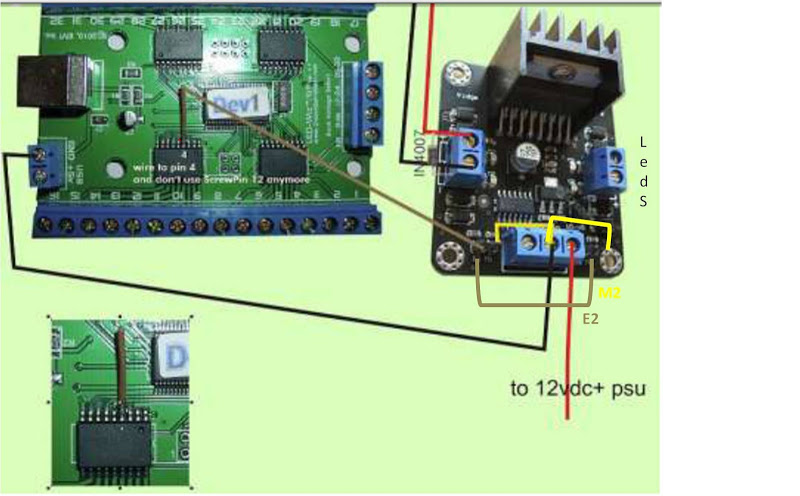

quick question on the led strips for take off effect. Can you confirm that this is how you wired them to the bridge board?

Thanks so much!


Edited by Usul

Share this post


Link to post
Share on other sites

Hi Chris,

thanks for confirming!

Can I ask you one more thing? How the heck did you mount your stroboscope? I couldn't figure it out from the pics you posted as it seems to be seamlessly attached to your backbox - on a side that doesn't have mounting holes...

Share this post


Link to post
Share on other sites

any chance of getting a video of raiden playing or any other vertical shooters? also since im in teh dream portion of my build how hard would it be to put 2 controllers on the side to play games like street fighter etc. or maybe even a detatchable set of controllers or controllers that can hook on to play then be stored underneath.

Share this post


Link to post
Share on other sites
Hi Chris,

thanks for confirming!

Can I ask you one more thing? How the heck did you mount your stroboscope? I couldn't figure it out from the pics you posted as it seems to be seamlessly attached to your backbox - on a side that doesn't have mounting holes...

simply via the bracket


any chance of getting a video of raiden playing or any other vertical shooters? also since im in teh dream portion of my build how hard would it be to put 2 controllers on the side to play games like street fighter etc. or maybe even a detatchable set of controllers or controllers that can hook on to play then be stored underneath.

I will post some shooter vids on my new big bang pin

Share this post


Link to post
Share on other sites

Hi guys just wondering what service buttons should i put in my cabinet i only know

8, 9 and end for opening coin door." is there anything else? thanks!

Share this post


Link to post
Share on other sites

Yes, 7,8,9,0

On data east you need 7,8

and Bally / Williams you'll need 7 to go up one level or exit, 8-9 to scroll through options and 0 to enter a choice.

Don't forget the 'end' key as well ( I placed a microswitch in my coindoor lock for that function).

Share this post


Link to post
Share on other sites
i think i missed it but what are the full pc specs that this is running on.

errrrr. post 1 of this thread :)

optimized win XP SP3 - 32bit (check vpin performance thread above)

intel quad core i5-750 overclocked to 4x 4.0ghz

msi P55-GD65 mainboard (easy overclocking, very stable)

2x2GB RAM DDR3 1600 (8-8-8 timing)

2x nvidia GTX260 1792MB GPU (1x for playfield and dmd / 1x for backglass, overclocked to GTX280+)

32GB SSD (nudging approved. os booting / table loading / hyperpin browsing. just awesome!)

soundblaster x-fi music soundcard (model SB0460. creative crystalizer. great enhancement for pinball sound plus more cpu power left)

2.1 teufel concept c100 quality soundsystem with huge tower-subwoofer (better sound than a real pinball machine, amazing bass effect)

550W 80+ arctic psu / 86% efficiency (pc power consumption is averagely about 350watt)

Share this post


Link to post
Share on other sites

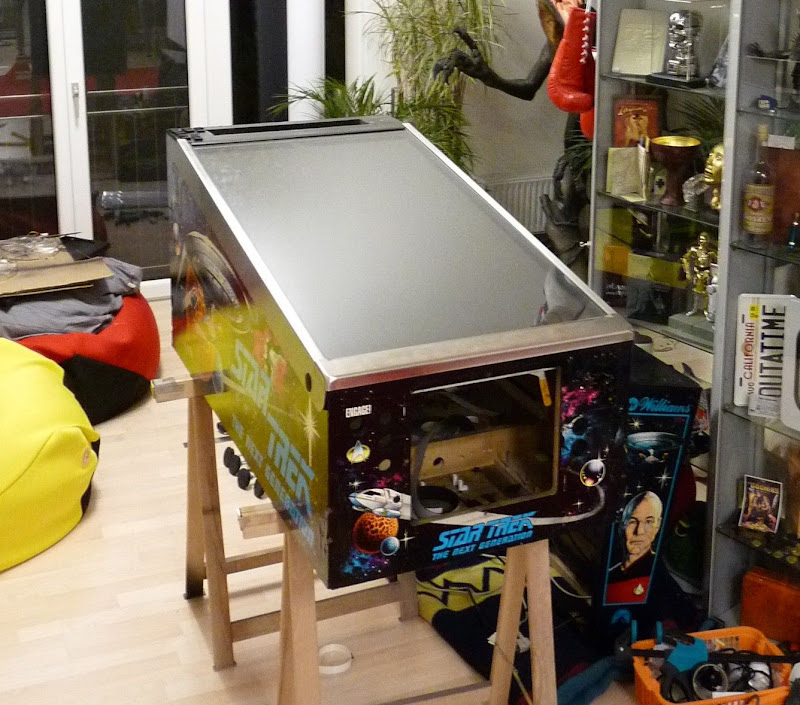

first test... the screen fits so nice, its unbelievable... there is just playfield-screen...


greets

chris

Chris,

I am following this build pretty closely with mine and I found the 46" monitor decased is just a TAD over the pinball cabinet outside dimension.

Looking at this pick it looks like you had a very slight gap between the side rail and the side of the cabinet. Am I right?

Share this post


Link to post
Share on other sites

No, the siderails are just not attached with screws this at this moment. the screen fits exactly (no space left).

Share this post


Link to post
Share on other sites

wolfsoft offers at the moment some cool shaker bundles for a special discount price!

check out his thread at http://www.hyperspin-fe.com/forum/showthread.php?t=15300

-----------------------------------------

bundle 1

1x shaker (95Euro)

1x Dual Bridge for make it work with ledwiz (40Euro)

bundle price 80Euro + 20Euro international shipping (your discount 55Euro)

bundle 2

1x shaker (95Euro)

1x Dual Bridge for make it work with ledwiz (40Euro)

1x LedWiz with special wire to make the DualBridge and shaker working (60Euro)

bundle price 120Euro + 20Euro international shipping (your discount 75Euro)

If you want a bundle contact me including your complete adress at [email protected]

-----------------------------------------

Share this post


Link to post
Share on other sites

what's the reason for switching? you can get complete finder relays for under 10 bucks, like


Share this post


Link to post
Share on other sites

I have pinball fever and all im missing now is a 12v and 24v psu and relays :) soon as i get back to the house im going to take care of the psu's so that just leaves relays. newark has 2 of the parts to make it but the 12v 2 coil piece is nowhere to be found and its more like $16 over here. Thanks for your quick reply

Share this post


Link to post
Share on other sites

Share this post


Link to post
Share on other sites
I wanted to get one of those boards but it looks like it will not work with the LedWiz. The LedWiz provides a ground it looks like this board needs a Hi low signal to make it work. I am not an expert on this.

contact one of my suppliers. he's on ebay under hivitronix. you need a model he does that is model (HR0508B4X2) this uses a low signal to trigger the relay. works a treat.

Greg

Share this post


Link to post
Share on other sites

wahou, it's amazing :congrats::congrats:

I started too in the realization of a virtual pinball machine.

http://www.gamoover.net/Forums/index.php?topic=25998.0

I found the Siemens Contactor 3RT1017-1VB41. "KOPPELSCHUETZ, 5.5 KW/400V, 3POLIG, BGR. S00, 1S, DC 24V, 0.85 ... 1.85 x 1.4 W U.S., SCHRAUBANSCHLUSS integrierte DIODE"

do you think I can use them in my pinball cab?

thank you for your help?

Edited by vulbas

Share this post


Link to post
Share on other sites
