Optimus-Pin P2k Build (39/24/22)

Recommended Posts

Ohhhh... lookie what I got!!!!!!




Mameman is simply AWESOME!!! This work is top notch! Just as soon as I do a little work, am going to get started on it!

Ignore my nasty floors and the beat up door :)

The previous owner had a dog locked in the garage and I have not replaced the doors yet. And the floors... Well It's a garage :D

Share this post


Link to post
Share on other sites

Nice.

I've been recommending Mameman's services in a few other forums. Always top notch and a much better alternative to the other pre-built cabs out there.

Share this post


Link to post
Share on other sites

Currently assembling the Body of the Cab. So I tested my screen fits.

Mameman does PERFECT work!!!!


Unfortunately I do not give perfect measurements :D

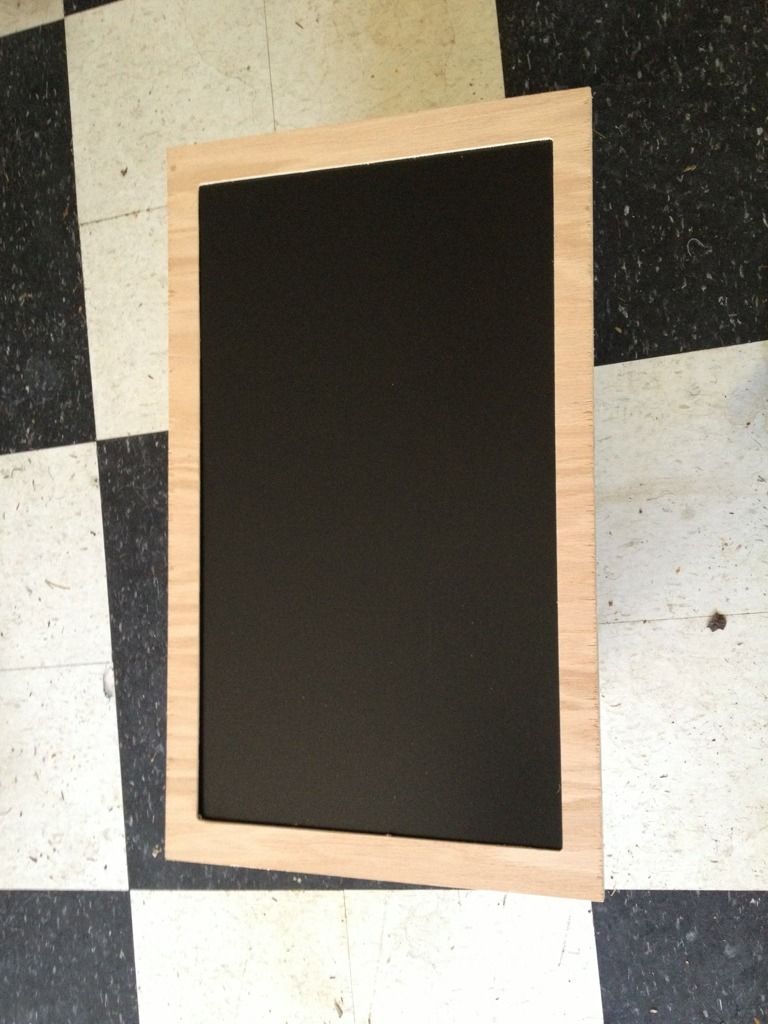

Whoopise!!! But it is no big deal. This is the DMD, which you cannot see on the P2K Cab. So I will center the LCD and fill the gaps with cardstock or something black.

Once the glue sets a little on the front, I will release the clamps, then glue and nail the rear and sides into place.

I am not quite sure how I am going to drill out the leg holes.. But I am thinking I will mount the leg hardware that goes into the cab and drill from the inside out.

Share this post


Link to post
Share on other sites

Looks great and the extra ventilation can be covered up easily enough (measure twice and cut once.......:))

Nice work Greg!!!

Share this post


Link to post
Share on other sites

I think the problem was I measure 5 times! 1 time too many ;)

The cabinet is all glued and nailed.

I have one side of the Head glued up and it is all assembled and clamped for the night.

Time to stop.


It looks like I will have to de-case the Westinghouse 39" to make it fit. I was hoping I wouldn't have to. Tomorrow I have to run to the lumber store and pick up some wood to use for the Playfield supports and then start working on figuring out where to place it.

Share this post


Link to post
Share on other sites

Take some pictures of it decased I just bought that TV. I don’t think I will have to decase it but it would be nice to see the pictures just in case.

Your cab looks good.

Share this post


Link to post
Share on other sites

Ahhh crap.... I JUST realized that if I had routed the inside of the cabinet, I could fit the 39" LED without de-casing.

Ah well. It is all glued together now.

Share this post


Link to post
Share on other sites
Ahhh crap.... I JUST realized that if I had routed the inside of the cabinet, I could fit the 39" LED without de-casing.

Ah well. It is all glued together now.

I would think still potentially possible if you wanted. would not rule it out 100%.

Share this post


Link to post
Share on other sites

Yea, it would technically be possible. But I have since decided that instead, I will just mount the TV, so I can easily get it out, to work on the electronics. I may chop up the TV case to make a bezel for it. Plus after looking at it some more, leaving it in the case just might keep me from getting it as far forward as I want. It looks like it may be just thick enough to interfere with the flipper buttons.

Do you happen to have measurements handy for the ideal angle of the PF in these P2K cabs?

Actually, I just measured it one more time.. Depending upon the angle it MAY be possible. I will do some searching around and draw it out and see.

Share this post


Link to post
Share on other sites
Yea, it would technically be possible. But I have since decided that instead, I will just mount the TV, so I can easily get it out, to work on the electronics. I may chop up the TV case to make a bezel for it. Plus after looking at it some more, leaving it in the case just might keep me from getting it as far forward as I want. It looks like it may be just thick enough to interfere with the flipper buttons.

Do you happen to have measurements handy for the ideal angle of the PF in these P2K cabs?

Actually, I just measured it one more time.. Depending upon the angle it MAY be possible. I will do some searching around and draw it out and see.

mydefault is usually 3/4" down at the front from the top of the side. 4" down at that back of the screen.

Share this post


Link to post
Share on other sites

Thanks!

I will throw some string on it and see what I can come up with.

Well, I'll be.. Lesson learned here.. Do NOT take width measurements with the clamps on. Once I took the clamps off, the TV fits perfect, no routing needed.

Share this post


Link to post
Share on other sites

A learning experience, this definitely is. Spray paint for a cabinet, not a good idea. This plywood can REALLY soak up the paint! So tomorrow, I will take Mameman's advice and buy some paint and a roller. I have spent the entire day painting and sanding and painting. And still it just sucks up the paint. So, instead of spending another $50 on Spray paint... I'll just buy a good can of black paint.

But, here is where it is at the moment... Well actually this picture was taken 2 coats ago, but it still looks much the same.


Share this post


Link to post
Share on other sites

Yup a good primer to seal the wood then your black. Sand between coats to remove any unwanted artifacts in the finish. Since you are going to adding decals over the top be sure to let each layer then the final coat to dry properly so the decals can get a good adhesion. Winter and a garage are never a great time for paint ;)

Share this post


Link to post
Share on other sites

I finally drug a heater out to the garage :D SO at least the paint can dry. It will be at least a month or more, before I have the decals. So if it doesn't set in that amount of time... There are some serious issues :D

I used a high quality spray for the first 3 coats, with sanding in between, But I think a spray product is just too thin for this wood, as it just wants to soak it up.

So, tomorrow... More paints!

Share this post


Link to post
Share on other sites

Yup you really need to seal the wood. Some good coats with a heavy primer usually sorts it. As you said spray, especially solvent based will just keep on soaking in.

Share this post


Link to post
Share on other sites

It was pretty cold today, so I did not get much done, besides spending money. I nailed some monitor supports in place and put some filler on the front edges and over the nail holes from the supports.

I also bought some tinted Kilz primer and some Velspar Gloss Black paint. Tomorrow I will sand and probably put a coat of primer on.

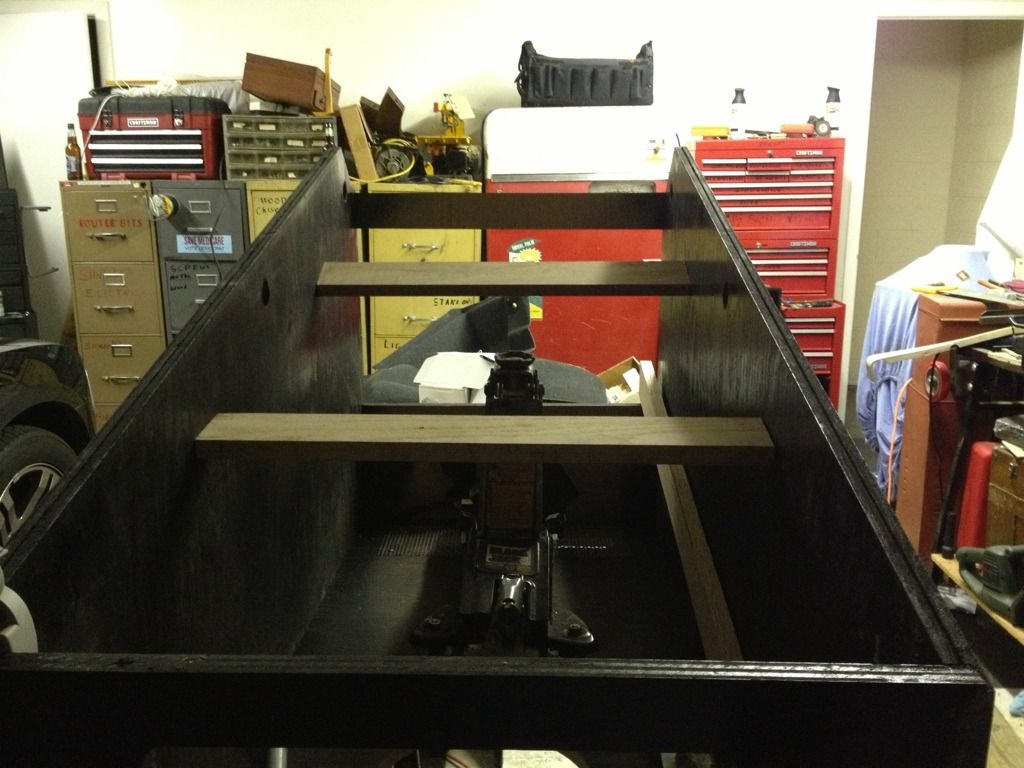

Here are the monitor supports. They are nothing fancy and do not look level in the picture, but they are. The back one is angled to match the monitor case, this will hold it in place. The back of the monitor is a funky shape, so it was had to find places for supports.


I will add some L Brackets under the oak boards to better anchor them to the cab.

And, Javier sent me another update! These are the Autobots for the left side of the cab!


Share this post


Link to post
Share on other sites

Thanks man!

Now hopefully I can get my paint job smooth enough that the artwork looks smooth and perfect on the cab!!

I have been working on it all day today. I put on two thick coats of Kilz and I am now in the process of wet sanding it with 220.

I have MOST of the wood grain covered up.. But there are still some small lines visable. Feels pretty smooth to the touch now though.


I will probably go ahead and put a coat of the Gloss Black on after I finish sanding the head. Then try to get the last of the lines out of the black before a final coat. However, I know that the vinyl usually used for printing arcade graphics is a little forgiving, so long as the surface is flat and mostly smooth. I assume Lucian's stuff is too.

Share this post


Link to post
Share on other sites

looking good. yes Brad's stuff is actually more forgiving in the covering dept than most vinyls.

Share this post


Link to post
Share on other sites

Thanks and good to hear! I halfway considered using epoxy as the primer, that would give a mirror like finish, but the costs involved are a bit high.

Share this post


Link to post
Share on other sites

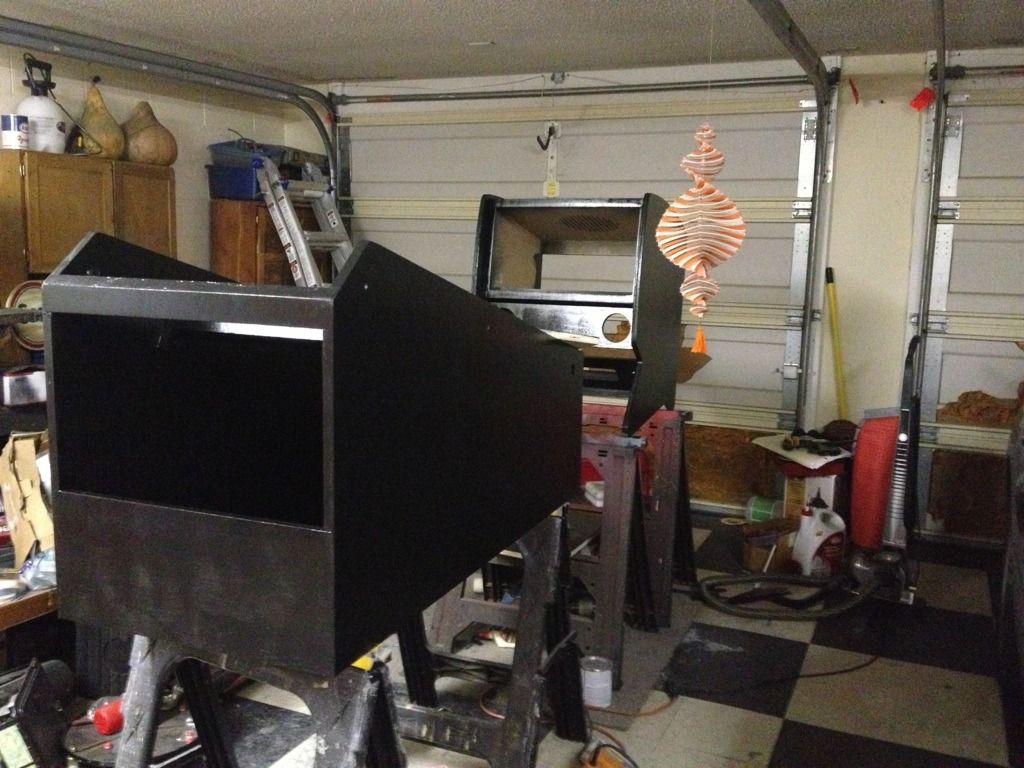

I can't really get a good picture atm, because the car is in the garage.. But I got the first coat of high gloss black on the cabinet.


I have a fair amount of sanding to do, before the next coat. But it is getting there!

Share this post


Link to post
Share on other sites

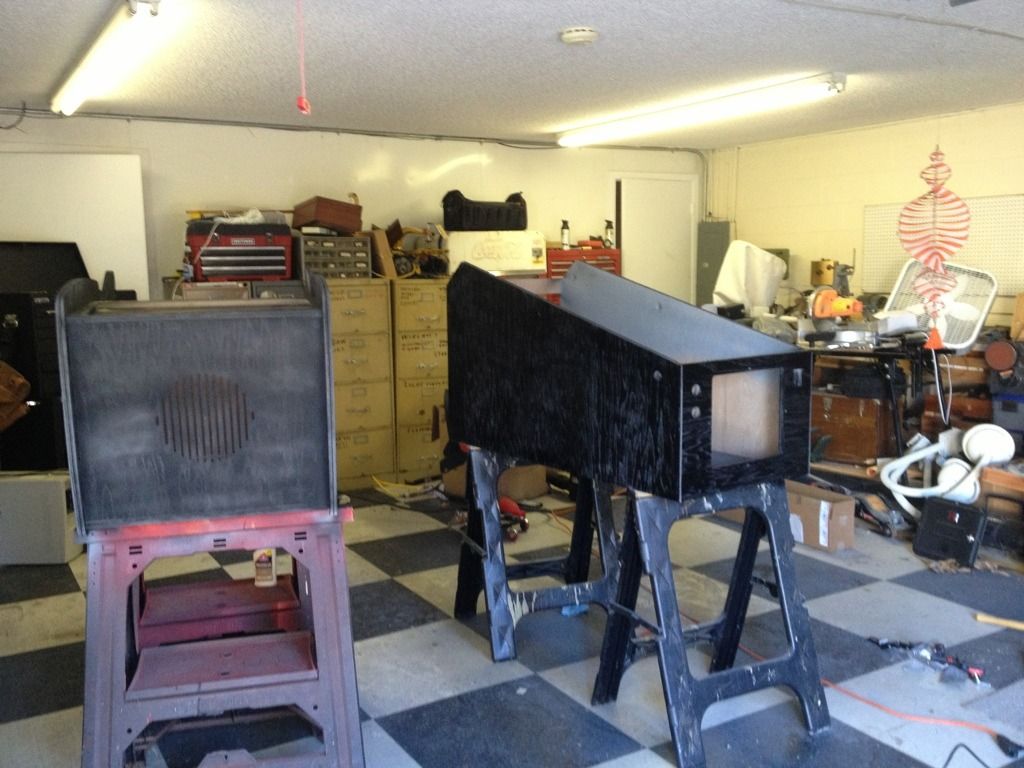

Well, the cab has a few more coats of black on it now, It still needs a little bit of work, but I am almost there. I have a couple of spots on the body that need some work, but the rest is just about where I need it to be. I got my coin door today, but I won't be using it. It is in a lot worse shape than the auction showed. So instead I will strip it for parts. Always good to have extra coin mechs. So I will be using my Import door for now. It is in great shape, just won't accept any currency that I have.

I also got my T-Molding in, 10 foot of Red and 10 foot of Purple :) My Boss 4 channel 400W amp came in. I wanted to work on trying to figure out how to hook it up, but my 12W PS is not in yet. Oh yea and my new Stern lock bar and receiver came in today also!

This weekend is a long weekend for me, Yay President's Day!!! So I am hoping to start getting it assembled. I have no idea when I will have the 12V Power supply. So that is going to hold me back on a few details. The delivery estimate on it is anytime between Feb 8th and March 15th.

I also ordered a couple of sheets of glass today from a local place. 1 for Optimus-Pin and one for our Addams Family.

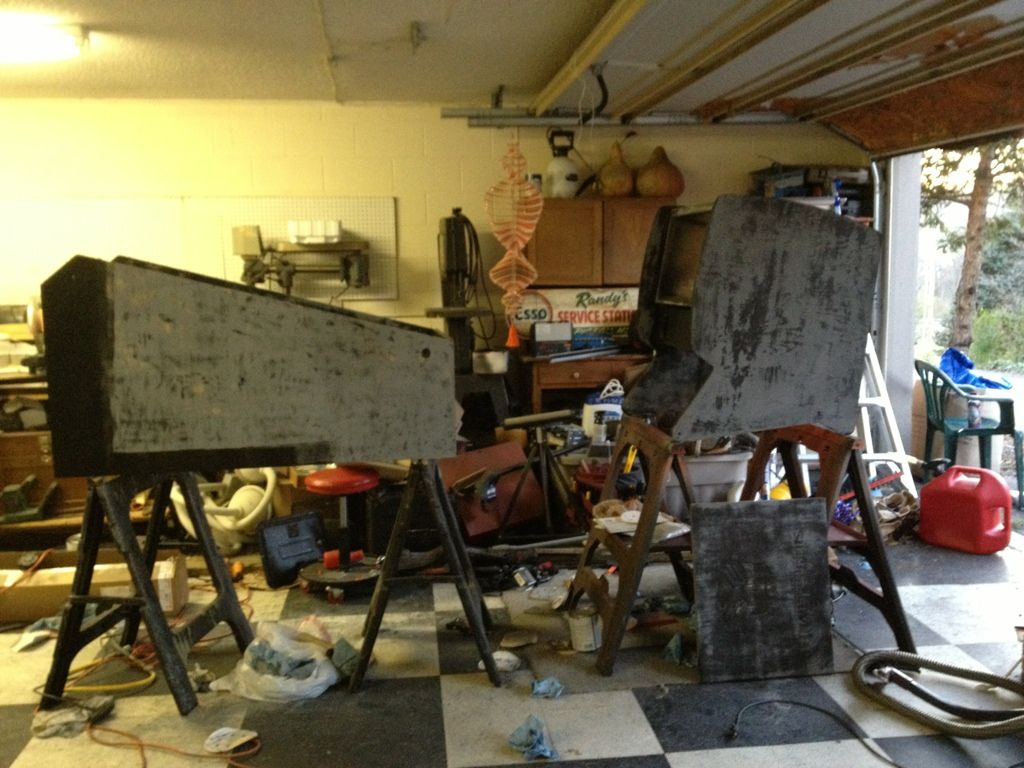

This is what the cab looked like yesterday afternoon after HEAVY sanding...


Currently it is black again.

*Edit*

Well dang it, I was SURE I had leg brackets, but can't find them.. So I ordered a new set.

Mameman, or any of the other P2k guys.. Can you give me measurements for the the hole, front and back for the leg bolts? I am trying to figure out where they need to be drilled, but info on these guys is sparse.

Thanks!

Share this post


Link to post
Share on other sites

×
×
