chriz99 Posted August 3, 2010 Author Share Posted August 3, 2010 Hi Chris,Do you happen to have the dimensions for your DMD? It appears to be the same size as your other pins and looks good. Do you like the size? What res do you run the DMD at? Thanks, -Ron the DMD-bezel is an original part from williams wpc95 generation pinballs, so the size is exactly the same. An 19" LCD (5:4 format) fits perfectly. The DMD resolution is downscaled to 640x480 (native res is 1280x1024). This hardware downscaling effect gives an authentic dmd look (better than native res). If you want the original look and feel go this way. Link to comment Share on other sites More sharing options...
Takedown Posted August 3, 2010 Share Posted August 3, 2010 Could you post the dimensions of the view port? Thanks! Link to comment Share on other sites More sharing options...
chriz99 Posted August 3, 2010 Author Share Posted August 3, 2010 DMD/Speakerpanel = 69.5cm * 22cm (approximately) DMD/Scoreboard cutout = 34 * 9cm (approximately) Link to comment Share on other sites More sharing options...
Takedown Posted August 3, 2010 Share Posted August 3, 2010 Thank you sir! Link to comment Share on other sites More sharing options...
mameman Posted August 4, 2010 Share Posted August 4, 2010 Chris, not sure if i am missing a trick, whats the advantage of the 19" screen in a 1:1 replica machine? the dmd is only 13.38" wide and that can be covered using a 17" screen. I am struggling to think of the advantage of using the 19 over the 17? Link to comment Share on other sites More sharing options...
chriz99 Posted August 4, 2010 Author Share Posted August 4, 2010 Chris, not sure if i am missing a trick, whats the advantage of the 19" screen in a 1:1 replica machine? the dmd is only 13.38" wide and that can be covered using a 17" screen.I am struggling to think of the advantage of using the 19 over the 17? I think your 17" fits perfect to your dr. who speakerpanel In my case (with an original wpc95 speakerpanel, about 340-345mm width of the dmd-area) only a 19" will cover the whole dmd cut-out area + you can hide the tft-bezel a little bit better with 19". 19" (1280x1024) Display Area width 376 mm 17" (1280x1024) Display Area width 337 mm Link to comment Share on other sites More sharing options...
mameman Posted August 5, 2010 Share Posted August 5, 2010 I think your 17" fits perfect to your dr. who speakerpanel In my case (with an original wpc95 speakerpanel, about 340-345mm width of the dmd-area) only a 19" will cover the whole dmd cut-out area + you can hide the tft-bezel a little bit better with 19". 19" (1280x1024) Display Area width 376 mm 17" (1280x1024) Display Area width 337 mm thats odd, i thought all those williams had the same dmd size, as i based mine off the twilight zone machine i had sitting next to it. are we saying that the STNG dmd is larger than TZ or partyzone etc? Link to comment Share on other sites More sharing options...
tagi3d Posted August 5, 2010 Share Posted August 5, 2010 it is odd hey! Even "standard" lock down bars are not standard... so many variations. Link to comment Share on other sites More sharing options...
chriz99 Posted August 5, 2010 Author Share Posted August 5, 2010 thats odd, i thought all those williams had the same dmd size, as i based mine off the twilight zone machine i had sitting next to it. are we saying that the STNG dmd is larger than TZ or partyzone etc? the dmd-size is always the same, but the size of the dmd/speakerpanel is a little different (just a few milimetre). Link to comment Share on other sites More sharing options...
mameman Posted August 5, 2010 Share Posted August 5, 2010 the dmd-size is always the same, but the size of the dmd/speakerpanel is a little different (just a few milimetre). ok now i am more confused. if the dmd size is the same across all the range of this style of williams machines, then the 17" monitor is big enough to cover the width of the dmd are as per mine copied from a TZ machine. if i recall its like 13.38" which you can get out of a 17" screen. so not getting why the 19" is needed unless you want to make the dmd area bigger than the original williams ones. Link to comment Share on other sites More sharing options...
tagi3d Posted August 6, 2010 Share Posted August 6, 2010 I think he's saying the actual DMD (the lights panel) is the same size, but the speaker panels gap size can vary. So there is more border around it on some... and thus for SOME panels the 17 inch will produce a gap around the border. Link to comment Share on other sites More sharing options...
Ext2k Posted August 16, 2010 Share Posted August 16, 2010 I have some questions about the tilt-bobs, how to connect it, directly to ipac? Do you have a diagram? Thanks in advance. Link to comment Share on other sites More sharing options...

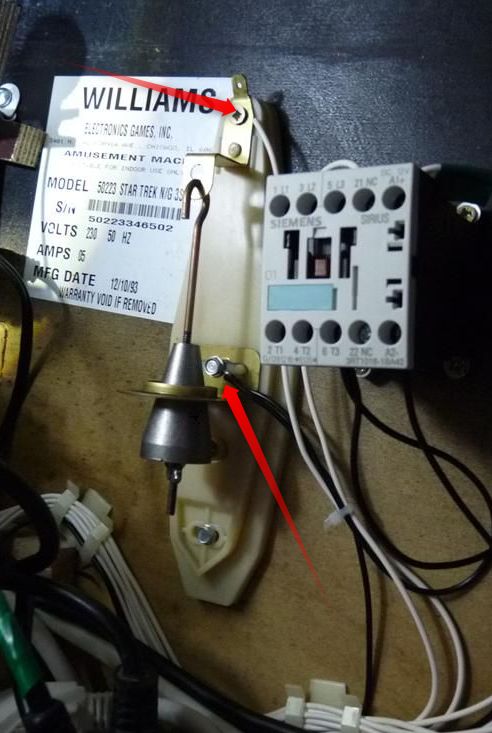

chriz99 Posted August 17, 2010 Author Share Posted August 17, 2010 I have some questions about the tilt-bobs, how to connect it, directly to ipac? Do you have a diagram?Thanks in advance. hey ext2k, connect it simply to an ipac, check this pic: Link to comment Share on other sites More sharing options...
Ext2k Posted August 17, 2010 Share Posted August 17, 2010 Thanks a lot Chriz99 !!!Now I'have all the components to mount my cab, I'm waiting the industry relays and the arts for the cab, I'm not sure to put a new post for my cab because my level of english is so bad. Some pictures: Regards Link to comment Share on other sites More sharing options...
chriz99 Posted August 17, 2010 Author Share Posted August 17, 2010 WOW! your build is absolutely awesome! you have to open your own thread, for sure! please post more build pics... do you have a preview pic of your artwork? Link to comment Share on other sites More sharing options...
Ext2k Posted August 17, 2010 Share Posted August 17, 2010 I don't have pics about the artwork, the artwork is made by Lord Hiryu, do you know him? and I'm so nevious to see the previews. I just open new thread about my cabinet. Link to comment Share on other sites More sharing options...
chriz99 Posted September 11, 2010 Author Share Posted September 11, 2010 Here is another vid of my virtual pinball machine playing lord hiryu's new Indiana Jones table... Truly one of my favorites. Thanks for this masterpiece!! <object width="425" height="344"><param name="movie" value="http://www.youtube.com/watch?v=kaeWTNyN3Gs&hl=de_DE&fs=1&rel=0"></param><param name="allowFullScreen" value="true"></param><param name="allowscriptaccess" value="always"></param><embed src="http://www.youtube.com/watch?v=kaeWTNyN3Gs&hl=de_DE&fs=1&rel=0" type="application/x-shockwave-flash" allowscriptaccess="always" allowfullscreen="true" width="425" height="344"></embed></object> Link to comment Share on other sites More sharing options...
Ext2k Posted September 11, 2010 Share Posted September 11, 2010 It's Awesome!!! The resolution of this talble is amazing!! One question, I know that you use for nudding the TiltBob but what is the Mercury Switch?? Thanks in advance! Link to comment Share on other sites More sharing options...
chriz99 Posted September 11, 2010 Author Share Posted September 11, 2010 It's Awesome!!! The resolution of this talble is amazing!!One question, I know that you use for nudding the TiltBob but what is the Mercury Switch?? Thanks in advance! hey ext2k, check this link http://www.hyperspin-fe.com/forum/showpost.php?p=72629&postcount=267 Link to comment Share on other sites More sharing options...
Ext2k Posted September 11, 2010 Share Posted September 11, 2010 I want one! Where I can find? also connects directly to the ipac too? Link to comment Share on other sites More sharing options...
chriz99 Posted September 12, 2010 Author Share Posted September 12, 2010 I want one! Where I can find? also connects directly to the ipac too? found some on ebay at http://cgi.ebay.com/ebaymotors/Omega-AU-46-Mercury-Tilt-Switch-Car-Motor-Cycle-alarms-/400043695142?pt=Motors_Car_Truck_Parts_Accessories&hash=item5d24765c26 the first seller (a little bit cheaper, but sold out) was http://stores.ebay.com/Mobilistics Link to comment Share on other sites More sharing options...
Ext2k Posted September 12, 2010 Share Posted September 12, 2010 How many switch do you use? Only one for frontal tilt? Regards Link to comment Share on other sites More sharing options...
chriz99 Posted September 12, 2010 Author Share Posted September 12, 2010 yes, only one for front tilt... but you can also use 3 for left/front/right tilt... just try it. Link to comment Share on other sites More sharing options...
Ext2k Posted September 12, 2010 Share Posted September 12, 2010 Thanks Chirz I just bought only one, I have two tilt bobs too. Thanks Chriz for this fantastic idea to use the mercury switches! Link to comment Share on other sites More sharing options...
