46" / 30" / 19" widebody cabinet

Recommended Posts

hey guys,

what else could you do with your pincab...

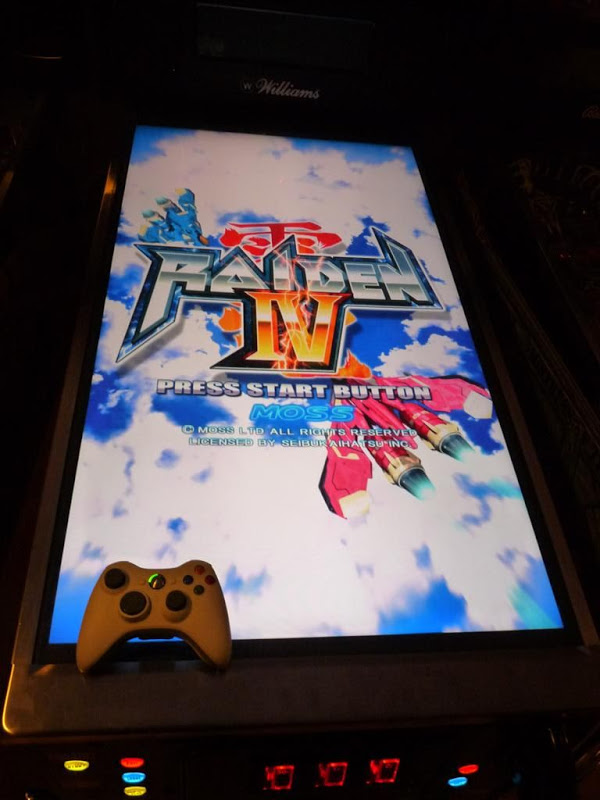

how about playing xbox360 RAIDEN IV vertically rotated!


1080p arcade, awesome viewing angle for shmups, I love it!

Edited by chriz99

Share this post


Link to post
Share on other sites

np, will take a vid soon.

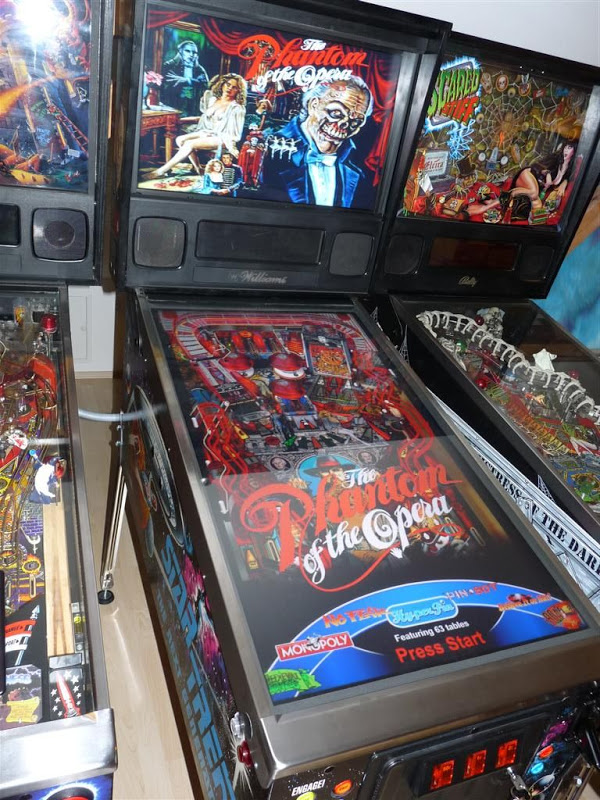

Installed Lord Hiruys "Phantom of the Opera" Table and made a custom mediapack...


This table is awesome!

Share this post


Link to post
Share on other sites

hey chris,

first-class concept with raiden, is to be played surely amusing with friends!

greetz marcel

Edited by dazeke

Share this post


Link to post
Share on other sites
np, will take a vid soon.

Installed Lord Hiruys "Phantom of the Opera" Table and made a custom mediapack...


This table is awesome!

Still can get over how authentic that cab looks against the others, if you didnt know it was emulation you would be hard pushed to tell, without a good old look. You must be dead pleased with it Chris

Share this post


Link to post
Share on other sites

played around with the dmd-colors :idea: what do you think?



playing simpsons in "yellow" is simply awesome :D

Edited by chriz99

Share this post


Link to post
Share on other sites

HEY!!! you stole my idea!!!!!LOL... they look great.......i was tinkering the other night doing the same thing.. it makes each pin table unique.. great job

Share this post


Link to post
Share on other sites
Looks cool I like the yellow also stands out nicely.

Whats been happening with your build Kurt, hasnt been updated in a while?

Share this post


Link to post
Share on other sites

How do you change the colour of the DMD just finished my cab and now on setting the thing up

Would luv to know how to change them is it just software?

Share this post


Link to post
Share on other sites

- load a table

- right mouseclick on the dmd

- now you can change the color in the pinmame options

Share this post


Link to post
Share on other sites
- load a table

- right mouseclick on the dmd

- now you can change the color in the pinmame options

This is really cool. I had always assumed that the change would be global. I didn't realize that it saves per table! Excellent!

Share this post


Link to post
Share on other sites

we could post some suggestions for dmd-colors...

yellow: simpsons, roller coaster tycoon

green: attack from mars, attack and revenge from mars, creature from the black lagoon

pink: circus voltaire

blue: terminator 2, twilight zone, the addams family, monster bash, star wars, back to the future

red: phantom of the opera, scared stiff, tales from the crypt, dirty harry, lethal weapon 3

any other ideas?

Edited by chriz99

Share this post


Link to post
Share on other sites

Chris,

I just had to sign up simply so I could post about how unbelievably fantastic your build is. Absolutely gorgeous to an impossible degree. I'd love to be able to mimic your build, but I doubt I'd ever be able to afford it.

I'm just completely blown away by the quality of the craftsmanship and the additional details like the flipper solenoids. An absolute work of genius.

Outstanding. And I thank you for sharing all the information about it that you have.

Share this post


Link to post
Share on other sites

hey epthegeek,

welcome to the board!

many thanks for commenting so positively. I am very glad you like it! :proud: :proud:

Share this post


Link to post
Share on other sites

Chrizz99

i have just installed 2 plum bobs like ur table but when i change the keys in visual pinball for nudge right and nudge left the table nudges up and down not left to right do you have any idea why. iam asuming that its cos the table is rotated to fs.

please post any help you can give me iam pulling my hair out trying to sort it.

thanks

Share this post


Link to post
Share on other sites
Chrizz99

i have just installed 2 plum bobs like ur table but when i change the keys in visual pinball for nudge right and nudge left the table nudges up and down not left to right do you have any idea why. iam asuming that its cos the table is rotated to fs.

please post any help you can give me iam pulling my hair out trying to sort it.

thanks

hmm, I dont know.

which visual pinball version do you use? list your vp video-options plz.

Share this post


Link to post
Share on other sites
Guest gstav
here is an "easy schematic ;) " to install the industry relay:


ps: its better to use an extern 12V-DC poweradapter (I use an old solid 10amps 12V-DC poweradapter) instead the pc-powersupply. its just saver.

ps2: there is electricity. do it only if you know what you do. I will take no responsibility for this.

Hi Chriz!

Really thinking of giving these realys a go for my future build.

Is this the items I should go for, or would you say you would buy a different relay now if you got the chance to travel back? :burnout:

Also noticed in your schematics that you´re using a IN4007 diode.

Do I have to do this too?

(Intend to let a freind of mine with actuall skills on this area help me later :flute:)

Share this post


Link to post
Share on other sites

hey gstav, this industry relay is awesome! I would use it again and again. and yes, you should install a IN4007 diode.

Share this post


Link to post
Share on other sites
hey gstav, this industry relay is awesome! I would use it again and again. and yes, you should install a IN4007 diode.

Chriz, what is the industry relay actually used for and what does it do in your cab???

Share this post


Link to post
Share on other sites
Guest gstav

Great! Looks like this site is the cheapest on the net too!

How long was the time of delivery for you btw?

...Whats with the diode?

Sorry for my zero knowledge in electronics! :bawling:

Share this post


Link to post
Share on other sites
Great! Looks like this site is the cheapest on the net too!

How long was the time of delivery for you btw?

...Whats with the diode?

Sorry for my zero knowledge in electronics! :bawling:

you will need the diode to eliminate the peak current of the solenoid inside the relay.

Share this post


Link to post
Share on other sites
Chriz, what is the industry relay actually used for and what does it do in your cab???

Are you in earnest, dude? ;):turtle:

Share this post


Link to post
Share on other sites

lol, no i mean what sort of effect does it add to your cab, do you get kickback from the flippers or something, how does it know when to react with whats happening on the PC side of things??, or does it just react when you press the flipper buttons, not linked to the bumpers/sling shots in game?

Edited by lettuce

Share this post


Link to post
Share on other sites
lol, no i mean what sort of effect does it add to your cab, do you get kickback from the flippers or something, how does it know when to react with whats happening on the PC side of things??, or does it just react when you press the flipper buttons, not linked to the bumpers/sling shots in game?

like a real pinball, the industry relay/solenoid emulates the flipper when you press the flipper button. you can hear and feel it. check out the vid I have posted...

Share this post


Link to post
Share on other sites
