pixelmagic Posted January 16, 2012 Author Share Posted January 16, 2012 Hey Pixelmagic, do you sell a ' all in 1 package ' ( arduino + boards + software + cables) or just your selfmade boards ?Allready thanx for your inventive actions pixel and shifter67 That is not in the plans at the moment, i am a simple hobbyist and at the moment i want to keep it that way Making money is also not at the list. At the time when things are released i will make it easy and give exact resources of what to get and maybe even where to get it. There are at the moment also plans for a third board that has lots of outputs as max 500mA, maybe even with multiplexer and/or pwm on it. So best is to sit and wait at the moment, unless you want to jump into the testing adventure like us Link to comment Share on other sites More sharing options...
Takedown Posted January 19, 2012 Share Posted January 19, 2012 Hi Pixel, I'm getting ready to start ordering various electronics for my cab and I'm wondering if it's a good idea to wait for your solution? Does your solution do all of the LED Whiz functionality currently? Is there anything special needed to get it running? If you were in my shoes would you buy a LED whiz or go with your solution? Thanks, -Ron Link to comment Share on other sites More sharing options...
neohusky Posted January 19, 2012 Share Posted January 19, 2012 This solution certainly looks like it will take over and be the preferred option in the future. I and several others are in a similar position to you takedown. At the speed things are moving I'd be surprised if we don't see something in a 'beta' stage in the next few months. That being said, the arduino solution requires the multiplexing and driver boards. Pixel has worked his 'magic' and designed the boards tonhis credit. I feel that he will be overwhelmed with requests for these (myself included) when this goes a little more public so I'm not sure how this will be handled. In the meantime I have commenced buying all my toys including an LEDWIZ. My current thinking is to wire the cab using fuses and terminate everything on terminal blocks which can easily accommodate a change from LEDWIZ to the PIXELWIZ Link to comment Share on other sites More sharing options...
ironspider Posted January 19, 2012 Share Posted January 19, 2012 I feel like this is going to be the thing to roll with in the future but, as I am building my cab right now, I'm just going to try and wire everything in a manner that allows for easy replacement of the LEDWiz with the Arduino solution. But yeah, for now I'm pushing ahead with the LEDWiz setup with the non-PWM config file (whichever file it is that is believed to help with the stuttering some experience). And, of course, I've subscribed the *hell* out of this post Link to comment Share on other sites More sharing options...
mistermixer Posted January 19, 2012 Share Posted January 19, 2012 Does the arduino gives more possibillities about assigning 'switches' to a solenoid ? ( siemens relais ) I mean, in older tables with ledwiz it is often not possible to assign the bumper,slingshot relais effect because they are not solenoids ( S numbers ) but switch numbers ( W numbers ). Please can u test this ? Let's take table 'time machine' with romname 'tmac_a24'. Switch 21 and switch 22 are the slingshots . Can u fire a relais hitting these ? That would be awsomne ! Thanx ! Link to comment Share on other sites More sharing options...
pixelmagic Posted January 19, 2012 Author Share Posted January 19, 2012 I'm getting ready to start ordering various electronics for my cab and I'm wondering if it's a good idea to wait for your solution? Does your solution do all of the LED Whiz functionality currently? Is there anything special needed to get it running? If you were in my shoes would you buy a LED whiz or go with your solution? Hard to say, things look amazing at the moment, but it sure has to prove itself in the real-life situation. At the moment I am pretty sure it does minimal the same as ledwiz. If we can get it to work then the options that we will get for sure outruns the LEDwiz. Does the arduino gives more possibillities about assigning 'switches' to a solenoid ? ( siemens relais ) I mean, in older tables with ledwiz it is often not possible to assign the bumper,slingshot relais effect because they are not solenoids ( S numbers ) but switch numbers ( W numbers ). Please can u test this ? Let's take table 'time machine' with romname 'tmac_a24'. Switch 21 and switch 22 are the slingshots . Can u fire a relais hitting these ? That would be awsomne ! Thanx ! Yes it can, i have some events running on switches (mainly LED effects). LEDwiz can also if i am not mistake ? This solution certainly looks like it will take over and be the preferred option in the future. -> Lets hope so ! I and several others are in a similar position to you takedown. At the speed things are moving I'd be surprised if we don't see something in a 'beta' stage in the next few months. That being said, the arduino solution requires the multiplexing and driver boards. Pixel has worked his 'magic' and designed the boards tonhis credit. I feel that he will be overwhelmed with requests for these (myself included) when this goes a little more public so I'm not sure how this will be handled. In the meantime I have commenced buying all my toys including an LEDWIZ. My current thinking is to wire the cab using fuses and terminate everything on terminal blocks which can easily accommodate a change from LEDWIZ to the PIXELWIZ I am working on some PCB's at the moment to make the whole system "dummy" proof. At the same time making it maybe possible to just exchange the LEDwiz with one of the boards in 90% of the cases. The problem i run into is that some things are heavy under construction at the moment and new options appear (how about an extra 32 PWM outputs besides the 128 digital outputs) that we have to consider. Besides that all kinds of input is wanted from you all, the possible future users. Please read the other topics that i have made and comment on them. All input is appriciated ! I will post some other progress later. Erwin Link to comment Share on other sites More sharing options...
xagesz Posted January 19, 2012 Share Posted January 19, 2012 I have a random request that should be simple for this project. Since most computers are put into the Cabinet open face could we have a USB header on it to connect directly to the Headers on a Motherboard. Just a thought and I would like to keep the backpanel of the mobo a lil more free. Any thoughts:? Link to comment Share on other sites More sharing options...
neohusky Posted January 19, 2012 Share Posted January 19, 2012 Are u asking for a USB "hub" on the board that Pixel is designing which connects to the Arduino? Link to comment Share on other sites More sharing options...
maxxsinner Posted January 19, 2012 Share Posted January 19, 2012 ~ could we have a USB header on it to connect directly to the Headers on a Motherboard. Can purchase this yourself Xagesz from most computer stores. Link to comment Share on other sites More sharing options...
Takedown Posted January 19, 2012 Share Posted January 19, 2012 Pixel, thanks for answering. I'lll hold off a bit longer on purchasing the whiz, at the rate I'm going it will be 2 months before I actually need it and maybe you'll be ready for us to start using your system. If not, no worries Thanks. Link to comment Share on other sites More sharing options...
xagesz Posted January 19, 2012 Share Posted January 19, 2012 yeah maxx I know that. My bad here. I completely lost my train of thought and forgot it was on arduino.... OOOPS. Completely ignore my request. Link to comment Share on other sites More sharing options...
pixelmagic Posted January 20, 2012 Author Share Posted January 20, 2012 yeah maxx I know that. My bad here. I completely lost my train of thought and forgot it was on arduino.... OOOPS. Completely ignore my request. Don't dismiss this so quickly, with things like this some of the best ideas get born. Just not this time Link to comment Share on other sites More sharing options...
pixelmagic Posted January 27, 2012 Author Share Posted January 27, 2012 (edited) Hi Guys, Shifters did loads of coding the last weeks and we have the 595 multiplex code running smoothly. This means for at the moment we have the possibility to run 4-8 of my 595 boards. Each board has max 32 digital outputs, you do the math on how many outputs we can use at the moment The system can run a a single Arduino 1280/2560 board but there is also the option on connecting more Arduino's together (master/slave). Each 595 board takes away 3 digital outputs but gives you a whopping 32 back for it. Small price to pay. At the moment there are 200+ light effects that can be run on separate groups of outputs. Each output can be in more then one group so possible combinations are almost limited. Oh yes, and have i told it also drives flashers, contactors, buttoms, shakers and other boring stuff ?? Here is a video driving my Mudokan leds (20ma) direcly from the 595 board without any extra hardware. The 595 is not really designed for that, but it works fine without getting warm. tCsyUYPuBoA Oh yes, and we have something else up our sleeves edit: Second video with more leds (red/green) 2f8RWRVf02I Edited January 27, 2012 by pixelmagic added video Link to comment Share on other sites More sharing options...
ironspider Posted January 27, 2012 Share Posted January 27, 2012 I think my LEDWiz is starting to suspect something is up. It's giving me strange loks that pretty much everything in my cab has been installed except it... Link to comment Share on other sites More sharing options...
xagesz Posted January 27, 2012 Share Posted January 27, 2012 Ok not to reidderate something but I looked around and I was trying to find a usb-b style head (the one on the arduino itself far as i can tell) To usb header. I couldn't located one. Any ideas.... I HATE WIRING. Link to comment Share on other sites More sharing options...
xagesz Posted January 27, 2012 Share Posted January 27, 2012 And Pixel You guys rock. Can't wait for yours to be production ready.. Link to comment Share on other sites More sharing options...
maxxsinner Posted January 27, 2012 Share Posted January 27, 2012 That looks awesome Pixel. Soooooooo many outputs ......:drool: Link to comment Share on other sites More sharing options...
pinballlooking Posted January 27, 2012 Share Posted January 27, 2012 (edited) Very cool I might have to hook this into my home automation system. Have it blink the room lights when I win a game Edited January 28, 2012 by pinballlooking Link to comment Share on other sites More sharing options...
zebulon Posted January 28, 2012 Share Posted January 28, 2012 That's really awesome...looks great!!! But someone has to say it....."Rock me Amadeus"???????....really???.... Seriously, you've done wonders with this idea. Link to comment Share on other sites More sharing options...
pixelmagic Posted January 28, 2012 Author Share Posted January 28, 2012 But someone has to say it....."Rock me Amadeus"???????....really???.... Dude !!! We are playing on machine's from the 70's and 80's, even try to remake them and you complain about the music from that period ! (the fact that you know it tells your an old man, like me ) But serious, had the radio on, there is a Hot 880 list from the 80's, can't help it Link to comment Share on other sites More sharing options...
zebulon Posted January 28, 2012 Share Posted January 28, 2012 Lol....had to take the shot...... Link to comment Share on other sites More sharing options...
DeeGor Posted January 28, 2012 Share Posted January 28, 2012 (edited) Dude !!!We are playing on machine's from the 70's and 80's, even try to remake them and you complain about the music from that period ! (the fact that you know it tells your an old man, like me ) But serious, had the radio on, there is a Hot 880 list from the 80's, can't help it I think 95% of the people who post on this forum could identify that song. I wonder what the average age on here is. My guess would be somewhere around 40. Edited January 28, 2012 by DeeGor Link to comment Share on other sites More sharing options...

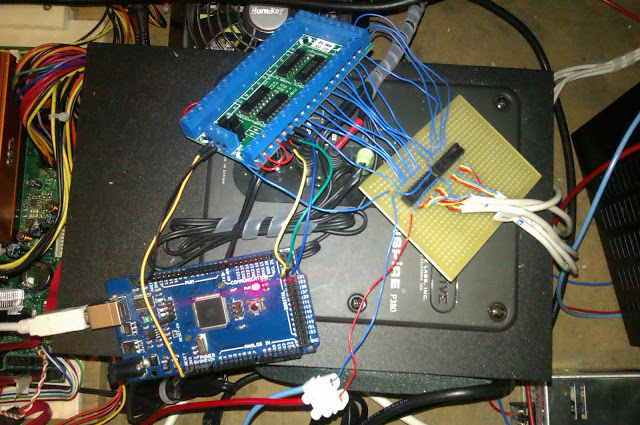

pixelmagic Posted January 29, 2012 Author Share Posted January 29, 2012 Ok, today got my flasher connected to a 595 multiplexer board and added some ULN's to give it some more juice needed for it. Here is the real pro looking test setup: After that run the the small testing program on Arduino to see if it all works: XX8B7fNfKmM Then is was time for the real thing, letting VP-Fx driving the flashers with some events. I have setup a small script to run the events in 4 second intervals with a total of 36 events on it, some of them being a 'off' event. Here is the result of that: SUmGk29LW5A To give you some idea about the code needed for all the effets, here is the list: E29G51 E34G51 E39G51 E24G51 E48G51 E53G51 E59G51 E63G51 E68G51 E70G51 E74G51 E79G51 E84G51 E89G51 E94G51 E99G51 E104G51 E104G51 0 E108G51 E108G51 0 E113G51 E113G51 0 E123G51 E123G51 0 E128G51 E128G51 0 E133G51 E133G51 0 E138G51 E138G51 0 E145G51 E145G51 0 E168G51 E168G51 0 E173G51 E173G51 0 Link to comment Share on other sites More sharing options...
gstav Posted January 29, 2012 Share Posted January 29, 2012 Hats of Erwin! This looks great! Link to comment Share on other sites More sharing options...
Numiah Posted January 29, 2012 Share Posted January 29, 2012 Awww, just saw you tried to message me. Sorry I didn't react. I was to blown away by the effects Link to comment Share on other sites More sharing options...
