gbeef Posted October 22, 2010 Posted October 22, 2010 yeah the problem is i cant find those relays:( im in canada. My Cabs My Pin Cab Attack of the PINZ cab My Racing Cab OutRun Racing
chriz99 Posted October 22, 2010 Author Posted October 22, 2010 hehe, I feel like a kid in a candy store, too Most of the kudos go to manofwar, he is the smart guy behind the code cheers chris [sIGPIC][/sIGPIC] * taito egret 29 candy cabs * indy & star wars pachinkos 17" bartop with ledwiz rgbleds * 10" bubble bobble & galaga bartop * arm champs 2 check out hi-res backglasses * best vpin performance * ledwiz config and software
reko19 Posted October 22, 2010 Posted October 22, 2010 Chris, Could you elaborate on using the ledwiz with the contactors instead of optocouplers? If I understand it correctly, the coil current would flow thru ledwiz, this current is considerably higher than a typical LED current. Would ledwiz be able to handle it?
chriz99 Posted October 22, 2010 Author Posted October 22, 2010 reko19 said: Chris,Could you elaborate on using the ledwiz with the contactors instead of optocouplers? If I understand it correctly, the coil current would flow thru ledwiz, this current is considerably higher than a typical LED current. Would ledwiz be able to handle it? flipperbutton is directly connected to ipac = no inputlag / 1:1 connection. the contactors are directly connected to ledwiz and gets activated when playing a table and hitting the flipperbutton (flipper solenoid matrix number opens the output on ledwiz where the contactor is connected). other benefit is: there is no active contactor during hyperpin browsing. ledwiz can handle up to 50V / ~500ma (with an extern powersupply). I think the 12V siemens contactors are no prob. cheers chris [sIGPIC][/sIGPIC] * taito egret 29 candy cabs * indy & star wars pachinkos 17" bartop with ledwiz rgbleds * 10" bubble bobble & galaga bartop * arm champs 2 check out hi-res backglasses * best vpin performance * ledwiz config and software
gbeef Posted October 22, 2010 Posted October 22, 2010 So are you guys using LED blinky to drive the lights and the LED WIZ board? My Cabs My Pin Cab Attack of the PINZ cab My Racing Cab OutRun Racing
chriz99 Posted October 22, 2010 Author Posted October 22, 2010 no led blinky, it's a own code. cheers chris [sIGPIC][/sIGPIC] * taito egret 29 candy cabs * indy & star wars pachinkos 17" bartop with ledwiz rgbleds * 10" bubble bobble & galaga bartop * arm champs 2 check out hi-res backglasses * best vpin performance * ledwiz config and software
njay Posted October 23, 2010 Posted October 23, 2010 Sweeet i say bring it on Ow yeah ledwiz is ordered sweet I am going to hang back with the leds until you can confirm the rgbw leds work fine My Mini Pin Build: http://www.hyperspin-fe.com/forum/showthread.php?t=5622 My Arcade Bartop Build: http://www.hyperspin-fe.com/forum/showthread.php?t=14570
Guest gstav Posted October 23, 2010 Posted October 23, 2010 xman...don´t...think..I can... wait.... either...
njay Posted October 25, 2010 Posted October 25, 2010 Need ... more... pics...until....ledwiz....arrives....plzz..... :aetsch: My Mini Pin Build: http://www.hyperspin-fe.com/forum/showthread.php?t=5622 My Arcade Bartop Build: http://www.hyperspin-fe.com/forum/showthread.php?t=14570
shilmover Posted October 25, 2010 Posted October 25, 2010 This is great guys. I am in a holding pattern waiting for you to let us know exactly what to buy so that i can build this.
jpcurreri Posted October 25, 2010 Posted October 25, 2010 I'm not having any luck with the ledwiz and hyperpin. I don't know how to get leds to respond to hyperpin and visual pinball code. Any suggestions?
jpcurreri Posted October 25, 2010 Posted October 25, 2010 Perhaps if anyone knows how to get visual pinball to send text to the clipboard then it would be easy to control the ledwiz since it monitors the clipboard.
njay Posted October 26, 2010 Posted October 26, 2010 my friend the code has not been released !! My Mini Pin Build: http://www.hyperspin-fe.com/forum/showthread.php?t=5622 My Arcade Bartop Build: http://www.hyperspin-fe.com/forum/showthread.php?t=14570

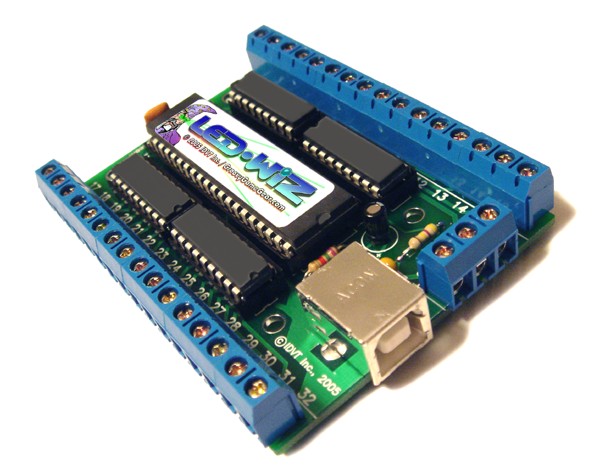

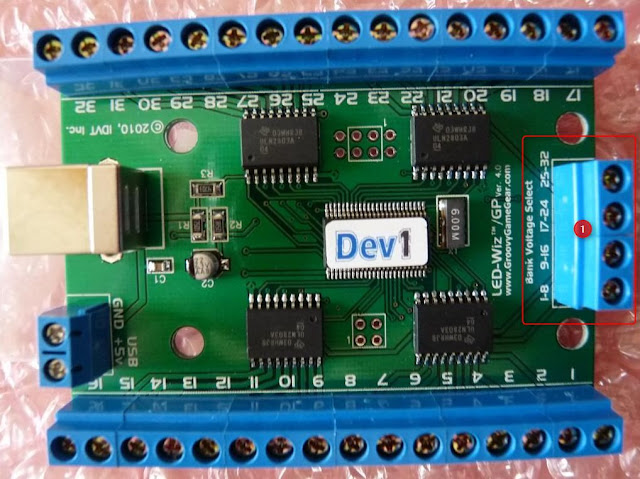

Guest gstav Posted October 26, 2010 Posted October 26, 2010 chriz99 said: if you buy a ledwiz, be sure that you order the new version of the 32-output ledwiz (small chips, instead the big one) Hi Chriz! Cant find this board from the picture with the small chips installed. Just got the 16 or 32 out versions on the GGG site, and the 32 out version got big chips... Hate to order the "wrong" Led-Wiz 32
chriz99 Posted October 26, 2010 Author Posted October 26, 2010 gstav said: Hi Chriz!Cant find this board from the picture with the small chips installed. Just got the 16 or 32 out versions on the GGG site, and the 32 out version got big chips... Hate to order the "wrong" Led-Wiz 32 Hey Gustav, I think there is only the new v2 available at groovygamegear. If you prefer an european shop (to prevent tax, high shipping costs) check out Klaus from www.wolfsoft.de. He has a few ledwiz v2 in stock, too. When you order leave a comment with your desired version, like "Board Version 2 (Small Chip)" cheers chris [sIGPIC][/sIGPIC] * taito egret 29 candy cabs * indy & star wars pachinkos 17" bartop with ledwiz rgbleds * 10" bubble bobble & galaga bartop * arm champs 2 check out hi-res backglasses * best vpin performance * ledwiz config and software
njay Posted October 26, 2010 Posted October 26, 2010 Chriz, could you maybe gives us an eta for the release? or some teaser shots? and yes all the boards from GGG are v2 i asked the question when i ordered mine My Mini Pin Build: http://www.hyperspin-fe.com/forum/showthread.php?t=5622 My Arcade Bartop Build: http://www.hyperspin-fe.com/forum/showthread.php?t=14570

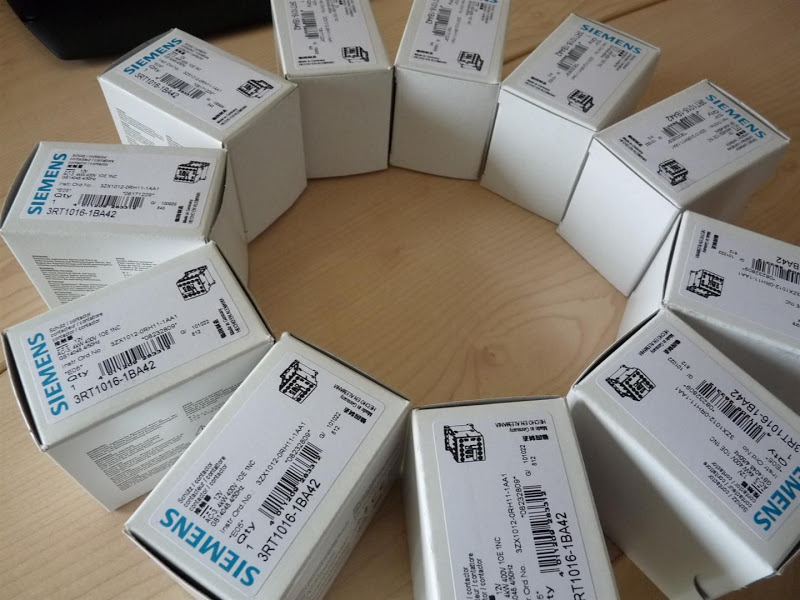

chriz99 Posted October 26, 2010 Author Posted October 26, 2010 njay said: Chriz, could you maybe gives us an eta for the release? or some teaser shots? and yes all the boards from GGG are v2 i asked the question when i ordered mine software is almost finished, should be released soon. today arrived a bunch siemens contactors (for some friends and myself... let's party ) cheers chris [sIGPIC][/sIGPIC] * taito egret 29 candy cabs * indy & star wars pachinkos 17" bartop with ledwiz rgbleds * 10" bubble bobble & galaga bartop * arm champs 2 check out hi-res backglasses * best vpin performance * ledwiz config and software
njay Posted October 26, 2010 Posted October 26, 2010 wow nice find there my friend. Does the software work like this Rom: Flash credit button --> software--> ipac --> software settings output port 2 --> light? Also i want to buy the strobe flashers also i know where to find the same pace car lights.. how do i connect them? remove the on/off switch and connect those wires to the ipac? My Mini Pin Build: http://www.hyperspin-fe.com/forum/showthread.php?t=5622 My Arcade Bartop Build: http://www.hyperspin-fe.com/forum/showthread.php?t=14570
chriz99 Posted October 26, 2010 Author Posted October 26, 2010 njay said: wow nice find there my friend.Does the software work like this Rom: Flash credit button --> software--> ipac --> software settings output port 2 --> light? Also i want to buy the strobe flashers also i know where to find the same pace car lights.. how do i connect them? remove the on/off switch and connect those wires to the ipac? no power/current wires to the ipac. all lamps, solenoids, strobes... are connected to ledwiz. only the button/microswitch itself is connected to your ipac. Rom: Flash credit button --> software --> ledwiz--> software settings output port 2 --> bulb inside the button flashes cheers chris [sIGPIC][/sIGPIC] * taito egret 29 candy cabs * indy & star wars pachinkos 17" bartop with ledwiz rgbleds * 10" bubble bobble & galaga bartop * arm champs 2 check out hi-res backglasses * best vpin performance * ledwiz config and software
chriz99 Posted October 26, 2010 Author Posted October 26, 2010 btw, here is a little preview vid to see some lights in action <object width="425" height="344"><param name="movie" value="http://www.youtube.com/watch?v=bk-pnZPHQts&hl=de_DE&fs=1&rel=0"></param><param name="allowFullScreen" value="true"></param><param name="allowscriptaccess" value="always"></param><embed src="http://www.youtube.com/watch?v=bk-pnZPHQts&hl=de_DE&fs=1&rel=0" type="application/x-shockwave-flash" allowscriptaccess="always" allowfullscreen="true" width="425" height="344"></embed></object> cheers chris [sIGPIC][/sIGPIC] * taito egret 29 candy cabs * indy & star wars pachinkos 17" bartop with ledwiz rgbleds * 10" bubble bobble & galaga bartop * arm champs 2 check out hi-res backglasses * best vpin performance * ledwiz config and software
shilmover Posted October 26, 2010 Posted October 26, 2010 chriz99 said: btw, here is a little preview vid to see some lights in action--movie removed-- Nice!
chriz99 Posted October 26, 2010 Author Posted October 26, 2010 got another toy these days but can't be controlled via ledwiz lol cheers chris [sIGPIC][/sIGPIC] * taito egret 29 candy cabs * indy & star wars pachinkos 17" bartop with ledwiz rgbleds * 10" bubble bobble & galaga bartop * arm champs 2 check out hi-res backglasses * best vpin performance * ledwiz config and software
njay Posted October 26, 2010 Posted October 26, 2010 nice video thanks ... can't wait to get it running on my cab My Mini Pin Build: http://www.hyperspin-fe.com/forum/showthread.php?t=5622 My Arcade Bartop Build: http://www.hyperspin-fe.com/forum/showthread.php?t=14570
