Nice... maybe this is better, i can not make on the site if the leds are on the board and included? or you need to mount them sep.

Do you advice two of these modules?

[shilmover]

A couple of questions...

1. have we confirmed that these LEDs work with the LEDWiz?

2. Anyone know where you can purchase those in the States?

[gbeef]

You can also use a puck driver to drive the LED but you need a power supply still I've install CREE XR's in my Salt water fish tank. and you need heat sinks for those lights. Also DONT LOOK DIRECTLY into them you will go blind. I made that mistake i was seeing yellow specs in the air, for days.

One buck puck driver you can drive up to 6 LED's I havent seen the color changing ones you guys are using, so i dont know how the color changes

[gbeef]

this is the place where i got my LED's from in the states, looks like they carry something simlar to what your using chris.

http://www.ledsupply.com/creemce.php

[njay]

So you are saying you can buy a seperate power supply to power the leds? that would solve my issue so i can still buy the cree leds ... what do i need?

If i get this:

http://www.led-tech.de/en/LED-Controlling/Constant-Current-Power-Supply/Power-Supply-for-5-8x-3W-LEDs--230V--LT-1282_118_119.html?cross=1282

i could power two cree's with ease then run the 8 color wires to the led wiz

And these for the heat:

http://www.led-tech.de/en/Technic-und-Supply/Tools-and-Material/Heat-Conductive-Pad-6-squared-LT-671_29_40.html

-------------------------------------------------------------------------------

So i bassicly i run a wire from the power supply to a terminal strip then connect all the power wires to the strip

connect the color wires from the leds to the led wiz

connect the heat pad to the bottom of the star

And here we go !

[gbeef]

I don't know how the whole LED will work. because your driving power to the LED at different voltages for them to change color. This is what you need to drive high power LED's.

1. Heat sink for the lights.

2. thermal paste for the lights

3. Puck Driver.

4. Power supply.

I dont know how the LEDWiz changes the voltage to changes light color. Its probably best to hold off..

[njay]

best to wait for chris his power schematics

i did have a chat with led-online.de and it's not as easy as i would thought it would be.

He warned me though because i am looking towards the backbox the cree lights maybe to strong.

But the rgb leds from ggg i am willing to try out if chris says it will work with the code

[chriz99]

first tests with the shaker motor... rumble in the jungle

this thing shakes my whole desk

[shilmover]

first tests with the shaker motor... rumble in the jungle

this thing shakes my whole desk

Where did you get this?

[chriz99]

it's a custom made/special design from a vibration motor company (for testing purposes).

[gbeef]

thats pretty cool chris just be careful

Shakin + LCD = ?????

[chriz99]

thats pretty cool chris just be careful

Shakin + LCD = ?????

hmmm, lets see what happens

I hope I can use it. I think the shaker feature is one of the coolest add-ons...

you can not only drive original pinball shaker tables (roadshow, tales crypt, earthshaker...)... you can also use your custom config (e.g. shaker on medieval madness castle, afm ufo hit and so on...)... more fun on every single table...

you can adjust the intensitiy of the shakermotor and the playfield lcd lays completely on foam, so it should be no problem...hopefully... (a big subwoofer generates also some shake ).

[maddags]

THATS what I'm talking about!!!!!!

Nice work...

[njay]

required an ssd

[njay]

Chris, i was still wondering i know the rgb drives from ggg are only for button illumination.

But it works perfectly for my start and launch ball button right? they are really nice and bright.

Would the software support rgb leds from ggg for my top flashers? the light they emmit are perfect for my cabinet.

[chriz99]

Chris, i was still wondering i know the rgb drives from ggg are only for button illumination.

But it works perfectly for my start and launch ball button right? they are really nice and bright.

Would the software support rgb leds from ggg for my top flashers? the light they emmit are perfect for my cabinet.

of course it will work. if it is bright enough for you to be happy, go for it.

[njay]

Thanks for your help... they will be bright enough big difference with a mini pin is that you are a lot closer to the cab backbox

[shilmover]

--edit--

Never mind.

Wait... the GGG LED-Wiz will only work for the buttons, not the top flashers?

B

Chris, i was still wondering i know the rgb drives from ggg are only for button illumination.

But it works perfectly for my start and launch ball button right? they are really nice and bright.

Would the software support rgb leds from ggg for my top flashers? the light they emmit are perfect for my cabinet.

[njay]

No the led wiz controls all

As chris stated

One controller to steer them all

[shilmover]

Got it.

thx.

No the led wiz controls all

As chris stated

One controller to steer them all

[chriz99]

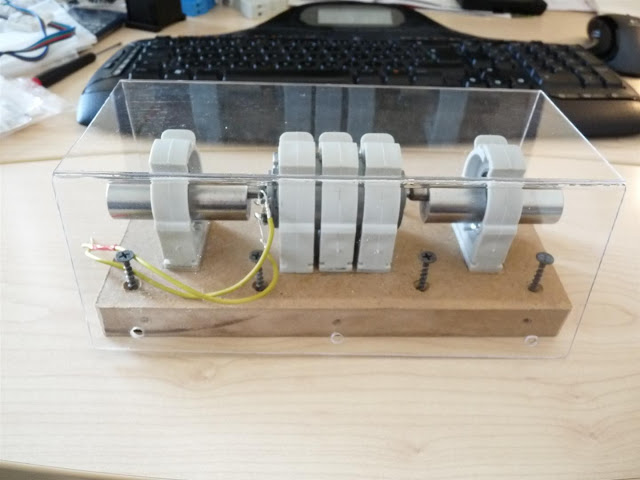

small update... made a small plexi/lexan protector for the shaker

[njay]

Cool beans chris...

Do you think there are smaller ones out there?

Also i think you need an ssd for this to work in our cabs... otherwise normal hd's would crash

[chriz99]

ssd is really recommended, not only for shakeraction.

I've found small vibration motors for cell phones, but I think they are too small for your mini.

[Ext2k]

Do you have a video with shaker running?

[chriz99]

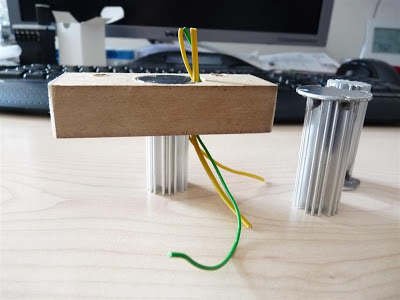

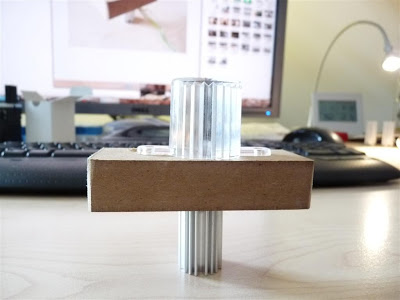

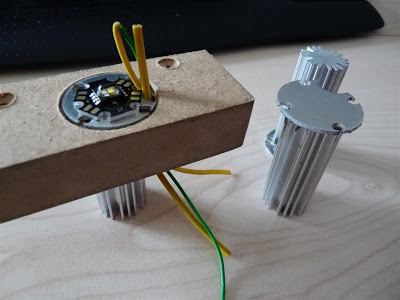

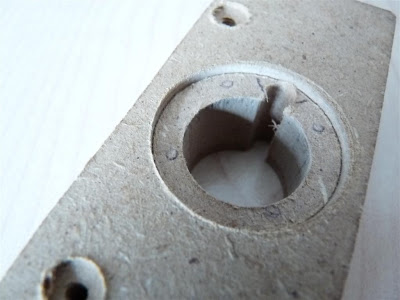

preparing the rgbw-led flasher (countersinked)...
