shilmover Posted January 16, 2011 Posted January 16, 2011 Look for this subroutine in the code: Sub Table1_KeyDown(ByVal KeyCode) Change: If KeyCode=LeftMagnaSave Or KeyCode=RightMagnaSave Then Controller.Switch(12)=1 'Buyin To: If KeyCode=KeyFront Then Controller.Switch(12)=1 'Buyin Alternately, you can have all three buttons (2, right & left ctrl) work with this: If KeyCode=KeyFront Or KeyCode=LeftMagnaSave Or KeyCode=RightMagnaSave Then Controller.Switch(12)=1 'Buyin
shilmover Posted January 18, 2011 Posted January 18, 2011 Chris, how do you have the motor connected? I just bought one on ebay and will get it by end of the week. is it connected to a relay?
gbeef Posted January 18, 2011 Posted January 18, 2011 Ok LED's arrived finally! i have a couple more questions. On the LEDWIZ there 4 voltage banks? how are you wiring them? Do you have the powersuppy going into each bank also? 1-8? 9-16? 17-25? 26-32? I notice you have 2 wires going into each bank. My Cabs My Pin Cab Attack of the PINZ cab My Racing Cab OutRun Racing
chriz99 Posted January 18, 2011 Author Posted January 18, 2011 Chris,how do you have the motor connected? I just bought one on ebay and will get it by end of the week. is it connected to a relay? yes, I use a standard (blue finder) relay. my gearmotor needs about 2A, has non-stop gear sound and 2 selectable gear speeds. Ok LED's arrived finally! i have a couple more questions.On the LEDWIZ there 4 voltage banks? how are you wiring them? Do you have the powersuppy going into each bank also? 1-8? 9-16? 17-25? 26-32? I notice you have 2 wires going into each bank. just daisychain, if you use the same voltage for all banks. cheers chris [sIGPIC][/sIGPIC] * taito egret 29 candy cabs * indy & star wars pachinkos 17" bartop with ledwiz rgbleds * 10" bubble bobble & galaga bartop * arm champs 2 check out hi-res backglasses * best vpin performance * ledwiz config and software
mistermixer Posted January 18, 2011 Posted January 18, 2011 Just arrived : 5 cree rgbw led's for white i use port 9 on ledwiz in stead of stroboscope ?

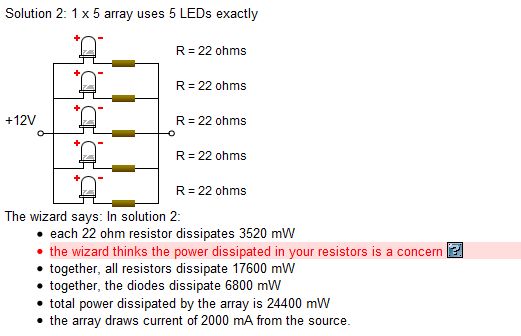

chriz99 Posted January 18, 2011 Author Posted January 18, 2011 that's possible. if you wire all white-leds of your rgbW-cree's together (parallel), you need a relay to drive the 5 white leds as a strobo, because the current is to high for ledwiz direct connection cheers chris [sIGPIC][/sIGPIC] * taito egret 29 candy cabs * indy & star wars pachinkos 17" bartop with ledwiz rgbleds * 10" bubble bobble & galaga bartop * arm champs 2 check out hi-res backglasses * best vpin performance * ledwiz config and software
chriz99 Posted January 18, 2011 Author Posted January 18, 2011 your mama cheers chris [sIGPIC][/sIGPIC] * taito egret 29 candy cabs * indy & star wars pachinkos 17" bartop with ledwiz rgbleds * 10" bubble bobble & galaga bartop * arm champs 2 check out hi-res backglasses * best vpin performance * ledwiz config and software
lettuce Posted January 18, 2011 Posted January 18, 2011 Just got my cree's, so how many wires do i need to use? anyone got a diagram?
shilmover Posted January 18, 2011 Posted January 18, 2011 Just got my cree's, so how many wires do i need to use? anyone got a diagram? 5... Red, Green, Blue, White, +12v
lettuce Posted January 18, 2011 Posted January 18, 2011 Ok then there are 8 solder pads on the cree... how do i know which pad is for what colour, and why is there 8 pads, i also noticed that this is a positve and negative symbols but what solder pads are the pos and neg??

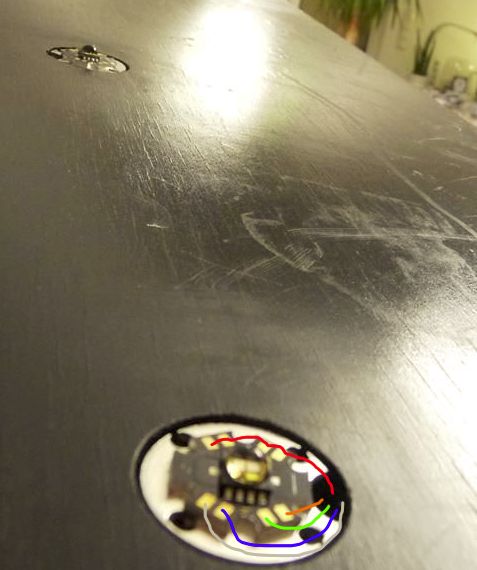

chriz99 Posted January 18, 2011 Author Posted January 18, 2011 left side = positive right side = negative simply daisychain the 4 positive pads (so you have 1 positive wire). the negative pads are red, green, blue and white. simply test it and write down the color. edit: here is a pic for you cheers chris [sIGPIC][/sIGPIC] * taito egret 29 candy cabs * indy & star wars pachinkos 17" bartop with ledwiz rgbleds * 10" bubble bobble & galaga bartop * arm champs 2 check out hi-res backglasses * best vpin performance * ledwiz config and software
lettuce Posted January 18, 2011 Posted January 18, 2011 Cheers Chriz. Has anyone tried installing the LED under the cab at all, or have you all gone for on top of the backbox? Chriz what was your thinking behind addiing the 2 extra cree's to the 3 you already had, just to make them brighter??
chriz99 Posted January 18, 2011 Author Posted January 18, 2011 most pinball machines have more than 3 flasher, mostly 5-7. the virtual pinball flasher effect is very nice and bright with 3 cree flasher, but you lose some colors sometimes (for example when 2 left flasher with different colors are active at the same time). the other benefit is a more fluent and smoother flasher rotation / lightshow. cheers chris [sIGPIC][/sIGPIC] * taito egret 29 candy cabs * indy & star wars pachinkos 17" bartop with ledwiz rgbleds * 10" bubble bobble & galaga bartop * arm champs 2 check out hi-res backglasses * best vpin performance * ledwiz config and software
gbeef Posted January 18, 2011 Posted January 18, 2011 Hey chris another question how did you wire your motor? I have a 12VDC motor same as your i believe but have no clue how to run it, it a relay? is your relay VDC also? My Cabs My Pin Cab Attack of the PINZ cab My Racing Cab OutRun Racing
lettuce Posted January 18, 2011 Posted January 18, 2011 most pinball maschines have more than 3 flasher, mostly 5-7.the virtual pinball flasher effect is very nice and bright with 3 cree flasher, but you lose some colors sometimes (for example when 2 left flasher with different colors are active at the same time). the other benefit is a more fluent and smoother flasher rotation / lightshow. Ah ok, looks like im going to have to have 4 flashers on the backbox and 1 on the underside of the cab, as i have a fan in the middle of the top of the back box, so i cant install the crees in a tidy manner for example: 0---0---0 --0---0-- As the fan is in the way, some im going to have to go with 2 either side of the fan. Not 100& sure how this will look with a cree on the underside of the cab

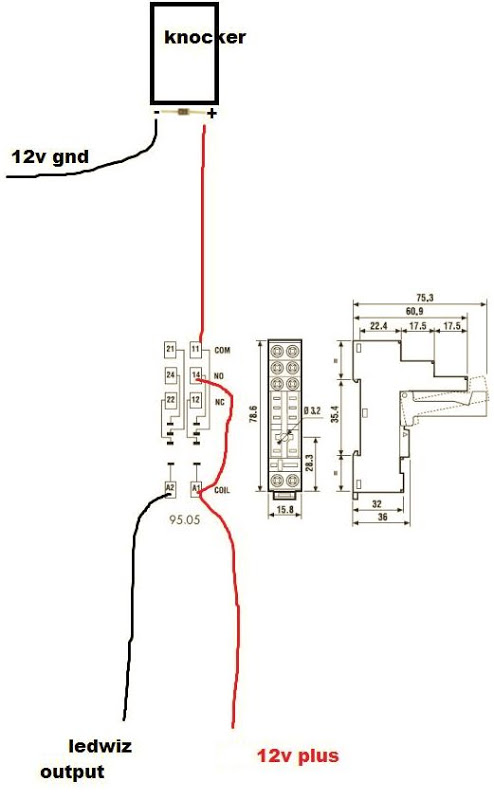

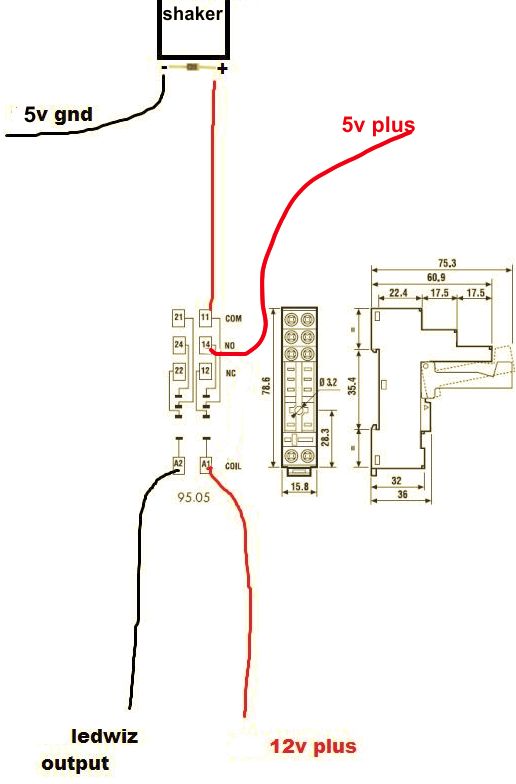

chriz99 Posted January 18, 2011 Author Posted January 18, 2011 Hey chris another question how did you wire your motor? I have a 12VDC motor same as your i believe but have no clue how to run it, it a relay? is your relay VDC also? please be careful with electricity! you may need to contact an electrician if you are unsure how to do this yourself. I will take no responsibility for any damage or errors which may appear in my schematic! here is my personal schematic for my 12V knocker and 12V gearmotor and for my 5V-12V shakermotor (I use an extra 2A poweradapter which selectable 3/4/5/6/7.5/9/12V, so I can adjust the intensity of the shaker) cheers chris [sIGPIC][/sIGPIC] * taito egret 29 candy cabs * indy & star wars pachinkos 17" bartop with ledwiz rgbleds * 10" bubble bobble & galaga bartop * arm champs 2 check out hi-res backglasses * best vpin performance * ledwiz config and software
gbeef Posted January 18, 2011 Posted January 18, 2011 Did you use something to convert DC to VDC power? My Cabs My Pin Cab Attack of the PINZ cab My Racing Cab OutRun Racing
chriz99 Posted January 19, 2011 Author Posted January 19, 2011 you can't convert DC to DC or did you mean AC to DC? cheers chris [sIGPIC][/sIGPIC] * taito egret 29 candy cabs * indy & star wars pachinkos 17" bartop with ledwiz rgbleds * 10" bubble bobble & galaga bartop * arm champs 2 check out hi-res backglasses * best vpin performance * ledwiz config and software
gbeef Posted January 19, 2011 Posted January 19, 2011 The motors i bought say VDC? on them and not DC... My Cabs My Pin Cab Attack of the PINZ cab My Racing Cab OutRun Racing
pixelmagic Posted January 19, 2011 Posted January 19, 2011 The motors i bought say VDC? on them and not DC... That means Voltage Direct Current.... [TABLE=width: 500] [TR] [TD][/TD] [TD=align: center]New project homepage: http://blog.pixelmagic.nl/[/TD] [TD][/TD] [/TR] [TR] [TD][/TD] [TD=align: center]LED-Wiz utility: http://pinball.pixelmagic.nl/ledwiz/[/TD] [TD][/TD] [/TR] [TR] [TD][/TD] [TD=align: center]Anyone want to buy my LEDwiz ?? [/TD] [TD][/TD] [/TR] [/TABLE]
chriz99 Posted January 19, 2011 Author Posted January 19, 2011 it's the same, V stands just for volts... dc = dc cheers chris [sIGPIC][/sIGPIC] * taito egret 29 candy cabs * indy & star wars pachinkos 17" bartop with ledwiz rgbleds * 10" bubble bobble & galaga bartop * arm champs 2 check out hi-res backglasses * best vpin performance * ledwiz config and software
lettuce Posted January 19, 2011 Posted January 19, 2011 Chris how many inputs do you have left spare on the led-wiz with all your equipment installed? Might trying running 6 crees, i understand that each cree uses 4 inputs on the led-wiz right?
shilmover Posted January 19, 2011 Posted January 19, 2011 I will only have 3 left: 1 for strobe (if I add one) 1 for Shaker (if I add one) 1 for fun... I think Chris is full And yes, 4 for each cree
