thewool Posted August 24, 2011 Share Posted August 24, 2011 Sounds like a nice little tweak, just thought the separation would be more localised. I've got some spare speakers somewhere, might give this a go... Chris, back to your T6 strobe array... Would you mind posting a link to the power board and fast switching opto-relay you mentioned? I would really like to install a similar setup of maybe 3 LEDs at the top of my playfield - but probably not as bright as yours!! Cheers. p.s. any more videos yet? Link to comment Share on other sites More sharing options...
Guest gstav Posted August 24, 2011 Share Posted August 24, 2011 Man! This is grade A++ cab in the making Chriz! (showoff! ) Love to see a comercial style vid later! Rock on! Link to comment Share on other sites More sharing options...
chriz99 Posted August 24, 2011 Author Share Posted August 24, 2011 @thewool Why not, give it a try with the sound separation. For the t6 strobe you need following parts 3x cree xm-l t6 on star coldwhite (wired in a series for 12vdc use) http://www.led-tech.de/en/High-Power-LEDs-Cree/CREE-XM-Serie/CREE-XM-L-T6-on-Star-LT-1734_120_170.html 1x constant-current board http://www.led-tech.de/en/LED-Controlling/Constant-Current-Power-Supply/PowerLine-Constant-Current-Power-Supply--2800mA,-30V--LT-1290_118_119.html 1x opto relay http://www.conrad.de/ce/de/product/184260/HALBLEITERRELAIS-POK-1275 @G thanks man Link to comment Share on other sites More sharing options...
maxxsinner Posted August 24, 2011 Share Posted August 24, 2011 Jeeezzus you come up with some mad ideas Chris. Link to comment Share on other sites More sharing options...

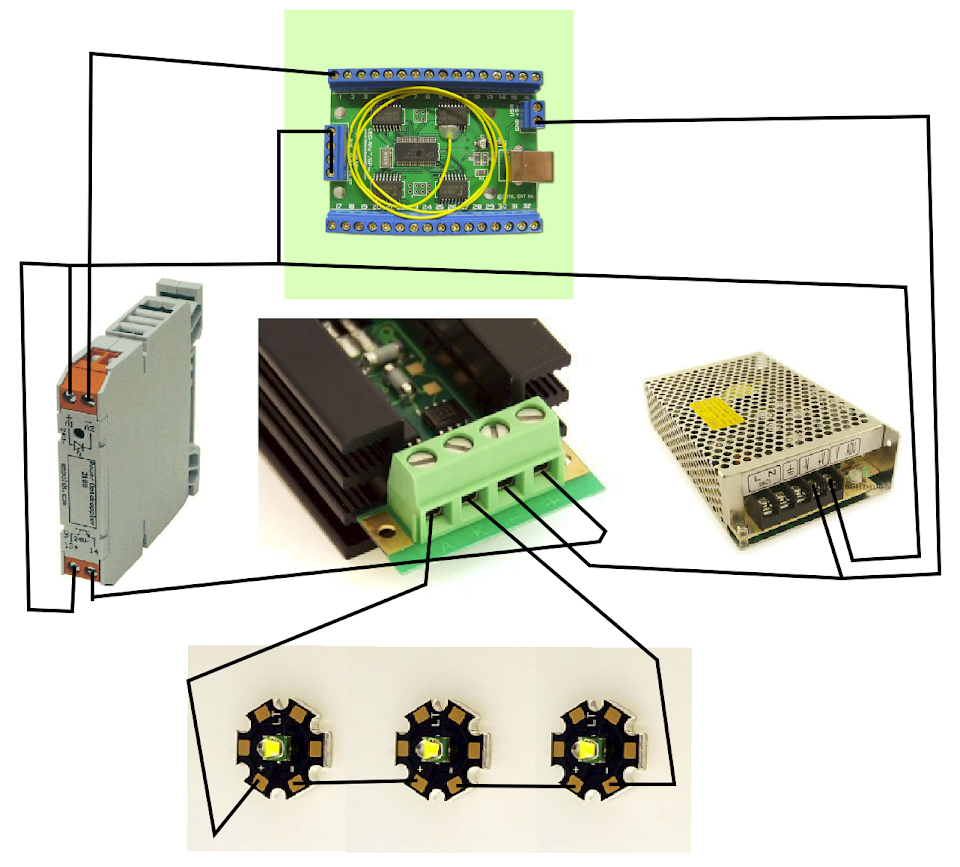

chriz99 Posted August 24, 2011 Author Share Posted August 24, 2011 here is an "easy diagram" for T6 strobe wiring, maybe we can use it for pinball101 Link to comment Share on other sites More sharing options...
thewool Posted August 24, 2011 Share Posted August 24, 2011 THANK YOU for the info and diagram Chris!!!!! also cool that no resistors required :) Link to comment Share on other sites More sharing options...
arngrim Posted August 24, 2011 Share Posted August 24, 2011 hehe, eagle eye yes, it's a barco 808 beamer, love the old analog look and feel. Hi Chris, Welcome to the club I have a barco data 808s, with hd145 lenses with the red and blue color filtered, hd fury 3, htpc, I am a home theater fan for years actually. In 2003, me and some friends have created a forum about every home theater audio video aspect, it's:cinetson It's working pretty well, but we speak most of the time french. And if everything goes well, I will begin my cabinet build next month Link to comment Share on other sites More sharing options...
maxxsinner Posted August 24, 2011 Share Posted August 24, 2011 here is an "easy diagram" for T6 strobe wiring, maybe we can use it for pinball101 Will do sir! Almost due for an update. Link to comment Share on other sites More sharing options...
DedroK_V Posted August 28, 2011 Share Posted August 28, 2011 Will do sir! Almost due for an update. You keep saying that maxxs, but i,m not seeing it..... Chriz, if you keep raising the bar, we'll need to pole vault.... what will you come up with next.... nice work you re doing. Link to comment Share on other sites More sharing options...
chriz99 Posted August 29, 2011 Author Share Posted August 29, 2011 thanks gents for your kind words! here is a fist LEDWIZ test (strobe, flashers, gear and shaker motor, replay knocker, contactors...) pIGSlku2rzQ Link to comment Share on other sites More sharing options...
lettuce Posted August 29, 2011 Share Posted August 29, 2011 Jesus what component going off when the strobes are going?? sounds really loud whatever it is? Link to comment Share on other sites More sharing options...
Darkfall Posted August 30, 2011 Share Posted August 30, 2011 Looks like everything works perfectly. Awesome! I love the strobe when the replay knocker strikes. Great idea. Link to comment Share on other sites More sharing options...
Guest gstav Posted August 30, 2011 Share Posted August 30, 2011 Looks awesome pal!!! So, now you're ready to rumble or what's left to do? Link to comment Share on other sites More sharing options...
chriz99 Posted August 30, 2011 Author Share Posted August 30, 2011 thanks guys! have to do some ledwiz finetuning, then it's done... hopefully Link to comment Share on other sites More sharing options...
trowhill Posted August 31, 2011 Share Posted August 31, 2011 Chris, I am new to the awesome world of virtual pinball and am already in the pre planning stages of building a cabinet. Looking through all the great comments you and everyone has posted has been very helpful and you have done a ton of great work on your newest cabinet. I just have two questions for you, first, would you mind sharing the measurements for the cabinet you built? and second, what are the buttons on the bottom of your cabinet for, the ones near the flashers? Thanks Link to comment Share on other sites More sharing options...
gbeef Posted August 31, 2011 Share Posted August 31, 2011 OMG!.... i need glasses, This is so awesome chris nice work. Link to comment Share on other sites More sharing options...
njay Posted August 31, 2011 Share Posted August 31, 2011 Good then it's time for a europe meeting day? with german beer Link to comment Share on other sites More sharing options...
chriz99 Posted August 31, 2011 Author Share Posted August 31, 2011 @trowhill: you'll find the measurements at mamemans dr. who thread (http://www.hyperspin-fe.com/forum/showthread.php?t=8239). It's a standard bally/williams widebody cabinet size. the 6 buttons are for volume up, down, pc on, opencoindoor, ipac-shift and for additional insertcoin. @gbeef: thanks man! @njay: I will chill the beer Link to comment Share on other sites More sharing options...
maxxsinner Posted August 31, 2011 Share Posted August 31, 2011 Got the overalls - Check Got the 20,000 SPF Sunblock - Check Got the face shield - Check I am ready to play Chris's Pinball Monster!! Looks awesome Chris. Link to comment Share on other sites More sharing options...
chriz99 Posted August 31, 2011 Author Share Posted August 31, 2011 LMAO Link to comment Share on other sites More sharing options...
DedroK_V Posted August 31, 2011 Share Posted August 31, 2011 Man, thats insane Chriz. You need to take it to some shows I think........ Link to comment Share on other sites More sharing options...
Xamfear Posted September 3, 2011 Share Posted September 3, 2011 Chriz, I've notice in your vids that the interior of your cab it is always lit so nicely. Do you explicitly light the interior, is that spill over from other sources (PSU Lights, Glowey Fans, etc), or do you use a light source just for shooting your videos? Also you have buttons underneath your cab, what are they for? Link to comment Share on other sites More sharing options...
chriz99 Posted September 3, 2011 Author Share Posted September 3, 2011 the 6 buttons are for volume up, down, pc on, opencoindoor, ipac-shift and for additional insertcoin. I installed some short LEDstrips for the interior lighting. very nice for maintenance. Link to comment Share on other sites More sharing options...
Guest gstav Posted September 3, 2011 Share Posted September 3, 2011 I thought one of them were an alarmbutton in case of robbery Link to comment Share on other sites More sharing options...
Darkfall Posted September 4, 2011 Share Posted September 4, 2011 I thought one of them were an alarmbutton in case of robbery Hehe. I imagine he has a key fob for alarm arming and disarming. Done playing pinball for the night - bloop bloop (flash flash) - alarm armed. The interior work light is an awesome thing. I've seen a few cabinets do this now. After sticking your head inside a dark cabinet with a mini flashlight in your mouth a few times, it's not long before you start wanting better lighting in there. Link to comment Share on other sites More sharing options...
