Big Bang Pin - 46/30/15.6 LED Widebody (custom artwork, bezel less, deep playfield)

Recommended Posts

Hi All,

I'm fresh on the forum, but already been reading a lot "in stealth mode" ;-)

first of all Chriz99, superb job on the build, to be honest, you are my inspiration to start one myself...

I'm now looking at building my own widebody cabinet (thanks mameman for the measurements of it). I would go for a 46" playfield, backbox with 30" and dmd screen (not yet clear for me what to use)

I already have a first question. on the build of maneman, the screen is on top. I do like the deeper playfield more, so I like your option chriz99. just looks more original, I might give it a small slope I think. (2 degrees or so)

But as normaly it is on top of the full width, did you make the cabinet a little wider chriz99 to keep it inside??

if there are more people of belgium, please don't hesitate to contact me, as I will need a lot of help on the PC and programming side... hardware of the cabinet build and other stuff will be ok to do...

for sure till later ;-)

ciao,

Shibbynator

Share this post


Link to post
Share on other sites
hey ron, check out these pics:

installed original flipper buttons (crystal clear) with leaf switches and bent a selfmade LED holder for button illumination. got the RGB-LED boards from wolfsoft.de

Thank you sir.

Share this post


Link to post
Share on other sites
...I already have a first question. on the build of maneman, the screen is on top. I do like the deeper playfield more, so I like your option chriz99. just looks more original, I might give it a small slope I think. (2 degrees or so)

But as normaly it is on top of the full width, did you make the cabinet a little wider chriz99 to keep it inside??...r

hey Shibbynator, for original bally/williams widebody cabinet size you have to buy an UE46/UN46 series Samsung slimline LED TV. besides that, you need to route 2 slots sideways in the cab - to slide in the screen. I have posted some pics in this thread.

Share this post


Link to post
Share on other sites

Yup, echo what Chris says on the screen. Dr who was flat on top like Chris sttng. Also checkout the BBB thread in my sig for the routed lower version for pics. You really need to run around 6 degrees for a good effect.

Hi All,

I'm fresh on the forum, but already been reading a lot "in stealth mode" ;-)

first of all Chriz99, superb job on the build, to be honest, you are my inspiration to start one myself...

I'm now looking at building my own widebody cabinet (thanks mameman for the measurements of it). I would go for a 46" playfield, backbox with 30" and dmd screen (not yet clear for me what to use)

I already have a first question. on the build of maneman, the screen is on top. I do like the deeper playfield more, so I like your option chriz99. just looks more original, I might give it a small slope I think. (2 degrees or so)

But as normaly it is on top of the full width, did you make the cabinet a little wider chriz99 to keep it inside??

if there are more people of belgium, please don't hesitate to contact me, as I will need a lot of help on the PC and programming side... hardware of the cabinet build and other stuff will be ok to do...

for sure till later ;-)

ciao,

Shibbynator

Share this post


Link to post
Share on other sites
hey Shibbynator, for original bally/williams widebody cabinet size you have to buy an UE46/UN46 series Samsung slimline LED TV. besides that, you need to route 2 slots sideways in the cab - to slide in the screen. I have posted some pics in this thread.

Hi Chriz99.

this seems to be a rather expensive choice compared with several other LCD screens. What's the reason why this has to selected? size?

Another question your SSD of 64Gb, is this sufficient to run all tables and software?? or is extra HD space needed?

Share this post


Link to post
Share on other sites
Yup, echo what Chris says on the screen. Dr who was flat on top like Chris sttng. Also checkout the BBB thread in my sig for the routed lower version for pics. You really need to run around 6 degrees for a good effect.

Hi Mameman, To be honest I was planning to make the playfield/screen lowered in the cabinet but still make it tilted on some degrees... :-)

Thought I would be the first to have this done ... euch NOT :-)))

Share this post


Link to post
Share on other sites
Hi Chriz99.

this seems to be a rather expensive choice compared with several other LCD screens. What's the reason why this has to selected? size?

Another question your SSD of 64Gb, is this sufficient to run all tables and software?? or is extra HD space needed?

the reason for the UE46/UN46 was because no other confirmed LCD-TV fits "inside" a standard widebody cabinet.

64gb SSD is more than enough. I used a 32gb SSD before, but I love the faster speeds of the new 64gb one (100mb/s : 500mb/s)

Share this post


Link to post
Share on other sites

Hello Shibbynator and welcome to the forums.

I'm from Belgium too, Charleroi to be precise, I'll start to mount my cabinet soon, I am just waiting the virtuapin parts (buttons and cabinet parts).

Would be glad to help, Chris help me A LOT already so I'm not a total beginner anymore :)

On pc and programming I can almost handle by myself, it is more the build of the cabinet itself that will cause me more problems.

We certainly can share our knowledge ;)

Edited by arngrim

Share this post


Link to post
Share on other sites
the reason for the UE46/UN46 was because no other confirmed LCD-TV fits "inside" a standard widebody cabinet.

how deep were the slots you made? did you use 18mm MDF?

Just one question how do you know the inside width of the TV without the plastic sides?

I'm from Belgium too, Charleroi to be precise, I'll start to mount my cabinet soon, I am just waiting the virtuapin parts (buttons and cabinet parts).

On pc and programming I can almost handle by myself, it is more the build of the cabinet itself that will cause me more problems.

We certainly can share our knowledge ;)

Hi Arngrim, nice to meet you, for sure we can share knowledge. I'll be glad to help on the cabinet side... where did you get your parts? did you buy them new?

Share this post


Link to post
Share on other sites
how deep were the slots you made? did you use 18mm MDF?

I think the routing was 10mm deep, I used 19mm MDF

Just one question how do you know the inside width of the TV without the plastic sides?

thats the 1 mio $ question :D

It's simply try and error. buy a tv, decase it and measure the metalframe... and hope that it will fit :reddy: mameman found out that the UE/UN46 series fits like a champ :five:

Chris, what is the wire management solution you have called, it looks real slick.

you mean the cable canal?

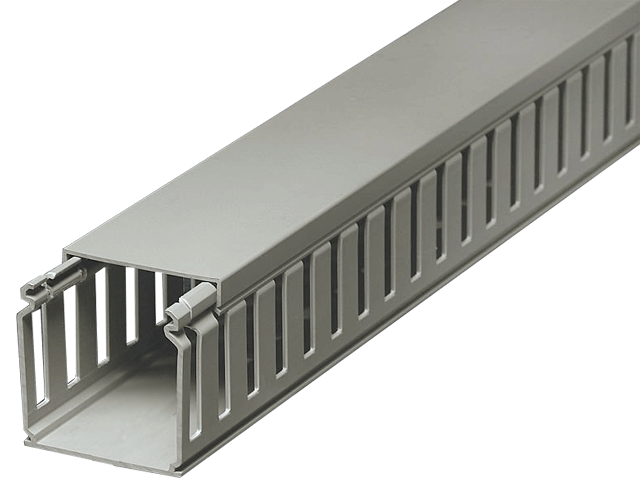

it's called "slotted cable trunk". can be found on ebay or electronic stores.

Share this post


Link to post
Share on other sites

Shibbynator,

Français or Vlaams ? ;)

I bought the cabinet and button parts from Virtuapin.net.

I'll go for a 40",32", and temporary a 15" until the real dot matrix project comes to his end :

http://www.vpforums.org/index.php?showtopic=17294&st=0

I'll design the cabinet with google sketchup, and send the dxf's to a shop near my home.

My biggest problem now, for the glass of the backbox, the trim of virtuapin.net will certainly be smaller than my 32", so I'm not sure how to handle this yet, I have to ask Mameman with his Big Bang Bar build.

I'll create a topic once the cabinet is built.

Share this post


Link to post
Share on other sites

the real dot matrix project is really cool, but I think I can't live without the "yellow simpsons", "green attack from mars" and "pink cirqus volraire" dmd anymore :D

Share this post


Link to post
Share on other sites

Angrim,

Français or Vlaams ? ;)

Vlaams, I'm from Kortrijk

I'll go for a 40",32", and temporary a 15" until the real dot matrix project comes to his end :

hard to find a 30" indeed, I was looking for a 32" too... where did you get that 15,6"?

My biggest problem now, for the glass of the backbox, the trim of virtuapin.net will certainly be smaller than my 32", so I'm not sure how to handle this yet, I have to ask Mameman with his Big Bang Bar build.

I was thinking to widen the backbox if I can't find a cheap 30". Should not be such a hard deal if you make the cabinet yourself. Even the glass is not a big issue, just search for a local glass worker ;) concering the trim, I'm sure there can be found a solution for that too...

Share this post


Link to post
Share on other sites

you mean the cable canal?


it's called "slotted cable trunk". can be found on ebay or electronic stores.

Thanks! I really like how organizer your wiring is around the components. Will try this with a combination of the corrugated tube for long runs.

Share this post


Link to post
Share on other sites

thats the 1 mio $ question :D

It's simply try and error. buy a tv, decase it and measure the metalframe... and hope that it will fit :reddy: mameman found out that the UE/UN46 series fits like a champ :five:

hey chriz, happy new year!

Are you sure that any of the UE/UN46 series fits? Even the cheaper ones from the 5000 series?

Bitbuster

Share this post


Link to post
Share on other sites

hey ryan, happy 2012 :beer:

I think that every UN/UE46 will fit... but 100% guarantee only for the approved/pretested models. Just try the 5000 series and report back, so everyone can profit from your information.

Share this post


Link to post
Share on other sites

ordered a bunch of pixel's pcbs:

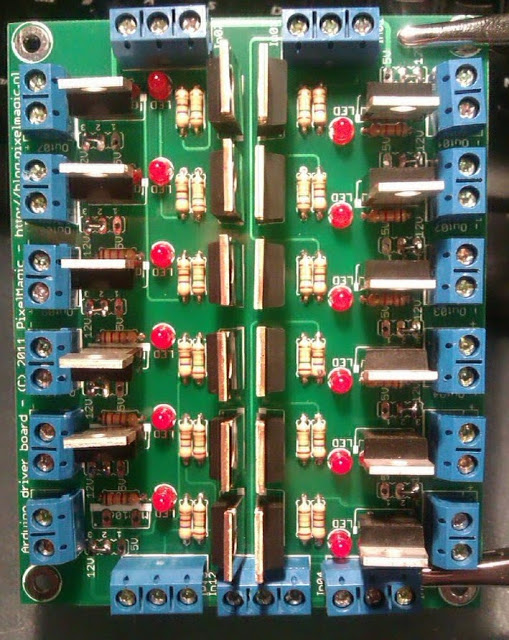

some driver boards

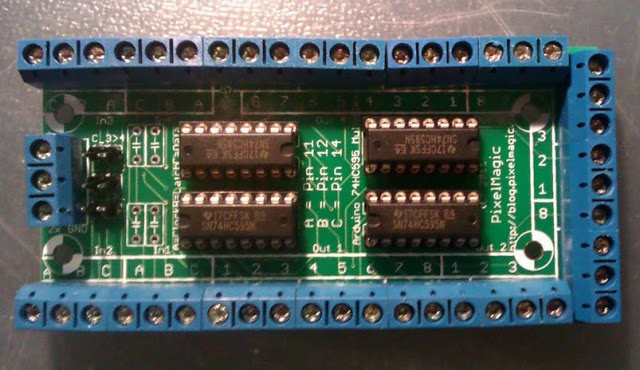

some shifting boards


can't wait for these toys :D

great work erwin! you're a real solder demon :five:

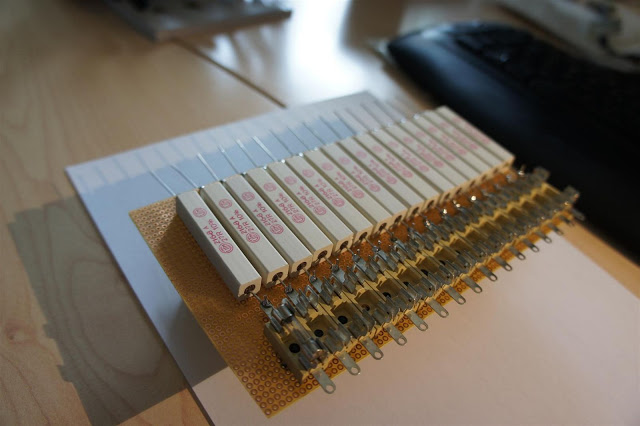

first WIP pics ;)


Edited by chriz99

Share this post


Link to post
Share on other sites

Based on your setup and current number of toys how any driver boards and multiplex pcbs are you thinking of adding?

Share this post


Link to post
Share on other sites

Join the conversation

You can post now and register later. If you have an account, sign in now to post with your account.

Guest
Reply to this topic...

×   Pasted as rich text.   Paste as plain text instead

  Only 75 emoji are allowed.

×   Your link has been automatically embedded.   Display as a link instead

×   Your previous content has been restored.   Clear editor

×   You cannot paste images directly. Upload or insert images from URL.


  • Similar Content

    • By incessant
      Hi guys! I recently finished my newest project and thought I would share it. If I can figure out how to upload photos here  I will do that too.



      As with most MAME projects, the majority of the time is in the software. We had a difficult time getting both guns to work in MAME, and after pulling our hair out for a couple of days we found a thread mentioning that dual light gun support is broken in the newest version. We got an older version and BOOM.
      There is still some software work a head. I have not tried to tackle dual light guns in M2. I may not bother.

      I used the Ultimarc AimTrak guns. They had the best reviews in my research. They function very well. While it is impossible to get them optimized perfectly for every game, after some long hours in the individual game calibrations, I have the happiest medium I think I will find. Some games work much better (and more accurately) than others.
      For example the hunting games are dead center at the middle of the screen, but end up about 2" off at the sides. I don't know if there is anyway to correct for that. Also some games play better at different distances. Overall, I am very please with it. There are probably a handful of games that play terrific, and the rest have their issues.

      We used 2 nanoLED USB controllers and LEDBlinky to automate.

      The holsters are 3D printed.

      The original speakers are being used along with a super cheap 5W amp and a 100W yamaha subwoofer.

      We used a Windows 7 PC. I hate the load times, but sadly the aimtraks only work with windows.





      Nano Led




      AimTraks


      Maquee


      RGB LED Lights JUST fit in the buttons




      CP Art


      Custom TV & Marquee Stand


      Painted Marquee



      Maquee and Tv Mounted


      CP Attached


      Finished



      Sorry Guys! I Don't know why some of the photos are rotated :/

    • By newoski
      RocketBlinky is a 3rd-party tool that can, in a matter of minutes, auto-generate an LEDBlinkyControls.xml supporting over 160 HyperSpin systems. Translation: It takes 99% of the work out of setting up LEDBlinky.

      Demo Video:
    • By 123fakestreet
      On the left, the original 1982 Mr. & Mrs. Pac-Man Pinball. To the right, the replica. Thank you to all cabinet builders for the inspiration, especially chriz99 and mameman!



      Playfield Cabinet

      The front and back corners are cut at 45 degrees, with miter splines for strength. I also used wood bracing on the inside corners under the leg brackets. The leg bracket holes were drilled at 25/64" which gave a little wiggle room to tighten fully. One problem I ran into: I cut the slots for the side rail plastic channels at 1/16" with a router and Harbor Freight slot cutter set, but after painting they weren't wide enough to hammer the rails down into, so I had to redo that. Slots for the TV were routed to 1/2" leaving only 1/4" thickness. I was worried about this in back with the weight of the backboxes so I made 2 bracing pieces to reinforce. The TV ended up being slim enough to install (fully cased) from the top, if I had realized that earlier I would not have routed the slots all the way back. Because there is a Samsung logo tab sticking out on the bottom of the TV, it sits slightly off-center to the right in the cabinet despite the routing, it is only about 1/8" off though. The remote works fine (needed for switching to 3D) as the sensor is on the bottom right of the TV so ends up near the buttons on the left side. 3D does work, check out the thread by toxie for more info. Because the Samsung UN46ES7100 is active shutter, you need two pairs of glasses turned sideways for it to work and not see black bars. This does make it hard to see the backglass and DMD, and the resolution is cut in half to achieve 3D. I don't turn on the 3D very often but it's nice to have, I did angle the TV downward anyway so it gives some illusion of depth though 2D.

      3/4" Birch Plywood
      Kreg 1-1/4" Course Pocket Screws (every 6 inches, 2 inches from edges, with wood glue)
      46" Samsung UN46ES7100
      Widebody Lockdown bar
      Williams/Bally Lockdown Bar Lever Guide Assembly
      BLACK KNIGHT (Williams) Side rails pair
      Spiral nail .15" dia. x 3/4"
      Screw 6-32 x 5/8" hex
      4X Pin Cushion Cabinet Protectors
      4X Williams/Bally New Style Leg Bracket
      4X Heavy Duty Leg Leveler With Nut
      4X Leg Leveler Rubber Castors
      4X Bally Gray Legs
      2X Williams/Bally WPC/WPC95 Playfield Glass Side Rail Plastic Channel
      Williams/Bally WIDEBODY Playfield Glass Rear Plastic Channel
      Grill - speaker 7" x 7"
      Vent grill - metal 2-1/2" x 19" (cut to size)
      3/16" Smoked Plexiglass
      1-1/8" Double-Bitted Lock
      Lock Plate
      Piano Hinge


      Upper Backbox (A bit taller and wider to fit screen)

      Also routed to 1/2" to recess the decased screen as much as possible. Routing on all sides presented a problem, how to get the TV in there? I ended up leaving the right side unglued so it is removable, the hole in the bottom is large enough to get a screwdriver in there and tighten with pocket screws. The top trim piece is not glued in as it would cover the screw holes holding things together.

      3/4" Birch Plywood
      1/4" MDF (Backglass retainers)
      Kreg 1-1/4" Course Pocket Screws (every 6 inches, 2 inches from edges, with wood glue)
      (all plastic/metal trim was cut to size with a Dremel Fiberglass Cut-Off Wheel)
      30" NEC LCD3000 (originally Dell W3000 but it would not turn on reliably, a common issue I have read online)
      Trim backglass 3/16" side plastic set-3
      Bally Stainless Lift Trim
      3/16" Smoked Plexiglass


      Lower Backbox (A bit taller and wider to fit screen)

      For now, I am using the HannsG instead of a real DMD. (I wanted to use custom color settings and not have the intense reflection on the playfield glass) It is routed about 1/2" and wedged in there tightly. I had to make the box taller, which I justified by having the combined height of the backboxes be the same as a Williams widebody. Theare are 2 pieces of plexiglass with a paper bezel inbetween.

      3/4" Birch Plywood
      1/2" MDF (Backglass retainers)
      Kreg 1-1/4" Course Pocket Screws (every 6 inches, 2 inches from edges, with wood glue)
      (all plastic/metal trim was cut to size with a Dremel Fiberglass Cut-Off Wheel)
      15.6" HannsG HK162
      Trim backglass 3/16" side plastic set-3
      Bally Stainless Lift Trim
      1/8" Smoked Plexiglass, 1/16" Smoked Plexiglass


      Stencils

      Ideally a spray gun is the way to go with stencils, but I like the control of using a foam roller, although it requires a lot of touch up. 2 coats of latex Kilz2 primer, and then latex Glidden Satin Interior, 3 coats blue (Rhapsody), 5 coats yellow (Sunny Side Up), 5 coats pink (Passion Flower) The black was done with 2 coats Zinnser BIN primer (spray can) and 2-3 coats Rustoleum Satin Black (spray can). One thing I re-learned about spray paint, if you're going to do more than one coat, don't space them out too long, I did a second coat of black the next day and it puckered, had to redo it. Another coat should be applied within an hour.


      Bally Coin door/Cash box

      I took the coin door completely apart and used a wet sanding sponge (up and down for uniform grain) to buff out scratches, it worked great, used the same on the trim. For the coin insert panel/coin mechs and chutes I used steel wool. I wired the lights in series to the PC, using an extra molex to SATA adaptor to splice the wires. #161 bulbs are the correct voltage. I put the shooter rod/knob in the drill and spun it in steel wool, shined it all up, did the same for the coin return button. You can use steel wool on the cash box, but it takes off the zinc coating, leaving it clean and shiny but different than the original.

      Bally Coin Door & Trim
      Bally Cash Box
      Bally Sticker
      3X Bally price plates
      Carriage bolt set
      7/8" Coin Door Lock - Single Bitted
      #161 Eiki Bulbs


      Sound

      The integrated sound on this motherboard is from Realtek, nothing special but you can route seperate audio streams to front and back outputs, which is now a feature in visual Pinball. (Doesn't work in Future Pinball, sound only comes from the primary backbox speakers) I have the Logitech Z506 5.1 speakers on the back outputs, and the Logitech S220 2.1 speakers on the front headphone jack. So backbox rom sound is separated from cabinet mechanical sounds. I am missing authentic force feedback, but I can control the volume of the whole cabinet. I copied the small bottom vent holes in the original cabinet, and the speakers are placed nearby. In the lower backbox, the speakers are facing toward the bottom hole that overhangs the playfield. I like that the speakers aren't right in my face, and without a speaker panel all 3 screens are blank when turned off.

      Logitech Z506
      Logitech S220


      PC

      The playfield cabinet is not as tall as a Williams widebody, so I could not fit a shelf for the PC above where the legs attach. Because of this I just kept the PC in its case, which could technically be pulled out the back if needed, a tight sqeeze though.

      Windows 7 Ultimate x64 SP1
      Intel DP55KG Motherboard
      Intel Core i7-860 2.80GHz
      Kingston 4GB DDR3 1333
      Samsung SSD 830 Series 128GB
      Antec Sonata Designer 500 Case
      2X Galaxy GeForce GTS 250 1GB
      2X Nexus 92mm Real Silent Case Fan
      750W Antec Earthwatts Power Supply
      Smart Strip LCG3 Surge Protector
      Logitech mk260 wireless Keyboard & Mouse
      (these work OK but sometimes lag)


      Buttons

      Coin return button=cabinet on
      The PC momentary switch is in the first coin mech, I just cut off the square top of the switch so it works. Not all coin mechs fit this method, I had to use a metal one from a Ms. Pac-Man. The PC is plugged into the Control Outlet on the Smart Strip and automatically switches everything else on.
      Coin door start button=Start (also I-PAC2 shift button)
      L Flipper Front (shifted=L Nudge)
      R Flipper Front (shifted=R Nudge)
      L Flipper Back=secondary L flipper/magna save/buy-in (shifted=Insert Coin)
      R Flipper Back=secondary R flipper/magna save (shifted=Exit)
      I didn't put in any analog nudging, maybe if I improve at pinball I will, because the above shift settings are not very functional.
      Shooter (shifted=Fwd Nudge, Genre in Hyperpin)
      The shooter hits a microswitch wired backwards as NC (Normally Closed)
      I used Speedbor bits for the button holes, 5/8 & 1-1/8.

      I-PAC2
      4X NOS 1-1/8 short Leaf Switch Buttons
      4X PAL nut 5/8"
      4X VPCLeaf Switch (works well with I-PAC2 low current)
      Switch - miniature drop bar target
      Bally Shooter


      Ventilation

      I replicated the original backbox vents, which I wouldn't recommend as most projects have large strong fans. I routed out a long air intake under the cab for the PC, and there's also the speaker hole, which was done with a router using a makeshift jig. I ran a 92mm case fan up into the bottom hole of the lower backbox, and another for the upper backbox, so it has upward airflow. I didn't notice excessive heat in the lower cabinet, the upper backbox (NEC LCD3000) gets hotter though. I covered the routed area in the upper backbox with thermal aluminum tape. I was still a bit concerned about airflow so in the end left the back slightly unhinged and have a small desk fan route air out the back.
×
×
